Lubrication Tube Fittings Types:
DIN 2353 L LL S series ISO 8434-1 L series
Taper Thread of Metric and BSP

Shapes of Lubrication Tube Fittings

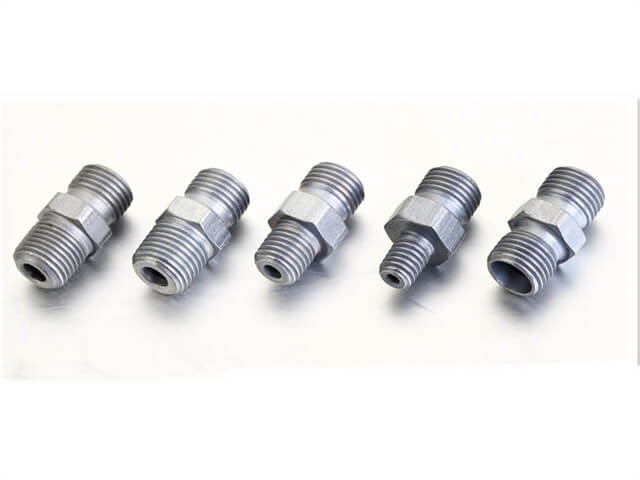

Straight

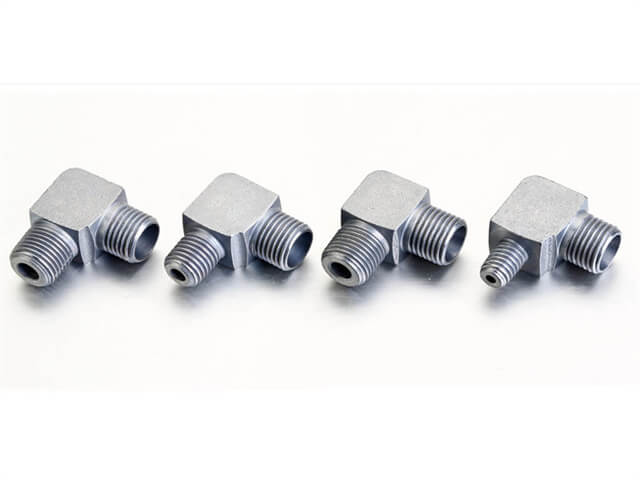

Elbow
Tee
Banjo

Match Port types Standards As Follows:
BSPP Port
Metric Port
Catalog of Lubrication Tube Fittings
Dimensions of Lubrication Tube Fittings
  • 24 degree cone connector

  • Straight, Elbow, Tee, Banjo, Nut and Sleeve

Availability:

PDF Export

Lubrication Fittings for Grease and Oil Lines

FITSCH manufactures lubrication fittings to DIN 2353 / ISO 8434-1, the 24° cone cutting ring connectors that carry grease and oil from a pump or distributor block to every lubrication point on a machine. The range covers straight studs, elbows, tees, banjo and bulkhead connectors in the LL, L and S series, for tube outside diameters from 4 mm to 42 mm, with metric parallel and BSPP port threads. Working pressure follows the series, from 100 bar in LL up to 630 bar in the heavy S series, and every batch is machined and inspected in an ISO 9001 factory before shipment.

A lubrication fitting is the tube connector that joins a grease or oil line to the pump outlet, distributor block or lubrication point of a central lubrication system. In DIN 2353 systems it is a 24° cone connector: a nut and a cutting ring press the tube against a machined cone, so the joint seals metal to metal without tape, sealant or welding.

What a lubrication fitting is, and what it is not

Lubrication tube fittings are not grease nipples. A grease nipple (zerk, to DIN 71412 or SAE J534) is the small spring-loaded check valve that a grease gun couples onto at the bearing; a lubrication fitting is the line connector behind it, joining tube to tube or tube to a threaded port. A central lubrication system usually uses both: fittings along the line between pump, divider blocks and points, and nipples or quick-couplers at the points that are still greased by hand.

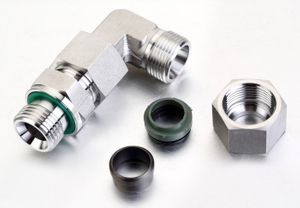

The fittings on this page are the line side. They connect 4 mm to 42 mm steel tube, hold working pressure from 100 to 630 bar depending on series, and accept metric or BSP port threads. Each connection consists of three parts: a body with the port thread or tube seat, a cutting ring that bites into the tube wall, and a nut that drives the ring home.

How the 24° cone cutting ring connection seals

The joint holds pressure because two seals form at once. Step one: cut the tube square and deburr it, slide the nut and the cutting ring onto the tube with the ring chamfer facing the fitting body. Step two: insert the tube until it seats on the 24° cone. Step three: tighten the nut by hand, then torque it, and the ring is forced up the cone. Its cutting edge shears a shallow groove into the tube wall, which forms the primary metal-to-metal seal on the cone and a second seal plus a mechanical grip behind it. Step four: the ring stays on the tube permanently, so the connection can be remade many times without losing the seal.

Torque matters more than turns. As a workshop guide, tighten finger-tight and then add roughly one full turn for LL and L sizes and about one and a half turns for S sizes, but follow the torque table supplied with the fittings and with the tube you use. Under-tightening leaves the ring short of the cone and the joint will weep at pressure; over-tightening crushes the tube and closes the flow path.

LL, L and S: choosing the right pressure series

EN ISO 8434-1 defines three series of 24° cone connector, and the series decides the thread size, the nut size and the pressure the line can hold. Choosing by tube diameter alone is the most common ordering mistake: a 6 mm tube exists in all three series, and only the series tells you whether the line is good for 100 bar or 630 bar.

SeriesTube OD, mmNominal working pressureWhere it is used
LL (extra light)4, 6, 8100 barShort runs, small machines, plastic or thin-wall tube, low-pressure grease and oil feeds
L (light)6, 8, 10, 12, 15250 barStandard grease lines on machine tools, trucks, agricultural equipment
L (light)18, 22160 barLarger bore feeder lines
L (light)28, 35, 42100 barReturn and low-pressure transfer lines
S (heavy)6, 8, 10, 12, 14630 barConstruction and mining machinery, shock-loaded pins, high-pressure grease
S (heavy)16, 20, 25400 barHeavy feeder lines
S (heavy)30, 38315 barLarge bore high-pressure lines

For most central lubrication lines, 6 to 12 mm tube running at 40 to 150 bar with short peaks when a divider block strokes, the L series is the practical choice. LL is specified where space and weight are tight and pressure stays under 100 bar, for example on small machine tools or on plastic tube runs. S is specified where the line sees pressure spikes, pulsation or mechanical shock, which is normal on excavator pins, press slides and mining conveyors.

The pressure values above are the nominal ratings of the standard, for steel tube with the wall thickness that the series requires. They fall with thin-wall tube, with non-metallic tube, and with high working temperature. Send us the tube specification and we will confirm the rating for your line rather than for the catalogue.

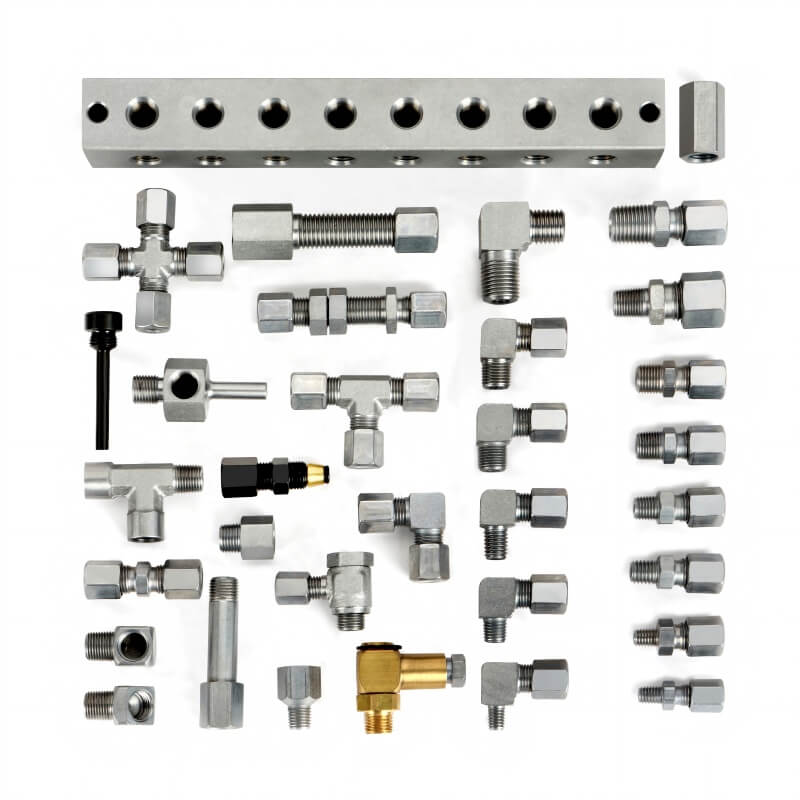

Shapes we supply

The same 24° cone body is machined into ten shapes. Most lubrication line failures come from picking the wrong shape rather than the wrong thread, so the table below pairs each shape with the situation it solves.

ShapeWhat it doesTypical use

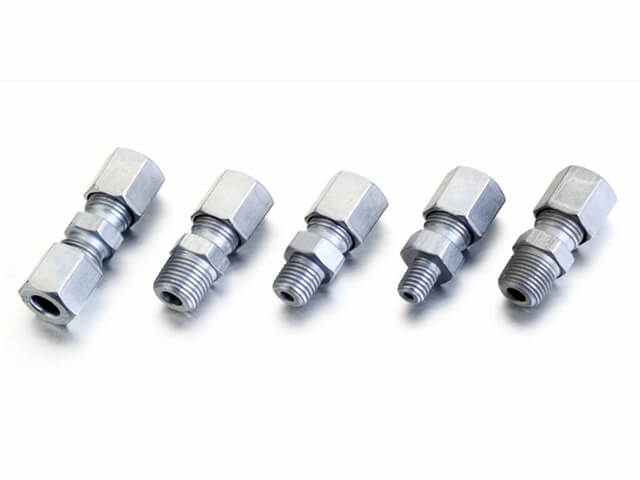

Male stud straightTube to a threaded port, in line with the port axisFeeding a divider block or a pump outlet

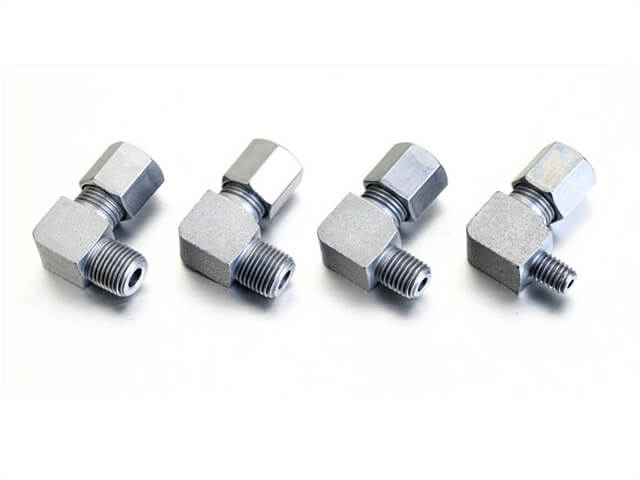

Male stud elbow, 90°Tube to a port at a right angleTight machine frames, cylinder ports
Adjustable stud elbowElbow that can be oriented after the port is tightenedSetting the tube run direction on assembly
Union straightTube to tube, same diameterJoining two line sections
Union elbowTube to tube at 90°Routing around a bearing housing
Union tee and branch teeOne inlet, two outletsSplitting a feed to two lubrication points
Bulkhead straight and elbowPasses through a panel, frame or machine guardLines that cross a chassis rail or a guard plate
Banjo elbow swivelCompact 90° outlet around a banjo boltGreasing blocks and manifolds where axial space is short; see also banjo fittings
Nut and cutting ring setReplacement sealing parts for a 24° cone jointRe-terminating a line in the field

Threads and ports: matching the machine

A fitting only works if the stud thread matches the tapped port on the machine. We machine three port families, and the sealing method differs between them.

Port familyCommon sizesHow it sealsNotes
Metric parallel (M)M8×1, M10×1, M12×1.5, M14×1.5, M16×1.5, M18×1.5, M22×1.5Bonded washer or O-ring on the stud shoulderStandard on European and Japanese machinery; the port is a plain tapped hole with a spot face
Metric taper (M keg, DIN 158-1)M6×1, M8×1, M10×1, M12×1.5, M14×1.5, M16×1.5, M18×1.5, M20×1.5, M22×1.5Seals in the thread itself on a 1:16 taper, with a thread sealant; no washerCommon on German and Japanese lubrication blocks. Screws into an ordinary parallel M port to DIN 13 up to the reference plane a of DIN 3852-1; marked “keg” (Kegel) in the part number
BSPP parallel (G)G1/8, G1/4, G3/8, G1/2Bonded washer (Dowty type)The most common port on lubrication pumps and greasing blocks
BSPT taper (R)R1/8, R1/4, R3/8, R1/2Seals in the thread itself, with or without sealantOlder machines and some US-built equipment; thread depth must be controlled
NPTOn requestSeals in the threadSupplied against drawing or sample

Metric taper studs carry the suffix keg in the part number and follow DIN 158-1. The thread is conical at 1:16, and by design it screws into an ordinary parallel M port to DIN 13 (tolerance -4H5H) as far as the reference plane a defined in DIN 3852-1, so the two can be hand-threaded together. The seal forms inside the thread and needs a thread sealant; there is no washer and no spot face for one. This is not BSPT: a metric keg stud and a BSPT stud do not replace each other, and mixing them damages the port.

Parallel ports need a washer; taper ports do not. A parallel stud screwed into a taper port will not seal at pressure, and the reverse combination damages the thread. If the port is not marked on the drawing, measure the thread pitch and the spot-face diameter, or send a photo with a ruler in frame, and we will identify it.

Materials, temperature and working limits

Carbon steel, zinc-plated, is the default for grease and oil lines and covers most central lubrication systems. Stainless steel 304 or 316L is specified where the line is washed down, exposed to salt or used in food and marine equipment; 316L also suits offshore and deck machinery. Brass is available for low-pressure lines and for tube that must not be scratched.

The standard range runs from -25 °C to +80 °C with NBR seals, which covers machine tools, mobile equipment and outdoor installations in most climates. Below -25 °C, or above 80 °C near a heat source, tell us at the enquiry stage: seal compound and material have to change, and the pressure rating may have to be derated. Greases from NLGI 000 fluid grease to NLGI 3, and mineral hydraulic oil, are all handled by the same body; the restriction is the bore, not the seal.

Where these fittings are used

IndustryTypical lubrication pointsFitting note
Construction equipmentBoom and bucket pins, slew ring, quick coupler, track tensionerS series for shock loads; bulkhead elbows through the boom plate
Agricultural machineryHeader and rotor bearings, seed drill coulters, balers, sprayer pumpsL series with banjo elbows where the frame is crowded
Trucks and trailersFifth wheel, kingpin, brake cam bushes, tipper hinge, landing legsBulkhead fittings through the chassis rail; stainless for road salt
Port and mining machineryConveyor pulleys, stackers, reclaimers, drill rigsS series, stainless for washdown and salt air
Machine tools and pressesGuideways, ball screws, spindle bearings, slidewaysLL and L small bore, banjo blocks at the metering units
Marine deck equipmentWinches, hatch covers, steering gear, mooring equipment316L throughout, with bonded washers in stainless

The common thread across these applications is accessibility rather than pressure. A line that is easy to grease by hand gets a nipple at the point; a line that is buried in a boom, a chassis rail or a press frame gets a tube run with fittings, brought out to a single greasing block. Grease hose used between the pump and the block is covered in lubrication hose fittings.

How to specify and order

Five details decide the part. Send them in one message and the quotation comes back with a dimensional drawing, which avoids the usual two or three rounds of clarification.

One: tube outside diameter, for example 6, 8, 10 or 12 mm, with wall thickness if you know it. Two: series, LL, L or S. Three: shape and thread, for example male stud elbow, M12×1.5. Four: tube end form, normally a 24° cone with nut and cutting ring; tell us if the machine uses a different end, such as a DIN 3854 taper sleeve or a 37° flare. Five: material and finish, quantity, and any marking you need on the body.

If you only have a photo, a sample or an OEM part number, send that instead. We cross-reference it to the equivalent DIN 2353 item, confirm the thread and the tube size against the drawing, and return a dimensioned sketch for approval before production.

Part numbers: how to read the code

Every item follows one code pattern: family, tube size, series, thread, then an optional suffix. 1LLM-4-6K reads as a straight male stud for 4 mm LL tube with an M6×1 thread, supplied as an assembly with nut and cutting ring; the same body without those parts is 1LLM-4-6KOMD. Fittings to DIN 3854 and DIN 3862 are supplied as body only, and the letter C on the end adds the double-taper sleeve and socket union screw assembled. The letter K in the thread segment marks a taper thread: metric keg to DIN 158-1, or BSPT; without K the thread is parallel.

Material and finish sit at the end of the code: no suffix is carbon steel with zinc-nickel plating, BRA is brass, 304 and 316L are the corresponding stainless grades. The table below gives one representative part number per family, so that a line can be specified without a drawing round trip.

FamilyTypical part numberSize rangeNote
Tube nut (M)NLL-4, NL-8LL 4–8 mm, L 6–10 mmMated with the cutting ring of the same series
Cutting ringRLL-4, RL-10LL 4–8 mm, L 6–10 mmDIN 3861 / ISO 8434-1, supplied with the fitting
Straight male stud (GE)1LLM-4-6K, 1LLR-8-4KLL 4–8 mm, L 8–12 mm24° cone to metric or BSP taper thread
Elbow male stud (WE)1LLM9-6-8K, 1LR9-12-6KLL 4–8 mm, L 8–12 mm90° outlet, same port families
Straight union (G)1LL-6, 1L-10LL 4–8 mm, L 10 mmTube to tube, same diameter
Elbow union (W)1LL9-8, 1L9-10LL 4–8 mm, L 10 mmTube to tube at 90°
Tee (T)ALL-6, AL-10LL 4–8 mm, L 6–10 mmOne inlet, two outlets for splitting a feed
Cross (K)XLL-6, XL-10LL 6 mm, L 6–10 mmFour-way junction
Bulkhead straight (SV)6LL-6, 6L-10LL 6 mm, L 6–10 mmThrough a panel, guard or chassis rail
Bulkhead elbow (WSV)6L9-8, 6L-10L 6–10 mm90° outlet through a panel
Banjo swivel (SWVE)1LLI-6-M10, 1LI-6-M10LL 4–6 mm, L 6 mmCompact 90° outlet around a banjo bolt
Banjo tee, female1LLF-6-M10, 1LLF-6-G02LL 6 mmSwivel banjo with a female outlet
Bulkhead female6LF-6-M6, 6LLF-6-M6LL 6 mm, L 6 mmFemale tube end through a bulkhead
Non-return valveRVLL-6-10241, RVLL-6-02R1LL 4–6 mmIntegral check valve to stop grease flowing back
Non-return valve, presetRHV06SRED2BAR, RHV08LRED3BARS 6 mm, L 8 mmCracking pressure 2 bar or 3 bar
Tapered sleeve, DIN 3854/3862DNLL-6, DRLL-4BRA, PNLL-4, PRLL-6BRALL 4–6 mmDouble-taper sleeve for steel tube, tapered sleeve for PA 12
Thread adapter, 5K series5KMC-6-8L19, 5KM9-10-10, 5TB-4-4L50M6×1 to M10×1, R1/8 to R1/4Extension, reduction and male-to-female conversion, 18–104 mm
Banjo fitting, DIN 714301MCI-8-8, 2MCI-10-10-10, 1MCI-8-RM8KBRABanjo 8–10 mmBanjo bolt connection, fixed or rotatable stud
Non-return valve adapterRVMC-10-10, RVNF-2-2, RVTF-2-2M10×1, NPT 1/8, R1/8Type A for progressive distributors, type B for taper ports

Quality, interchangeability and supply

FITSCH has supplied hydraulic and lubrication tube fittings for more than 20 years, from an ISO 9001 certified supply chain, to customers in over 50 countries. Because the dimensions are fixed by DIN 2353 and ISO 8434-1, a fitting of a given series and size fits the same tube and the same port as any other standard-compliant part of that size, which is why these fittings are used to replace Parker, Eaton, Ermeto and Walterscheid items on existing machines. Those brand names describe interchangeability only; they do not indicate origin.

Material certificates and dimensional inspection reports are available for orders that require them, and samples can be supplied before a production order so that the thread and the cone can be checked on your own port. Pressure protection upstream of the line is handled by non-return valves for lubrication systems, and pressure checks at the block by test point adapters.

Frequently asked questions

What is the difference between a lubrication fitting and a grease nipple?
A lubrication fitting joins tube to tube or tube to a port and carries the line; a grease nipple is the check valve at the bearing that the grease gun couples onto. Central lubrication systems use both, but they are not interchangeable parts.

Which series should I use for a 6 mm grease line at 150 bar?
The L series. A 6 mm L fitting is rated 250 bar in steel tube; the LL version of the same 6 mm size is rated 100 bar and would be marginal at 150 bar. Choose S only if the line also sees shock or pulsation above the L rating.

Can LL, L and S parts be mixed on one machine?
Not directly. The three series use different thread sizes, nut sizes and cone dimensions, so an LL nut will not fit an L body. Keep each line in one series and use adapters only where a section has to change.

Are these fittings interchangeable with Parker, Eaton or Ermeto parts?
Yes, for the same series and tube size, because the dimensions come from DIN 2353 / ISO 8434-1. Check the tube end form as well as the thread: standard 24° cone parts interchange, while special ends such as 37° flare or DIN 3854 taper sleeve do not.

Do the fittings come with the nut and the cutting ring?
Yes. Fittings are shipped as assembled sets with nut and ring, and the components are also available separately for replacement or for line repairs in the field.

What tube should I use with these fittings?
Seamless precision steel tube to EN 10305-4, in the wall thickness the series specifies. Copper, aluminium and PA tube can be used with matching inserts and at reduced pressure; they are not a direct substitute for steel in an S-series line.

Can you supply stainless steel for washdown or offshore use?
Yes, 304 and 316L, with stainless bonded washers. Note that stainless bodies are rated slightly lower than carbon steel in some sizes, so confirm the figure for the series you need.

Request a quotation

Send the tube size, the port thread and the quantity to info@fitsch.cn, or use the inquiry form on this page. You will receive the price, a dimensional drawing and the equivalent part number for the equipment you are maintaining.


G Male Straight Union Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 straight union connector


Lubrication tube fittings male connector Straight Union dimensions


Part No.

ØD

Series

L1

L2

S1

S2

Cross reference

Bag

1LL-4

4

LL

31

12

9

10

G4LL

50

1LL-6

6

LL

32

9

11

12

G6LL

50

1L-6

6

L

39

10

12

14

G6L

50

1S-6

6

S

45

16

14

17

G6S

50

1LL-8

8

LL

35

12

12

14

G8LL

50

1L-8

8

L

40

11

14

17

G8L

50

1S-8

8

S

47

18

17

19

G8S

50

1LL-10

10

LL

42

10

17

19

G10L

50


GE-M-K GE-R-K Male Stud Straight Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 to Metric Keg taper and BSP taper thread


Lubrication tube fittings male connector Straight stud dimenions

Part No.

ØD

Series

M

L1

L2

L3

S1

S2

Cross Reference

Bag

1LLM-4-6K

4

LL

M6x1k

8

16

26

10

10

GE4M6.1KLL

50

1LLM-4-8K

4

LL

M8x1k

8

16

26

10

10

GE4M8.1KLL

50

1LLM-4-10K

4

LL

M10x1k

9

14,5

26

11

12

GE4M10.1KLL

50

1LLM-6-6K

6

LL

M6x1k

8

14,5

26

11

12

GE6M6.1KLL

100

1LLM-6-8K

6

LL

M8x1k

8

14,5

26

11

12

GE6M8.1KLL

100

1LLM-6-10K

6

LL

M10x1k

9

14,5

26

11

12

GE6M10.1KLL

100

1LLR-6-2K

6

LL

R1/8"k

9

14,5

26

11

12

GE6R1/8KLL

100

1LLR-6-4K

6

S

R1/4"k

12

23,5

40

17

17

GE6R1/4KS

50

1LLM-8-10K

8

LL

M10x1k

9

16,5

28

12

14

GE8M10.1KLL

50

1LR-8-4K

8

L

R1/4"k

12

20

35

17

17

GE8R1/4KL

50


SV Male Straight Bulkhead Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 to bulkhead straight connector


Lubrication tube fittings male connector Straight Bulkhead Dimensions




Part No.

ØD

Series

M

L1

L2

L3

L4

S1

S2

S3

tmax

Cross reference

Bag

6L-6

6

L

M12x1,5

42

27

22

7

14

17

17

16

SV06L

20

6L-8

8

L

M14x1,5

42

27

23

8

17

19

19

16

SV08L

20


WE-M-K WE-R-K Male Stud Elbow Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 to Metric Keg taper and BSP taper thread elbow connector

Lubrication tube fittings male connector Elbow Dimensions

Part No.

ØD

Series

M

i

L1

L2

L3

S1

S2

Cross reference

bag

1LLM9-4-6K

4

LL

M6x1k

8

11

21

15

9

10

WE4M6.1KLL

50

1LLM9-4-8K

4

LL

M8x1k

8

11

21

17

9

10

WE4M8.1KLL

50

1LLM9-4-10K

4

LL

M10x1k

9

11

21

17

11

10

WE4M10.1KLL

50

1LLR9-4-2K

4

LL

R1/8"k

9

11

21

18

11

10

WE4R1/8KLL

50

1LLM9-6-6K

6

LL

M6x1k

8

9,5

21

15

11

12

WE6M6.1KLL

100

1LLM9-6-8K

6

LL

M8x1k

8

9,5

21

17

11

12

WE6M8.1KLL

100

1LLM9-6-10K

6

LL

M10x1k

9

9,5

21

17

11

12

WE6M10.1KLL

100

1LM9-6-10K

6

L

M10x1k

9

12

27

20

12

14

WE6M10.1KL

50

1LLR9-6-2K

6

LL

R1/8"k

9

10

22

17

11

12

WE6R1/8KLL

100

1SR9-6-4K

6

S

R1/4"k

12

16

31

27

14

17

WE6R1/4KS

50

1LLM9-8-10K

8

LL

M10x1k

9

11,5

23

20

12

14

WE8M10.1KLL

50

1LLR9-4-2K

8

LL

R1/8"k

9

11,5

23

20

14

14

WE8R1/8KLL

50

1LR9-8-4K

8

L

R1/4"k

12

14

29

27

14

17

WE8R1/4KL

50

1LR9-10-4K

10

L

R1/4"k

12

15

30

27

17

19

WE10R1/4KL

50

1LR9-12-6K

12

L

R3/8"k

12

17

32

28

19

22

WE12R3/8KL

50


W Male Elbow Union Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 elbow union connector


Lubrication tube fittings male connector Elbow Uion Dimensions

Designation

ØD

Series

m

L1

L2

L3

Ød1

S1

S2

Cross Reference

Bag

1LL9-4

4

LL

M8x1

21

15

11

3

9

10

W4LL

50

1LL9-6

6

LL

M10x1

21

15

9,5

4,5

11

12

W6LL

50

1LL9-8

8

LL

M12x1

23

17

11,5

6

12

14

W8LL

50

1L9-10

10

L

M16x1,5

30

22

15

8

14

19

W10L

50


WSV Male Elbow Bulkhead Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 elbow bulkhead connector


Lubrication tube fittings male connector Elbow Bulkhead Dimensions



Part No.

ØD

Series

M

L1

L2

L3max

L4

L5

S1

S2

S3

tmax

Cross

Bag

6L-6

6

L

M12x1,5

42

27

27

12

14

14

17

12

16

WSV06L

50

6S-6

6

S

M14x1,5

44

29

31

16

17

17

19

12

16

WSV06S

50

6L-8

8

L

M14x1,5

42

27

29

14

17

17

19

12

16

WSV08L

50


T Male Tee Union Lubrication Fittings

DIN 24°cone end, ISO 8434-1/DIN 2353 tee union connector


Lubrication tube fittings male connector Tee Uion Dimensions

Part No.

d1

d2

d3

Series

L1

L2

S1

S2

S3

Cross

Bag

6LL9-4

4

4

4

LL

21

11

10

10

9

T4LL

50

6L9-6

6

6

6

L

27

12

12

12

14

T6L

50

6LL9-6

6

6

6

LL

21

9,5

12

12

11

T6LL

50

6S9-6

6

6

6

S

31

16

14

14

17

T6S

50

6L9-8

8

8

8

L

29

14

14

14

17

T8L

50

6LL9-8

8

8

8

LL

23

11,5

14

14

12

T8LL

50


1FMI/1FGI Female Banjo Lubrication Fittings

Swivel banjo female connector



Lubrication tube fittings swivel banjo Dimensions



Part No.

Pipe-Ø

M

m

i

L1

L2

L3

S1

1FMI-6-6*0.75

2,5

M6x0,75

M6

6

24

18

24

12

1FMI-8-5

4

M5

M8x1

6

24

18

24

12

1FMI-8-6

4

M6

M8x1

6

24

18

24

12

1FMI-8-6*0.75

4

M6x0,75

M8x1

6

24

18

24

12

1FMI-8-8

4

M8

M8x1

6

24

18

24

12

1FMI-8-10

4

M10x1

M8x1

7

26,5

19

26

14

1FGI-8-18

4

G1/8

M8x1

7

26,5

19

26

14

1FMI-10-10

6

M10x1

M10x1

7

26,5

20

27

14

1FMI-10-12

6

M12x1

M10x1

10

35

22

31

17

1FGI-10-14

6

G1/4

M10x1

10

35

22

31

19

1FGI-10-18

6

G1/8

M10x1

7

26,5

20

27

14

1FMI-14-12

8

M12x1

M14x1,5

7

34

29

39

17



1CI-M/1CI-B Male Banjo Lubrication Fittings

DIN 2353 24°cone end, ISO 8434-1 male swivel banjo connector



Lubrication tube fittings male connector Banjo Coupling dimensions


Part No.

Series

ØD

M

i

D

L1

L2

L3

L4

S1

S2

S3

Cross

1LLI-4-10

LL

4

M10x1

6

10

20

9,5

22

10

14

14

10

1CI-04LL-10

1LLI-4-8

LL

4

M8x1

6

10

18

8

21

11,5

14

14

10

1CI-04LL-08

1LLI-6-8

LL

6

M8x1

6

10

20

9,5

22

10

14

14

12

1CI-06LL-08

1LLI-6-10

LL

6

M10x1

6

10

20

9,5

22

10

14

14

12

1CI-06LL-10

1LI-6-10

L

6

M10x1

6

14,5

22

10

26

11,5

14

17

14

1CI-06-10

1LI-6-2R

L

6

G1/8

6

14,5

22

10

26

11,5

14

17

14

1CI-06-B02


Previous:
Next:

ABOUT FITSCH

Fitsch has been in the business of hydraulic tube fittings, hydraulic adapters, hose fittings, hydraulic flanges, industrial fittings and hydraulic accessories for over 20 years, offering all our customer competitive products and supplies from our local industry manufacturers union.


PRODUCT CATEGORY

CONTACT US

   No.133-3 Anjiexi Road, Sanqishi Town, Yuyao 315412, China
   +86-13777243045
   info@fitsch.cn


Copyright  2024 Fitsch Ningbo International Trade Co.,ltd .  All rights reserved
