316L Stainless Steel Instrumentation Tube Fittings (Twin Ferrule Compression Connectors)
As a leading China instrumentation fittings manufacturer, we engineer a premier line of stainless steel instrumentation tube fittings and twin ferrule compression fittings. Designed to handle the rigorous demands of high-purity, high-pressure, and vacuum instrumentation systems, our connectors establish a gas-tight, leak-proof mechanical seal. Fitsch components are precision-machined to ensure complete dimension and performance interchangeability with international standard brands such as Swagelok, Parker A-LOK, Hoke, and Dk-LOK.
Advanced Twin Ferrule Sealing Mechanism

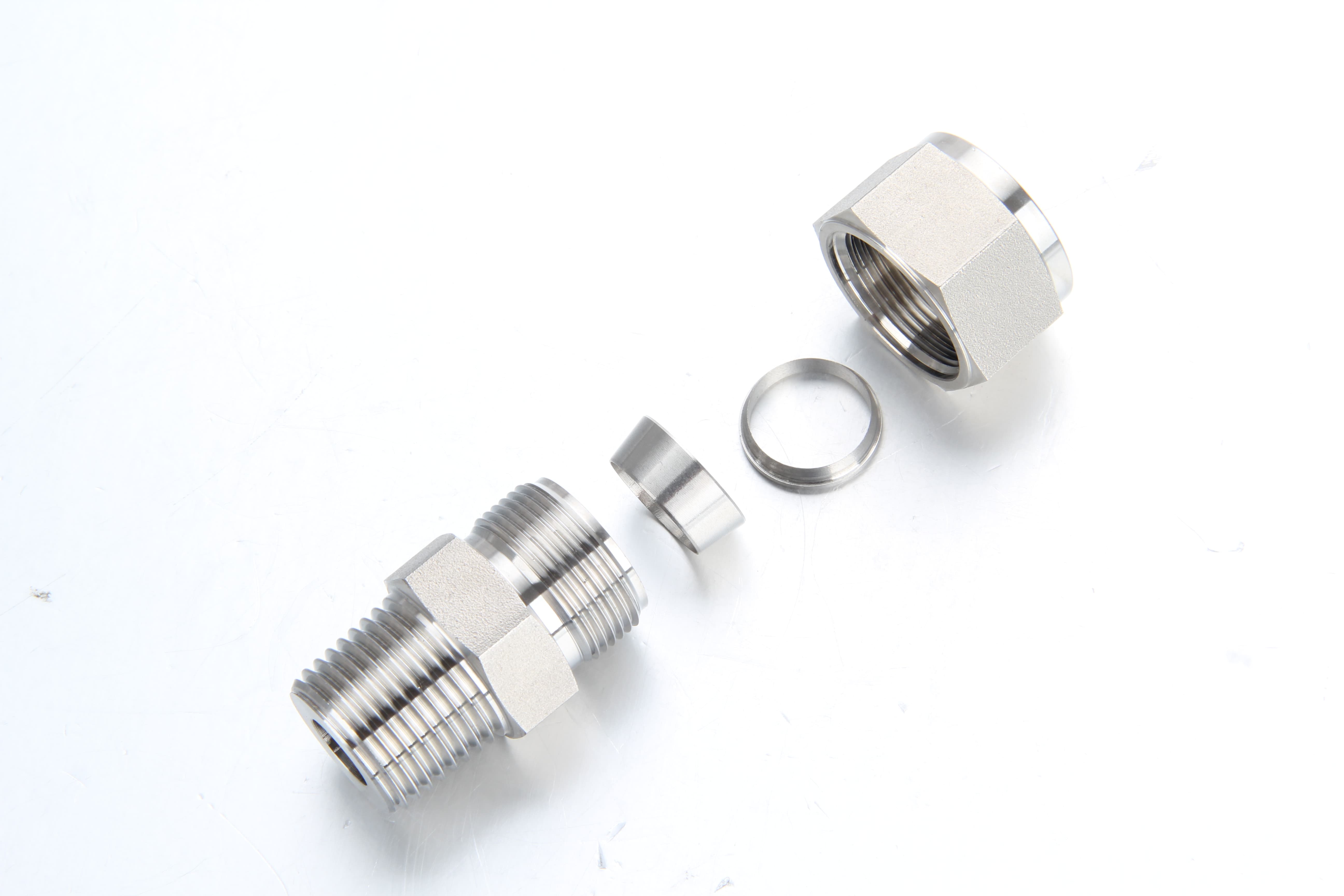

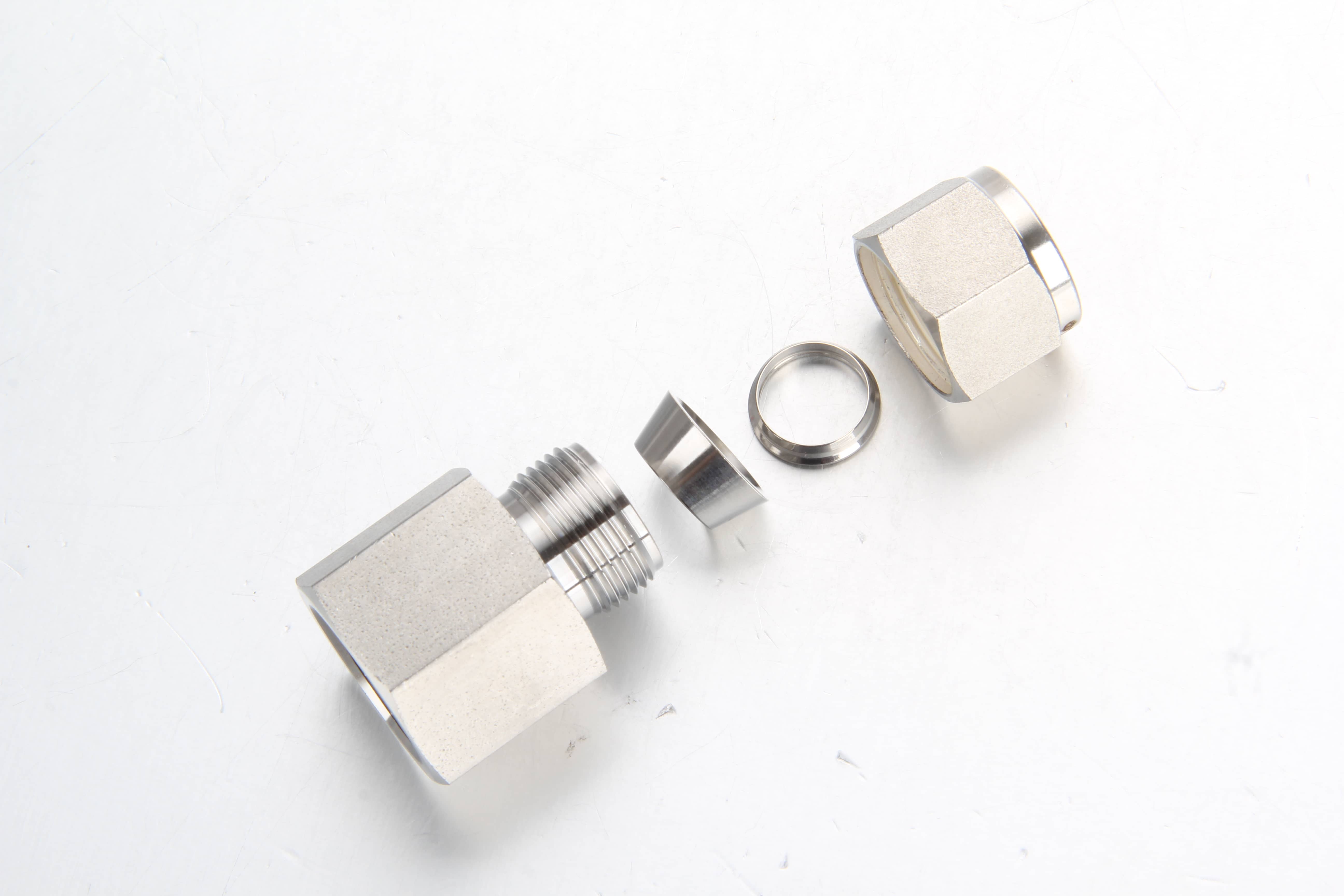

Our double ferrule tube connectors operate via a specialized four-piece mechanical design consisting of a fitting body, a front ferrule, a back ferrule, and a silver-plated nut.

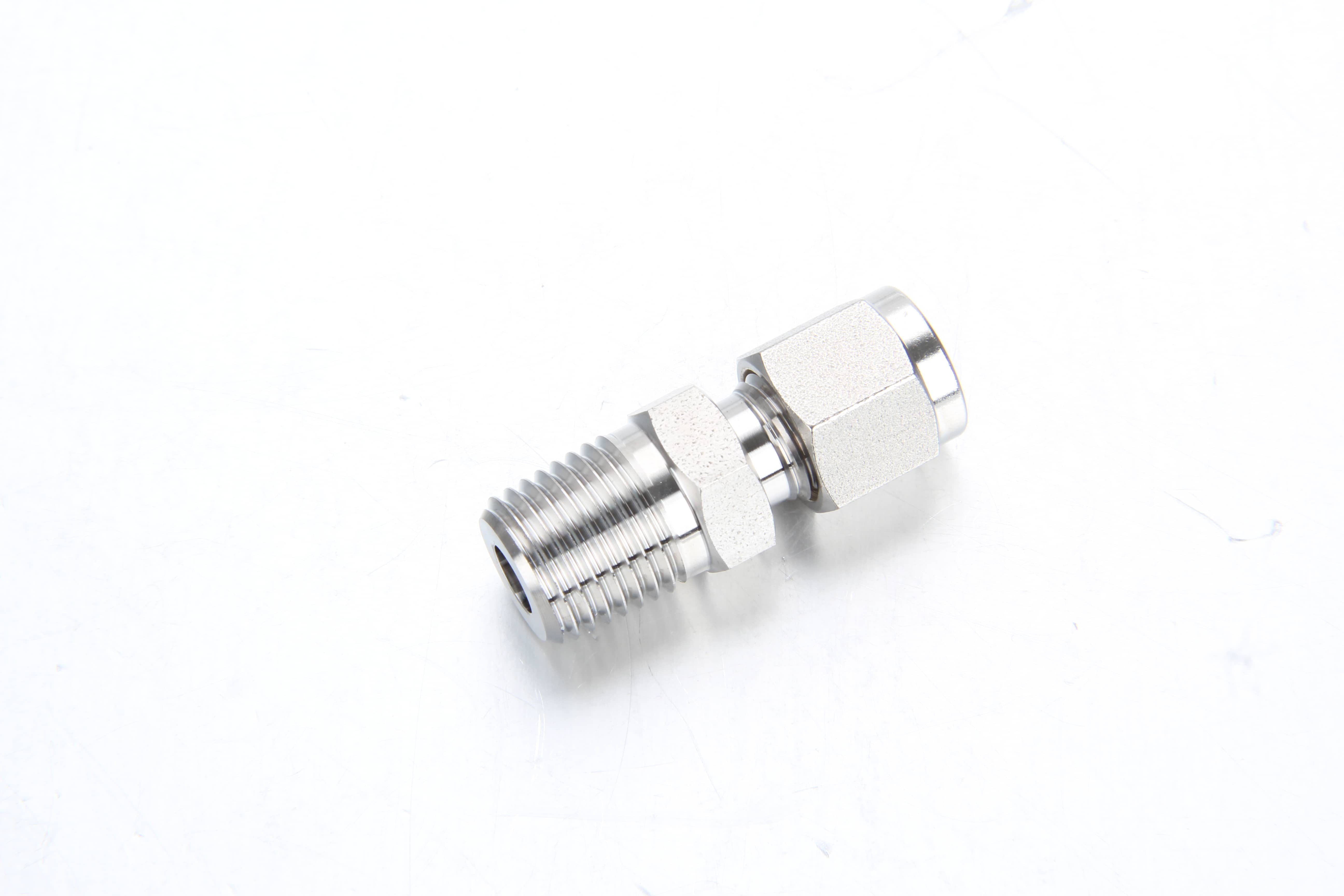

Front Ferrule Axial Seal: The front ferrule is driven into the body bevel to create a high-integrity surface seal against the fitting body and the tube outside diameter.
Back Ferrule Hinged Grip: The back ferrule mechanically clamps and hinges onto the tube, providing a robust, vibration-resistant grip that prevents any tube blowout or axial movement under extreme pressure cycles.
Silver-Plated Nut Threads: All internal threads of the compression nuts are systematically silver-plated. This eliminates thread galling against the stainless steel body during high-torque assembly.
Technical Specifications & Sourcing Matrix
Material Standards: Standard production in premium AISI 316L (1.4404) and AISI 304 (1.4301). For aggressive process environments, we supply Super Duplex, Alloy 400, and Hastelloy C-276.
Dual Sizing Availability: Available in both fractional (imperial) sizes from 1/16" to 2" and metric sizes from 2 mm to 50 mm outside diameter (OD).
Working Pressure Ratings: Engineered to match or exceed the maximum allowable working pressure of the highest-walled compatible instrumentation tubing, supporting thresholds over 10,000 psi (689 bar).

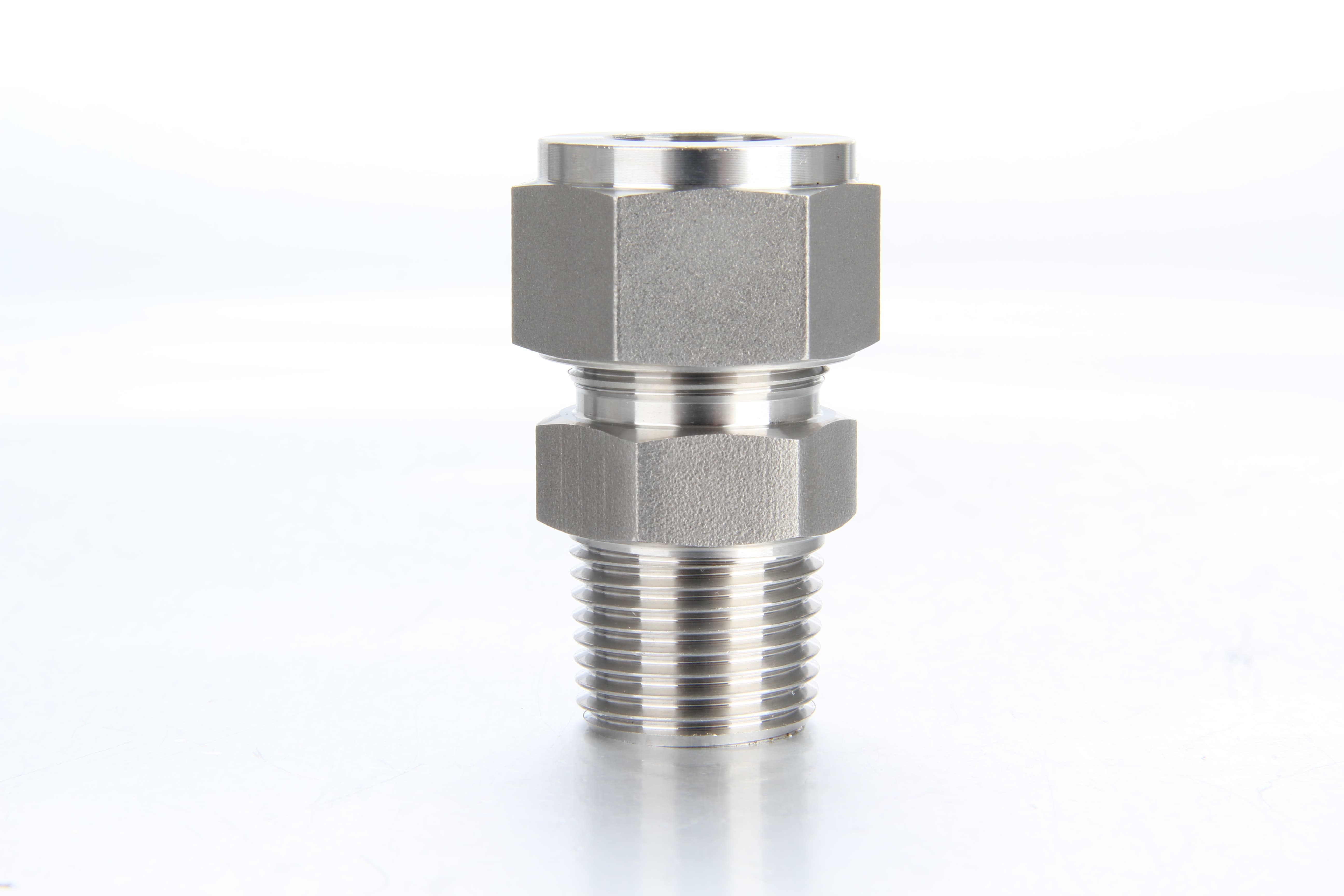

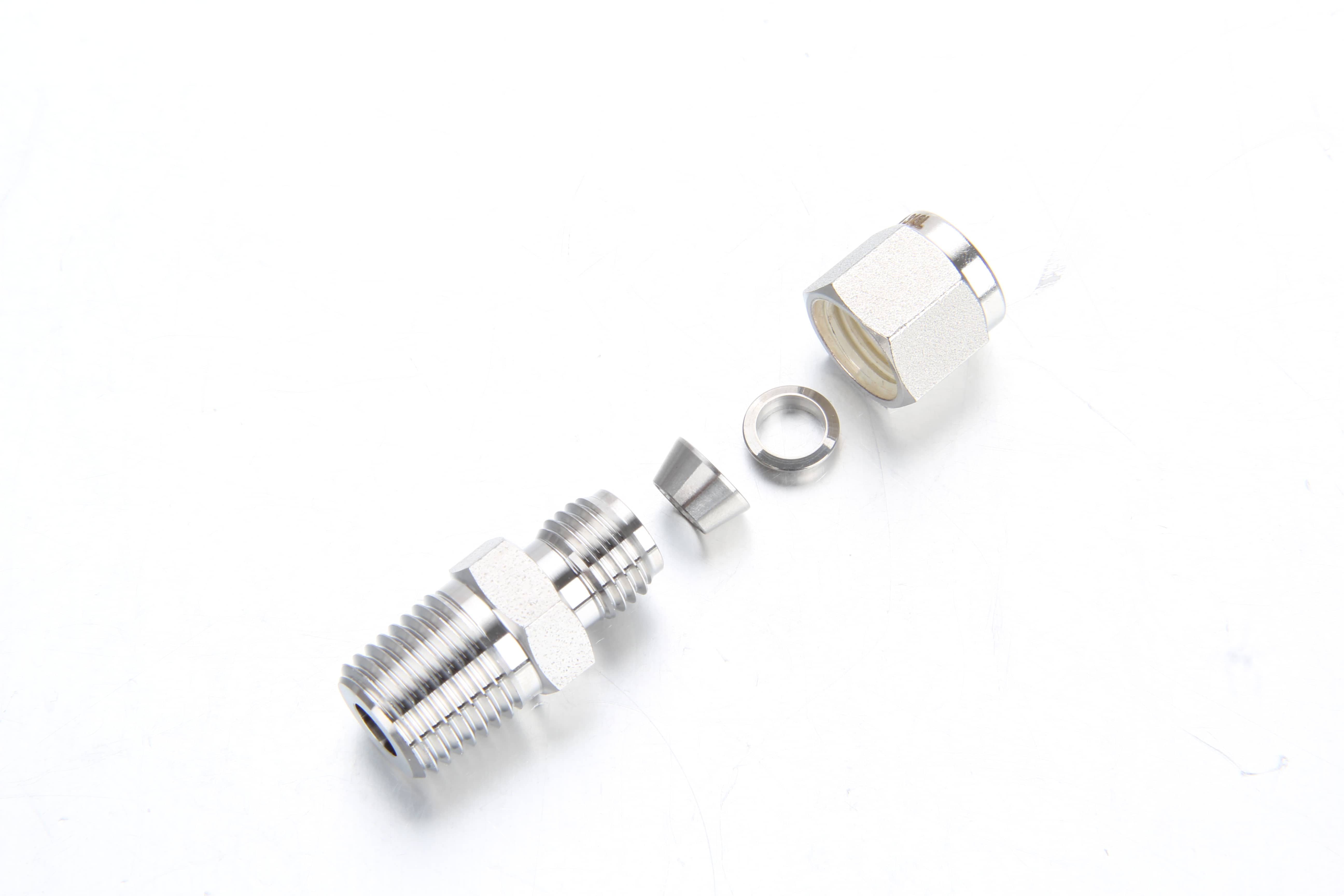

Thread Port Interconnects: NPT (National Pipe Thread), BSPP (G thread), BSPT (R thread), SAE/MS straight threads, and weld ends.

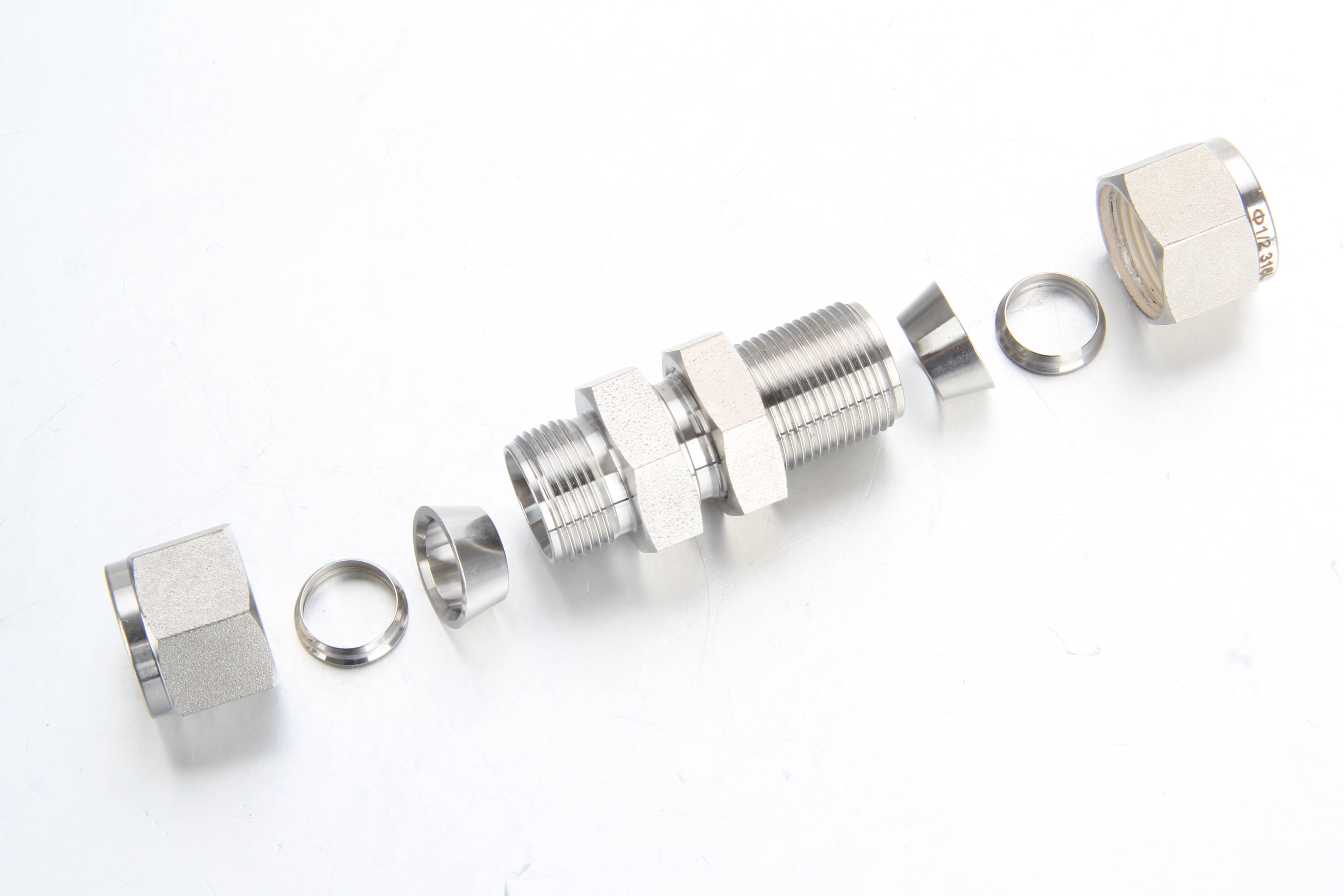

Comprehensive Configurations: Male/Female Connectors, Unions, Reducing Unions, Union Elbows, Union Tees, Union Crosses, Bulkhead Unions, and Caps/Plugs.
Target Applications
Our stainless steel twin ferrule connectors provide the reliability needed for absolute containment across critical processes:
Oil & gas analytical sampling systems
Petrochemical and chemical processing plants
Semiconductor and cleanroom gas delivery lines
Power generation and nuclear steam lines
Hydrogen refueling infrastructure and LNG handling
Why Partner with Our China Factory?
Zero Leakage Security: 100% inspected thread geometries and seal angles for high-vacuum and heavy gas applications.
Full Compliance Traceability: Material Test Reports (MTRs) certifying chemistry and hardness are included with every batch.
OEM Customization: Tailored CNC engineering for custom manifolds, block-and-bleed valve bodies, and non-standard adapters.
