In complex industrial power circuits, the durability of your terminal connecting nipples determines the overall safety, efficiency, and spill prevention of your system lines. The DIN 7241-B Series Male Quick Coupling serves as a globally standardized, high-reliability male plug designed for medium-to-high pressure applications. Commonly designated throughout the global fluid power industry as an ISO 7241-B or ISO-B male plug, this component features a hardened outer locking groove engineered to seat seamlessly into the ball bearings of a corresponding female receiving sleeve. This robust locking surface absorbs intense mechanical vibrations, systemic pressure pulses, and heavy torsional loads, preventing accidental blowouts or disconnects.
Size | Thread Size Option | Flow Rating (GPM / LPM) | Max Pressure (Steel) | Max Pressure (Stainless) | Max Pressure (Brass) | Fluid Loss per Disconnect |
1/4" (DN06) | 1/4" NPT / BSPP | 3 GPM / 11.4 LPM | 5,000 PSI (345 Bar) | 3,600 PSI (248 Bar) | 2,500 PSI (172 Bar) | 0.50 mL |
3/8" (DN10) | 3/8" NPT / BSPP | 6 GPM / 22.7 LPM | 4,500 PSI (310 Bar) | 3,600 PSI (248 Bar) | 2,200 PSI (151 Bar) | 1.10 mL |
1/2" (DN12) | 1/2" NPT / BSPP | 12 GPM / 45.4 LPM | 4,000 PSI (276 Bar) | 3,600 PSI (248 Bar) | 2,000 PSI (137 Bar) | 2.10 mL |
3/4" (DN20) | 3/4" NPT / BSPP | 28 GPM / 106.0 LPM | 3,600 PSI (248 Bar) | 3,000 PSI (207 Bar) | 1,800 PSI (124 Bar) | 4.30 mL |
1" (DN25) | 1" NPT / BSPP | 50 GPM / 189.0 LPM | 3,000 PSI (207 Bar) | 2,500 PSI (172 Bar) | 1,500 PSI (103 Bar) | 9.5 mL |
The core of this male disconnect plug features an advanced internal poppet valve mechanism. When coupled, the poppet is driven back mechanically to permit unrestricted fluid passage. Upon disconnection, the built-in spring instantly forces the poppet valve forward against its seat, achieving immediate double shut-off action. This sudden, precise seal prevents lines from spraying volatile fluids, protects expensive pump assemblies from dry-run pressure damage, and isolates the line from environmental debris like dust, mud, or moisture. The streamlined nose design ensures easy manual guidance into the female socket for rapid, tool-free tool or equipment line changes.
Dimensional Standards and Universal Cross-Brand Interchangeability
Maintaining a standardized fluid architecture across large factories or equipment fleets cuts down on inventory complexity and procurement snarls. Because this male quick-release coupling complies fully with the universal dimensional boundaries of the ISO 7241-1 Series B standard, it functions perfectly with female receiving sockets from premium international component lines. This complete dimensional standardization gives purchasing managers and MRO teams the freedom to execute quick drop-in component replacements without changing out entire hose lengths, matching seamlessly with the following market series equivalents:
Parker 60 Series
Eaton / Hansen HK Series
Faster HNV Series
Stucchi IRB Series
Dixon H-Series
Snap-Tite 72 Series
By eliminating reliance on proprietary cross-brand geometric locks, industrial facilities can streamline their material sourcing and avoid forced single-vendor locks.
Premium Segmented Materials for Specialized Environments
To achieve cost performance while honoring high physical durability requirements, these male quick disconnect plugs are manufactured across three specialized material formulations, each tailored to combat distinct industrial environments:
Hardened Carbon Steel with Eco-Plating: The default standard configuration for mobile hydraulic lines, factory machinery, and heavy industrial auxiliary equipment. The carbon steel substrate undergoes targeted heat treatment to protect the locking groove from frictional deformation and pitting. To ensure reliable protection against rust, the body is treated with an eco-safe, Chrome-VI free trivalent galvanized plating that withstands environmental moisture and grease contacts without the use of restricted chemicals.
316 Stainless Steel for Corrosive Media: The primary selection for marine decks, offshore drilling blocks, aerospace testing manifolds, and food processing lines. The 316 stainless steel metallurgy offers total immunity to structural oxidation and withstands aggressive chemical washdowns or salt spray. These plugs are paired with heavy-duty internal Viton seals to guarantee continuous tracking under high-temperature setups.
Non-Sparking Industrial Brass: Built specifically for safety-critical environments where accidental sparks or severe magnetic fields must be prevented. These brass male couplers excel in low-pressure cooling lines, fluid-handling operations, and automated centralized lubrication blocks running specialized oils or grease formulations.
High-Precision Material & Seal Configurations
To handle a broad spectrum of industrial liquids, chemical elements, and thermal ranges, these plugs are configured with target-specific internal elastomers:
Nitrile (NBR / Buna-N): Standard default configuration. Best suited for petroleum-based oils, mineral hydraulic fluids, greases, and water-glycol solutions.
Thermal Operating Range: -20°C to +100°C (-4°F to +212°F)
Fluorocarbon (Viton / FKM): High-performance option. Engineered for aggressive synthetic lubricants, heavy industrial chemicals, corrosive chemical processing media, and high-heat setups.
Thermal Operating Range: -20°C to +200°C (-4°F to +392°F)
Ethylene Propylene (EPDM): Specialized application setup. Strictly recommended for phosphate-ester hydraulic fluids, brake liquids, steam, and intense automotive fluids.
Thermal Operating Range: -40°C to +150°C (-40°F to +302°F)
International Manufacturing Standards & Compliance
To pass corporate compliance and legal audits for industrial installations, the design matches or exceeds these worldwide benchmarks:
ISO 16028 Testing Verification: Subjected to systematic burst pressure, vacuum, fluid loss, and structural cycle tests.
RoHS and REACH Compliance: Trivalent galvanized steel parts use an eco-safe surface finishing process that remains 100% Chrome-VI (Hexavalent Chromium) Free.
Safety Factor: Built with a 4:1 minimum burst-to-working pressure safety margin across all steel and stainless steel body profiles to eliminate catastrophic mechanical explosions under surge spikes.
Step-by-Step Installation & Maintenance Guide
Line Decompression: Prior to threading the male coupling plug onto the pipeline, ensure the active fluid circuit is fully powered down and completely drained of residual backpressure.
Thread Sealant Application: For standard tapered NPT threads, apply a light wrap of PTFE tape or a high-grade liquid thread sealant paste. For parallel BSPP thread connections, utilize a matching bonded seal (Dowty washer) against the hex face to secure a leak-free seat.
Wrench Torque: Use a calibrated wrench on the integration hex flats (SW) provided on the back port of the plug body.

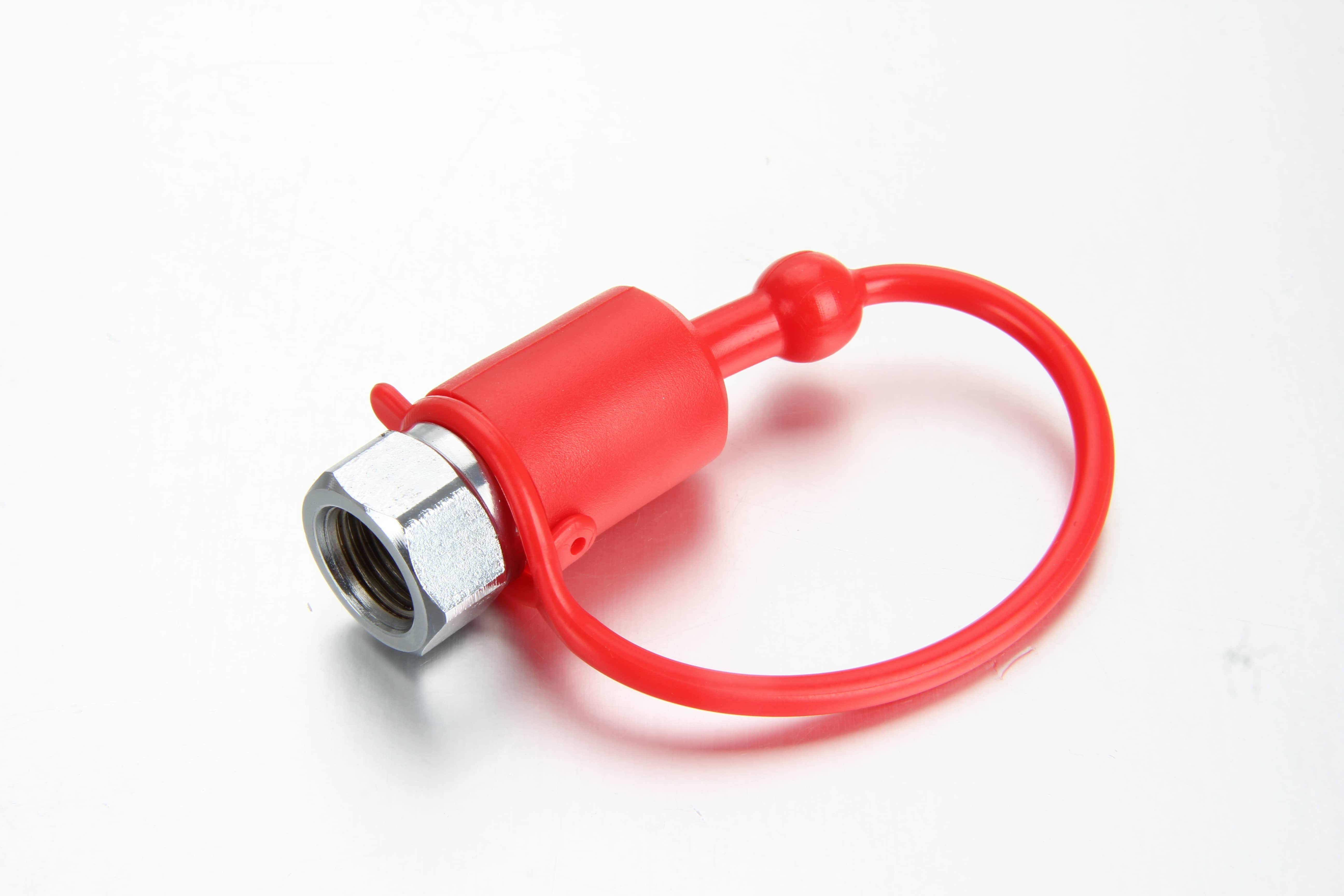

Dust Protection: Always cap the male quick coupling plug with an appropriate dust cap whenever it is disconnected from the female socket. Leaving the exposed nose bare shortens the service life of internal spring parts and introduces destructive grit into your clean lines.
