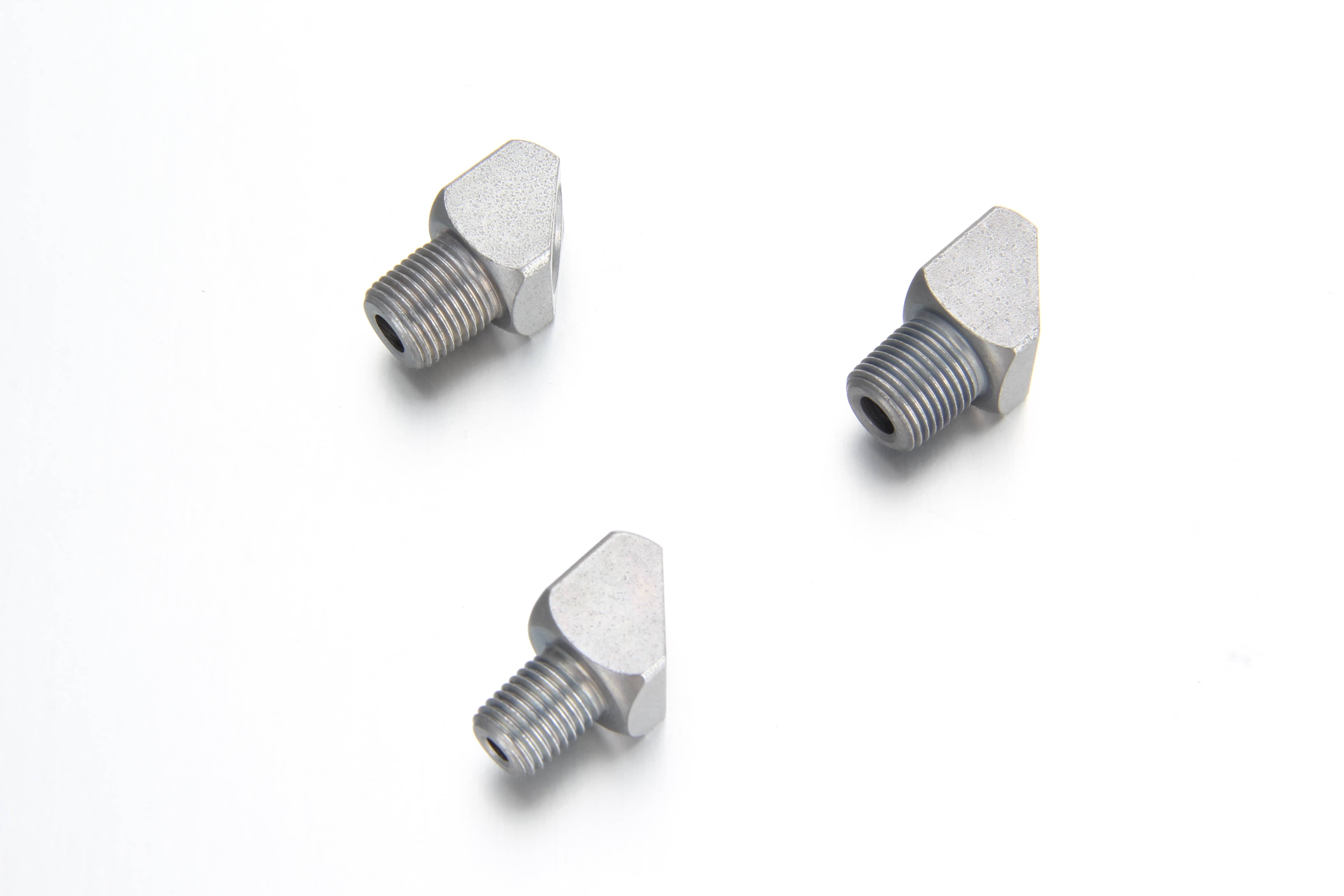

Precision zinc-nickel plated steel 45 degree elbow adapter showing a male tapered thread end and a parallel female thread opening for a central lubrication line.

A 45 degree male-to-female thread lube adapter installed onto a centralized progressive distributor block routing flexible nylon tubing in a tight space.

45° Central Lubrication Adapters | Male Taper to Female Thread

45° Male Taper to Female Thread Adapters for Centralized Lubrication Systems

Tube End Connection Types:
24 degree cone connector
Port End Connection Types:
Metric O-ring port
Shapes of Hydraulic Fittings:
Straight
Hose End Connection Type:
One wire braid hoses

Availability:



Inquire PDF Export

Product Description

Streamline complex fluid routing inside your automated oil or grease networks with our heavy-duty 45° male taper to female thread central lubrication adapters. Engineered specifically to handle the persistent structural vibrations of industrial equipment, these angled street elbows allow seamless directional changes without causing severe hose stress or tight-radius bending kinks. Rated for operating limits up to 400 bar (5,800 PSI), they guarantee zero pressure drops and a completely leak-free seal across your entire progressive distribution network.

Technical blueprint diagram detailing wrench flat dimensions, thread depths, and pitch sizes for a 45 degree central lubrication system street elbow.

Part No.	G	G1	L	SW	SK	FRI	BEK
5KM4-6-8	M 6 x 1 tap	M 8x1	23	13		100-821	1002 10 095
5KM4-8-8	M 8 x 1 tap	M 8x1	23	13	432-24050-1	100-822	1002 10 085
5KM4-10-8	M 10 x 1 tap	M 8x1	23	13	432-24051-1	100-823	1002 10 080
5KM4-10-10	M 10 x 1 tap	M 10x1	23	13	406-045K	100-833
5KB4-6-2	M 6 x 1 tap	Rp 1/8 BSP	23	13		5010-102
5TB4-2-2	R 1/8 BSP tap	Rp 1/8 BSP	23	13	432-70673-1	100-844
5TB4-4-4	R 1/4 BSP tap	RP 1/4 BSP	33	17		100-855
5N4-2-2	1/8 NPT tap	1/8 NPT	23	13		5010-101

Engineered Performance Advantages

Tight Clearance Maneuverability: Resolves severe space constraints where standard 90-degree bends are too sharp or block adjacent ports on a progressive divider valve.
Vibration-Proof Metal-to-Metal Seal: Designed with precise male tapered threads (Metric Taper, BSPT, or NPTF) that deform uniformly into matching ports to create a tight dry-thread connection that will not back out or vibrate loose.
Cross-Thread Conversion Options: Standard inventory setups allow cross-system adaptations, translating components cleanly between American NPT configurations and European Metric or BSPP thread housings.
Industrial Material Integrity: Manufactured from high-tensile carbon steel finished with premium zinc-nickel plating or forged from corrosion-resistant 316 stainless steel to ensure longevity in brutal washdown zones.

Exact System Compatibility Specs

Our specialized 45-degree angled adapter catalog includes:

Common Thread Sizes: Male M6x1 keg, M8x1 keg, M10x1 keg, 1/8" BSPT, or 1/4" NPT transitioning to standard female cylindrical receivers.
Integration Ready: Instantly compatible with industry-standard centralized systems, high-pressure nylon tubes, grease nipples, and heavy machinery bearing housings.
