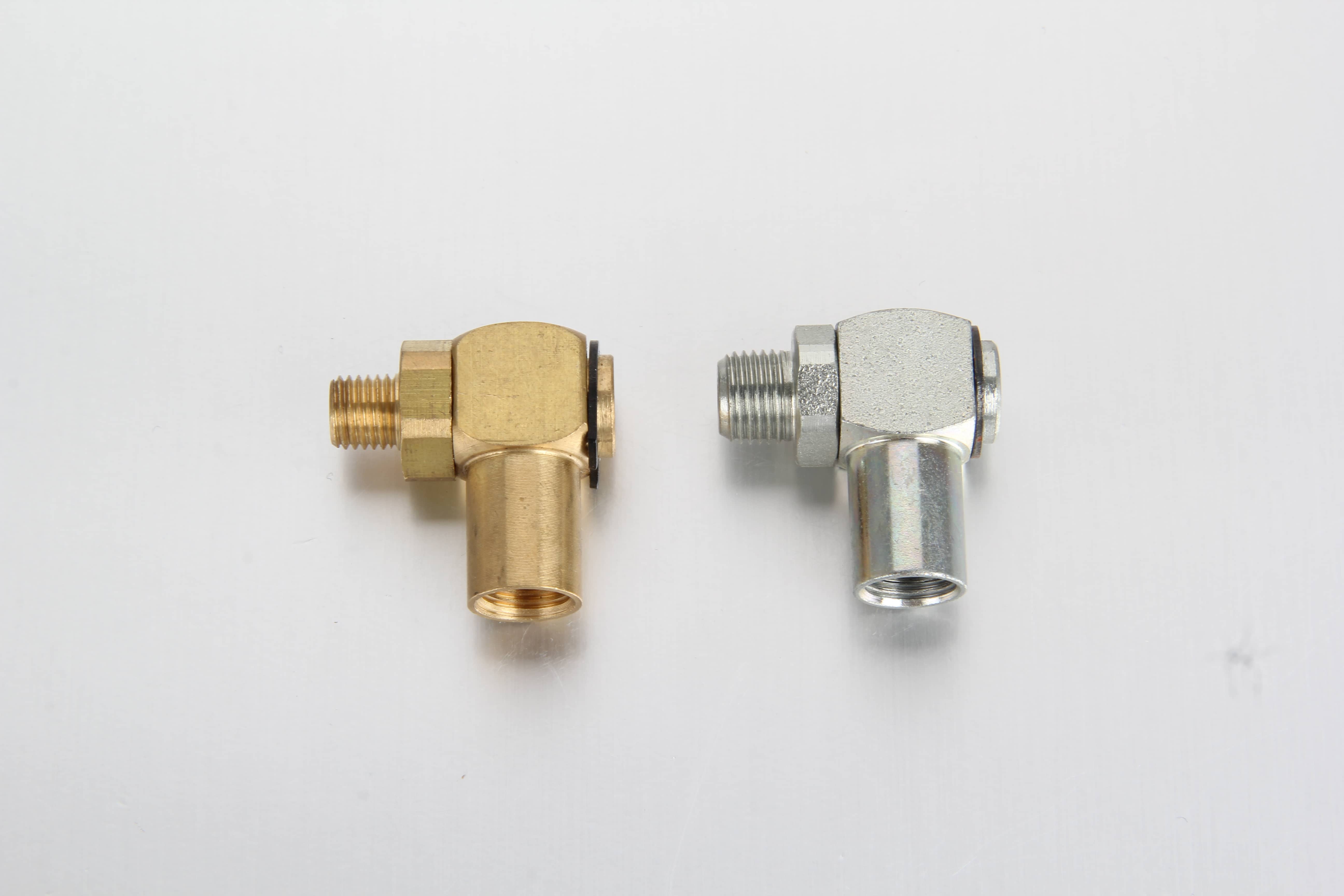

A professional close-up shot of a 90-degree freely movable swivel banjo fitting with an integrated high-pressure rotating joint for central lubrication grease lines.

A dynamic multi-angle image with overlay arrows demonstrating the 360-degree continuous swivel movement of a 90-degree lubrication piping adapter.

A clean display of bulk packed, zinc-plated 90-degree freely rotating swivel banjo components inside a factory distribution warehouse.

90° Freely Movable Swivel Banjo Fitting for High-Pressure Central Lubrication Systems

Tube End Connection Types:
24 degree cone connector
Port End Connection Types:
Metric O-ring port
Shapes of Hydraulic Fittings:
Straight
Hose End Connection Type:
One wire braid hoses

Availability:



Inquire PDF Export

Product Description

High Pressure 90 Degree Freely Movable Swivel Banjo Fitting 360 Rotating Connector for Centralized Lubrication System

Product Overview

Eliminate hose twisting, torsional stress, and fluid line fatigue with our heavy-duty 90° freely movable swivel banjo fitting. Engineered specifically for dynamic central lubrication networks, this rotating banjo adapter allows for a full 360-degree rotation along the fitting axis. It delivers a perfect 90-degree right-angle layout while effortlessly accommodating the continuous movement, articulation, and vibration of modern industrial machinery and automotive chassis components.

A clear technical drafting diagram displaying dimensions, thread sizing chart, and inner diameter specifications for a rotatable 90-degree banjo coupling.

Part No.	D	G	G1	SW	SW1	H	L	FRI
1MCI-8-RM8KBRA	4	M 8 x 1 tap	M 8 x 1	15	14	30	26,5	104-172
1MCI-8-RM10KBRA	4	M 10 x 1 tap	M 8 x 1	15	14	30	26,5	104-173
1MCI-10-RM8KBRA	6	M 8 x 1 tap	M 10 x 1	15	14	30	29	106-172
1MCI-10-RM10KBRA	6	M 10 x 1 tap	M 10 x 1	15	14	30	29	106-173
1MCI-10-RR2KBRA	6	R 1/8 BSPT	M 10 x 1	15	14	30	29	106-174

Key Features & Benefits

360° Free Movement Rotation: Smoothly swivels under full pressure to prevent fluid line binding, kinking, and structural hose failure.
Leak-Free High-Pressure Seal: Equipped with high-performance internal seals to withstand continuous pressure spikes from automated progressive grease pumps.
Compact Right-Angle Layout: Low-profile 90-degree bend fits into hyper-restricted installation areas around bearings, linear tracks, and machine joints.
Universal Fitting Integration: Integrates seamlessly with high-pressure polyamide nylon grease lines, flexible grease hoses, or rigid piping.

Technical Specifications

Angle Configuration: 90-Degree Right-Angle
Movable Range: 360-Degree Continuous Swivel Rotation
Pressure Rating: Up to 250 Bar (3,625 PSI) nominal operating pressure
Compatible Lubricants: NLGI Grade 000 to Grade 2 Industrial Grease / High-Viscosity Oils
Material Construction: Carbon Steel / Stainless Steel / Brass with protective anti-corrosion plating

Industrial Applications

Perfect for installation on excavator bucket joints, wheel loader chassis articulation pivots, automated CNC machine tracks, and large-scale manufacturing conveyor networks.
