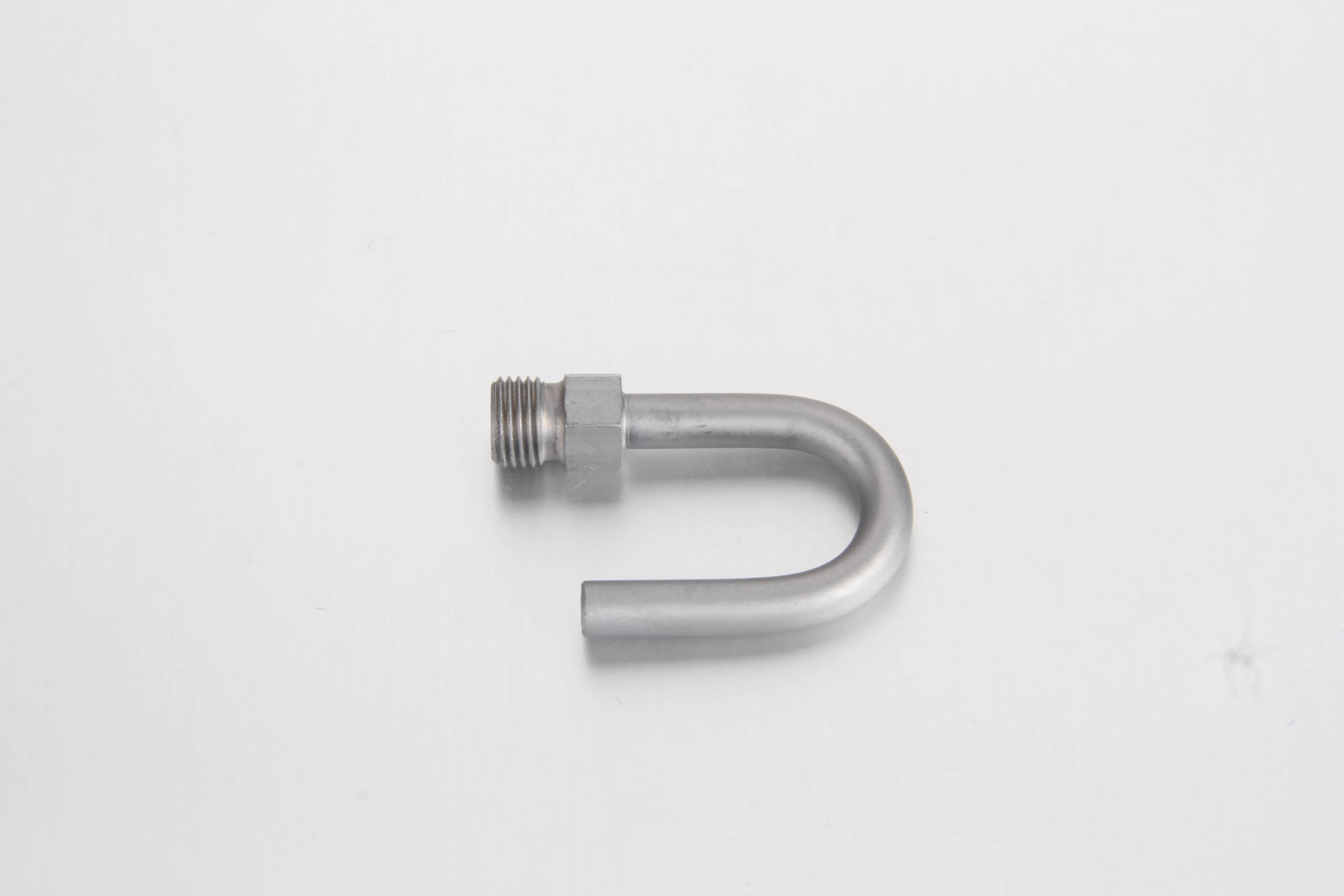

A professional studio shot showcasing a heavy-duty steel 180-degree standpipe stud tube bend compression fitting with an integrated M10x1 metric male thread and a 6mm cutting ring receiver for high-pressure industrial grease line tubing.

180-Degree Standpipe Stud Tube Bend Compression Fitting (6mm Tube OD X M10x1)

Tube End Connection Types:
24 degree cone connector
Port End Connection Types:
Metric O-ring port
Shapes of Hydraulic Fittings:
Straight
Hose End Connection Type:
One wire braid hoses

Availability:



Inquire PDF Export

Product Description

Optimize your automated lubrication networks with our heavy-duty 180-degree standpipe stud tube bend compression fitting. Specifically engineered for high-pressure grease line tubing systems, this premium-grade U-bend adapter allows for seamless 180° orientation reversals in hyper-compact workspaces. By transitioning smoothly from a 6mm tube outer diameter (OD) to an industry-standard M10x1 male compression thread, it eliminates line kinks, layout clutter, and unnecessary flow restrictions around tightly spaced machine pivots, bearings, and linear guides.

A clear technical drafting diagram displaying the precise center-line radius measurements, the M10x1 thread pitch indicators, and the 6mm tube insertion depth for a 180-degree standpipe bend connector.

Basic Information

Model NO.: ST-180-6-M10
Medium: Oil, Water, Gas, Hydraulic Fluid
Surface Treatment: Zinc Plated / Passivated / Polished
Certification: ISO 9001:2015, CE

Customization: OEM/ODM Available

Detailed Specifications

Property	Value / Specification
Product Type	180° Standpipe Stud Tube Bend Compression Fitting
Tube Outer Diameter (OD)	6 mm
Thread Connection	M10 x 1.0 (Metric Fine)
Bend Angle	180 Degree U-Bend
Pressure Rating	Up to 315 Bar / 4570 PSI
Standard Compliance	DIN 2353 / ISO 8434-1
Material Options	Carbon Steel (Q235/45#), Stainless Steel 304/316, Brass
Operating Temp. Range	-40°C to +120°C (Carbon Steel), -60°C to +200°C (SS316)

Key Performance Features

Heavy-Duty High-Pressure Rating: Rated for progressive automated lubrication systems operating under extreme pressures up to 250 Bar (3,625 PSI).
Leak-Free 24° DIN Cone Design: Manufactured in strict compliance with DIN 2353 / ISO 8434-1 standards, utilizing a precise mechanical bite-type cutting ring and coupling nut assembly for vibration-resistant seals.
Ultra-Compact 180° Radius Profile: Allows smooth, tight-radius U-turns for fluid lines without bending rigid pipes or fatiguing flexible hoses.
Corrosion-Resistant Finish: Electroplated with an advanced zinc-nickel or trivalent chrome protective coating to ensure long-term durability in punishing washdown and outdoor industrial environments.

Technical Specifications

Inlet Connection: 6mm Standpipe Stud / Compression Tube OD
Outlet Thread Profile: M10x1.0 Metric Male Cone
Angle Configuration: 180-Degree Bend (U-Shape)
Compatible Lubricants: NLGI Grade 000 to Grade 2 Industrial Grease / Viscous Oils
Tubing Compatibility: High-pressure polyamide nylon, flexible grease hoses, or rigid steel lines.
