Lubrication Screw Sleeves and Hose Studs - Auto Lube System High-Pressure Hose Connectors

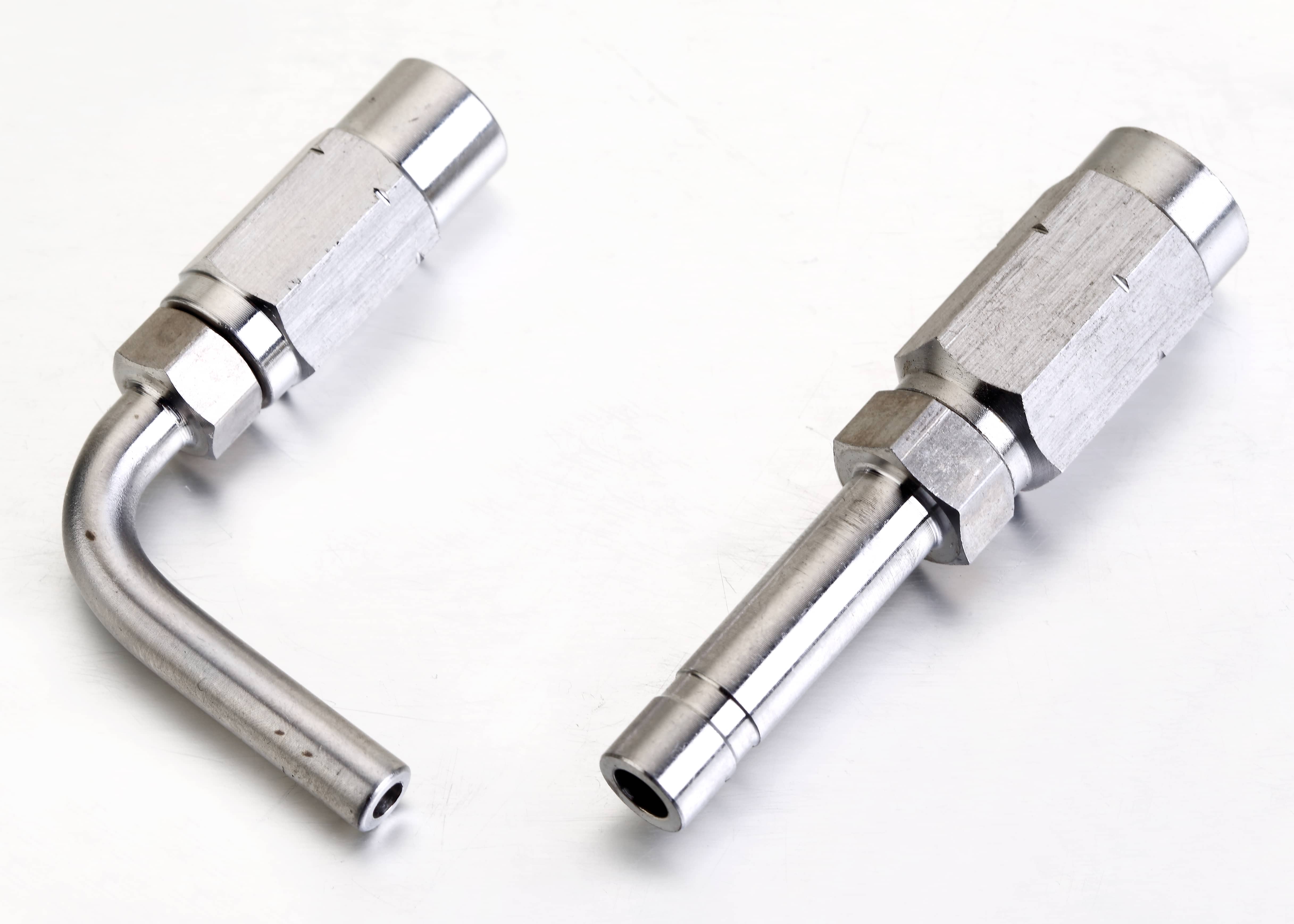

Our premium lubrication screw sleeves and hose studs are engineered as a matched, high-precision, solder-free connection assembly designed to construct custom, field-attachable high pressure grease hose assemblies within your auto lube network. Operating as a dual-component interlocking coupling layout, the outer sleeve grips the exterior jacket of the flexible line, while the inner stud inserts directly into the core to provide a pressure-tight, completely stable mechanical joint. This heavy-duty system allows maintenance teams to fabricate, extend, or repair reliable plumbing runs directly on-site, serving as the ultimate field-installable choice for industrial reusable hose fittings.

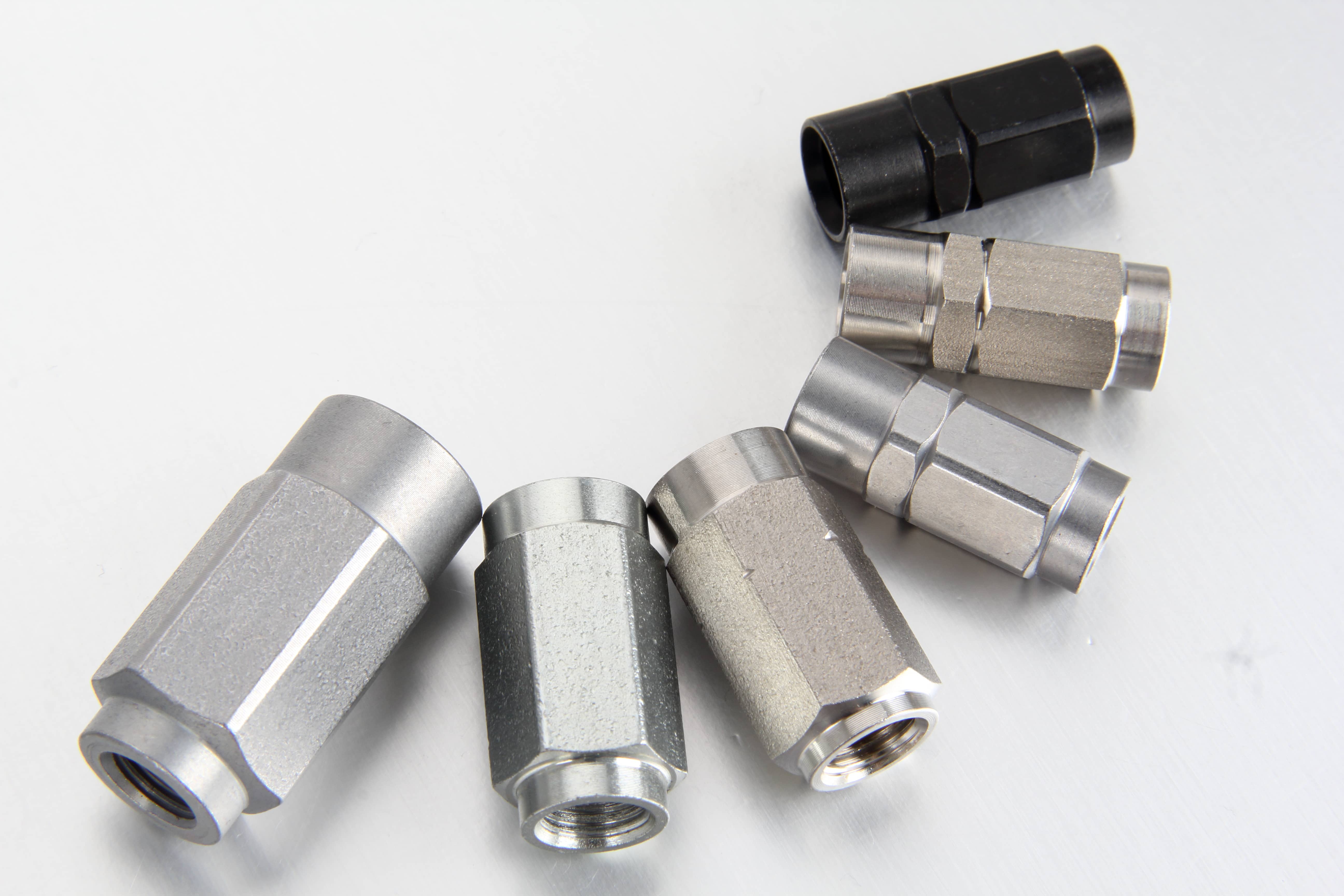

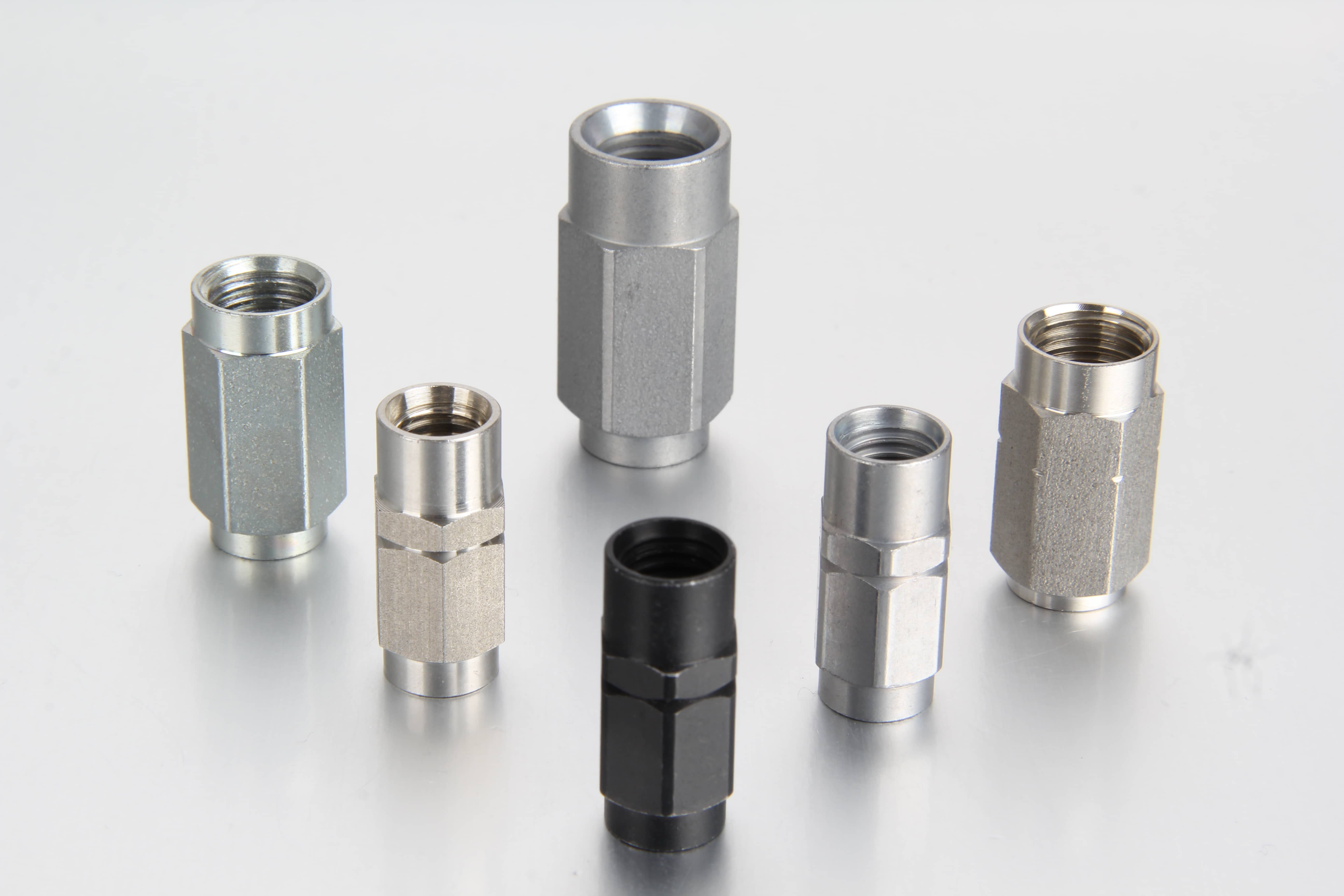

As a prominent high-volume B2B manufacturer and global OEM supplier, we produce these high-performance screw sleeves and hose fittings on multi-axis precision CNC lathes to guarantee smooth internal flow paths and tight tolerance matching. To satisfy diverse environmental and chemical resistance demands, our entire range of lubrication hose fittings is manufactured from high-strength galvanized steel, black chromated steel, or top-tier marine-grade Stainless Steel (VA 1.4401 / 316 / V4A) to prevent environmental corrosion and withstand intense machine vibration cycles.

Core Technical Blueprint & Fitting Integration

• Universal High-Pressure Line Sizing: Tailored for seamless multi-brand compatibility, our premium screw sleeves and hose studs precisely match the industry's most common core lines, accommodating dimensions of 4.1 x 8.75 mm, 6.3 x 11.3 mm, and 1/8" x 5/16". Its compact, streamlined body profile allows it to fit easily inside tight machinery panels and chassis framing without adding unnecessary weight.

• Targeted System Configurations: Engineered to safely handle extreme mechanical workloads, our specialized 400 bar grease hose fittings can be easily configured across multiple boundary profiles to integrate perfectly with your hardware distribution blocks:

  • Plain Design (Without Groove): Replicates a standard solid pipe end, engineered specifically for cutting ring fittings (DIN 2353 / ISO 8434-1) where the internal compression sleeve bites onto the steel stem outer diameter.

  • Grooved Design (With Groove): Built explicitly for rapid, tool-free quick connectors, featuring a dedicated retention groove in the stem that snaps perfectly into push-in blocks.

  • Angled Profiles: Available across straight, 45-degree, and 90-degree bend bodies to eliminate wide loops and prevent kinking in restricted routing areas.

Assembly Instructions & Compliance Standards

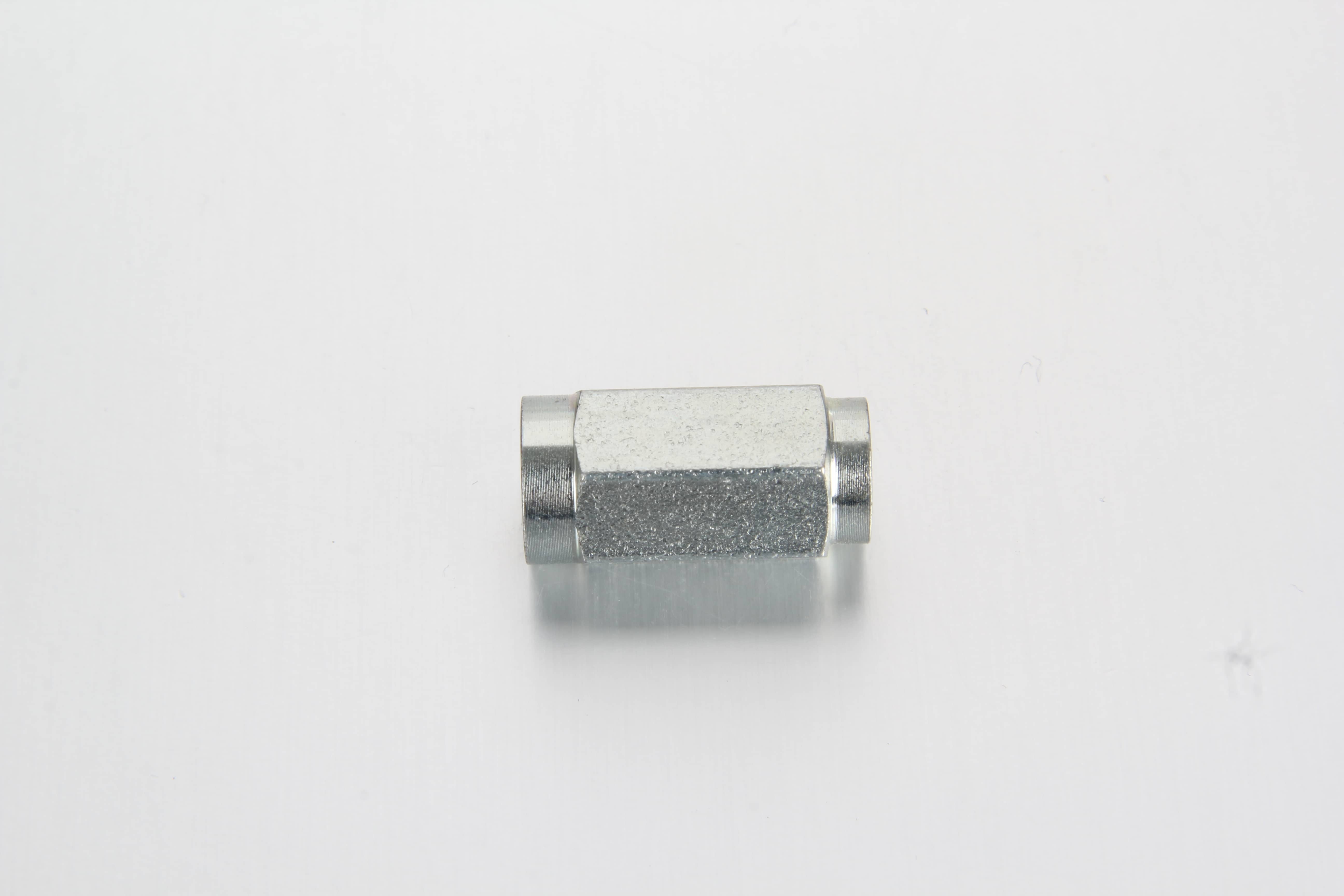

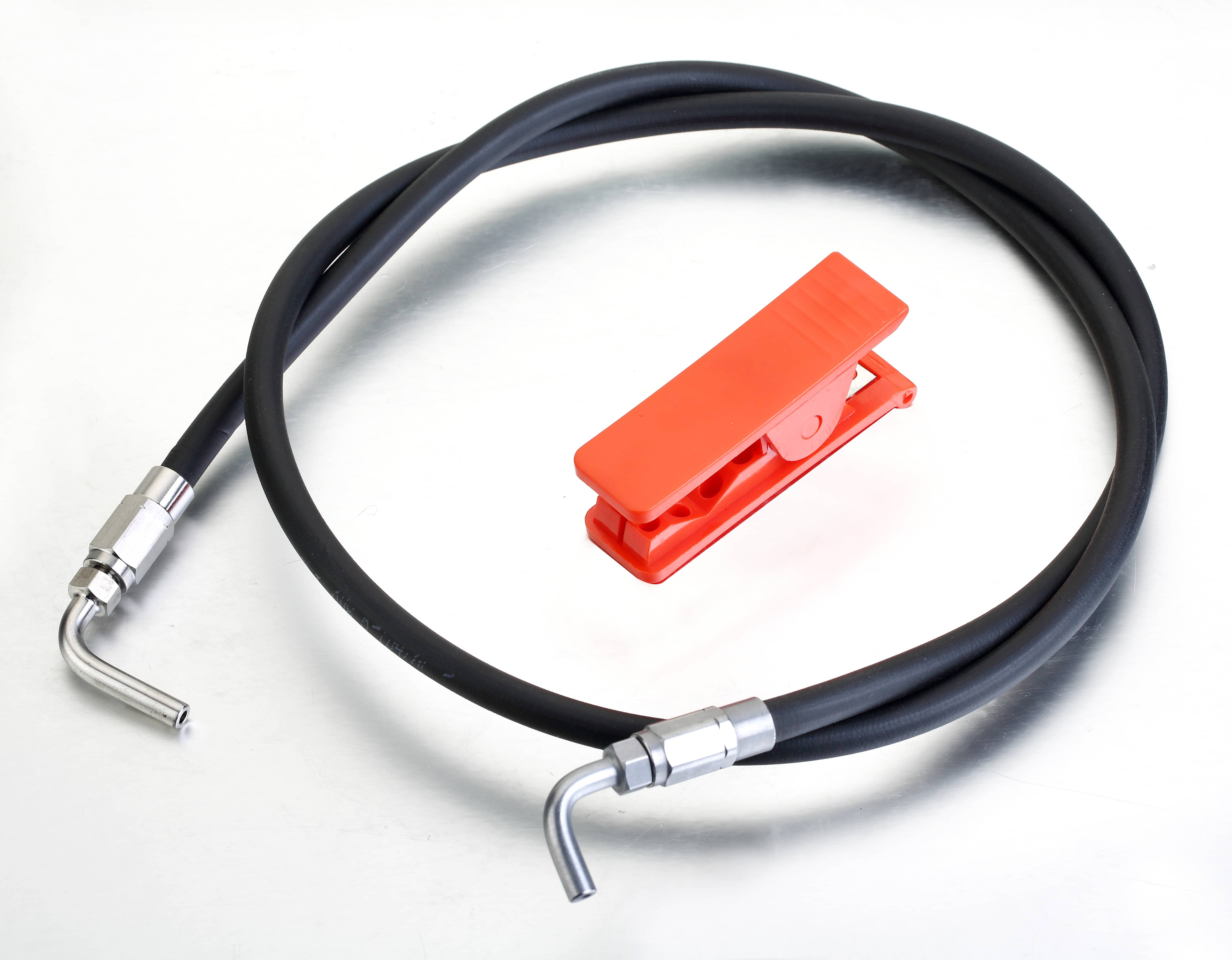

• Anti-Loosening Interlocking Design: Assembling these field-attachable high pressure grease hose fittings relies on a balanced mechanical layout that requires no special tools outside of a standard wrench. First, the outer sleeve is wound onto the flexible hose jacket. The stud tail is then inserted into the center profile and threaded securely into the internal chamber. The sleeve utilizes a dedicated left-hand thread internally; this left-hand thread mechanically prevents the socket from backing off, unthreading, or loosening from the high-pressure line while the matching hose stud is being tightened home.

• Global Interchangeability: Manufactured in strict accordance with international fluid-handling configuration rules, our accessories for lubrication systems offer complete, drop-in compatibility with hardware lines from all renowned manufacturers of central lubrication units. They serve as the trusted default choice for commercial vehicle chassis, wind turbine bearings, progressive distribution blocks, heavy mining machinery, and automated industrial assembly systems.
