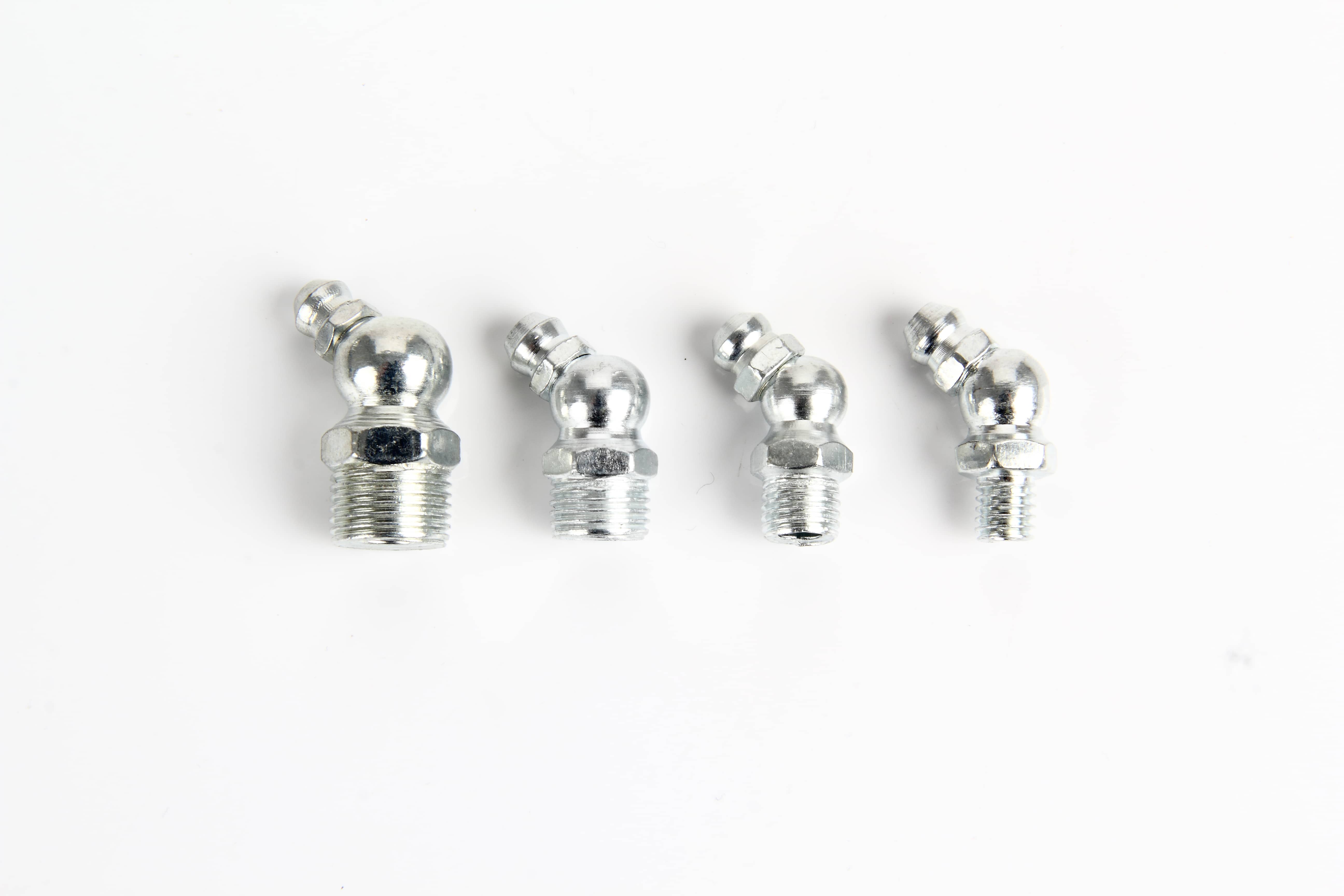

Heavy duty metal 45 degree elbow grease nipple with male tapered thread built to DIN 71412 Form B by Fitsch

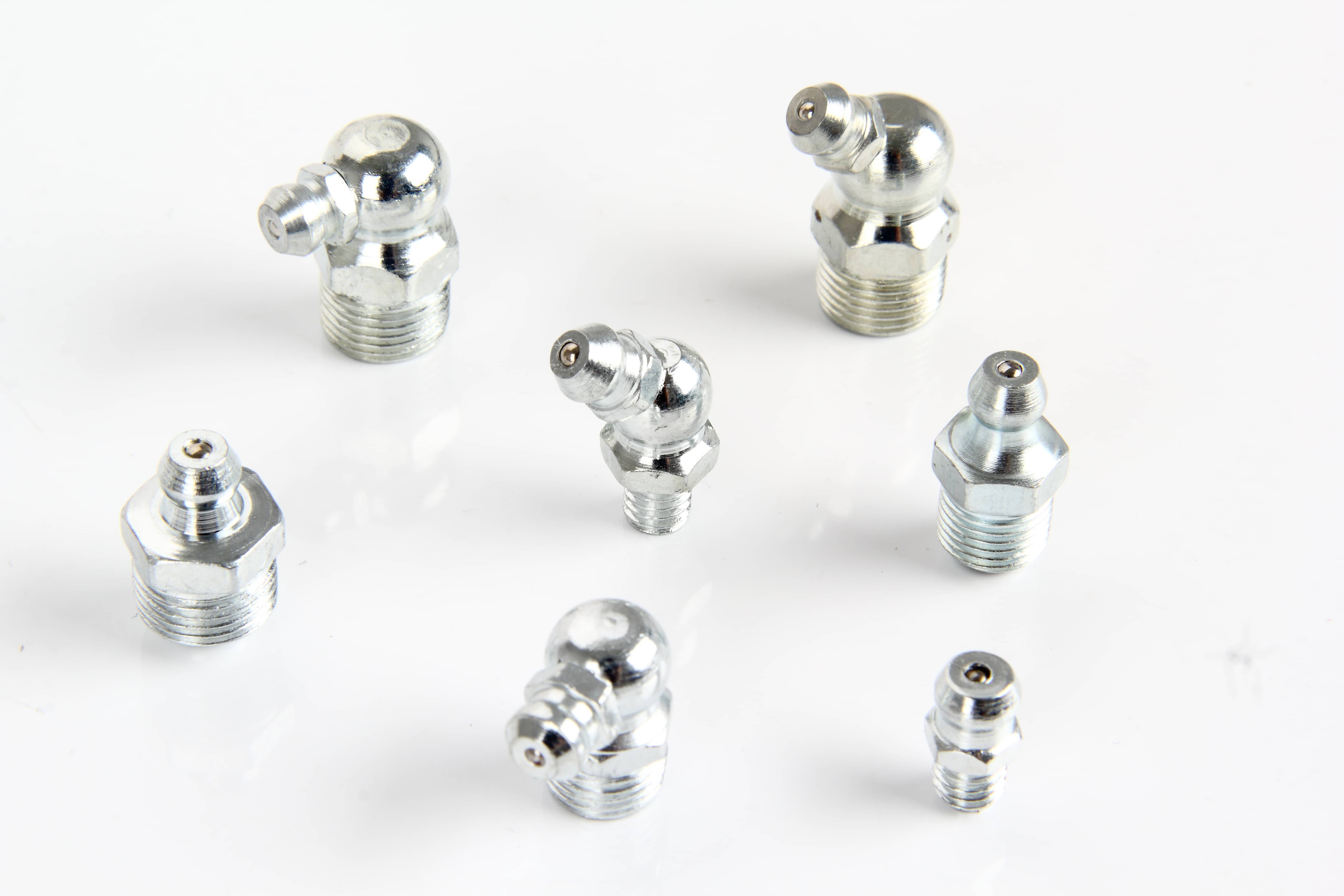

A collection of metal lubrication line fittings including straight, 45 degree, and 90 degree elbow grease nipples by fitsh.cn.

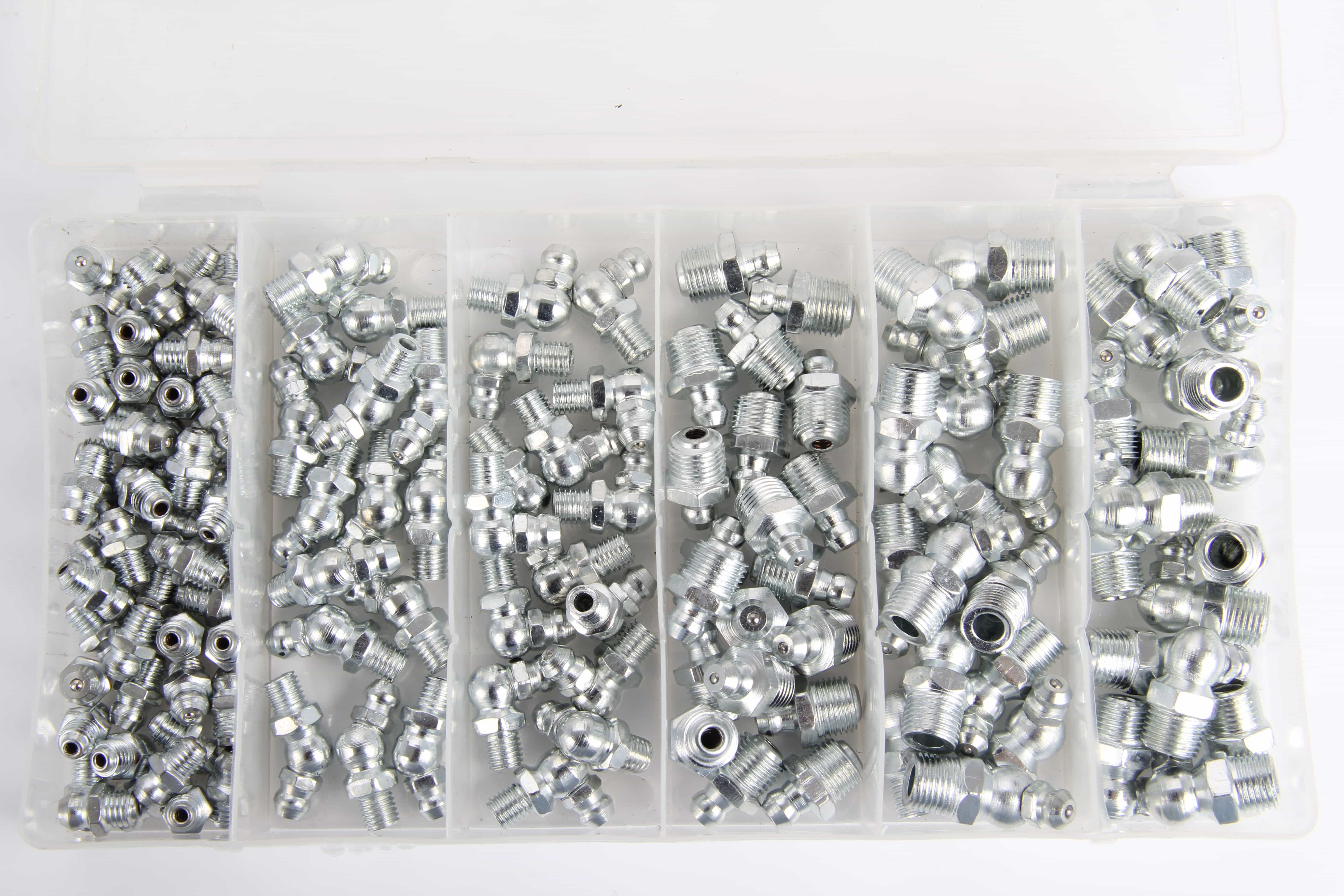

An assortment box filled with white zinc plated steel grease nipples and tapered thread zerk fittings by domame.

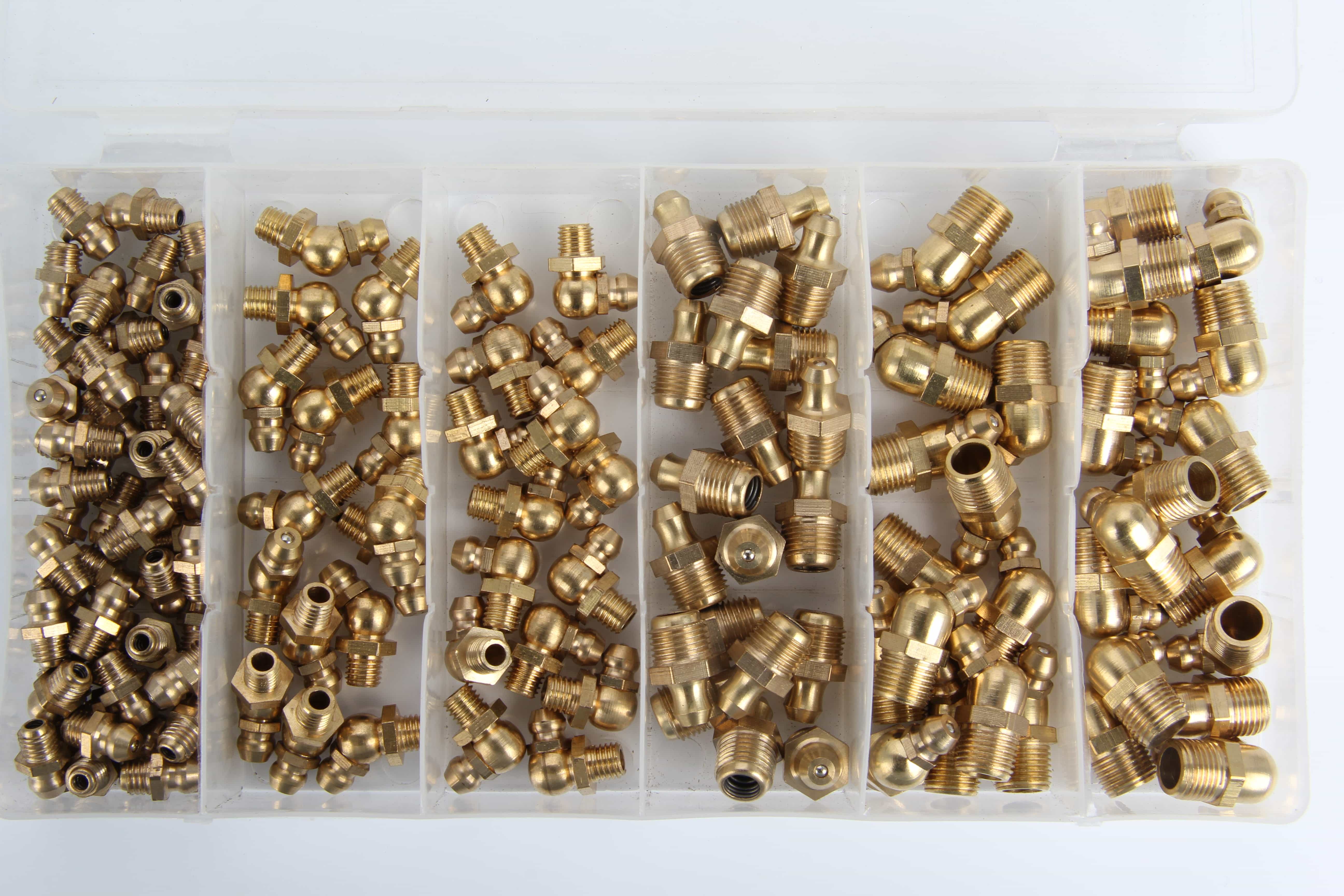

Heavy duty storage box containing various metric brass grease nipples and corrosion resistant lubrication line fittings by Fitsch.

DIN 71412 Grease Nipple 45 Degree Elbow

45 Degree Lubrication Nipple Dimensional Layout

Technical specification diagram highlighting the 45 degree angle and tapered thread pitch configuration from the fitsh.cn catalog.

Tube End Connection Types:
24 degree cone connector
Port End Connection Types:
Metric O-ring port
Shapes of Hydraulic Fittings:
Straight
Hose End Connection Type:
One wire braid hoses

Availability:



Inquire PDF Export

Product Description

Simplify high-pressure maintenance in tight spaces with the premium DIN 71412 Grease Nipple 45 Degree Elbow manufactured by Fitsch. Designed specifically for narrow clearances and complex angles where straight fittings cannot fit, this heavy-duty mechanical component allows smooth, unrestricted grease gun attachment. The precision-engineered metal tapered thread cuts tightly into standard cylindrical ports, forming a permanent, metal-to-metal hydraulic seal that easily withstands high backpressures and extreme machine vibration.

Part No.	Description	ØD	G	L1	L2	SW1	FRI
E4GN71412-M6KEG	GN-B M6x1 BS	6,5	M6x1 tap	26,3	5,5	11	251-001
E4GN71412-M8KEG	GN-B M8x1 BS	6,5	M8x1 tap	26,3	5,5	11	251-002
E4GN71412-M10KEG	GN-B M10x1 BS	6,5	M10x1 tap	26,3	5,5	11	251-003
E4GN71412-R2KEG	GN-B R1/8 BS	6,5	R1/8 tap	26,3	5,5	11	251-004
E4GN71412-R4KEG	GN-B R1/4 BS	6,5	R1/4 tap	26,3	6,5	14
