DIN 7241-B Female Quick Coupling | ISO 7241-B Hydraulic Disconnect Socket – Fitsch Segmented Supply

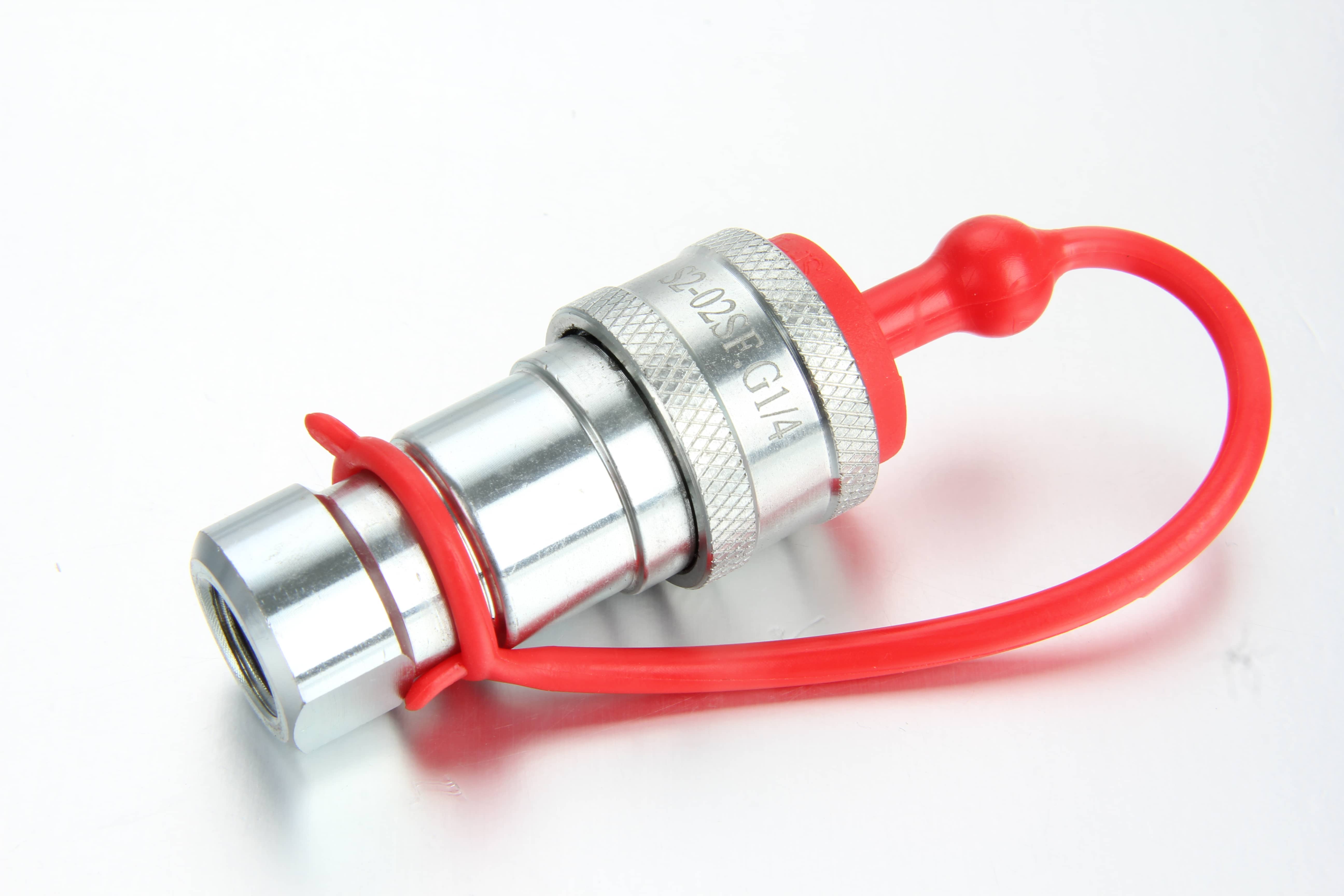

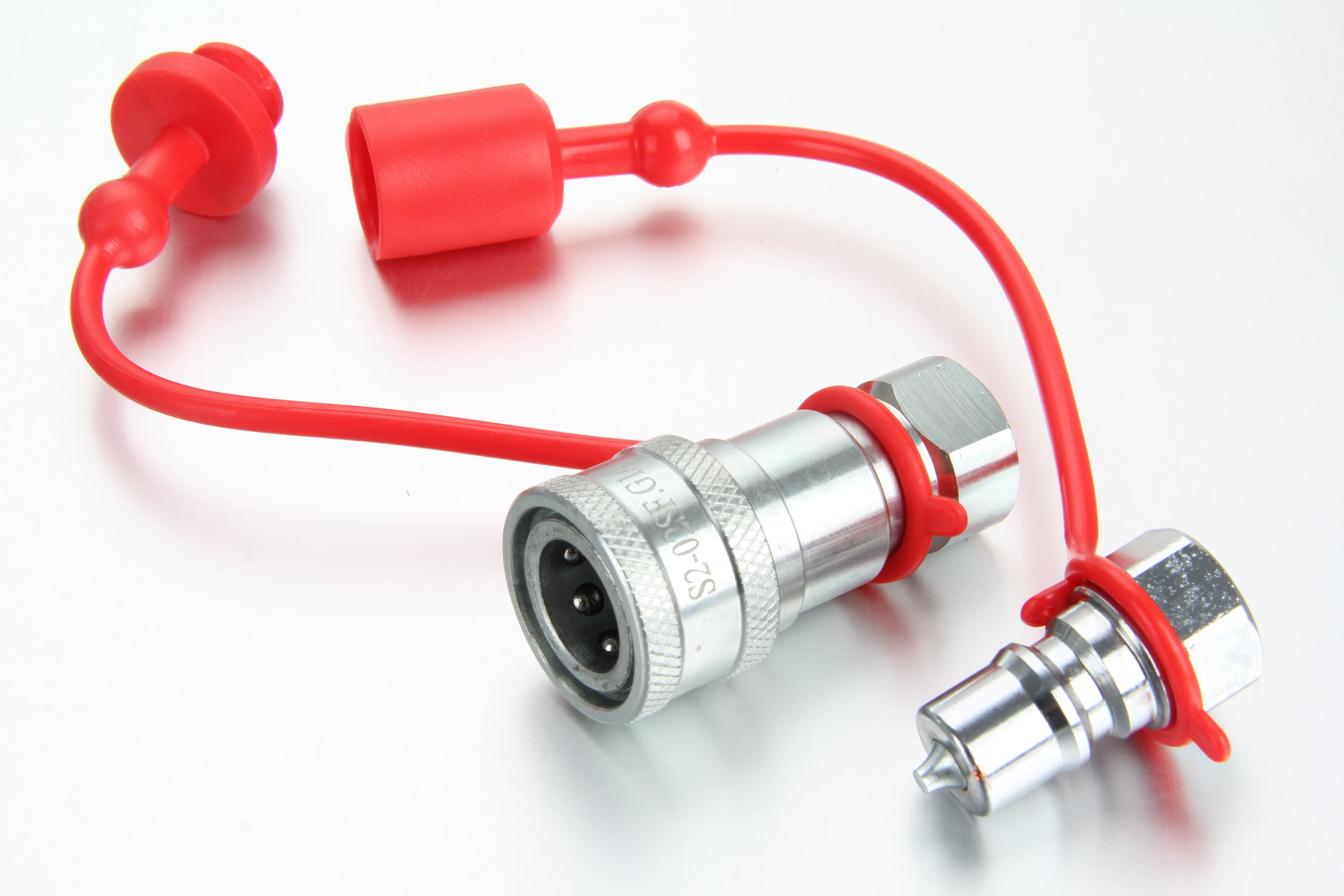

hen assembling high-performance industrial fluid circuits, selecting the proper terminal components dictates system up-time, machine efficiency, and overall environmental containment. The DIN 7241-B Series Female Quick Coupling represents a globally standard, heavy-duty double shut-off solution engineered for medium-to-high pressure applications. Often classified interchangeably as an ISO 7241-B or ISO-B female socket, this standalone receiver is built with a high-strength radial sleeve mechanism packed with heavy-duty alloy locking ball bearings. This internal ball-locking setup ensures a secure, solid attachment capable of mitigating extreme system vibrations, hydraulic pulses, and rotational strain.

High-Precision Structural Material & Seal Configurations

To handle a broad spectrum of industrial liquids, chemical elements, and thermal ranges, the female sockets must be configured with target-specific internal elastomers:

• Nitrile (NBR / Buna-N): Standard default configuration. Best suited for petroleum-based oils, mineral hydraulic fluids, greases, and water-glycol solutions.

  • Thermal Operating Range: -20°C to +100°C (-4°F to +212°F)

• Fluorocarbon (Viton / FKM): High-performance option. Engineered for aggressive synthetic lubricants, heavy industrial chemicals, corrosive chemical processing media, and high-heat setups.

  • Thermal Operating Range: -20°C to +200°C (-4°F to +392°F)

• Ethylene Propylene (EPDM): Specialized application setup. Strictly recommended for phosphate-ester hydraulic fluids, brake liquids, steam, and intense automotive fluids.

  • Thermal Operating Range: -40°C to +150°C (-40°F to +302°F)

International Manufacturing Standards & Compliance

To pass corporate compliance and legal audits for industrial installations, the design matches or exceeds these worldwide benchmarks:

• ISO 7241-1 Series B Compliance: Direct dimensional interchangeability across global hardware suppliers.

• ISO 16028 Testing Verification: Subjected to systematic burst pressure, vacuum, fluid loss, and structural cycle tests.

• RoHS and REACH Compliance: Trivalent galvanized steel parts use an eco-safe surface finishing process that remains 100% Chrome-VI (Hexavalent Chromium) Free.

• Safety Factor: Built with a 4:1 minimum burst-to-working pressure safety margin across all steel and stainless steel body profiles to eliminate catastrophic mechanical explosions under surge spikes.

Step-by-Step Installation & Maintenance Guide

Direct Installation Best Practices

1. Line Decompression: Prior to threading the female coupling socket onto the pipeline, ensure the active fluid circuit is fully powered down and completely drained of residual backpressure.

2. Thread Sealant Application: For standard tapered NPT threads, apply a light wrap of PTFE tape or a high-grade liquid thread sealant paste. For parallel BSPP thread connections, utilize a matching bonded seal (Dowty washer) against the hex face to secure a leak-free seat.

3. Wrench Torque: Use a calibrated wrench on the integration hex flats (SW) provided on the back port of the socket housing. Avoid gripping the moving outer locking sleeve with pliers, as any deformation can jam the inner sliding ball paths.

The inner core of this female coupling socket features an advanced automatic poppet valve structure. These valves are held under strict spring tension and are designed to flush shut the instant the connection is broken. This immediate mechanical shut-off prevents volatile fluid loss, protects expensive equipment components from dry-run pressure damage, and blocks outdoor contaminants like mud, dust, and water from fouling your clean oil or grease lines. The outer sleeve is optimized for manual ergonomics, allowing maintenance operators to execute fluid line changes rapidly without specialized tools.

Dimensional Standards and Universal Cross-Brand Interchangeability

A major advantage of sourcing standard-conforming parts is absolute geometric consistency. Because this product line adheres to the rigorous structural dimensions of the global ISO 7241-1 Series B specification, the female sockets function flawlessly with pre-installed male plugs from a wide array of primary international manufacturers. This dimensional standardization simplifies procurement paths for B2B supply chains, factory buyers, and maintenance, repair, and operations (MRO) professionals by ensuring a direct drop-in replacement across the following common global market equivalents:

• Parker 60 Series

• Eaton / Hansen HK Series

• Faster HNV Series

• Stucchi IRB Series

• Dixon H-Series

• Snap-Tite 72 Series

By eliminating proprietary geometric locks, industrial facilities can transition their machine networks seamlessly without incurring costly system alterations or total pipeline replacements.

Premium Segmented Materials for Specialized Environments

To achieve cost efficiency while maintaining strict metal integrity, these female quick disconnect components are produced across three distinct segmented material categories, each fine-tuned to conquer specific technical environments and media types:

• Hardened Carbon Steel with Eco-Plating: This configuration serves as the industrial workhorse for general manufacturing plant floors, automated testing rigs, and heavy mobile machinery. The carbon steel body undergoes specialized heat treatment to resist mechanical impact and sleeve wear. To ensure long-lasting corrosion resistance, the surface is treated with an eco-friendly, Chrome-VI free trivalent galvanized plating that wards off environmental moisture and industrial oils without utilizing restricted chemical compounds.

• 316 Stainless Steel for Aggressive Media: Specially designated for chemical process plants, offshore oil platforms, aerospace sub-assemblies, and high-temperature marine environments. The 316 stainless steel metallurgy eliminates rust concerns and protects against aggressive chemical washes, highly acidic fluids, and salt spray. These sockets are typically matched with rugged Viton or Fluorocarbon seals to preserve sealing integrity under elevated temperature bands.

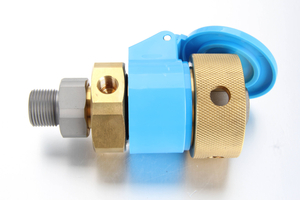

• Non-Sparking Industrial Brass: Built for environments where electrical conductivity, rust resistance, or safety from sparking is mandatory. These solid brass female couplers are heavily deployed in low-pressure cooling lines, marine utility networks, and specialized automated central lubrication systems running fluid-heavy grease formulations.

Streamlined B2B Procurement and Supply Chain Integrity

Managing factory floor setups or mass equipment production requires a fluid supply chain that scales with your growth. Utilizing a specialized, segmented factory network allows for massive manufacturing volume while holding strict component tolerances down to the millimeter. With specialized production capacity exceeding millions of items monthly, these fluid components can be tailored to fit your specific engineering prints.

Whether your assembly layout calls for traditional NPT threads, European standard BSP threads, or specialized SAE O-ring boss geometries, our machining lines can provide custom threading paths on demand. This structured approach allows industrial operators to balance high performance, strict quality adherence, and competitive volume pricing. Enforce cleaner fluid handovers, eliminate continuous leakage costs, and protect your staff by updating your fluid lines with high-grade, double shut-off female receiving sockets today.
