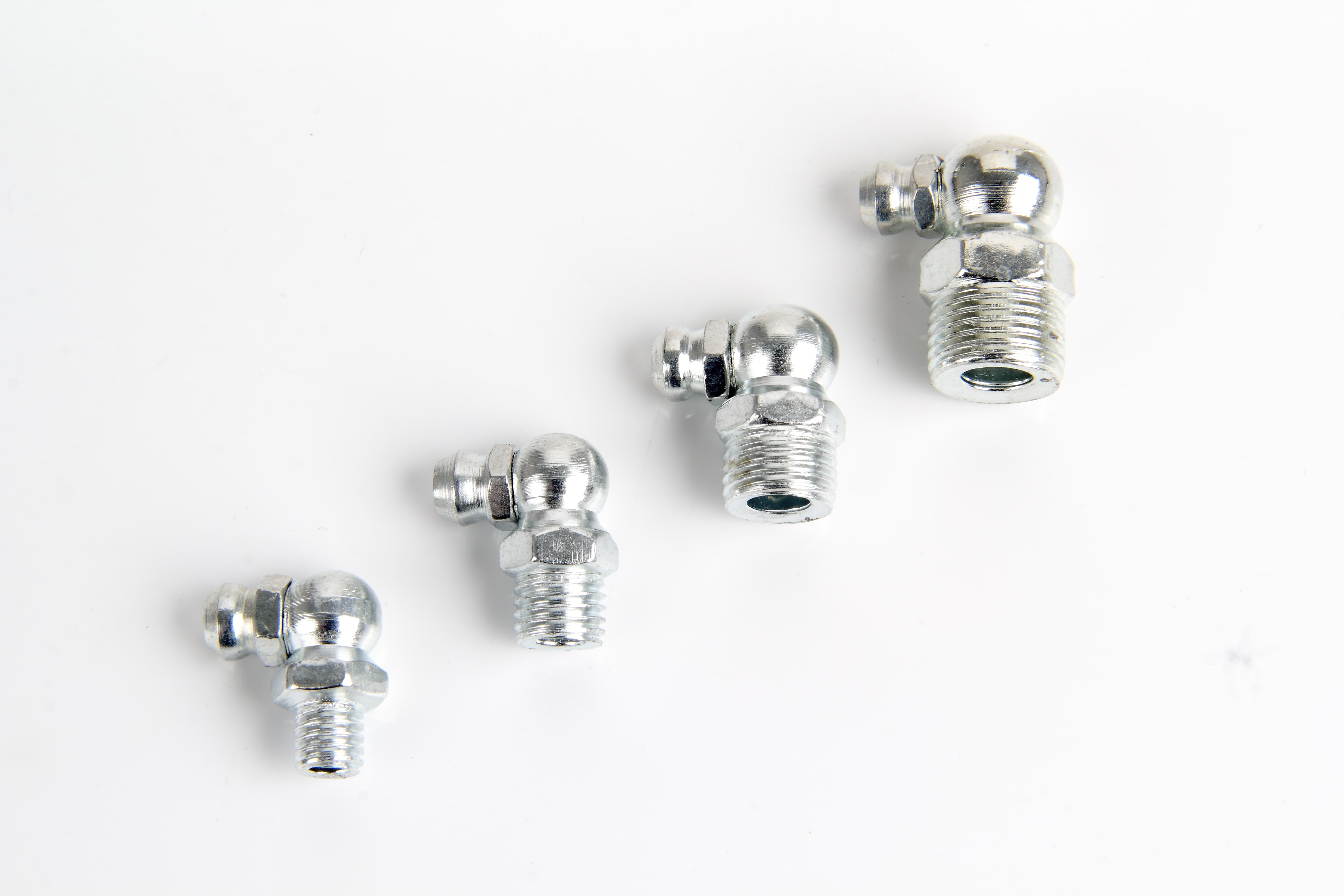

Overcome extreme clearance limitations in heavy machinery with the high-precision DIN 71412 Elbow 90° Zerk Fitting manufactured by Fitsch. Engineered for ultra-confined spaces and complex right-angle lubrication paths, this right-angle grease nipple allows effortless lubricant delivery where straight or 45-degree fittings cannot give access. The robust metal tapered thread seats tightly into standard cylindrical ports, creating a permanent, metal-to-metal hydraulic seal that resists heavy vibrations and pressure spikes.
Part No. | Description | ØD | G | L1 | L2 | SW1 | FRI |
E9GN71412-M6KEG | GN-C M6x1 BS | 5,5 | M6x1 tap | 20,3 | 5,5 | 11 | 252-001 |
E9GN71412-M8KEG | GN-C M8x1 BS | 5,5 | M8x1 tap | 20,3 | 5,5 | 11 | 252-002 |
E9GN71412-M10KEG | GN-C M10x1 BS | 5,5 | M10x1 tap | 20,3 | 5,5 | 11 | 252-003 |
E9GN71412-R2KEG | GN-C R1/8 BS | 5,5 | R1/8 tap | 20,3 | 5,5 | 11 | 252-004 |
E9GN71412-R4KEG | GN-C R1/4 BS | 6,5 | R1/4 tap | 20,3 | 6,7 | 14 |
Key Performance Features & Specifications:
Industry Standard Compliance: Built strictly to DIN 71412 Form C (H3) blueprints for absolute global interchangeability.
90-Degree Right-Angle Head: Ideal for low-profile bearing housings, structural recesses, and shielded mechanical assemblies.
Heavy-Duty Metal Options: Available in durable white zinc-plated steel for high corrosion resistance or solid brass for marine and anti-spark environments.
Self-Sealing Tapered Design: Conical male threads lock tightly into internal mating holes, preventing leaks without relying on fluid sealants.
Internal Check Valve: Features a spring-loaded stainless ball valve to seal grease inside the line while blocking dirt, water, and debris.
