Premium British Standard Parallel Pipe (BSPP) Fluid Connectors
Fitsch is a premier China hydraulic adapter manufacturer and factory, specialized in engineering high-pressure BSPP Stainless Steel Hydraulic Adapters strictly built to BS 5200 and ISO 8434-6 international standards. Utilizing the time-tested 60° cone sealing profile, these parallel British thread fittings are universally adopted across European, British, and international fluid power networks.
By sourcing high-grade 304 and 316 stainless steel, Fitsch prevents structural oxidation, scaling, and thread galling in demanding operational conditions. The metal-to-metal 60-degree cone profile offers exceptional sealing reliability under intensive hydraulic pulsation and mechanical vibration, ensuring safe containment in marine, offshore oil and gas, material handling, and process industries.
Comprehensive Product Configurations & Core Types

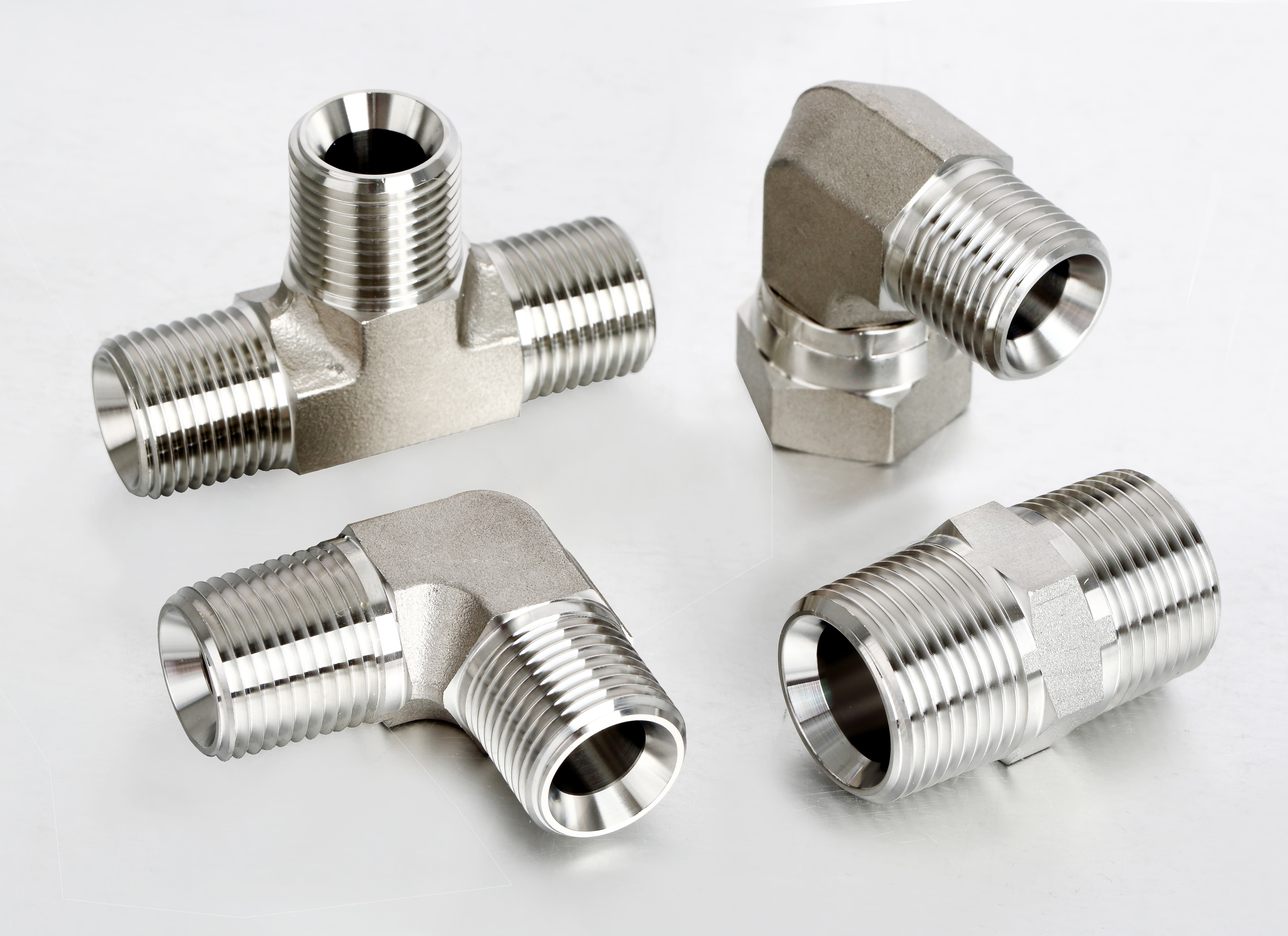

We manufacture and stock a deep inventory of standard BSPP adapters in Straight, Forged 90° Elbow, 45° Elbow, and Tee geometries, explicitly configured into the following core product lines:

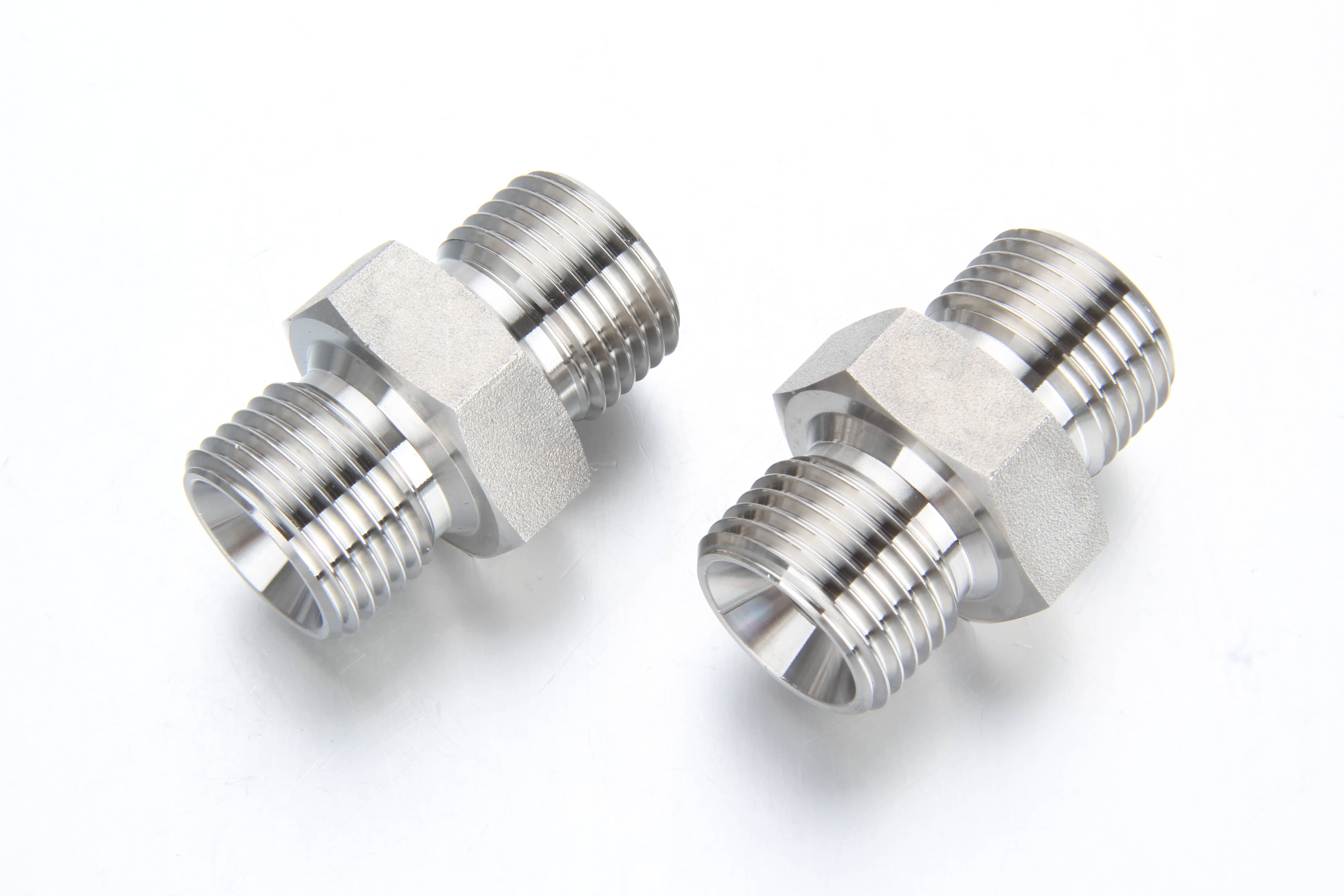

1. Straight Unions
Engineered to connect two male or female BSPP hose lines or rigid tubes in a straight line. Our BSPP Straight Unions maintain a smooth internal diameter to minimize pressure drops and optimize laminar fluid flow.

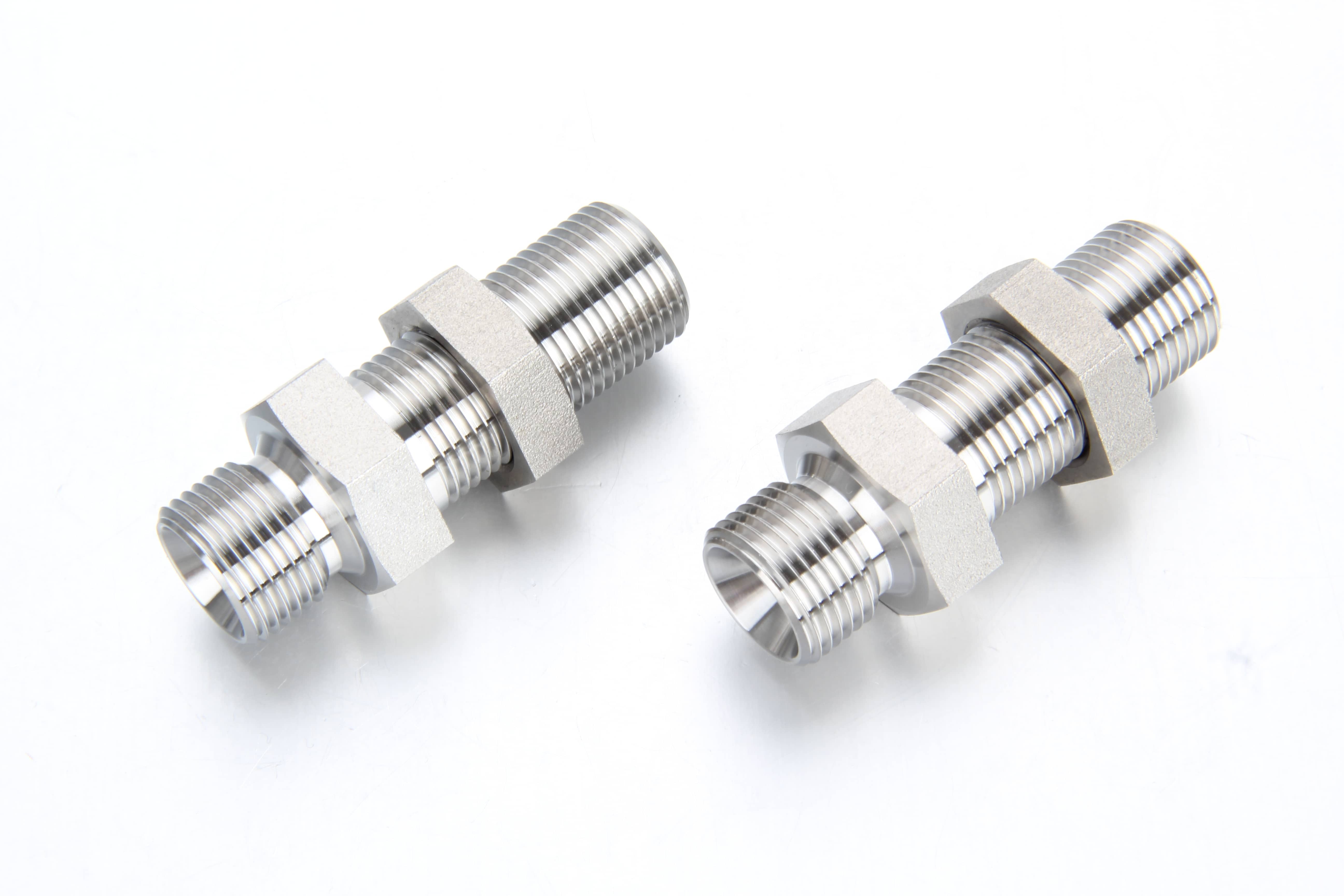

2. Bulkhead Unions
Designed to pass high-pressure fluid lines cleanly through metallic enclosures, panels, or structural bulkheads. This configuration features an extended parallel thread body and a robust heavy-duty locknut to keep your plumbing rigid and vibration-isolated.

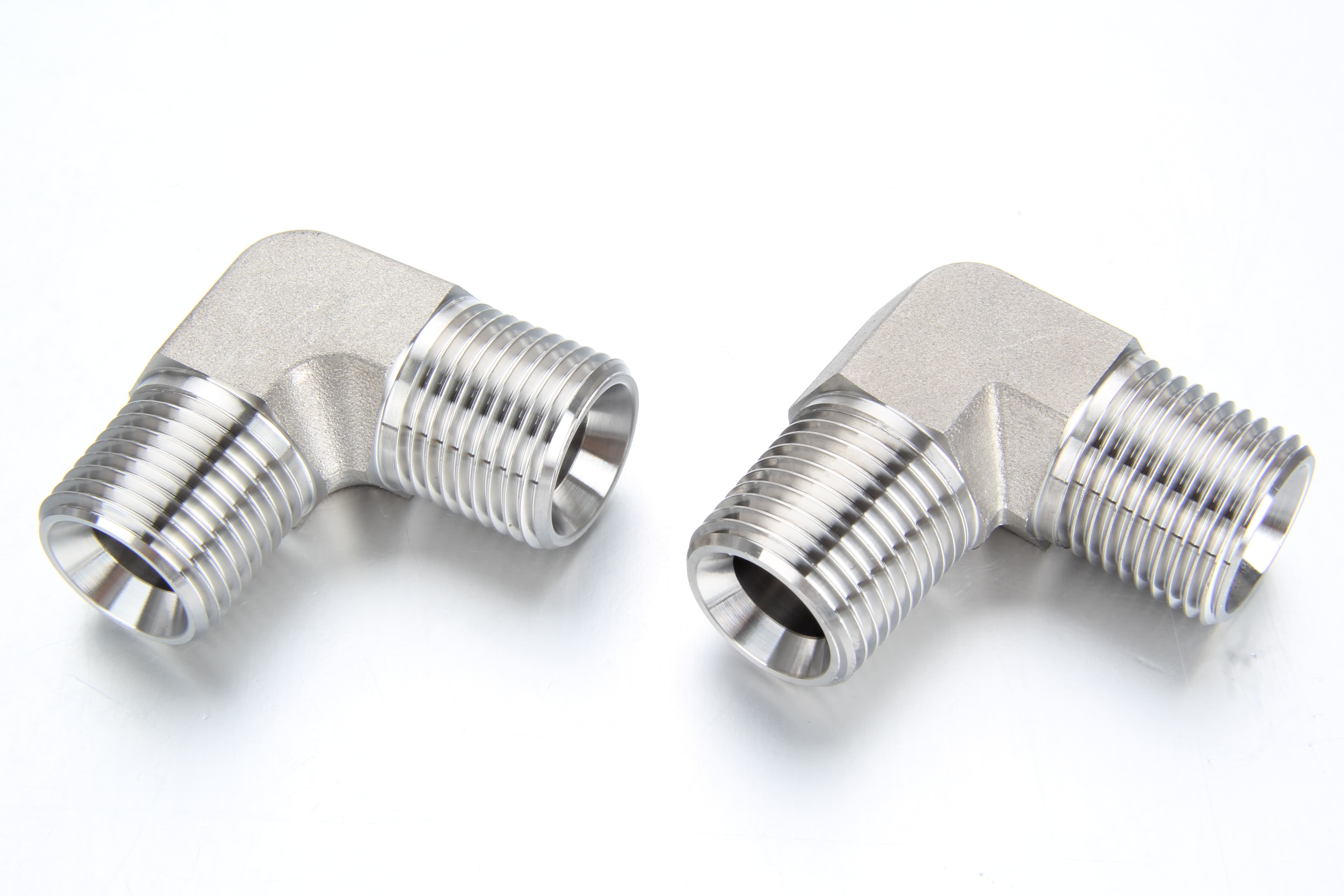

3. Elbow BSPT Adapters
Ideal for routing layouts around sharp corners or transitioning fluid ports, our BSPP to BSPT Elbows feature a 90-degree forged body. They bridge parallel British threads (BSPP) with British Standard Pipe Tapered (BSPT) configurations seamlessly, utilizing mechanical thread deformation for a leak-free structural anchor.

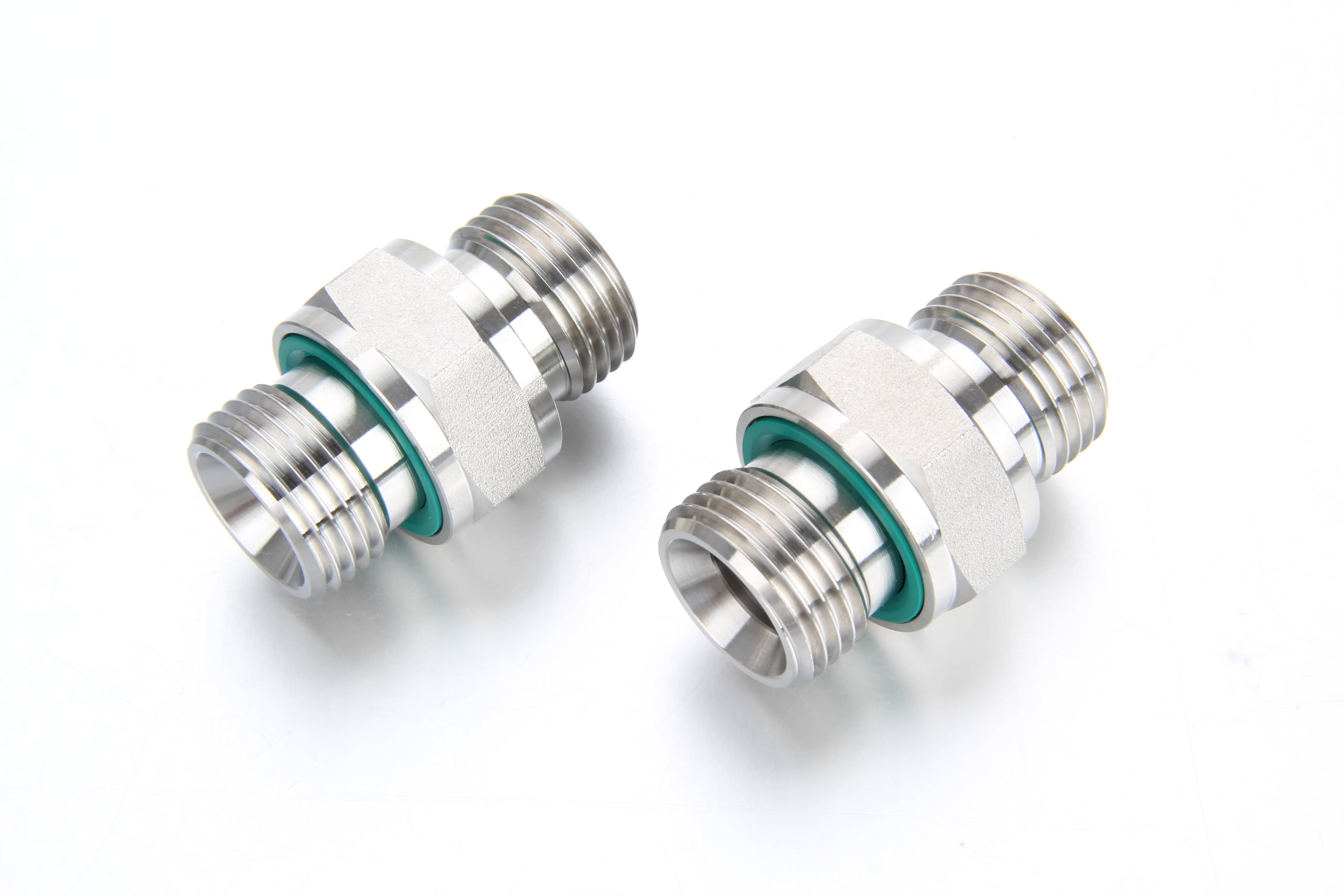

4. G Thread with ED Seal (G-ED Seal)
Engineered for high-pressure port connections in hydraulic manifolds, pumps, and control valves. The parallel G thread utilizes a specialized captive Profile Elastic Seal (ED-seal). This elastomer expands under torque to completely shut off leakage paths without requiring unneeded thread tape or paste sealant.

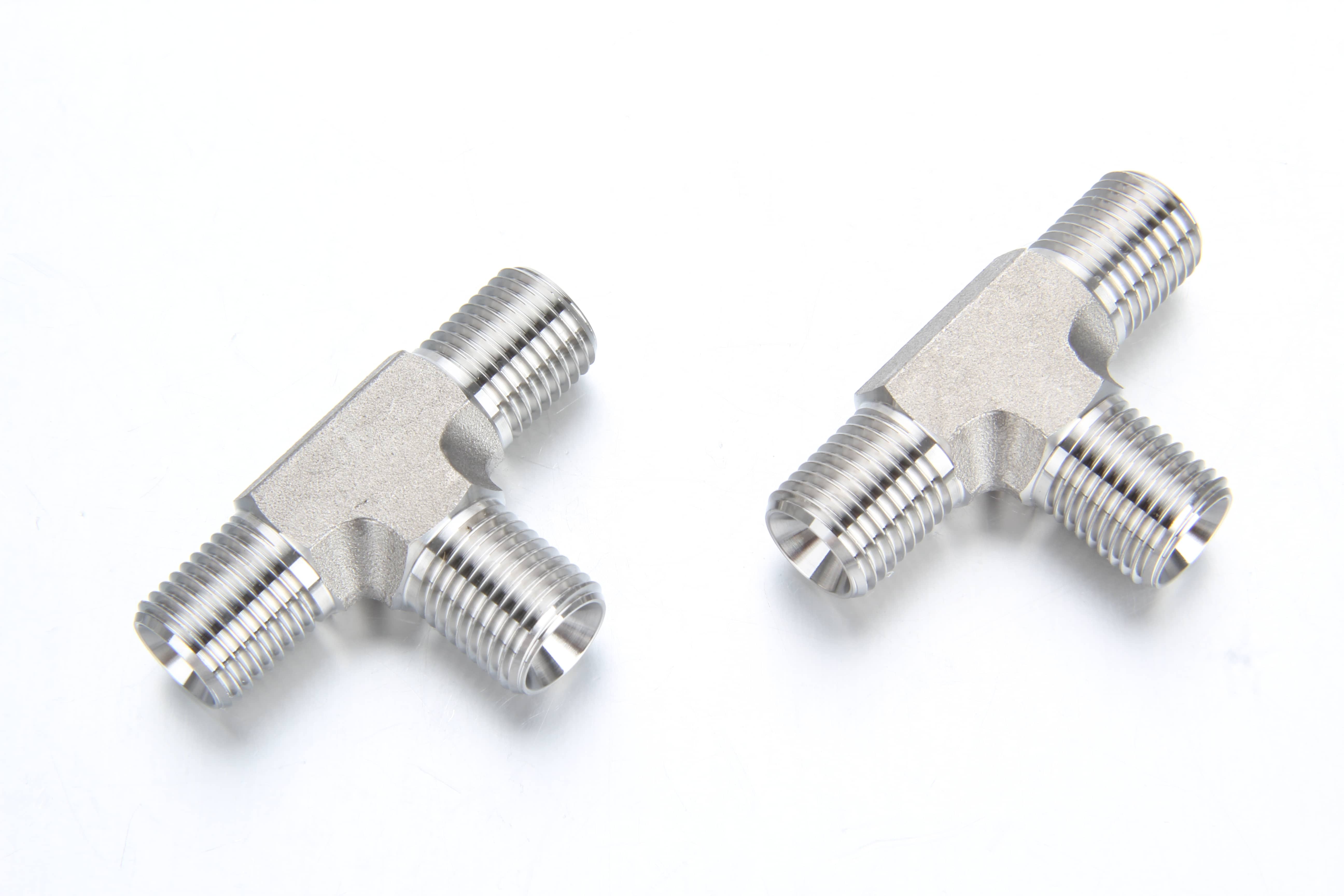

5. Tee Unions
Our three-way BSPP Tee Unions facilitate system fluid splitting or pressure drop lines across a unified 60° cone interface block. The forged cross-sections handle heavy structural loads and fluid shocks efficiently.
Technical Data & Engineering Specifications
Our state-of-the-art CNC manufacturing facility ensures strict compliance with tolerance margins. Below are the design guidelines for our standard stainless steel BS 5200 / ISO 8434-6 line:
BSPP Thread Size (G) | Nominal Tube O.D. (mm) | 60 Cone Size (Dash) | Nominal Operating Pressure (316 Stainless Steel) |
G 1/8 - 28 | 6mm | -2 | Up to 400 Bar (5,800 PSI) |
G 1/4 - 19 | 8mm / 10mm | -4 | Up to 400 Bar (5,800 PSI) |
G 3/8 - 19 | 12mm | -6 | Up to 400 Bar (5,800 PSI) |
G 1/2 - 14 | 15mm / 16mm | -8 | Up to 350 Bar (5,000 PSI) |
G 3/4 - 14 | 20mm | -12 | Up to 315 Bar (4,500 PSI) |
G 1 - 11 | 25mm / 30mm | -16 | Up to 250 Bar (3,600 PSI) |
G 1-1/4 - 11 | 38mm | -20 | Up to 200 Bar (2,900 PSI) |
G 1-1/2 - 11 | 50mm | -24 | Up to 160 Bar (2,300 PSI) |
Manufacturing Standards: BS 5200, ISO 8434-6, DIN 3852-2
Sealing Mechanics: 60° Metal-to-Metal Cone Seat / Profile ED-Seal (NBR or Viton/FKM options)
Material Composition: AISI 304, AISI 316, AISI 316L, AISI 316Ti Stainless Steel
The Fitsch Advantage: Sourcing from Our China Factory
Purchasing your hydraulic components directly from Fitsch (Ningbo International Trade Co., Ltd.) provides distinct strategic benefits over standard distribution channels:
Over 20 Years of Rich Production Expertise: We deeply understand global precision requirements and standard certifications (ISO, DIN, SAE, JIS).
Massive Industrial Capacity: Armed with 200 advanced CNC machines, we comfortably handle scale orders with a maximum capacity of 1,500,000 fluid connectors per month.
Failproof Supply Chain Integration: We operate within our local industrial manufacturers union to lower overhead costs, passing those factory-direct savings straight to your procurement budget without compromising component tolerances.
Rigorous Quality Control Tracking: From raw material material-spectral testing to finalized thread go/no-go gauge validation, every batch is fully trackable.
Request an Engineering Quote & Catalog
Contact our export team directly for sample requests, volume discount lists, or custom design prints:
Email: info@fitsch.cn
Factory Address: No.133-3 Anjiexi Road, Sanqishi Town, Yuyao 315412, China
