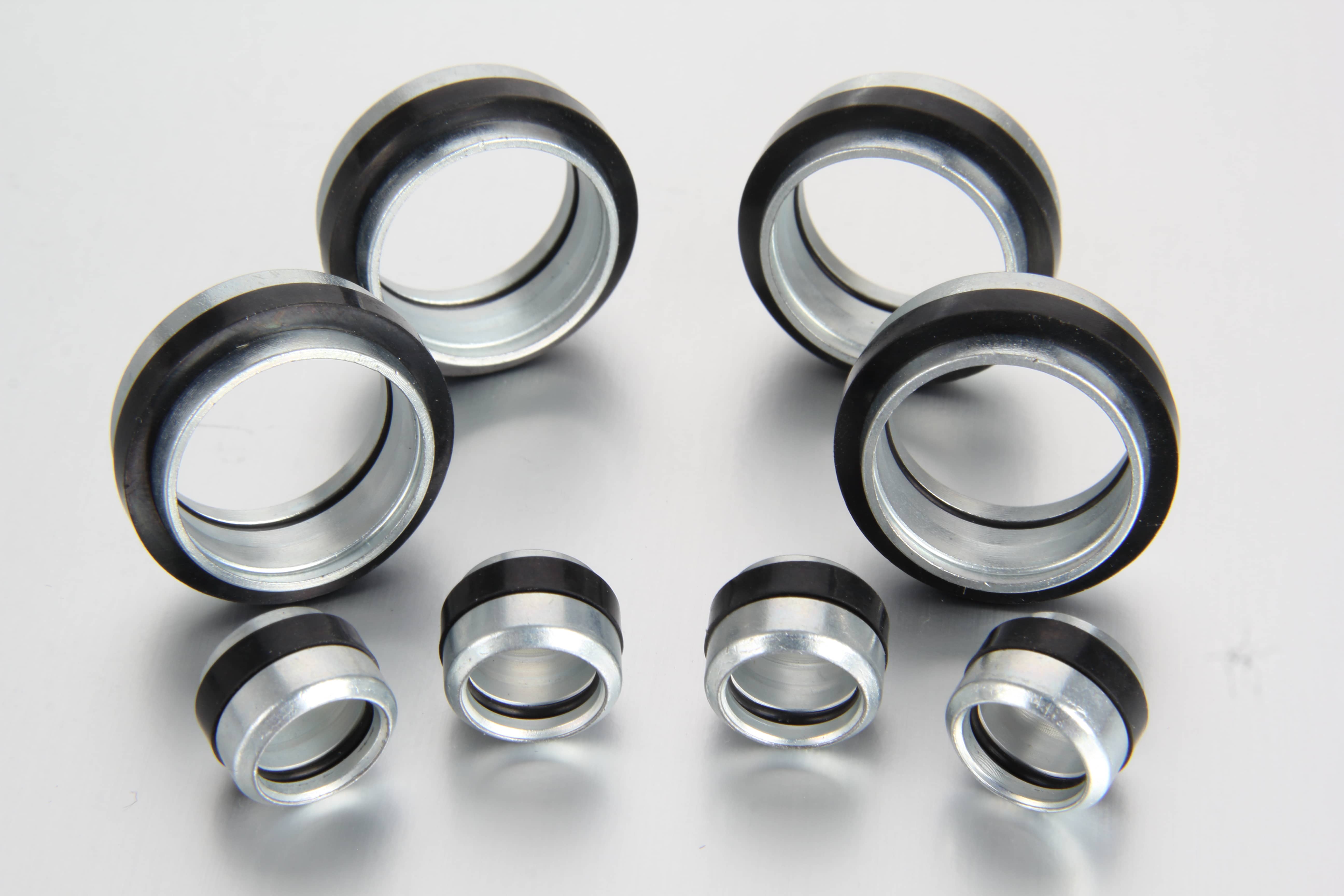

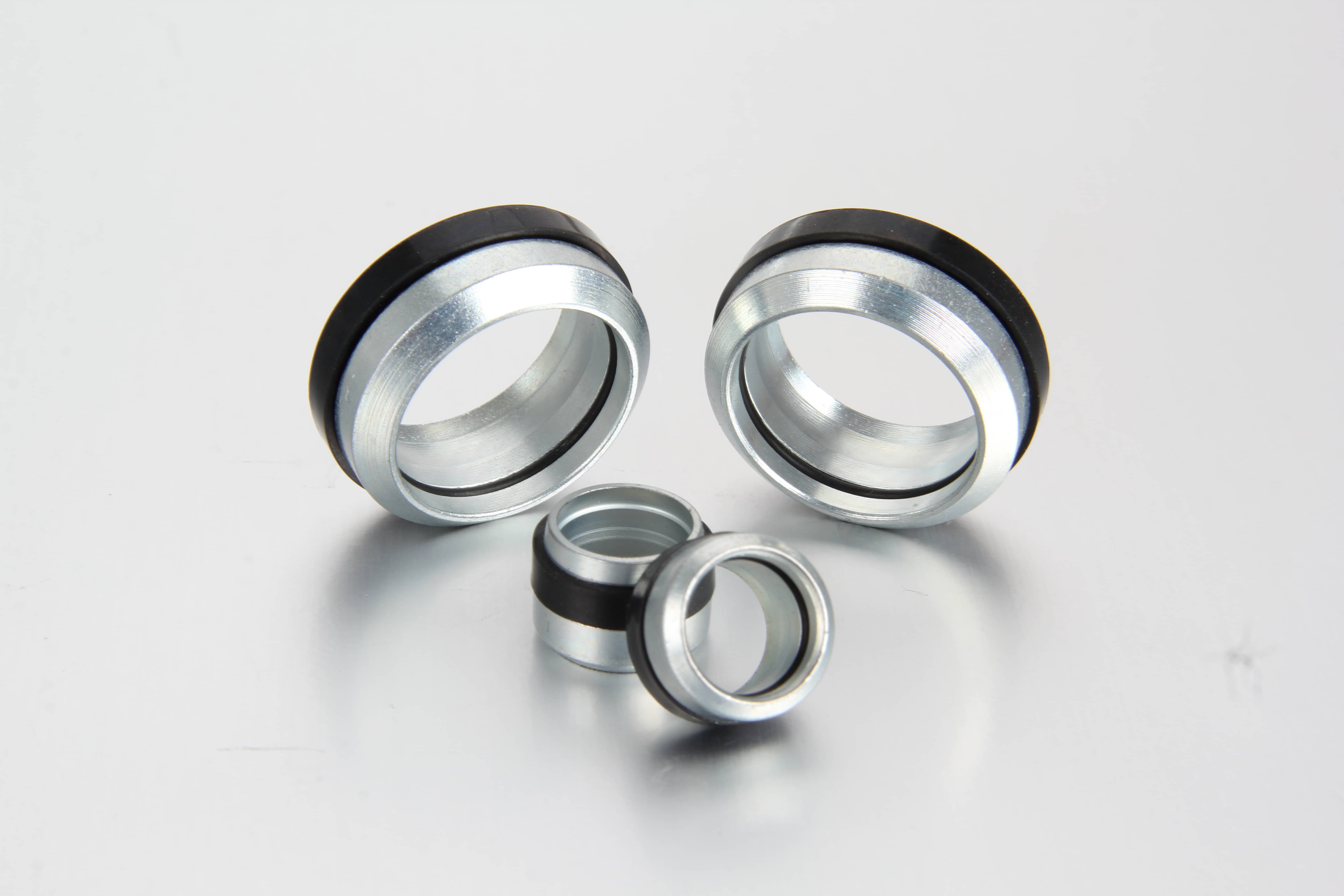

Designed to fit standard 24° cone connectors, these soft sealing rings are fully interchangeable with global brands such as CAST B4, RASTELLI AR3/C, DICSA ACJ, Stima DC.G, and FITSCH ROL.
| SERIES | Ø Tube | CAST B4 | RASTELLI AR3/C | DICSA ACJ | Stima DC.G | FITSCH ROL |
| L | 6 | 100104.4 | AR3/C - 6 LS | ACJL 6 | DC0104.G | ROL/S06 |
| L | 8 | 100105.4 | AR3/C - 8 LS | ACJL 8 | DC0105.G | ROL/S08 |
| L | 10 | 100106.4 | AR3/C - 10 LS | ACJL 10 | DC0106.G | ROL/S10 |
| L | 12 | 100107.4 | AR3/C - 12 LS | ACJL 12 | DC0107.G | ROL/S12 |
| L | 15 | 100108.4 | AR3/C - 15 L | ACJL 15 | DC0108.G | ROL15 |
| L | 18 | 100109.4 | AR3/C - 18 L | ACJL 18 | DC0109.G | ROL18 |
| L | 22 | 100110.4 | AR3/C - 22 L | ACJL 22 | DC0110.G | ROL22 |
| L | 28 | 100111.4 | AR3/C - 28 L | ACJL 28 | DC0111.G | ROL28 |
| L | 35 | 100112.4 | AR3/C - 35 L | ACJL 35 | DC0112.G | ROL35 |
| L | 42 | 100113.4 | AR3/C - 42 L | ACJL 42 | DC0113.G | ROL42 |
| S | 6 | 100114.4 | AR3/C - 6 LS | ACJS 6 | DC0104.G | ROL/S06 |
| S | 8 | 100115.4 | AR3/C - 8 LS | ACJS 8 | DC0105.G | ROL/S08 |
| S | 10 | 100116.4 | AR3/C - 10 LS | ACJS 10 | DC0106.G | ROL/S10 |
| S | 12 | 100117.4 | AR3/C - 12 LS | ACJS 12 | DC0107.G | ROL/S12 |
| S | 14 | 100118.4 | AR3/C - 14 S | ACJS 14 | DC0118.G | ROS14 |
| S | 16 | 100119.4 | AR3/C - 16 S | ACJS 16 | DC0119.G | ROS16 |
| S | 20 | 100120.4 | AR3/C - 20 S | ACJS 20 | DC0120.G | ROS20 |
| S | 25 | 100121.4 | AR3/C - 25 S | ACJS 25 | DC0121.G | ROS25 |
| S | 30 | 100122.4 | AR3/C - 30 S | ACJS 30 | DC0122.G | ROS30 |
| S | 38 | 100123.4 | AR3/C - 38 S | ACJS 38 | DC0123.G | ROS38 |
Dual-Mechanism Sealing:

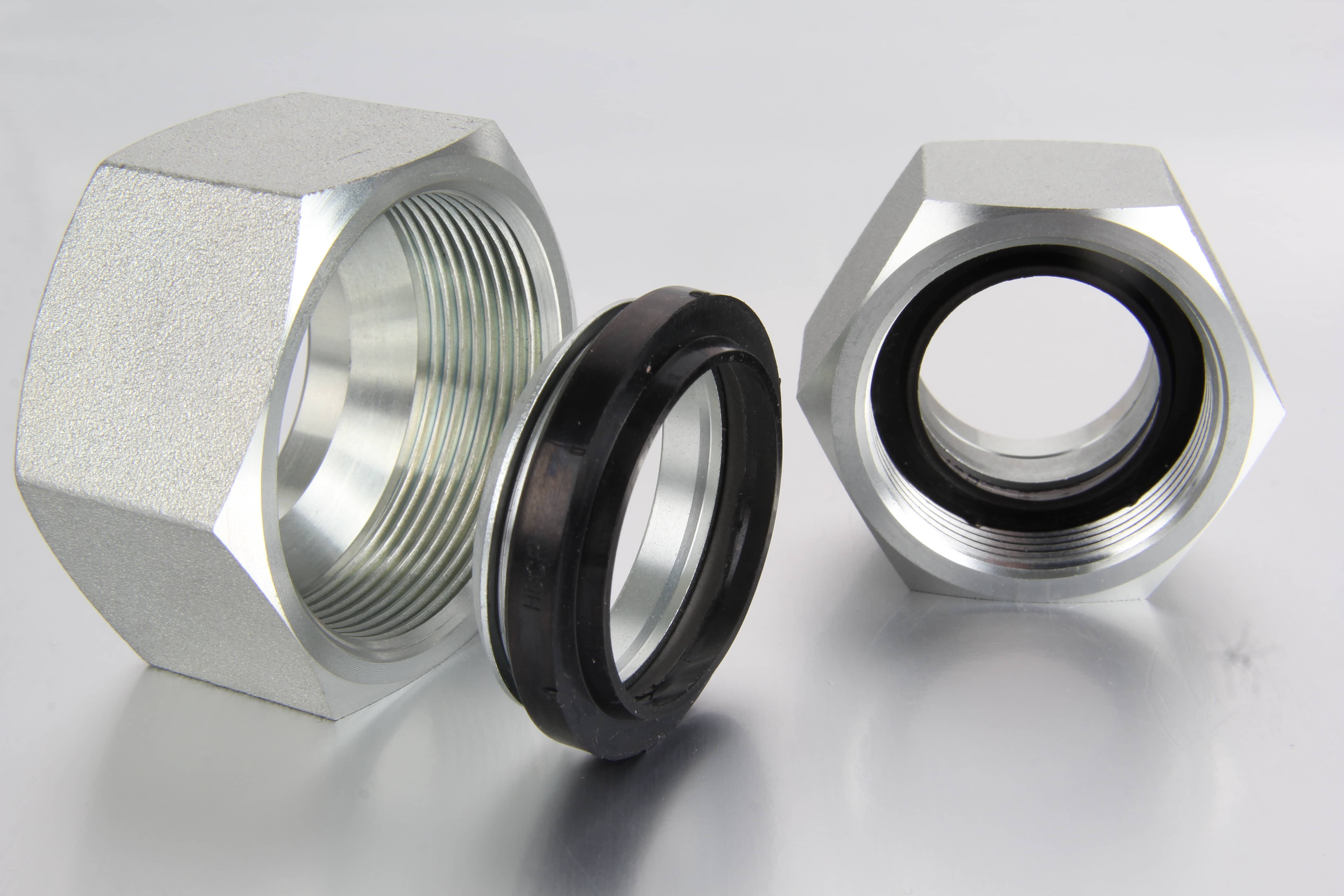

Mechanical Bite: The hardened metallic sharp edge bites precisely into the outer wall of the hydraulic tube, creating a form-locked mechanical hold capable of withstanding extreme tensile forces.
Elastomeric Soft Seal: The embedded profile ring captures micro-imperfections on the tube surface and fitting body, providing an airtight barrier that standard metal-to-metal seating cannot guarantee.
Superior Vibration and Shock Absorption: The elastomeric compound acts as a built-in damper, absorbing continuous system pulsations and hydraulic shocks. This significantly extends the service life of both the tubing and the fitting connections.
Premium Surface Protection (CrVI-Free): Standard carbon steel variants are treated with an advanced Zinc-Nickel (Zn-Ni) plating, providing over 720 hours of red rust resistance under ASTM B117 salt spray testing.
Zero Post-Assembly Tweaks: The high tolerance precision reduces assembly errors, drastically lowering time spent on post-installation inspections, troubleshooting, or rework.
| Parameter / Specification | Light Series (L) | Heavy Series (S) |
| Applicable Standards | ISO 8434-1 / DIN 2353 [1] | ISO 8434-1 / DIN 2353 [1] |
| Tube Outer Diameter (OD) | 6 mm to 42 mm | 6 mm to 38 mm |
| Nominal Pressure (PN) | Up to 315 bar / 500 bar (depending on size) | Up to 630 bar / 800 bar (depending on size) |
| Base Body Material | Carbon Steel (C20 35) / Stainless Steel (SS316L) | Carbon Steel (C20 35) / Stainless Steel (SS316L) |
| Surface Treatment | Zinc-Nickel Plated (Silver-Gray Finish, Cr6+ Free) | Zinc-Nickel Plated (Silver-Gray Finish, Cr6+ Free) |
| Standard Soft Seal Material | NBR (Perbunan) / FKM (Viton) | NBR (Perbunan) / FKM (Viton) |
Elastomer Compatibility & Temperature Thresholds
NBR (Nitrile Rubber): Best for standard mineral oil-based hydraulic fluids, lubricating oils, and water-glycol.
Temperature Range: -35°C to +100°C

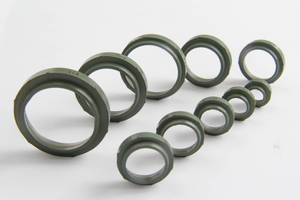

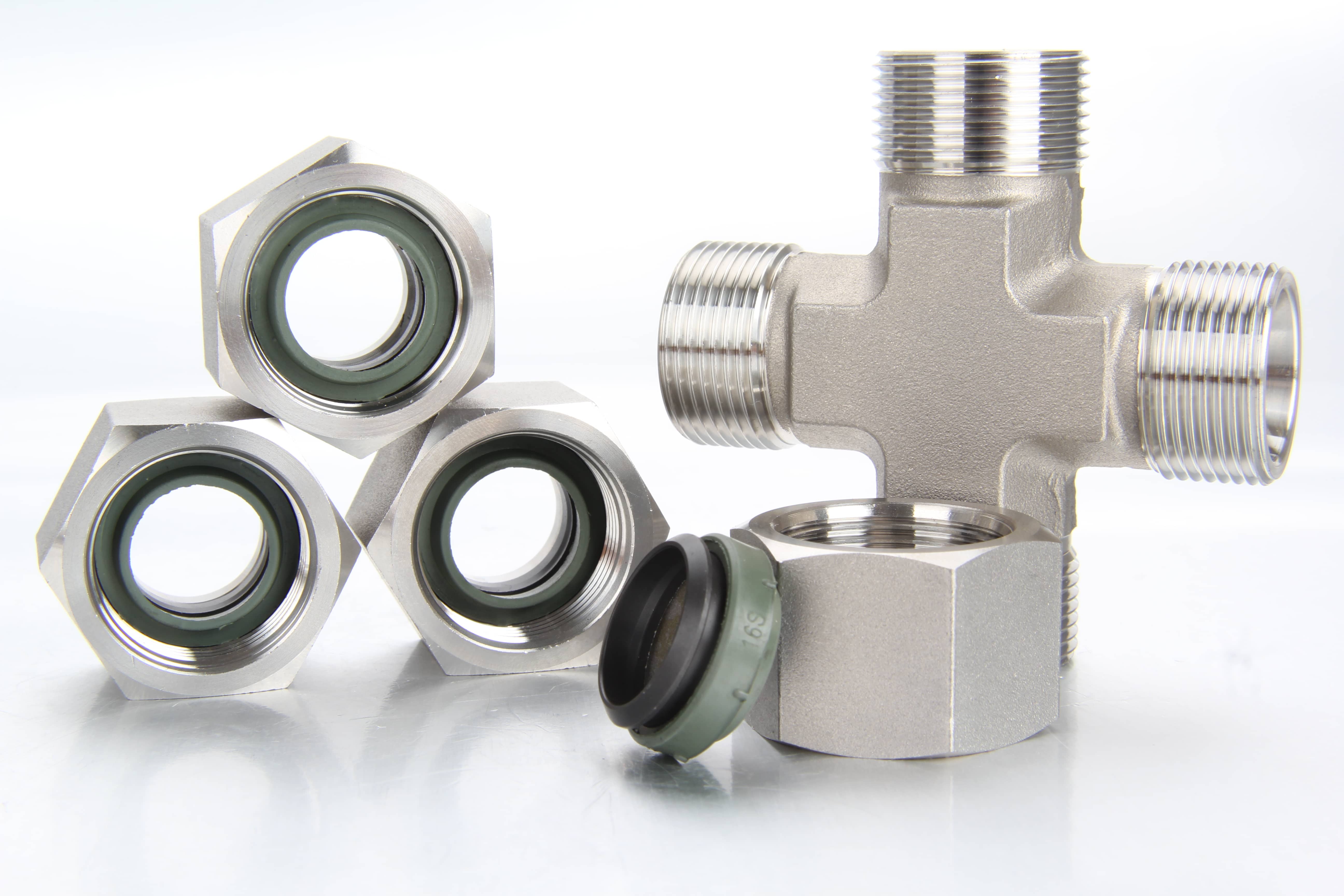

FKM / Viton (Fluorocarbon Rubber): Highly recommended for synthetic oils, aggressive chemicals, bio-oils, and elevated operational environments.
Temperature Range: -25°C to +200°C
