One wire braid textile cover h
Availability: | |
---|---|
PDF Export | |

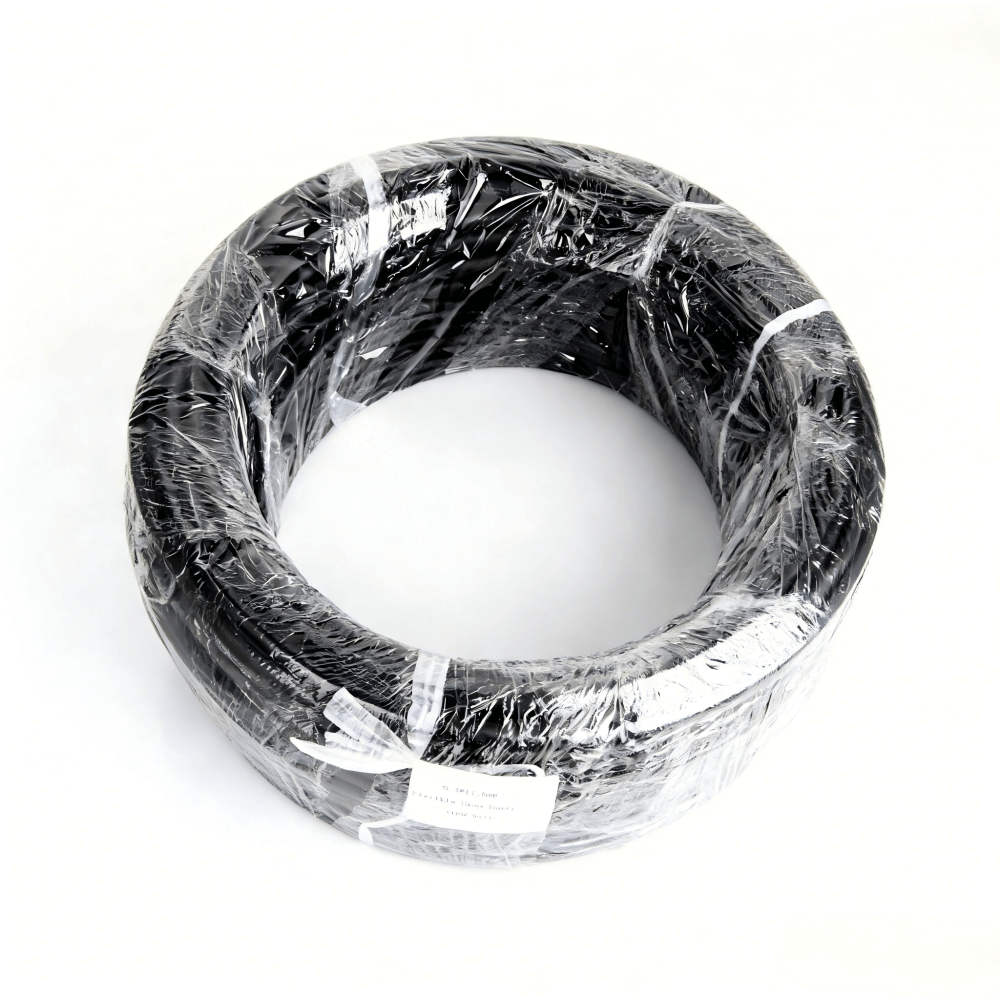

High Pressure hose is design with one spiral fiber synthetic net for reinforce purpose, inner tube is optional for your demands such as polyamide(soft), polyester(high strength), cover is polyurethane. Meet or exceed SAE J517 100R7-HLBD02 standards.
High pressure hose specifications
Inside diameter*outside diameter 4*8.6mm and 6*11.3mm
Burst pressure is from 60Mpa to 84Mpa(600Bar to 840Bar)
Operation temperature range is from e -40°F (-40°C) to 212°F (100°C).
Item No. | Nominal Diameter | Outer Diameter | bending R | Burst Pressure | |
1001-204 | 4 | 8.6 | 35 | 800 bar | 11600 psi |
1001-206 | 6 | 11.3 | 50 | 840 bar | 12183 psi |
The high-pressure hoses are suitable for Automatic central lubrication systems, to connect the progressive distribution unit with the lubrication point or the lubrication distributor (or piston distributor) to the lubrication point.
Assembly of high pressure hose will be need screw sleeves, hose studs straight or elbow and cutting ring fittings.
We also can offer Parker HLB HLBD remote lubrication hose is different the high pressure hose, specification as follow:
Inside diameter*outside diameter 3.2*8.1mm and 5*10.4mm
Burst pressure is 82Mpa(820Bar)
Matched with reusable hose fittings BU series fittings.
High Pressure hose is design with one spiral fiber synthetic net for reinforce purpose, inner tube is optional for your demands such as polyamide(soft), polyester(high strength), cover is polyurethane. Meet or exceed SAE J517 100R7-HLBD02 standards.
High pressure hose specifications
Inside diameter*outside diameter 4*8.6mm and 6*11.3mm
Burst pressure is from 60Mpa to 84Mpa(600Bar to 840Bar)
Operation temperature range is from e -40°F (-40°C) to 212°F (100°C).
Item No. | Nominal Diameter | Outer Diameter | bending R | Burst Pressure | |
1001-204 | 4 | 8.6 | 35 | 800 bar | 11600 psi |
1001-206 | 6 | 11.3 | 50 | 840 bar | 12183 psi |
The high-pressure hoses are suitable for Automatic central lubrication systems, to connect the progressive distribution unit with the lubrication point or the lubrication distributor (or piston distributor) to the lubrication point.
Assembly of high pressure hose will be need screw sleeves, hose studs straight or elbow and cutting ring fittings.
We also can offer Parker HLB HLBD remote lubrication hose is different the high pressure hose, specification as follow:
Inside diameter*outside diameter 3.2*8.1mm and 5*10.4mm
Burst pressure is 82Mpa(820Bar)
Matched with reusable hose fittings BU series fittings.
