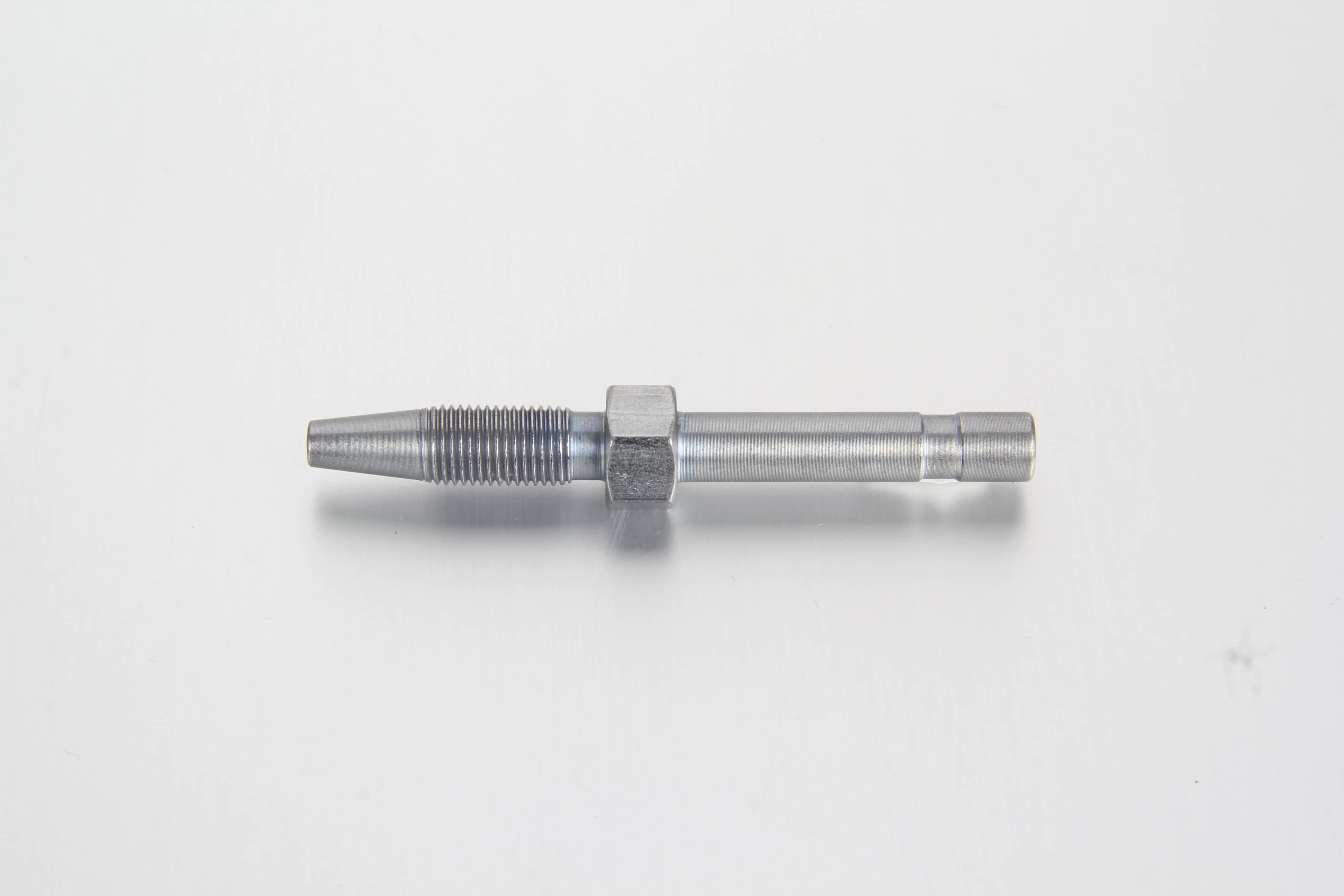

Our Metric Straight Hose Studs are engineered as premium, solder-free connection elements designed to link high-pressure grease hoses directly to downstream pipe lines within an automatic lubrication system. Used in tandem with heavy-duty screw sleeves, these high-pressure straight hose ends establish a solid, leak-free mechanical joint without the need for welding or specialized flaring tools. They ensure uninterrupted, high-pressure lubricant flow through demanding distribution loops, keeping vital machine bearings running smoothly.

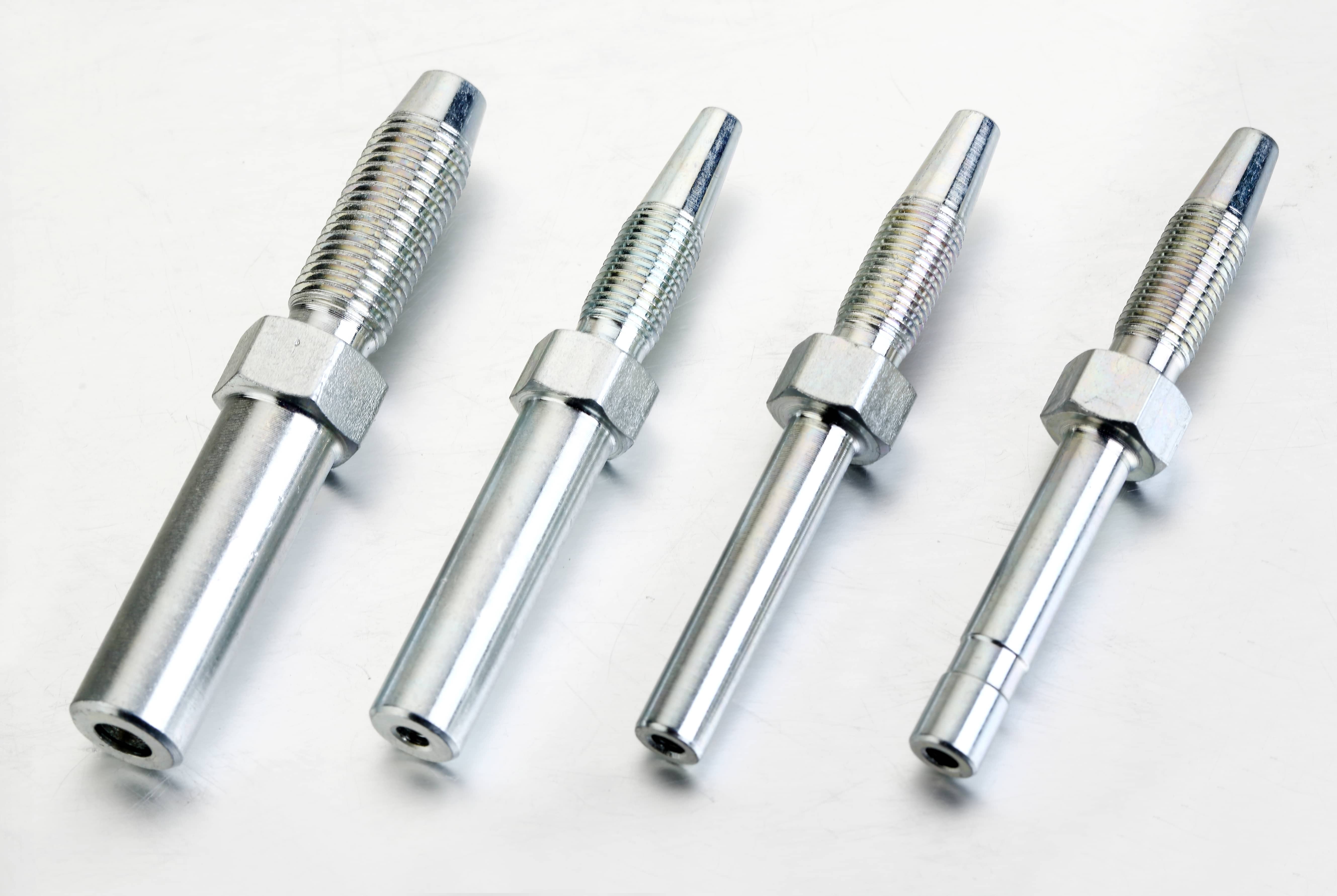

As a high-volume B2B manufacturer and global OEM partner, we supply premium accessories for lubrication systems crafted to survive severe machinery environments. Our straight hose studs are available in high-strength galvanized steel, black chromated steel, or exceptional marine-grade Stainless Steel (VA 1.4401 / 316 / V4A) to withstand aggressive environmental corrosion and intense vibration cycles.
Part No. | Hose | D | L | L1 | SW | FRI | BEK | SK |
100051L51D4 | 4,1 x 8,75 | 4 | 51 | 20 | 10 | 100-054-4 | ||
100051L51 | 4,1 x 8,75 | 6 | 51 | 20 | 10 | 100-054 | 1001 21 186 | 853-370-002 |
100051L55 | 4,1 x 8,75 | 6 | 55 | 24 | 10 | 100-055 | 1001 21 190 | 853-380-002 |
100051L61 | 4,1 x 8,75 | 6 | 61 | 30 | 10 | 100-051 | 1001 21 201 | |
100051L96.5 | 4,1 x 8,75 | 6 | 96,5 | 65,5 | 10 | 100-091 | ||
100051L61D8 | 4,1 x 8,75 | 8 | 61 | 30 | 10 | 100-051-8 | 1001 21 173 | |
100061L65.5D6 | 6,35 x 11,3 | 6 | 65,5 | 22 | 12 | 100-064 | ||
100061L65.5 | 6,35 x 11,3 | 8 | 65,5 | 22 | 12 | 100-074 | 1001 21 301 | 406-708-006 |
100061L73.5D10 | 6,35 x 11,3 | 10 | 73,5 | 30 | 12 | 100-081 |
Part No. | Hose | D | L | L1 | SW | FRI | BEK | SK |
100051L51NUT | 4,1 x 8,75 | 6 | 51 | 20 | 10 | 100-054-NUT | 1001 21 210 | 853-370-002-VS |
100051L61NUT | 4,1 x 8,75 | 6 | 61 | 30 | 10 | 100-051-NUT | ||
100061L65.5NUT | 6,35 x 11,3 | 6 | 65,5 | 22 | 12 | 100-064-NUT |
Core Technical Blueprint & Fitting Integration
Universal High-Pressure Hose Sizing: Optimized for multi-brand compatibility, these straight tube studs precisely fit the industry's most common core hose dimensions, including 4.1 x 8.75 mm, 6.3 x 11.3 mm, and 1/8" x 5/16" layouts.

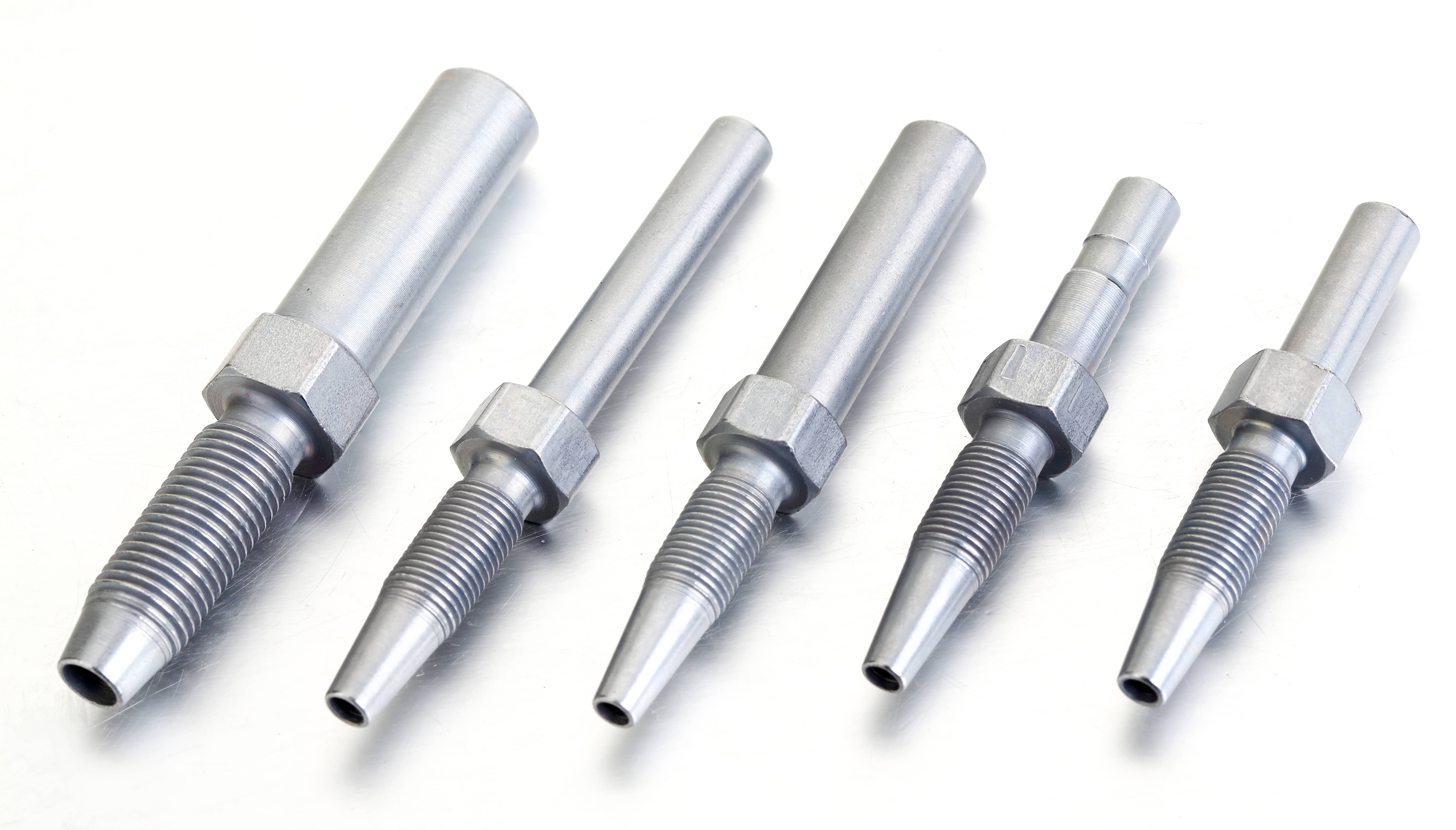

Targeted Fitting System Configurations: Depending on your system design, our straight hose ends are manufactured in two precise variations to integrate perfectly with your hardware blocks:
Plain Design (Without Groove): Engineered specifically for heavy-duty cutting ring fittings (DIN 2353 / ISO 8434-1) where the internal cutting ring bites directly onto the smooth outer diameter of the steel stud.

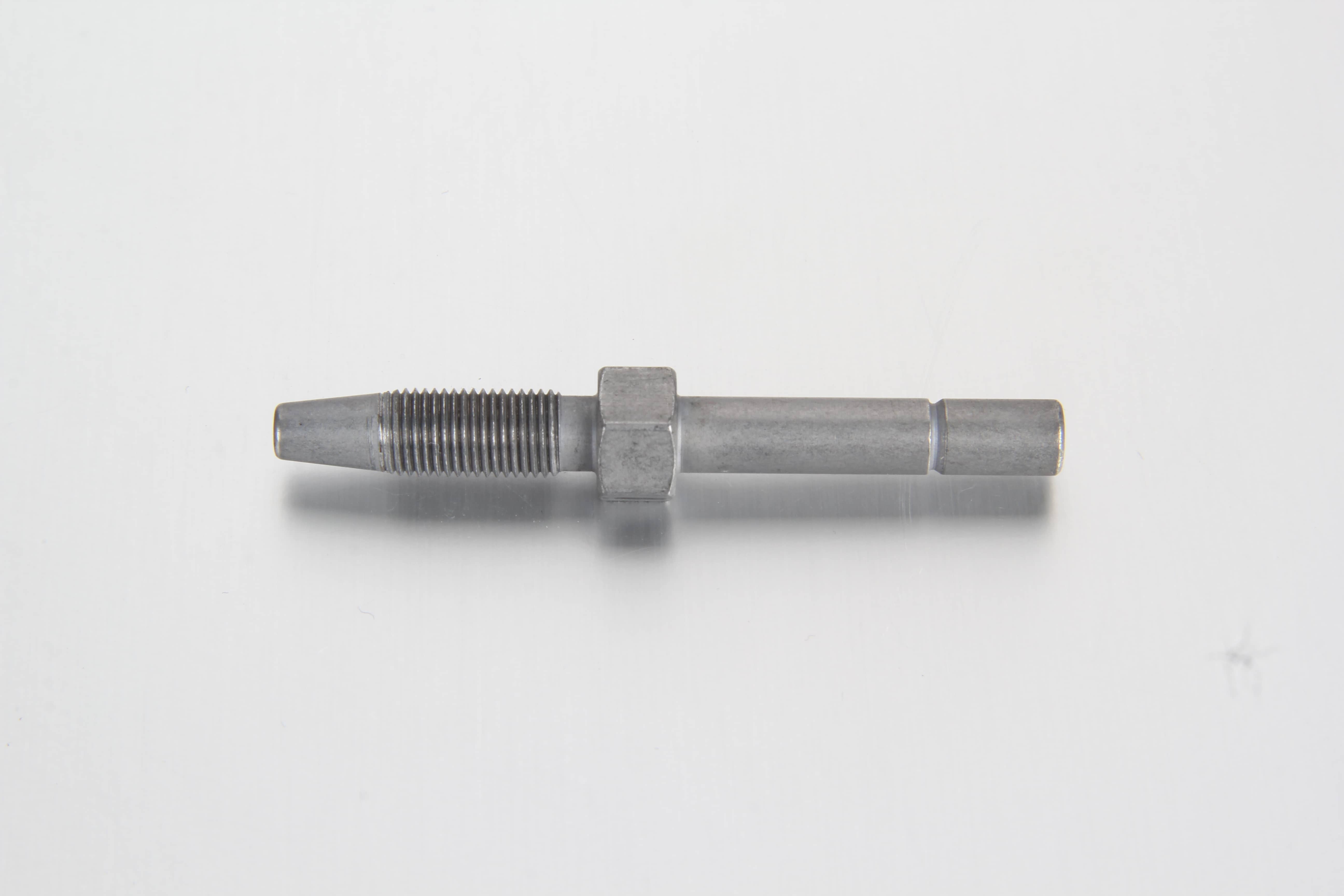

Grooved Design (With Groove): Built explicitly for push-in quick connectors, allowing the internal locking claws of the push-in block to click directly onto the matching stud groove for rapid tool-free installation.
Assembly Instructions & Compliance Standards

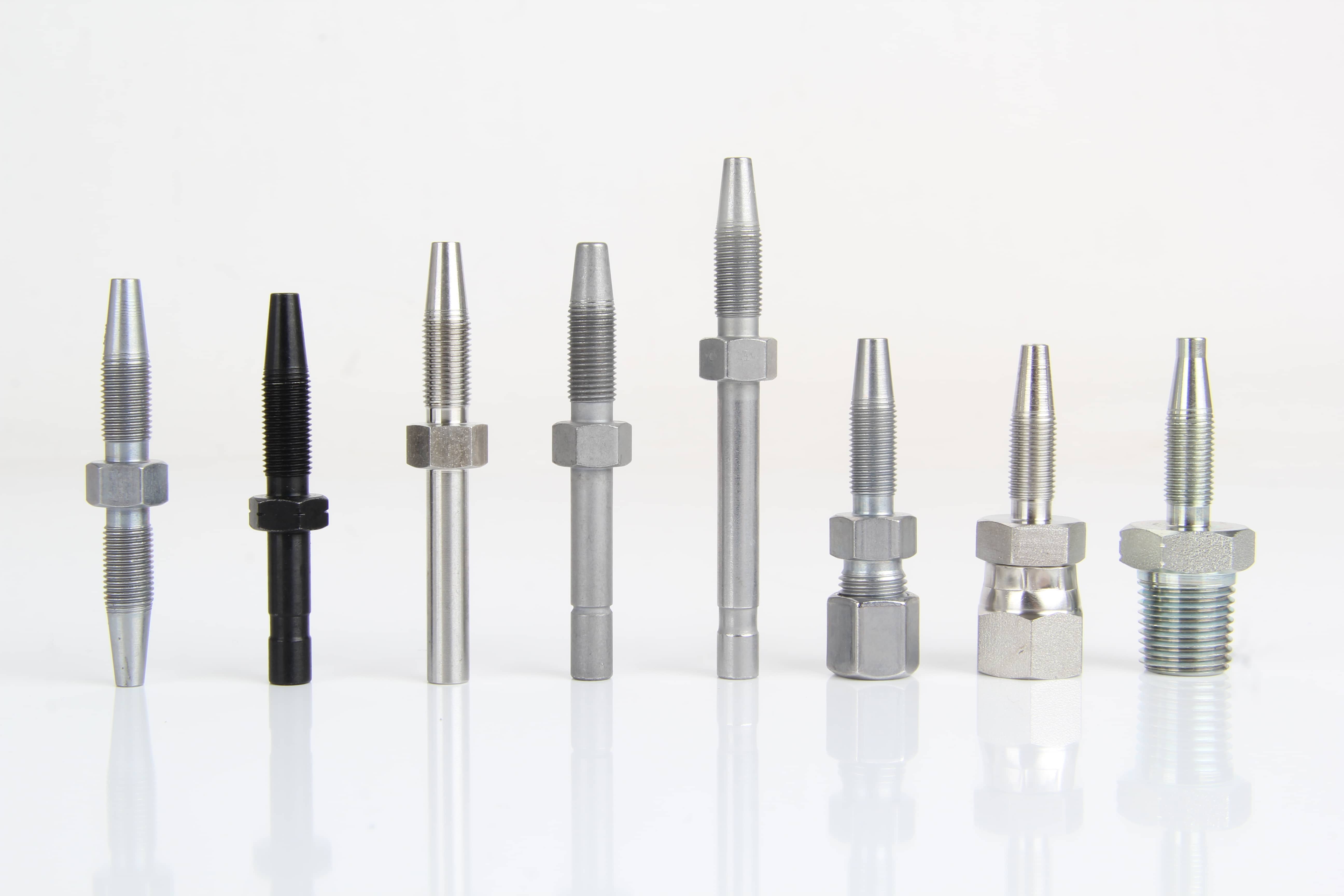

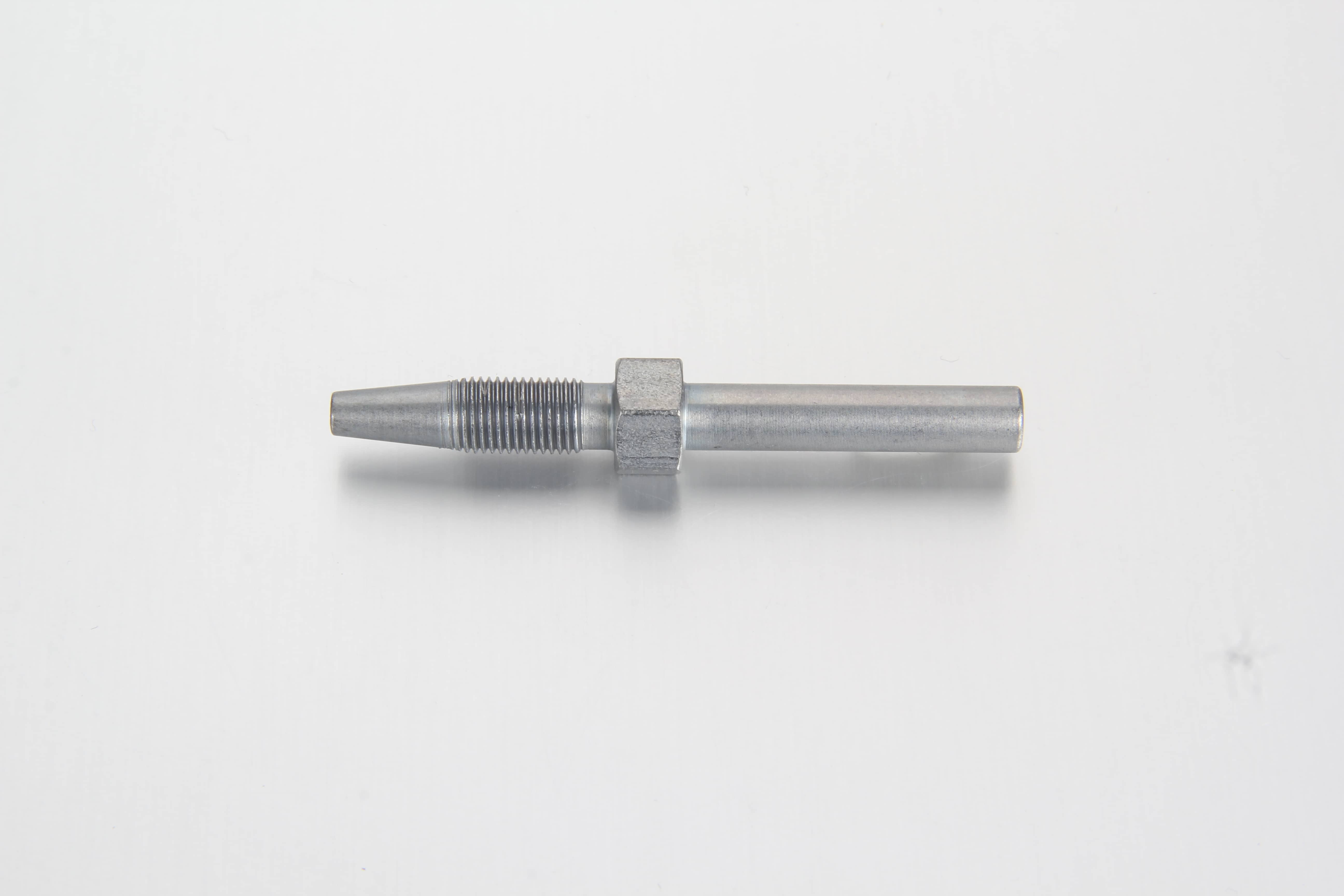

Anti-Loosening Assembly Design: The connection process uses a smart mechanical layout. First, the screw sleeve is wound onto the high-pressure hose outer jacket. Subsequently, the straight tube stud is threaded internally directly into the screw sleeve body. The screw sleeve utilizes a dedicated left-hand thread internally, which prevents it from backing off or loosening from the main hose while the straight hose stud is being tightened home securely.
Global Interchangeability: Engineered to meet standard global dimensions, our straight hose studs offer seamless, drop-in compatibility with lines from all major manufacturers of central lubrication units. They are the preferred selection for heavy commercial truck chassis, wind generator main bearing housings, high-stress mining gear, and progressive feeder block plumbing circuits across the manufacturing sector.
