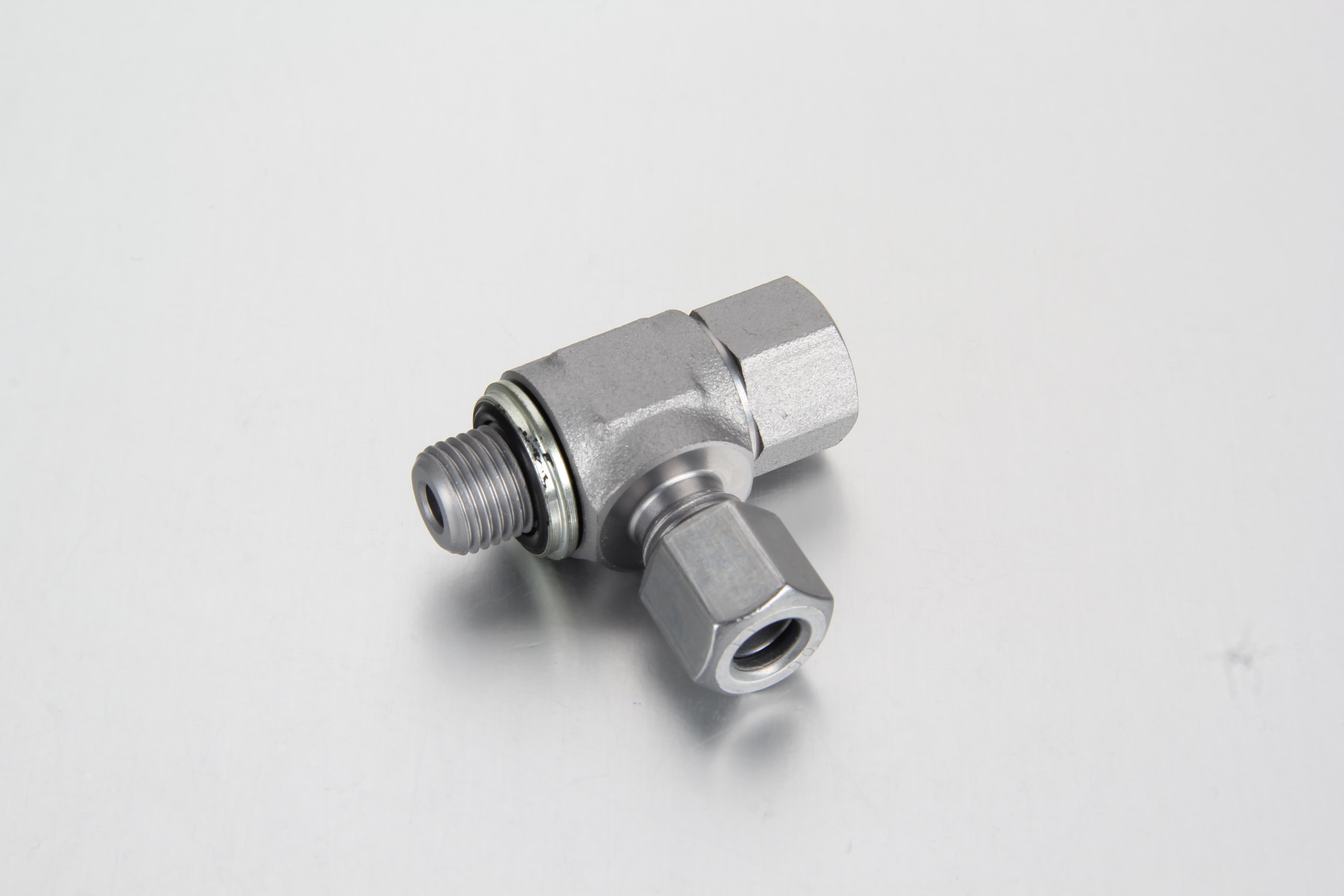

Our Metric Banjo Fitting Tee is the industry standard for distributing lubricants safely through high-frequency automatic lubrication networks and your commercial auto lube system. Engineered with a low-profile, double-sided annular ring body and a specialized combination male/female hollow bolt, this 3-way connector allows two separate metric lines to branch out from a single machine or block port. By providing full 360-degree orientation alignment before final tightening, it eliminates wide tube bending loops, protects lines from stress in tight spaces, and coordinates secure grease delivery to progressive distribution blocks.
As a high-volume B2B manufacturer and global OEM supplier, we construct our auto lube system fittings on automated multi-axis precision lathes to guarantee flawless cross-hole drilling, optimal internal flow curves, and exact thread profiles on every combination bolt. Every production lot is subject to rigorous quality control auditing to ensure absolute structural stability under the severe, pulsing pressures common in automated lubrication networks.
Part No. | Description | D | G | SW | SW1 | Serie | FRI | Weight |
1LLF-6-M10 | SWVE6-LLM10x1 | 6 | 10 x 1 | 12 | 14 | LL | 1025-103 | 35g |
1LLF-6-G02 | SWVE6-LLG1/8 | 6 | 1/8 BSP | 12 | 14 | LL | 1025-104 | 35g |
Core Technical Blueprint & Symmetric Engineering
Optimized for LL Series Networks: Purpose-built for the Extra Light (LL) Series footprint, this tee banjo coupling handles operating thresholds up to 100 bar, aligning seamlessly with the pressure boundaries of a modern auto lube system (machined for small-diameter tubing from 4mm to 12mm). Its minimized mass and compact profile ensure clean, low-clearance mounting inside crowded machinery panels and moving chassis joints.
Symmetric Branching Alignment Design: Both tube entry points feature standard 24° internal cone tube seats machined to the same metric specifications as your main line. The design allows the installer to pivot the fitting smoothly around the combination hollow bolt to achieve the perfect branching exit angle before securing the mechanical connection.
Identical Metric Connections: Integrates directly with standard metric lubrication tubing loops globally, ensuring an exact, localized fit without line modification.
Application & Compliance Standards
Dual Bite Sealing Integrity: Tightening the compression nuts drives the specialized cutting rings forward into the body seats, forcing them to bite cleanly into the exterior surface of the copper, steel, or high-pressure nylon tubing. Simultaneously, torque on the combination hollow bolt compresses the sealing washers tightly against the port face while offering a reliable female thread path. This multi-point mechanical connection creates an unyielding seal that easily withstands high industrial vibrations, continuous machine cycling, and pressure shocks.
Global Interchangeability: Manufactured in strict conformity with ISO 8434-1 and DIN 2353 extra-light guidelines. These tee banjo couplings offer complete, drop-in compatibility with leading international fluid-handling brands. They serve as the trusted default choice for commercial vehicle chassis, wind turbine bearings, progressive distribution blocks, heavy mining machinery, and automated industrial assembly systems.
