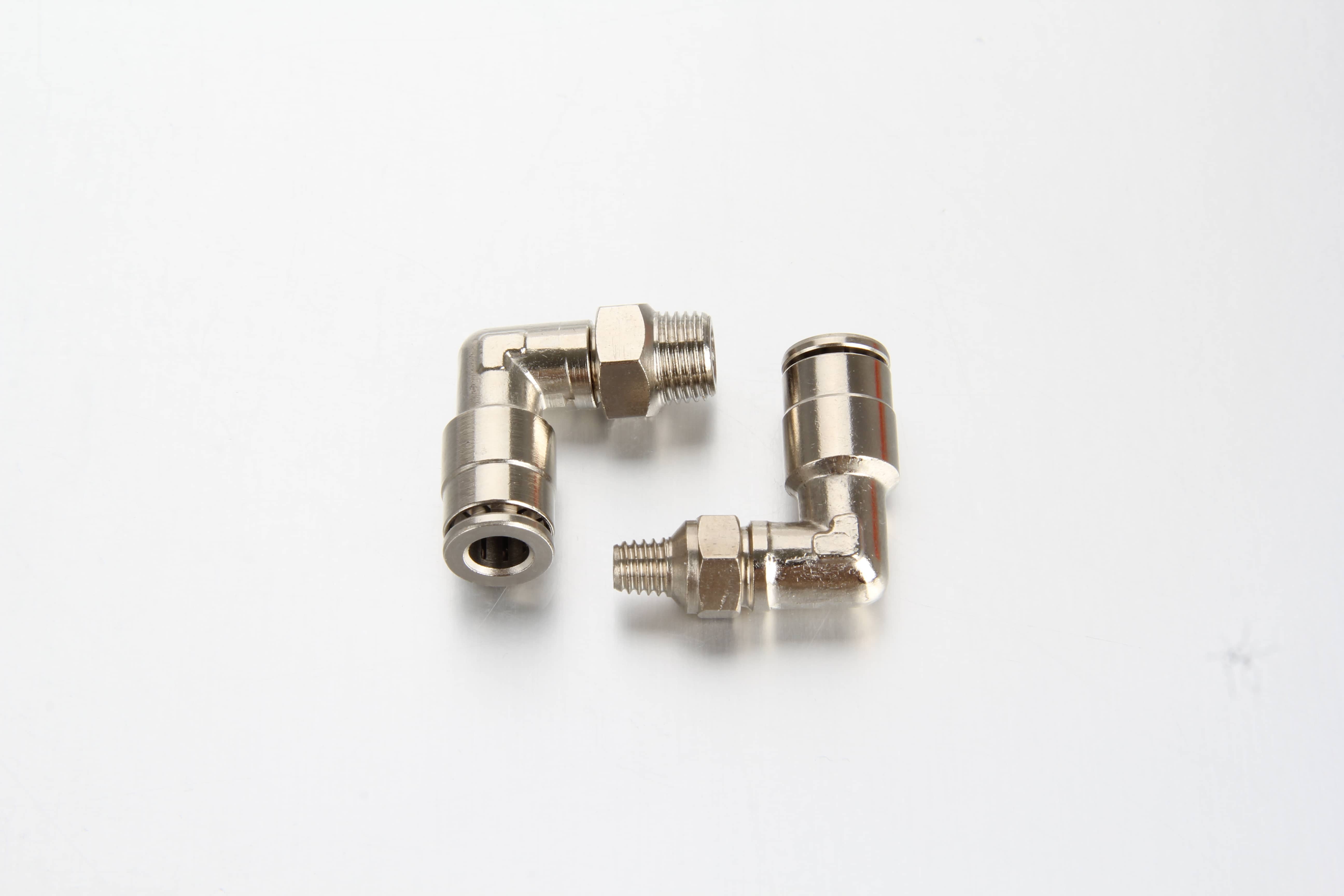

Grease Line Quick Connect Swivel Elbow

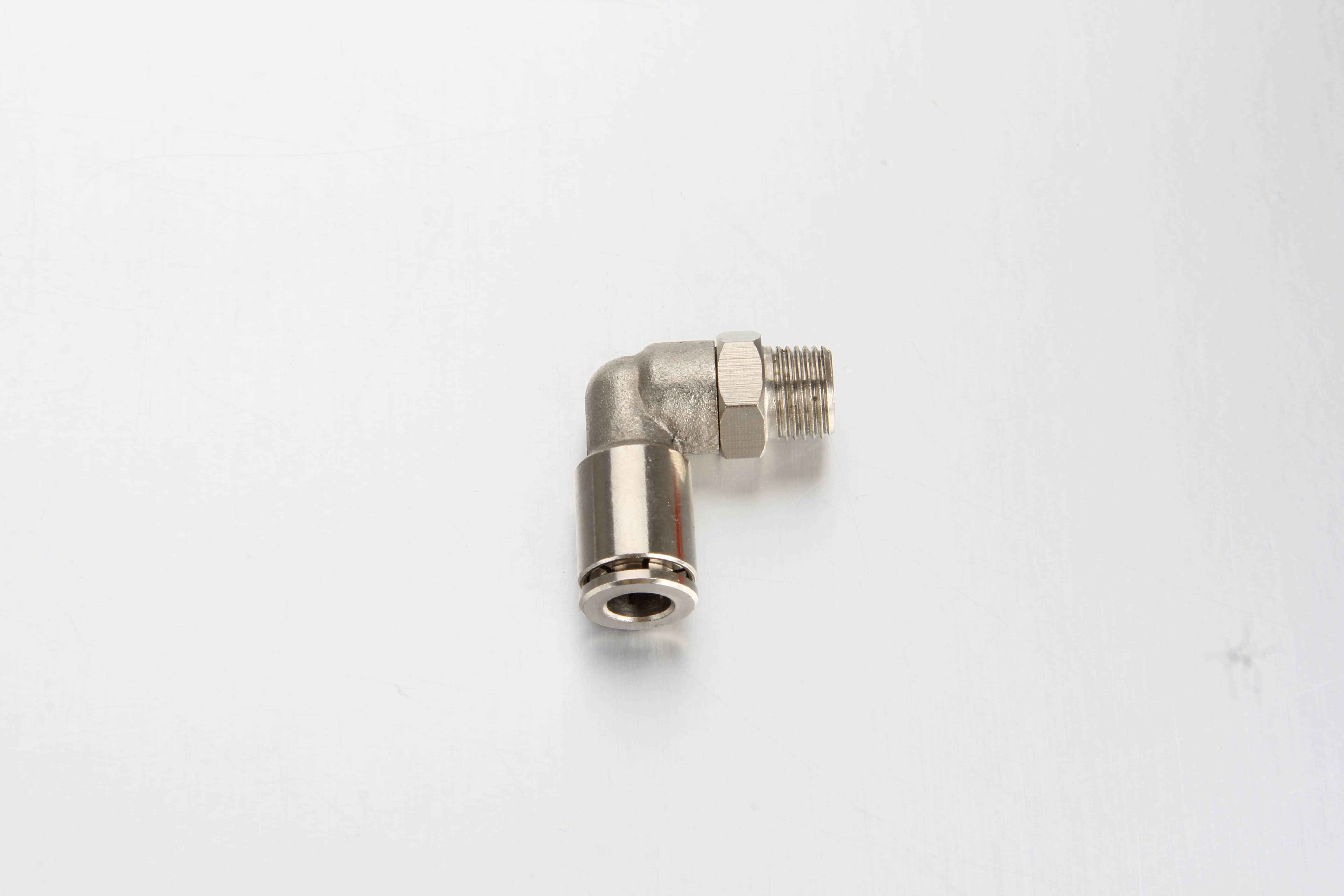

The Grease Line Quick Connect Swivel Elbow is designed for the demanding environments of centralized lubrication systems. It facilitates a secure, leak-proof, 90-degree connection between rigid distribution lines or flexible high-pressure hoses and moving machine parts. Featuring an integrated pivot mechanism, this fitting rotates under pressure to safeguard grease lines against kink failures, bending fatigue, and torsional mechanical stress.

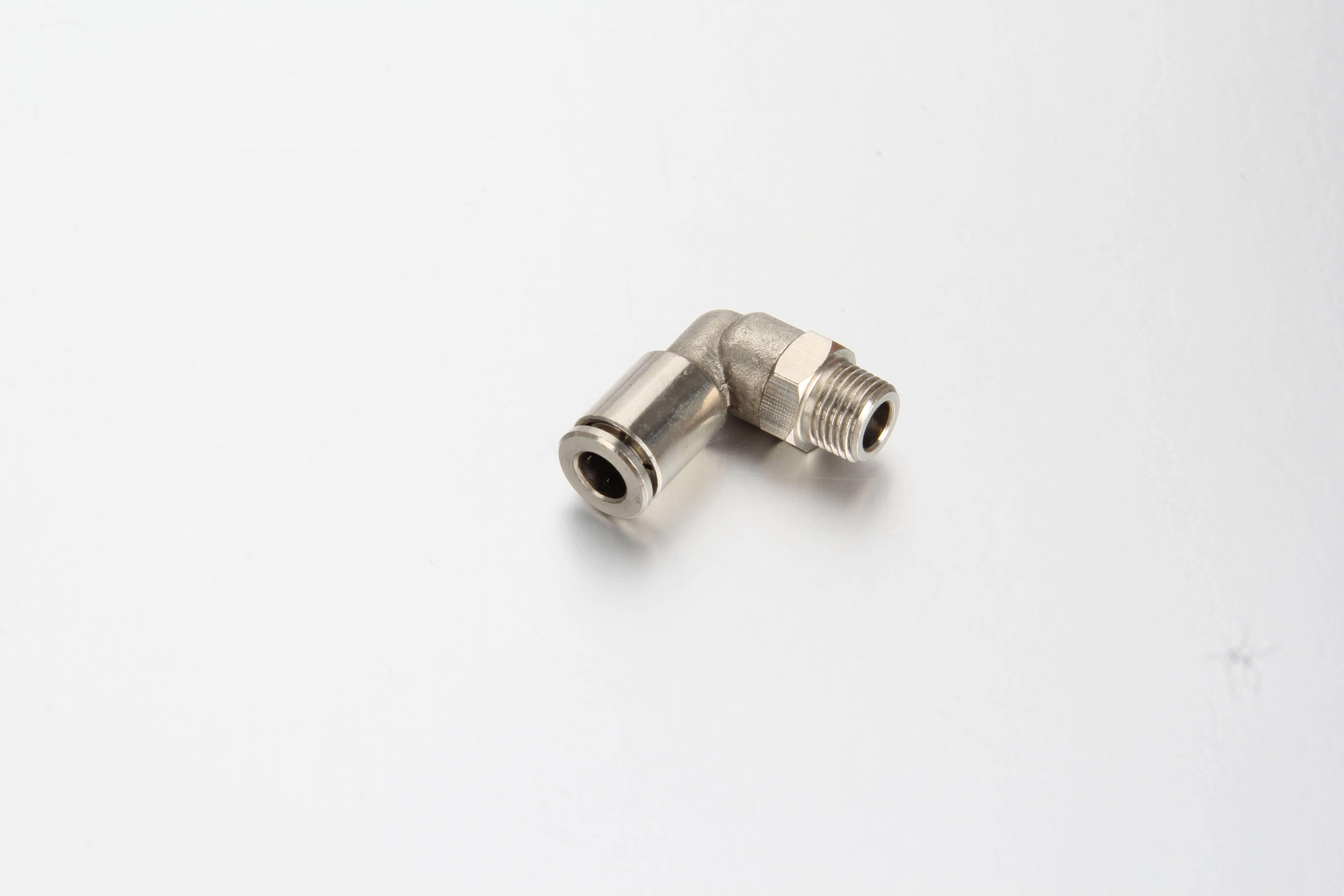

Part No. | G Taper Thread | Tube OD D (mm) | Wrench Size (mm) | Bag (pcs) | Alternative Part No. | Weight (kg/100) | FRI |
EWP04M6 | M6 x 1 tap | 4 | 10 | 50 | AHL04-ZM6x1 | 1.7 | 104-111 |
EWP04M8 | M8 x 1 tap | 4 | 10 | 50 | AHL04-ZM8x1 | 1.7 | 104-112 |
EWP04M10 | M10 x 1 tap | 4 | 12 | 50 | AHL04-ZM10x1 | 1.8 | 104-113 |
EWP04R2 | R 1/8 BSP tap | 4 | 12 | 50 | AHL04-R1/8 | 1.8 | 104-114 |
EWP06M6 | M6 x 1 tap | 6 | 10 | 50 | AHL06-ZM6x1 | 1.9 | 105-111 |
EWP06M8 | M8 x 1 tap | 6 | 10 | 50 | AHL06-ZM8x1 | 2 | 105-112 |
EWP06M10 | M10 x 1 tap | 6 | 12 | 50 | AHL06-ZM10x1 | 2.1 | 105-113 |
EWP06R2 | R 1/8 BSP tap | 6 | 12 | 50 | AHL06-R1/8 | 2.1 | 105-114 |
Key Features & Materials
Heavy-Duty Construction: Manufactured from high-grade plated brass to ensure excellent wear resistance, reliable corrosion shielding, and long-term durability in harsh industrial settings.
Instant Push-In Technology: The instant quick-connect system accepts 4mm, 6mm, and 1/4" tubes without requiring specialized tools, heavily reducing assembly time and maintenance overhead.
360-Degree Swivel Alignment: The 90° pivotable profile rotates smoothly to perfectly align your grease line path, adjusting to the dynamic motion of automated machinery components.
Engineering Specifications

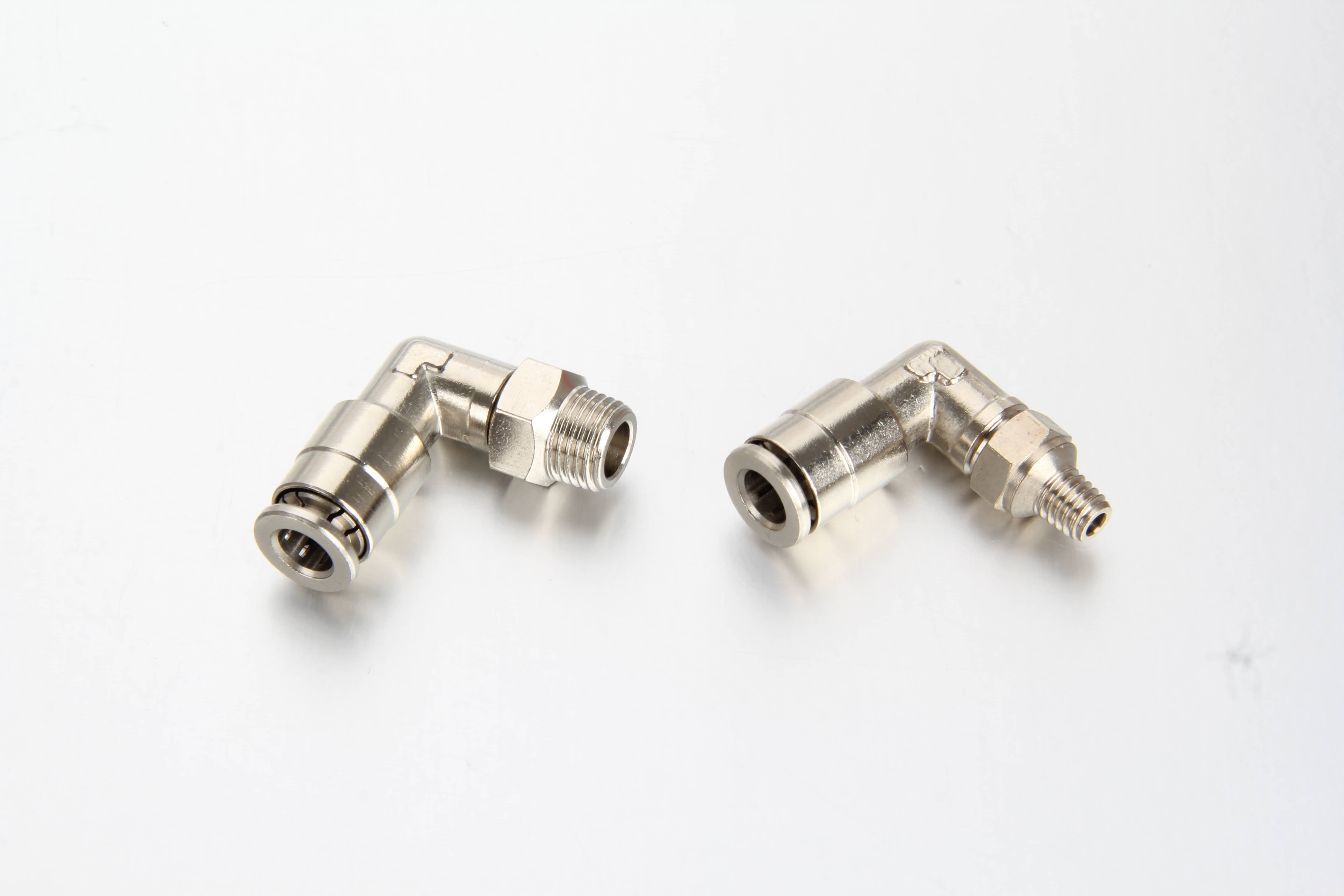

The fitting is available across extensive global thread standards to seamlessly match varying OEM manifold designs:
Metric Threads: M6x1, M8x1, and M10x1 tapered configurations.
Inch/Imperial Threads: R 1/8" BSP tapered, 1/8" NPT, and 1/4"-28 UNF options.
Packaging Volumes: Distributed standard in bulk packs of 50 (bags) or 500 (boxes) for streamlined commercial inventory management.
