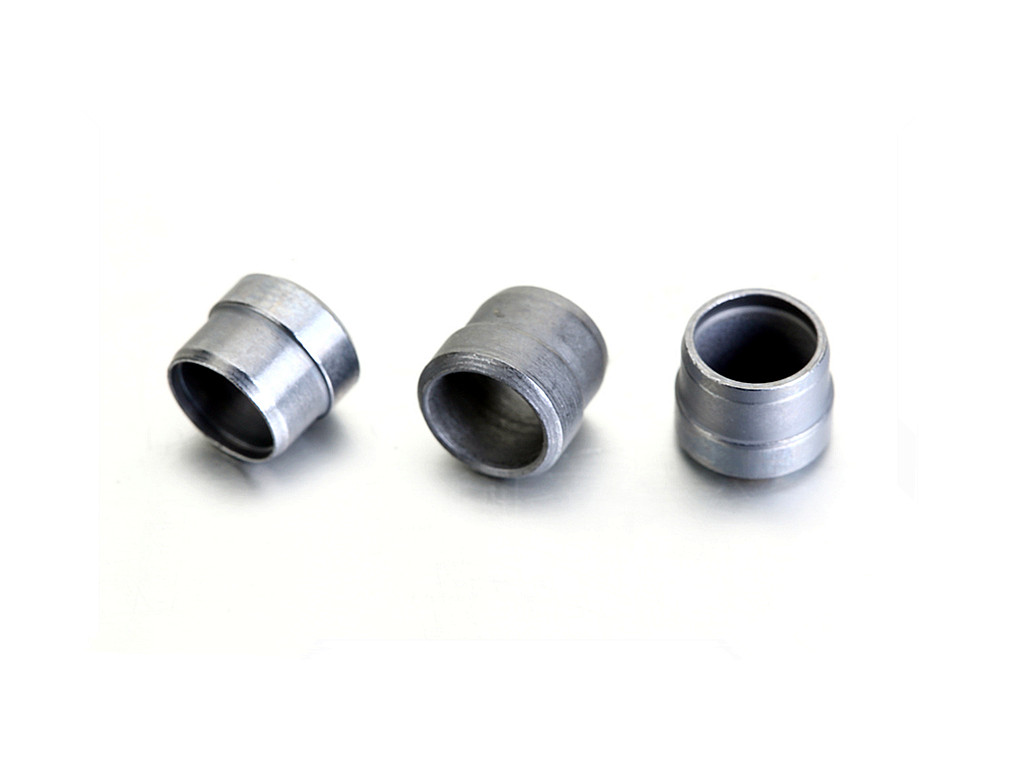

LL Cutting Rings

The LL Cutting Rings are standardized components specifically designed for use in centralized lubrication systems. They are compliant with the DIN 3861, DIN 2353, and ISO 8434-1 standards, ensuring compatibility, durability, and performance across a wide range of industrial applications.

These cutting rings are primarily used to connect lubrication lines, components, and accessories, ensuring a secure and leak-free connection. Their robust design and high-quality materials make them ideal for demanding industrial environments.

1. Key Features and Benefits

• Standard Compliance:
  Designed to meet the stringent requirements of DIN 3861, DIN 2353, and ISO 8434-1, these cutting rings ensure seamless integration with other components in the lubrication system.

• Material Excellence:
  Constructed from premium materials such as stainless steel or brass, these cutting rings offer exceptional resistance to corrosion, wear, and temperature fluctuations. Stainless steel variants are particularly suitable for high-corrosion environments, while brass provides excellent thermal conductivity.

• Precision Engineering:
  The cutting rings feature precise dimensions and thread profiles, ensuring a perfect fit and secure connection. This minimizes the risk of leaks and enhances the overall efficiency of the lubrication system.

• Wide Range of Applications:
  Suitable for various industries, including automotive, manufacturing, construction, and heavy machinery, these cutting rings cater to diverse operational needs.

• Temperature and Pressure Resistance:
  Designed to operate in extreme conditions, these cutting rings can withstand temperatures ranging from -40°C to +150°C and pressures up to several hundred bar, depending on the material.

• Ease of Installation:
  The hexagonal shape of the cutting rings allows for easy gripping and tightening using standard tools, reducing installation time and effort.

2. Technical Specifications

Here are the key technical specifications of the DIN 3861/DIN 2353/ISO 8434-1 LL Cutting Rings:

• Thread Diameter:
  Available in various sizes (e.g., M12, M16, M20) to accommodate different lubrication line diameters.

• Material Grades:

• Stainless Steel (AISI 304, AISI 316) for superior corrosion resistance.

• Brass for applications requiring good thermal conductivity and non-magnetic properties.

3. Applications in Industrial Lubrication Systems

The LL Cutting Rings are integral to centralized lubrication systems, where they enable the connection of:

• Lubrication Lines:
  Joining supply lines to distribute lubricants (oil, grease, etc.) to multiple points within a machine or system.

• Pumps and Motors:
  Connecting pumps, motors, and other power units to the lubrication network.

• Valves and Manifolds:
  Linking control valves, manifolds, and distribution blocks to regulate the flow of lubricants.

• End Points:
  Connecting nozzles, injectors, and other end-use components to deliver lubricants precisely where needed.

These cutting rings are widely used in industries such as:

• Automotive manufacturing.

• Heavy machinery.

• Construction equipment.

• Mining and mineral processing.

• Textile and packaging machinery.

4. Why Choose DIN 3861/DIN 2353/ISO 8434-1 LL Cutting Rings?

• Reliability:
  Adherence to international standards ensures consistent performance and long service life.

• Durability:
  High-quality materials and precision engineering make these cutting rings resistant to wear, corrosion, and environmental stress.

• Compatibility:
  Designed to work seamlessly with other components in the lubrication system, ensuring a fully integrated solution.

• Cost Efficiency:
  By minimizing leaks and downtime, these cutting rings contribute to reduced maintenance costs and improved operational efficiency.

• Global Recognition:
  Compliance with DIN and ISO standards ensures acceptance and compatibility across industries worldwide.

Cutting Ring  DIN 3861 / ISO 8434-1
