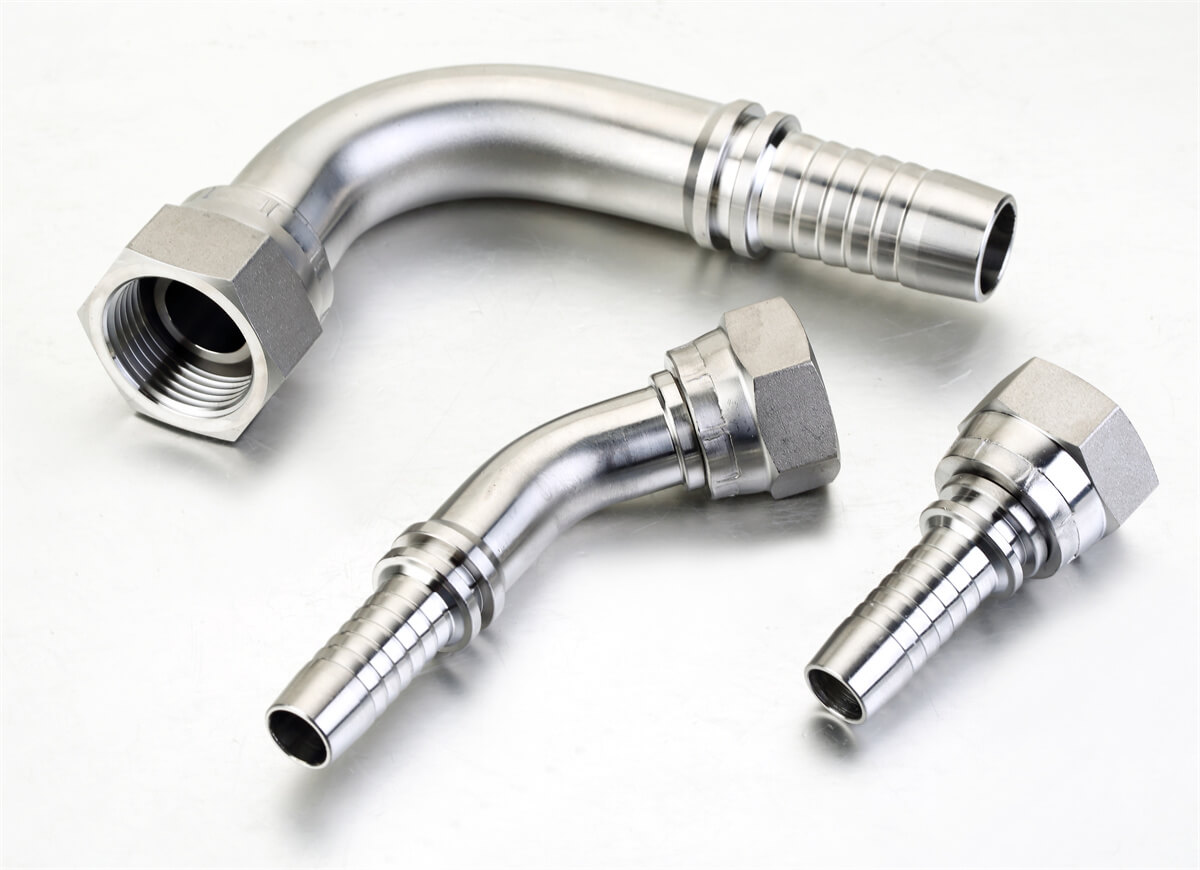

22691 22692 22691-T 22692-T 22691-W 22692-W BSP Female 60 degree Cone Tube Connector Hose Fittings 90 degree Elbow
| PART | E THREAD | HOSE | DIMENSIONS | |||||
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 22691-02-03Z | - | G1/8"X28 | 5 | 3 | 26.5 | 5.5 | 31.5 | 14 |
| 22691-02-04Z | - | G1/8"X28 | 6 | 4 | 30 | 5.5 | 34.5 | 14 |
| 22691-04-03Z | - | G1/4"X19 | 5 | 3 | 26.5 | 5.5 | 33.5 | 19 |
| 22691-04-04Z | - | G1/4"X19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 |
| 22691-04-05Z | - | G1/4"X19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 |
| 22691-04-06Z | 22692-04-06Z | G1/4"X19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-04Z | - | G3/8"X19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 |
| 22691-06-05Z | - | G3/8"X19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 |
| 22691-06-06Z | 22692-06-06Z | G3/8"X19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 |
| 22691-08-06TZ | 22692-08-06TZ | G1/2"X14 | 10 | 6 | 35.3 | 7.5 | 41.8 | 27 |
| 22691-08-08Z | 22692-08-08Z | G1/2"X14 | 12 | 8 | 41 | 7.5 | 51 | 27 |
| 22691-10-08Z | 22692-10-08Z | G5/8"X14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 |
| 22691-10-10Z | 22692-10-10Z | G5/8"X14 | 16 | 10 | 56 | 9.5 | 56 | 30 |
| 22691-12-12Z | 22692-12-12Z | G3/4"X14 | 20 | 12 | 64.9 | 10.9 | 66.1 | 32 |
| 22691-16-16Z | 22692-16-16Z | G1"X11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 |
| 22691-20-16TZ | 22692-20-16TZ | G1.1/4"X11 | 25 | 16 | 76.7 | 10.1 | 72 | 50 |
| 22691-32-32WZ | 22692N-32-32WZ | G2"X11 | 50 | 32 | 131.8/136.2 | 16.1 | 123.3 | 70 |
| ISO | ||||||||
| 22691-02-03H25Z | - | G1/8"X28 | 5 | 3 | 26.5 | 5.5 | 25 | 14 |
| 22691-02-04H27Z | - | G1/8"X28 | 6 | 4 | 30 | 5.5 | 27 | 14 |
| 22691-04-03H28Z | - | G1/4"X19 | 5 | 3 | 26.5 | 5.5 | 28 | 19 |
| 22691-04-04H28Z | - | G1/4"X19 | 6 | 4 | 30 | 5.5 | 28 | 19 |
| 22691-04-05H31.5Z | - | G1/4"X19 | 8 | 5 | 30 | 5.5 | 31.5 | 19 |
| 22691-04-06H34Z | - | G1/4"X19 | 10 | 6 | 30 | 5.5 | 34 | 19 |
| 22691-06-04H31TZ | - | G3/8"X19 | 6 | 4 | 30 | 6.3 | 31 | 22 |
| 22691-06-05H34TZ | - | G3/8"X19 | 8 | 5 | 33 | 6.3 | 34 | 22 |
| 22691-06-06H34Z | 22692-06-06H34Z | G3/8"X19 | 10 | 6 | 35.3 | 6.3 | 34 | 22 |
| 22691-06-08H42Z | 22692-06-08H42Z | G3/8"X19 | 12 | 8 | 43.8 | 6.3 | 42 | 22 |
| 22691-08-06H35TZ | 22692-08-06H35TZ | G1/2"X14 | 10 | 6 | 35.3 | 7.5 | 35 | 27 |
| 22691-08-08H41Z | 22692-08-08H41Z | G1/2"X14 | 12 | 8 | 41 | 7.5 | 41 | 27 |
| 22691-08-10Z | 22692-08-10Z | G1/2"X14 | 16 | 10 | 41.5 | 7.5 | 51 | 27 |
| 22691-10-08H45Z | 22692-10-08H45Z | G5/8"X14 | 12 | 8 | 41 | 9.5 | 45 | 30 |
| 22691-10-10H51Z | 22692-10-10H51Z | G5/8"X14 | 16 | 10 | 56 | 9.5 | 51 | 30 |
| 22691-10-12H58Z | 22692-10-12H58Z | G5/8"X14 | 20 | 12 | 61 | 9.5 | 58 | 30 |
| 22691-12-08TZ | 22692-12-08TZ | G3/4"X14 | 12 | 8 | 41 | 10.9 | 47 | 32 |
| 22691-12-10Z | 22692-12-10Z | G3/4"X14 | 16 | 10 | 56 | 10.9 | 56 | 32 |
| 22691-12-12H58Z | 22692-12-12H58Z | G3/4"X14 | 20 | 12 | 64.9 | 10.9 | 58 | 32 |
| 22691-12-16H71Z | 22692-12-16H71Z | G3/4"X14 | 25 | 16 | 74.3 | 10.9 | 71 | 32 |
| 22691-16-12TZ | 22692-16-12TZ | G1"X11 | 20 | 12 | 65.5 | 11.7 | 62 | 41 |
| 22691-16-16H70Z | 22692-16-16H70Z | G1"X11 | 25 | 16 | 76.7 | 11.7 | 70 | 41 |
| 22691-20-16H76TZ | 22692-20-16H76TZ | G1.1/4"X11 | 25 | 16 | 76.7 | 10.1 | 76 | 50 |
| 22691-20-20WZ | 22692N-20-20WZ | G1.1/4"X11 | 32 | 20 | 91.5/94.1 | 10.1 | 84.3 | 50 |
| 22691-24-20H92TZ | 22692N-24-20H92TZ | G1.1/2"X11 | 32 | 20 | 91.5/94.1 | 12.5 | 92 | 55 |
| 22691-24-24WZ | 22692N-24-24WZ | G1.1/2"X11 | 40 | 24 | 109.4/112.4 | 12.5 | 103 | 55 |
| 22691-32-24H110TZ | 22692N-32-24H110TZ | G2"X11 | 40 | 24 | 109.4/112.4 | 16.1 | 110 | 70 |
| 22691-32-32H140WZ | 22692N-32-32H140WZ | G2"X11 | 50 | 32 | 131.8/136.2 | 16.1 | 140 | 70 |
22691K 22692KBSP Female 60 degree Cone Tube Connector Hose Fittings 90 degree Elbow
| PART NO. | E THREAD E | HOSE SIZE | DIMENSIONS | ||||||
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S1 | S2 | |
| 22691K-04-04Z | - | G1/4"X19 | 6 | 4 | 17.5 | 5.5 | 18.5 | 11 | 19 |
| 22691K-06-04Z | - | G3/8"X19 | 6 | 4 | 20 | 6.3 | 24 | 16 | 22 |
| 22691K-06-05Z | - | G3/8"X19 | 8 | 5 | 20 | 6.3 | 24 | 16 | 22 |
| 22691K-06-06Z | 22692K-06-06Z | G3/8"X19 | 10 | 6 | 20 | 6.3 | 24 | 16 | 22 |
| 22691K-08-06Z | 22692K-08-06Z | G1/2"X14 | 10 | 6 | 23 | 7.5 | 28.5 | 19 | 27 |
| 22691K-08-08Z | 22692K-08-08Z | G1/2"X14 | 12 | 8 | 23.5 | 7.5 | 28.5 | 19 | 27 |
| 22691K-10-10Z | 22692K-10-10Z | G5/8"X14 | 16 | 10 | 24.5 | 9.5 | 30.5 | 22 | 30 |
| 22691K-12-12Z | 22692K-12-12Z | G3/4"X14 | 20 | 12 | 27.5 | 10.9 | 33 | 27 | 32 |
| 22691K-16-16Z | 22692K-16-16Z | G1"X11 | 25 | 16 | 43 | 11.7 | 38.5 | 33 | 41 |
