24 degree cone connector
Availability: | |
---|---|
PDF Export | |

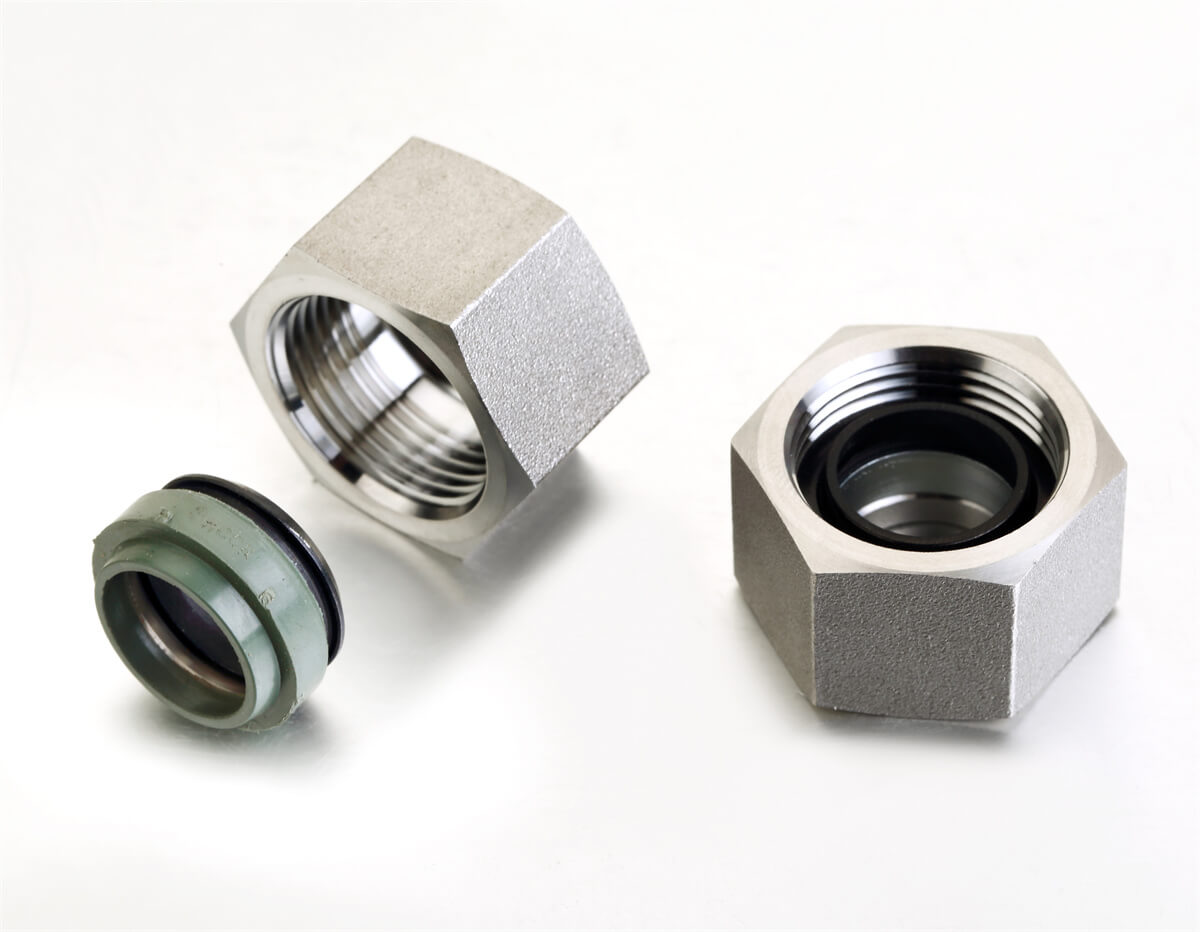

Functional Nut
Nut is according to DIN 2353 / ISO 8434-1 Standard.
X1 is retaining ring, Sealing is NBR.
Material is carbon steel.
Delivery status is assembled with nut and soft sealing cutting ring
PART NO. | PARKER NO. | D1 | T1 | L1 | S1 | Weight g/pcs |
FN06L | FM06LCF | 6 | M 12×1.5 | 14.5 | 14 | 12 |
FN08L | FM08LCF | 8 | M 14×1.5 | 14.5 | 17 | 17 |
FN10L | FM10LCF | 10 | M 16×1.5 | 15.5 | 19 | 22 |
FN12L | FM12LCF | 12 | M 18×1.5 | 15.5 | 22 | 30 |
FN15L | FM15LCF | 15 | M 22×1.5 | 17 | 27 | 48 |
FN18L | FM18LCF | 18 | M 26×1.5 | 18 | 32 | 70 |
FN22L | FM22LCF | 22 | M 30×2.0 | 20 | 36 | 94 |
FN28L | FM28LCF | 28 | M 36×2.0 | 21 | 41 | 106 |
FN35L | FM35LCF | 35 | M 45×2.0 | 24 | 50 | 160 |
FN42L | FM42LCF | 42 | M 52×2.0 | 24 | 60 | 244 |
FN06S | FM06SCF | 6 | M 14×1.5 | 16.5 | 17 | 20 |
FN08S | FM08SCF | 8 | M 16×1.5 | 16.5 | 19 | 23 |
FN10S | FM10SCF | 10 | M 18×1.5 | 17.5 | 22 | 37 |
FN12S | FM12SCF | 12 | M 20×1.5 | 17.5 | 24 | 39 |
FN16S | FM16SCF | 16 | M 24×1.5 | 20.5 | 30 | 72 |
FN20S | FM20SCF | 20 | M 30×2.0 | 24 | 36 | 121 |
FN25S | FM25SCF | 25 | M 36×2.0 | 27 | 46 | 221 |
FN30S | FM30SCF | 30 | M 42×2.0 | 29 | 50 | 248 |
FN38S | FM38SCF | 38 | M 52×2.0 | 32.5 | 60 | 367 |
If you need nut and soft cutting ring separately, please tell us.
Functional Nut
Nut is according to DIN 2353 / ISO 8434-1 Standard.
X1 is retaining ring, Sealing is NBR.
Material is carbon steel.
Delivery status is assembled with nut and soft sealing cutting ring
PART NO. | PARKER NO. | D1 | T1 | L1 | S1 | Weight g/pcs |
FN06L | FM06LCF | 6 | M 12×1.5 | 14.5 | 14 | 12 |
FN08L | FM08LCF | 8 | M 14×1.5 | 14.5 | 17 | 17 |
FN10L | FM10LCF | 10 | M 16×1.5 | 15.5 | 19 | 22 |
FN12L | FM12LCF | 12 | M 18×1.5 | 15.5 | 22 | 30 |
FN15L | FM15LCF | 15 | M 22×1.5 | 17 | 27 | 48 |
FN18L | FM18LCF | 18 | M 26×1.5 | 18 | 32 | 70 |
FN22L | FM22LCF | 22 | M 30×2.0 | 20 | 36 | 94 |
FN28L | FM28LCF | 28 | M 36×2.0 | 21 | 41 | 106 |
FN35L | FM35LCF | 35 | M 45×2.0 | 24 | 50 | 160 |
FN42L | FM42LCF | 42 | M 52×2.0 | 24 | 60 | 244 |
FN06S | FM06SCF | 6 | M 14×1.5 | 16.5 | 17 | 20 |
FN08S | FM08SCF | 8 | M 16×1.5 | 16.5 | 19 | 23 |
FN10S | FM10SCF | 10 | M 18×1.5 | 17.5 | 22 | 37 |
FN12S | FM12SCF | 12 | M 20×1.5 | 17.5 | 24 | 39 |
FN16S | FM16SCF | 16 | M 24×1.5 | 20.5 | 30 | 72 |
FN20S | FM20SCF | 20 | M 30×2.0 | 24 | 36 | 121 |
FN25S | FM25SCF | 25 | M 36×2.0 | 27 | 46 | 221 |
FN30S | FM30SCF | 30 | M 42×2.0 | 29 | 50 | 248 |
FN38S | FM38SCF | 38 | M 52×2.0 | 32.5 | 60 | 367 |
If you need nut and soft cutting ring separately, please tell us.
