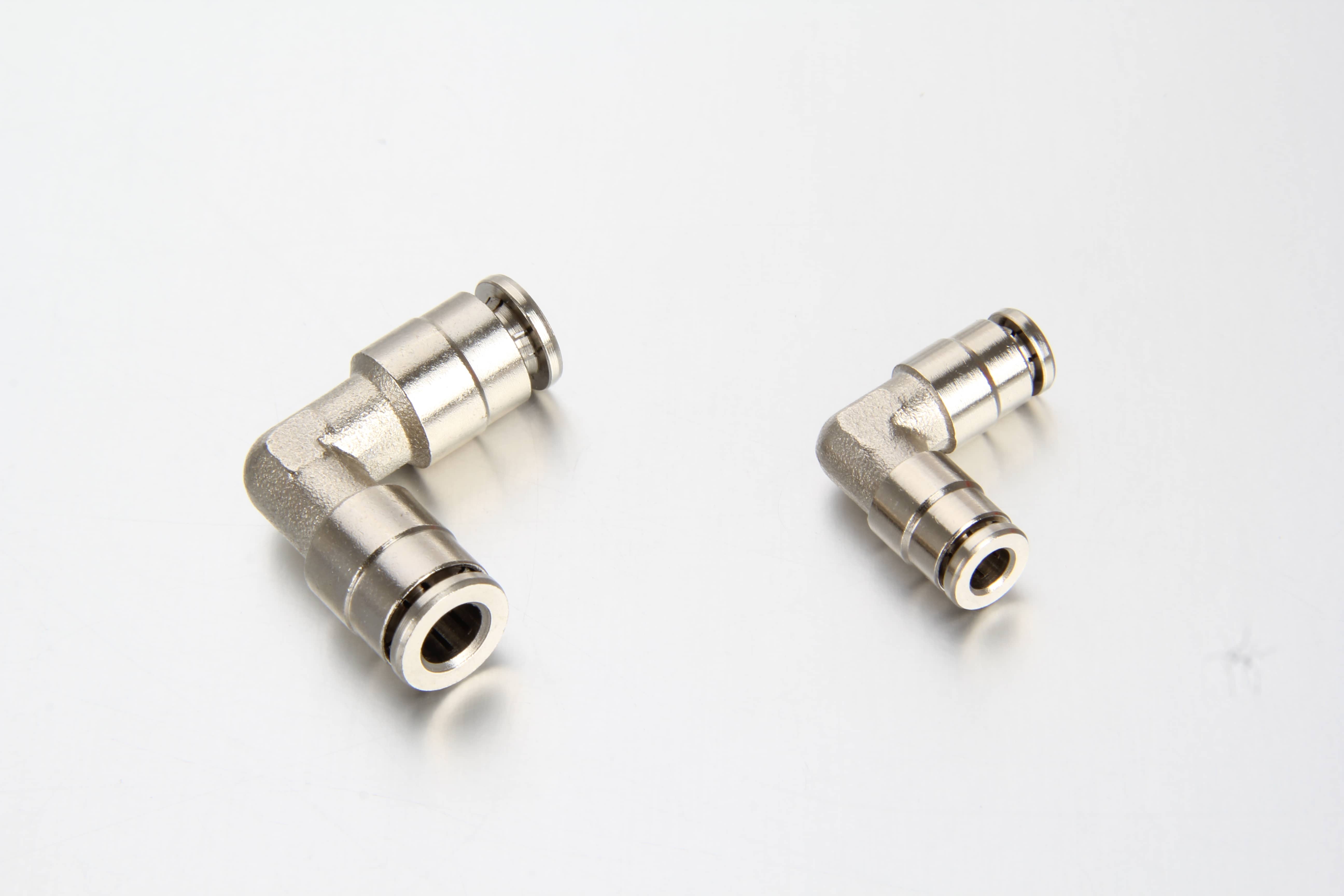

Streamline your automatic grease distribution plumbing with our High-Pressure Quick Connector Elbow Unions. Engineered specifically for centralized lubrication systems, these 90-degree push-in fittings offer a reliable, leak-free transition in tight machine spaces. Built to withstand extreme system pressures up to 150 bar (2,175 PSI), they eliminate the need for time-consuming cutting rings and complex assembly, providing a secure, tool-free connection for high-pressure polyamide (nylon) tubing.
Part No. | D | L | Bag | Part No. | Weight kg/100 | FRI |
EP04 | 4 | 19.5 | 50 | AHPE04 | 2.0 | 2015-100 |
EP06 | 6 | 20.5 | 50 | AHPE06 | 2.0 | 2015-101 |
Key Product Benefits & Features (Bullet Points)
• High-Pressure Reliability: Engineered to support working pressures up to 150 bar, preventing accidental blowouts in progressive or single-line automatic grease systems.
• 90° Space-Saving Design: Perfect for routing lines around sharp machinery corners and inside compact engine bays or distribution blocks.
• Tool-Free Push-In Mechanism: Heavy-duty internal claw grip allows for instant, secure tubing connection and fast system maintenance.
• Corrosion-Resistant Build: Constructed from high-strength nickel-plated brass to withstand harsh industrial, agricultural, and automotive environments.
• Universal Compatibility: Optimized for standard 4mm and 6mm high-pressure grease lines and progressive metering valves.
