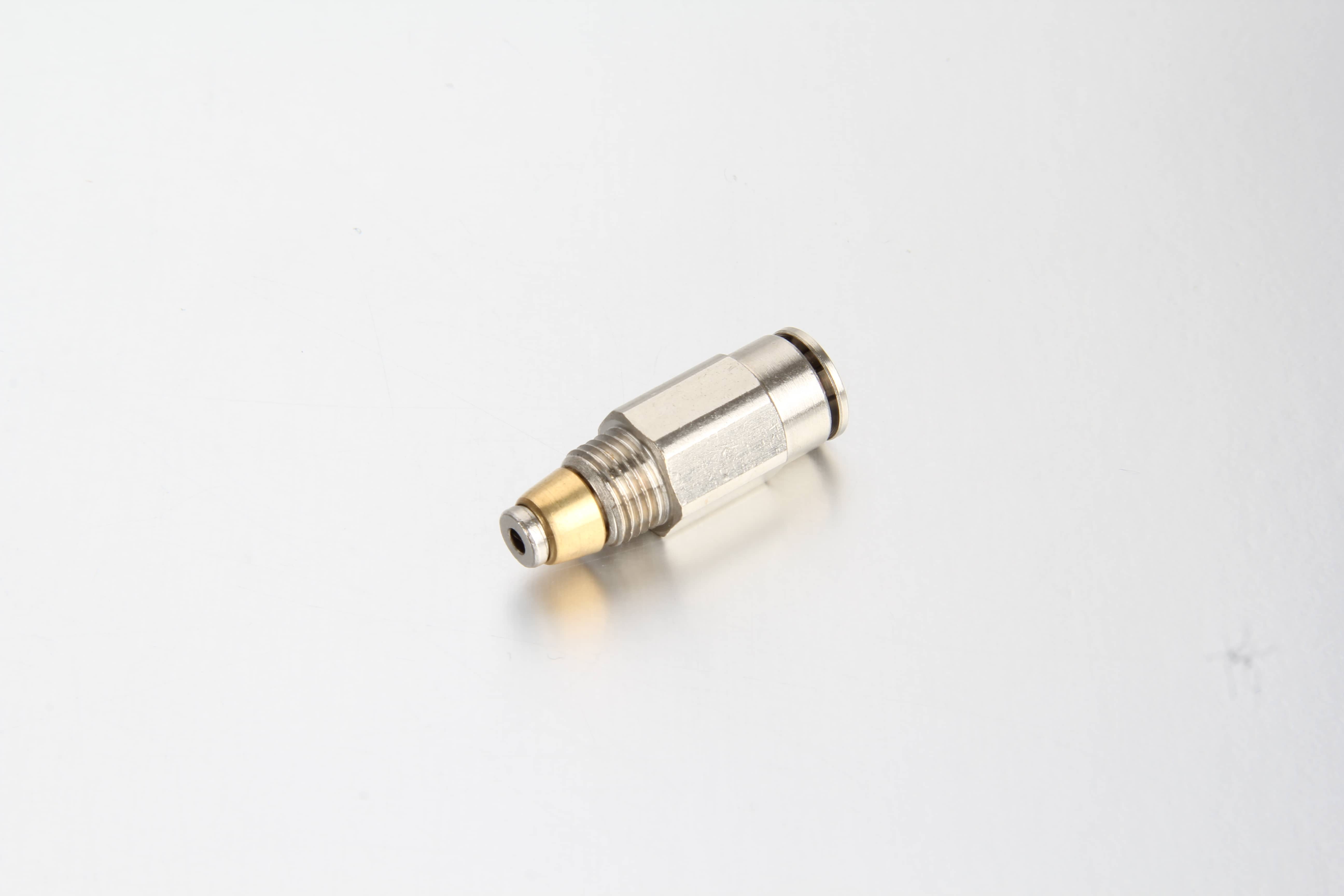

A high-pressure non-return valve quick connector push-in fitting made of nickel-plated brass, showing the directional flow arrow for central lubrication lines.

Technical drawing showing the dimensions, internal spring mechanism, and flow direction arrow of a 4mm and 6mm lubrication non-return valve.

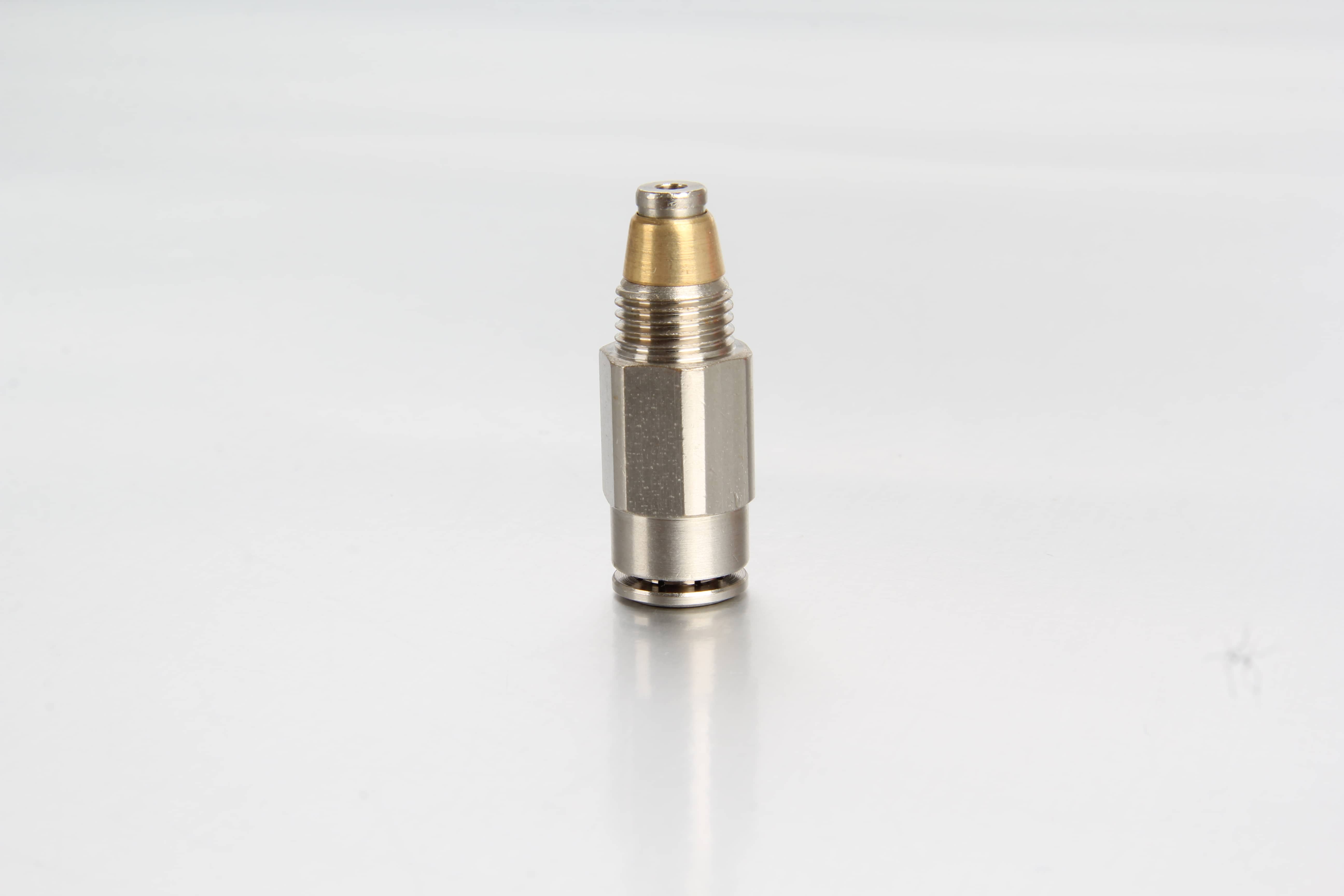

An inline push-in non-return valve quick connector installed on a high-pressure polyamide nylon grease line feeding an industrial machine bearing

High-Pressure Push-In Non-Return Valves

Tube End Connection Types:
24 degree cone connector
Port End Connection Types:
Metric O-ring port
Shapes of Hydraulic Fittings:
Straight
Hose End Connection Type:
One wire braid hoses

Availability:



Inquire PDF Export

Product Description

Prevent grease backflow and maintain optimal system pressure with our High-Pressure Non-Return Valve Quick Connectors. Specifically engineered for centralized lubrication networks, these push-in check valves allow fluid to flow in only one direction, eliminating line drainage and air pockets when the pump is idle. Rated for extreme operating pressures up to 150 bar (2,175 PSI), they provide an instant, tool-free push-in connection for high-pressure polyamide (nylon) tubing, ensuring your machinery receives immediate, precision lubrication on every pump cycle.

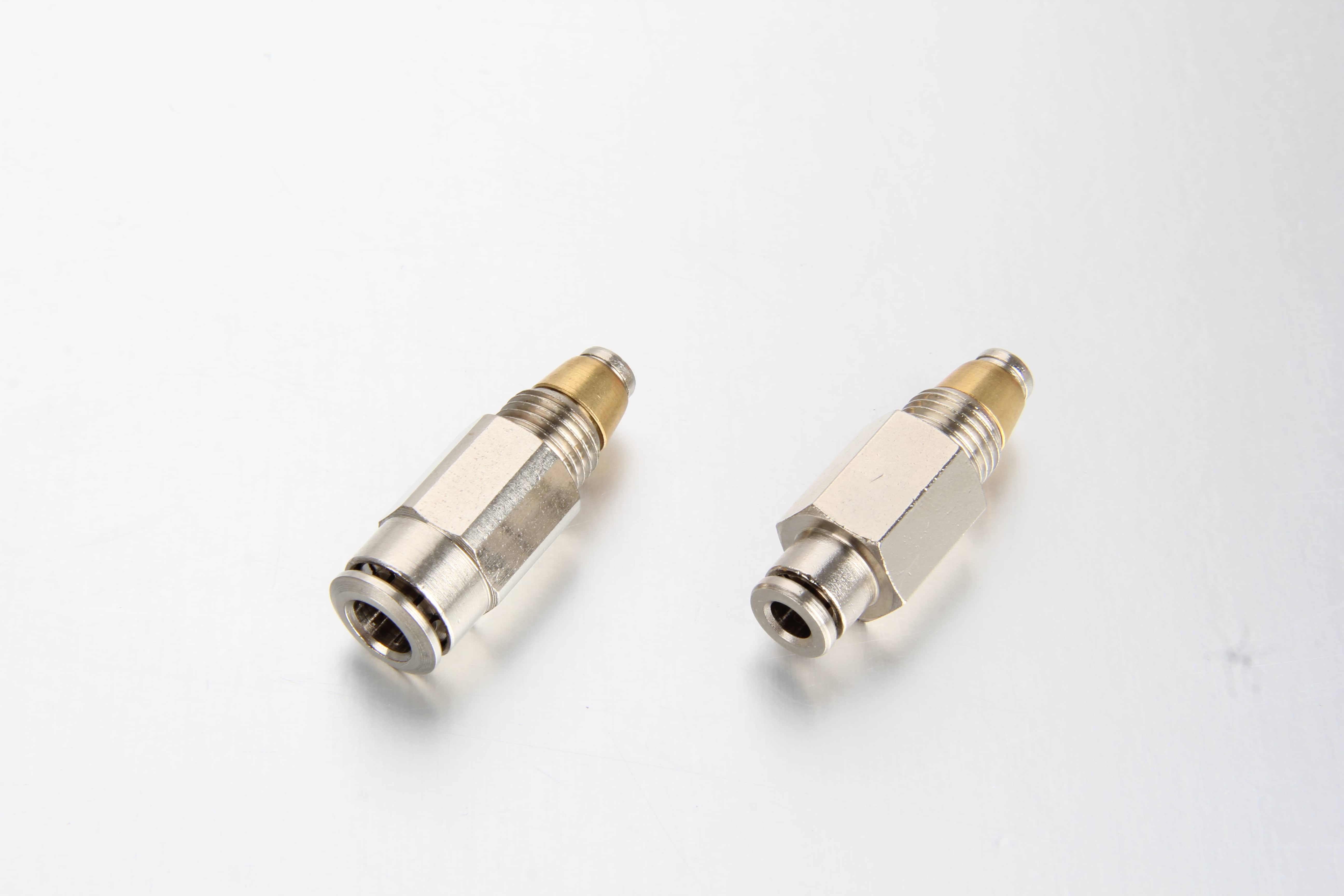

Sizes for Non-return Valve Lincol Push-in fitting for Diveder.JPG

Part No.	Tube	A Thread	CH	Part No.	Weight kg/100
RVP04M10	4	M10X1	10	AHPV04-M10x1	1.9
RVP06M10	6	M10X1	12	AHPV06-M10x1	1.9

Key Product Benefits & Features (Bullet Points)

Zero-Backflow Integrity: Features a highly responsive internal spring-loaded mechanism that instantly seals to prevent grease or oil from back-flowing.
Maintains Line Pressure: Keeps distribution lines fully primed between lubrication intervals, reducing wear and ensuring instant grease delivery.
150 Bar Pressure Rating: Built to withstand intense system pressures without leaking, making it ideal for progressive and single-line auto-lube setups.
Instant Push-In Locking: Heavy-duty internal stainless steel teeth securely grip high-pressure tubing for quick, tool-free installation.
Rugged Industrial Build: Machined from durable nickel-plated brass to resist corrosion, mechanical wear, and chemical breakdown in harsh operating environments.
