24 Degree Cone Tube Fittings Elbow Union

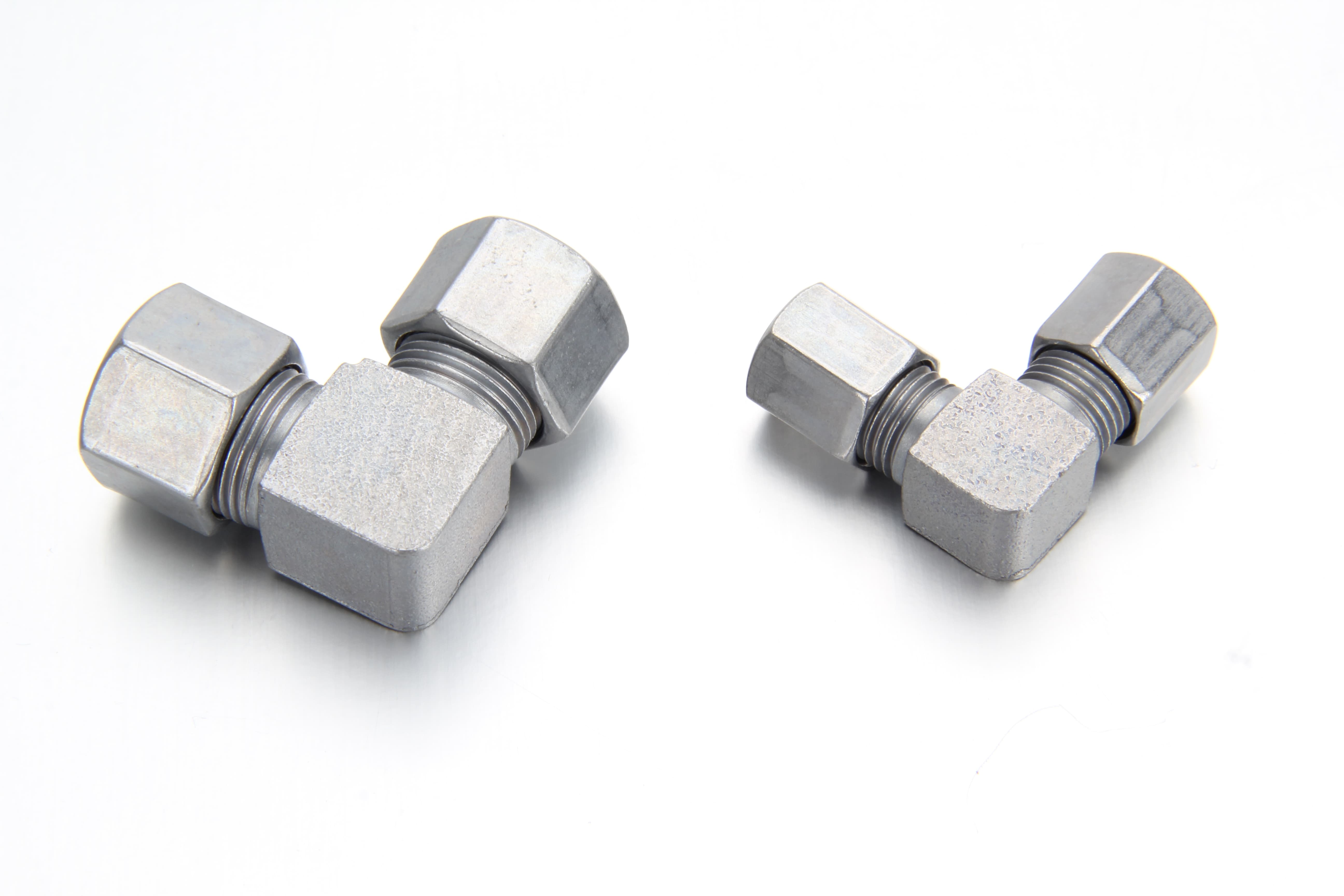

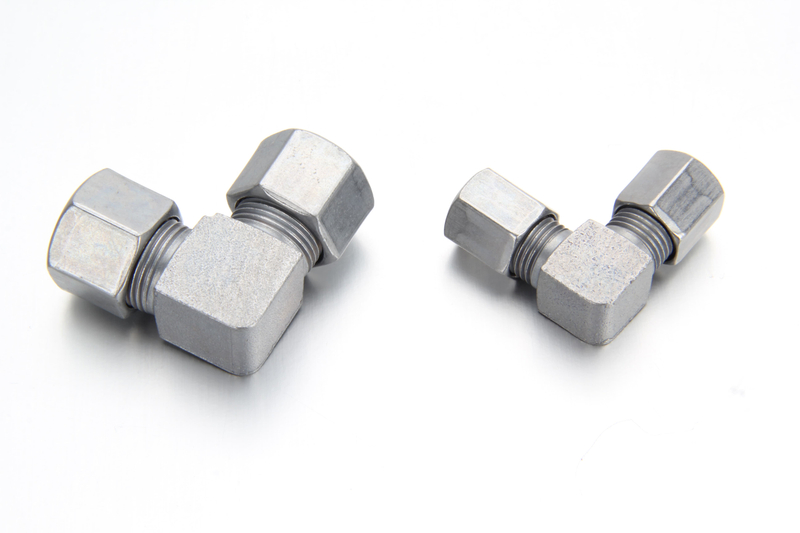

The 24 degree cone tube fittings elbow union provides a dependable, right-angle tube-to-tube connection designed specifically for high-frequency automatic lubrication and centralized grease systems. Featuring an identical, symmetric connection profile on both ends, this equal 90-degree union joins two separate metric lines of the exact same diameter, routing lines tightly around tight corners without causing pressure drops or restriction in flow.

As a dedicated global OEM and bulk supplier, our production facilities employ high-precision equipment to guarantee perfectly matched internal boring and strict 90° alignment across both entry ports. Every batch is pressure-validated to survive the harsh mechanical pulses generated by progressive lubrication pumps. This elbow coupling acts as the ideal directional link for delicate, small-diameter lines routing through complex mechanical chassis.

Core Technical Blueprint & Symmetric Assembly

• The Lubrication Line Advantage: Tailored for the Extra Light (LL) Series parameters, this directional union handles operating boundaries up to 100 bar, matching the standard limits of automated oil and grease lines (engineered for small-diameter tubing ranging from 4mm to 12mm). Its compact profile allows it to fit inside the tightest machinery corridors without adding unnecessary weight.

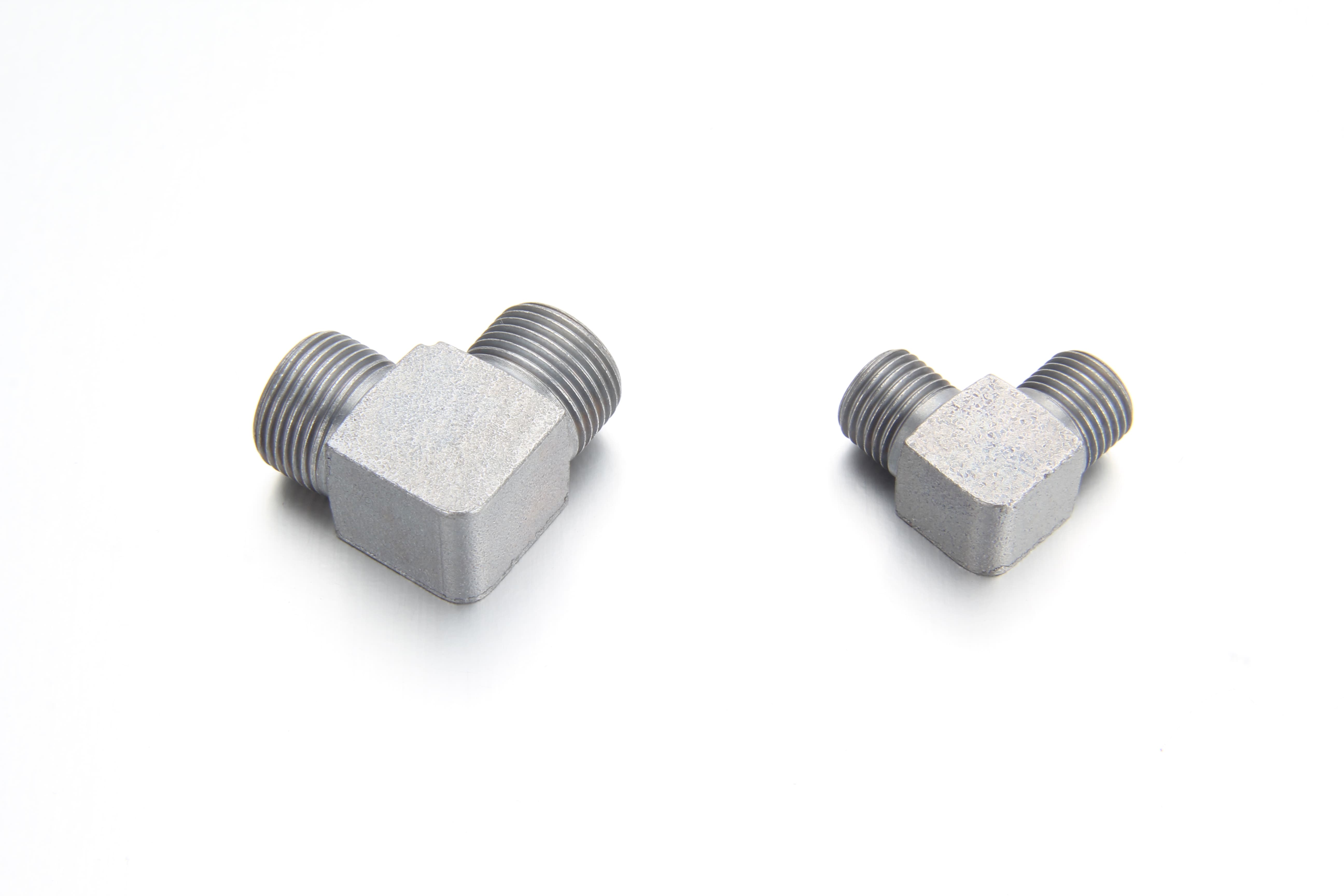

• Symmetric Metric Design: Engineered as a direct 90-degree tube-to-tube joiner, both ends feature identical 24° internal cones machined to the same metric specifications. This eliminates the need for mixed adapters, allowing maintenance crews to redirect tubing runs using one standardized component.

  • Metric Taper Tube Seats: Matches standardized European and global machinery lubrication loops for direct, identical right-angle plumbing.

Application & Compliance

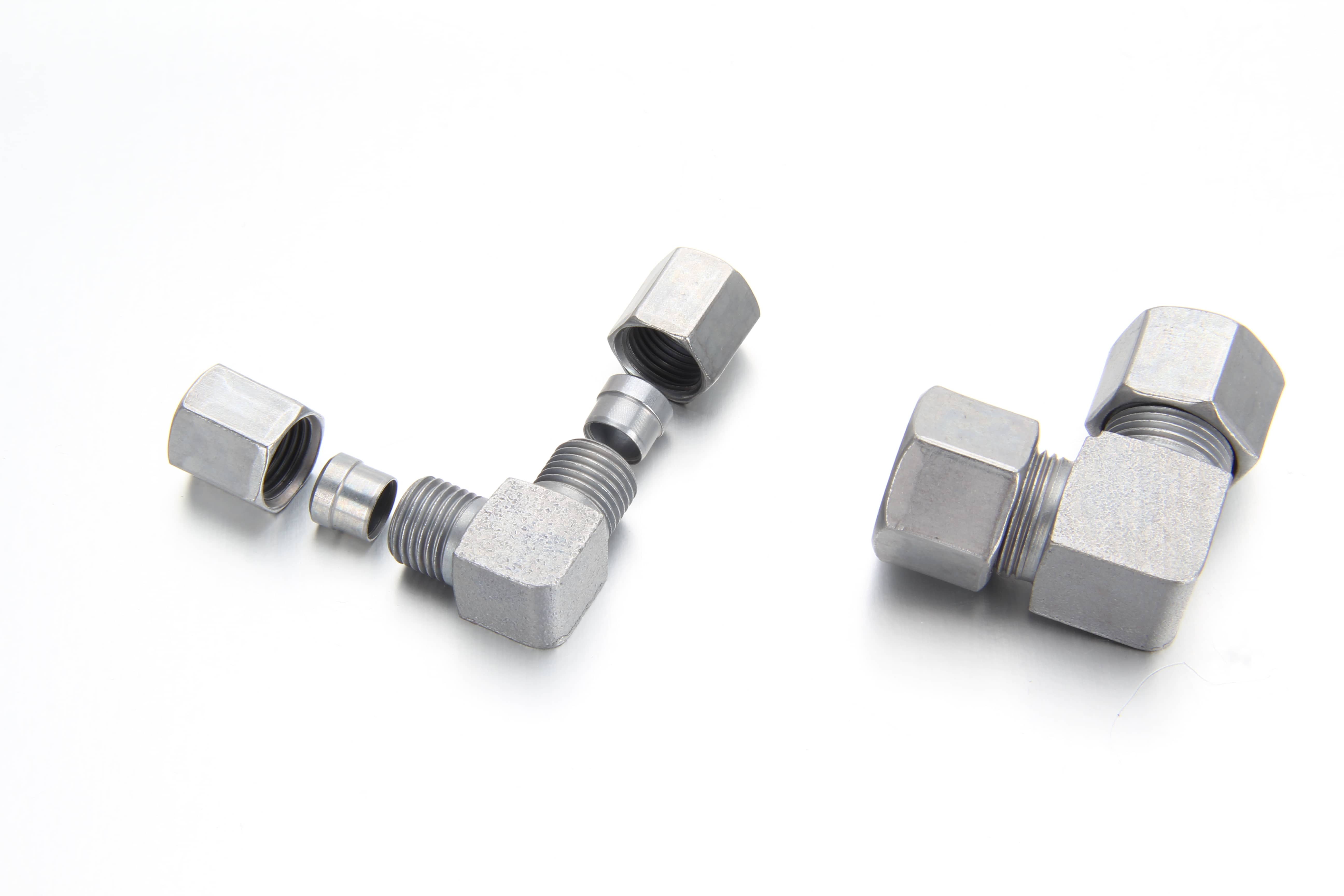

• Double-Bite Sealing Mechanics: Tightening the dual compression nuts drives both cutting rings inward simultaneously, forcing them to bite firmly into the exterior surface of the copper, steel, or high-pressure nylon lubrication tubes. This continuous, balanced mechanical grip prevents line blowouts and stays completely leak-free under severe vibration, constant machine cycling, and shock loads.

• Traceable Compliance: Manufactured in strict accordance with ISO 8434-1 and DIN 2353 extra-light guidelines. These identical elbow unions offer complete interchangeability with leading global fluid handling brands, making them the industry standard for wind turbine bearings, commercial vehicle chassis lubrication, printing presses, and automated assembly conveyor networks.
