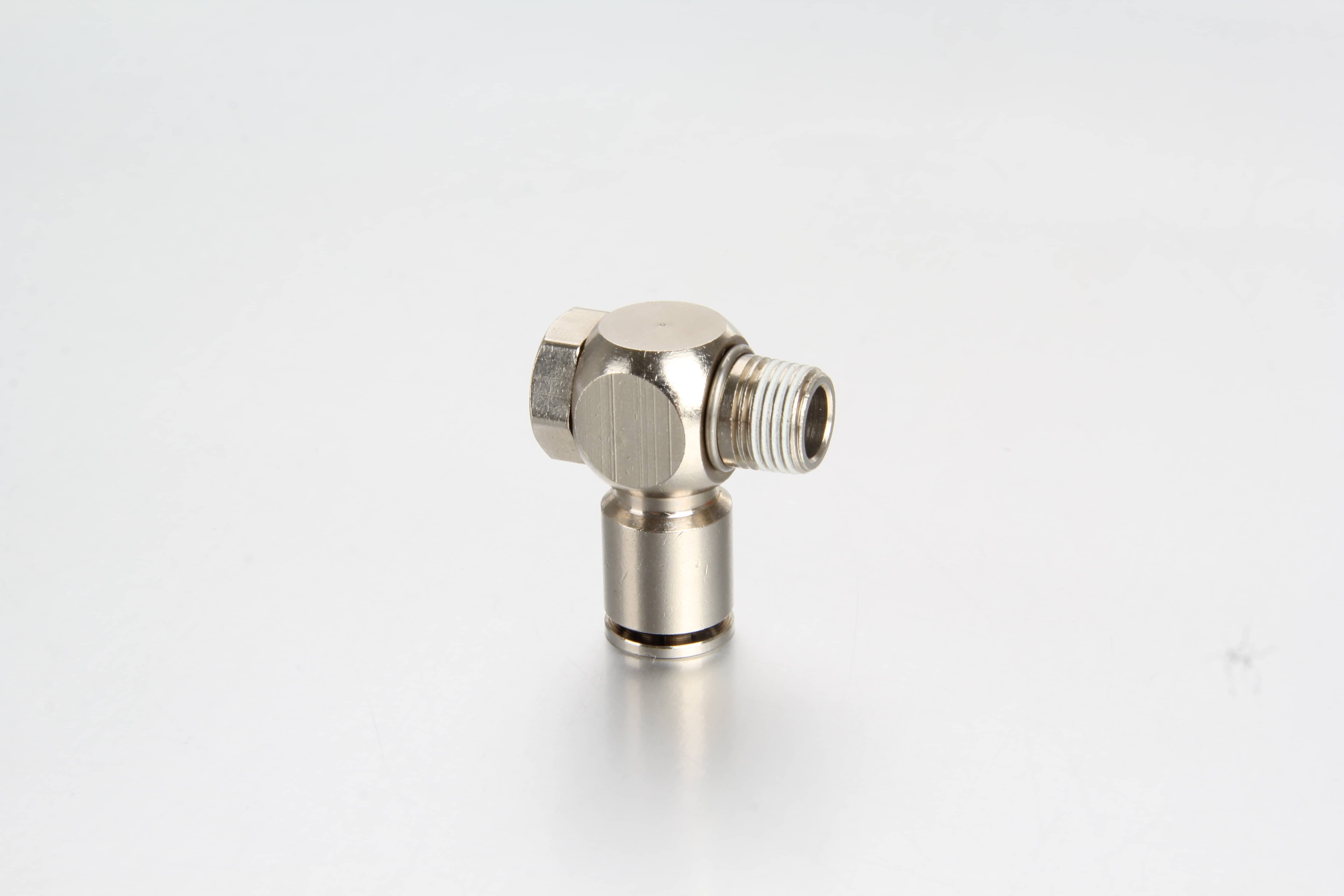

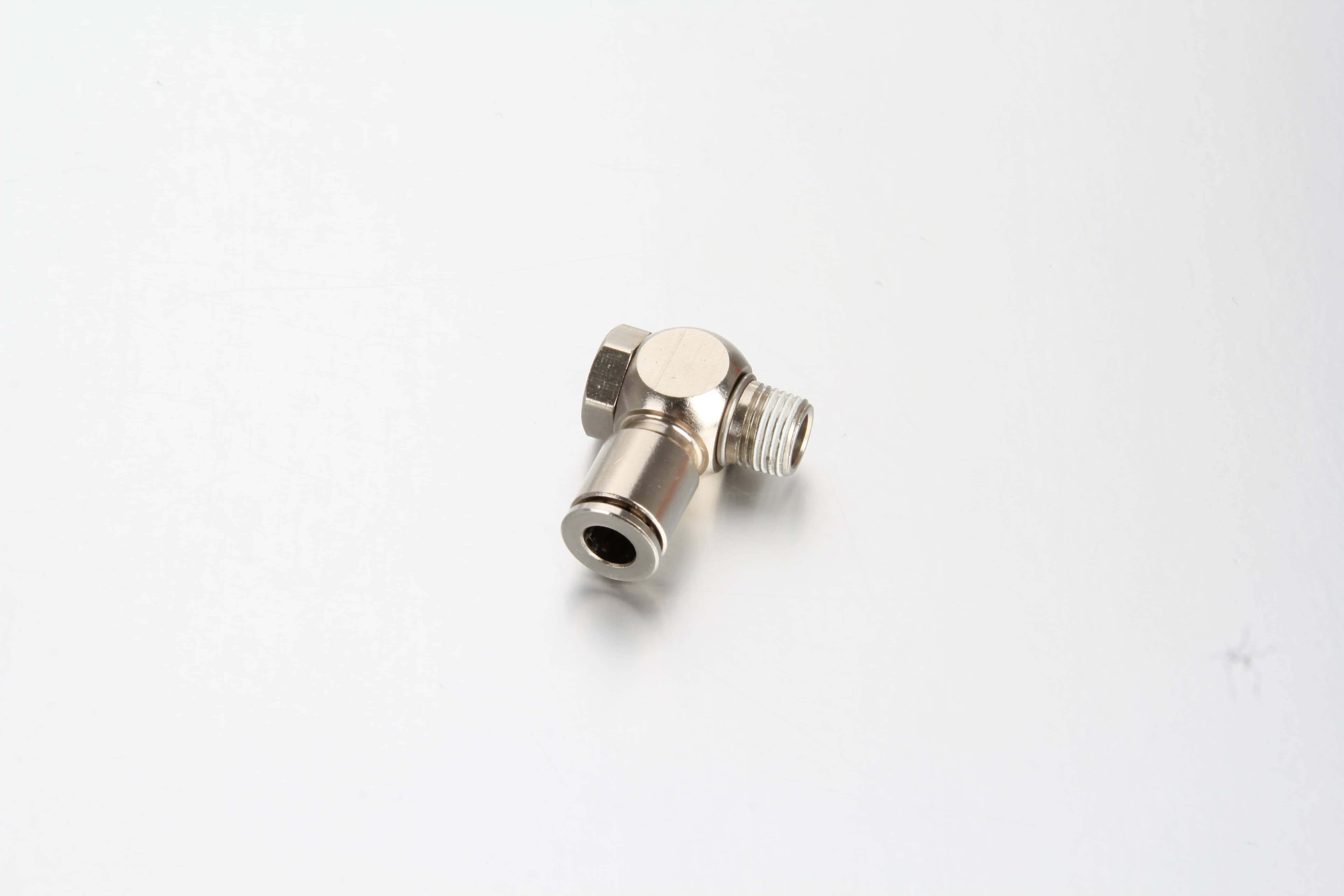

Eliminate line twisting and maximize plumbing flexibility in tight machine compartments with our High-Pressure Banjo Swivel Bolt Quick Connectors. Purpose-built for demanding automatic centralized lubrication networks, these low-profile fittings utilize a perforated hollow bolt combined with a 360-degree rotating ring. This dynamic construction allows you to adjust your grease line alignment perfectly without straining or buckling the hose. Engineered for extreme reliability, our push-in banjo fittings support working pressures up to 300 bar (4,350 PSI) for standard high-pressure polyamide nylon tubing.
Part No. | Tube | Bolt Thread | Bag | Part No. | Weight kg/100 |
WHP04M10K | 4 | M 10 x 1 tap | 50 | AHPH04-M10X1 | 2.5 |
WHP04R02K | 4 | R 1/8 BSP tap | 50 | AHPH04-1/8 | 2.5 |
WHP06M10K | 6 | M 10 x 1 tap | 50 | AHPH06-M10X1 | 2.5 |
WHP06R02K | 6 | R 1/8 BSP tap | 50 | AHPH06-1/8 | 2.5 |
Key Product Benefits & Features (Bullet Points)
360° Multi-Directional Swivel: Rotates freely around the central hollow bolt, allowing effortless hose positioning in ultra-confined spaces.
Heavy-Duty Pressure Rating: Confidently manages industrial grease surges with a massive operating pressure threshold of up to 300 bar.
Anti-Hose Twist Engineering: Isolates the tubing path from the threaded bolt, preventing structural torque stress and extending lube line service life.
Instant Tool-Free Push-In: Built-in internal stainless steel gripping teeth anchor the tubing automatically upon insertion for zero-leak execution.
Industrial Metal Architecture: Machined from high-tensile nickel-plated brass or galvanized steel to withstand corrosive conditions and mechanical vibrations.
