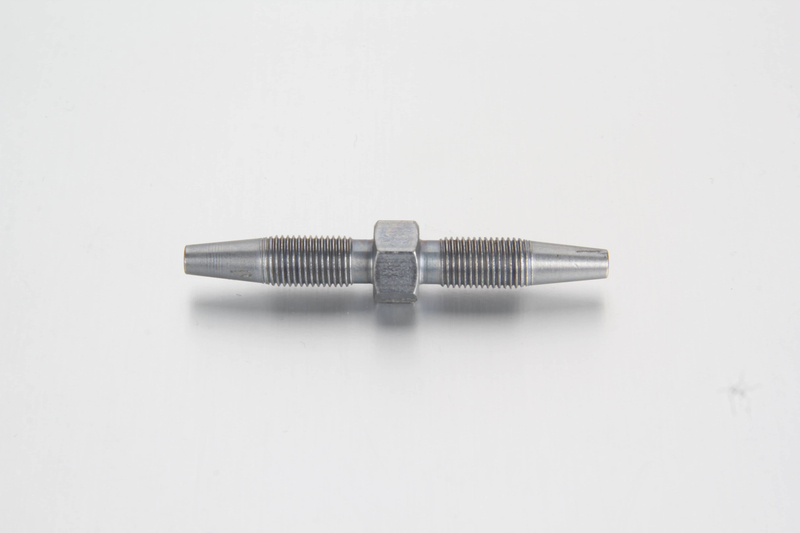

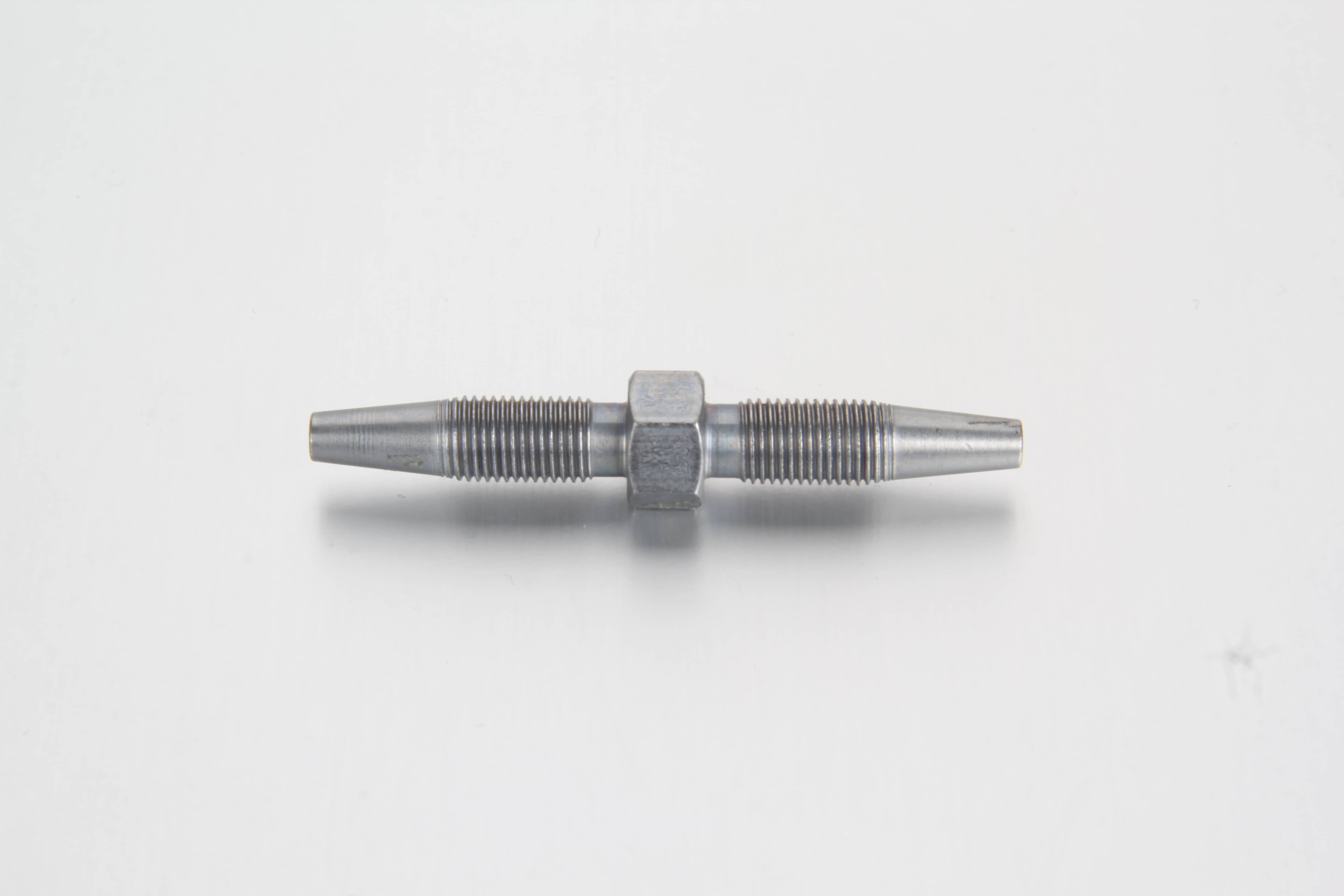

Straight Hose Stud Union - Auto Lube System High-Pressure Hose Connectors

Our Metric Straight Hose Stud Union is the industry standard for distributing lubricants safely through high-frequency automatic lubrication networks and your commercial auto lube system. Featuring an identical, symmetric connection profile on both ends, this inline hose-to-hose connector joins two separate high-pressure grease hoses of the exact same diameter seamlessly. By providing a rugged, solder-free extension or repair link, it eliminates structural fluid restrictions, prevents system pressure drops, and coordinates secure grease delivery to downstream progressive distribution blocks.

As a high-volume B2B manufacturer and global OEM supplier, we construct our auto lube system components on automated multi-axis precision lathes to guarantee flawless internal boring, perfectly matched center profiles, and exact thread tolerances across both ends. Every production lot is subject to rigorous pressure-impulse and material-integrity testing to ensure absolute structural stability under the severe, pulsing pressures common in automated lubrication networks. To satisfy diverse environmental and chemical resistance requirements, our unions are available in high-strength galvanized steel, black chromated steel, or exceptional marine-grade Stainless Steel (VA 1.4401 / 316 / V4A).

Core Technical Blueprint & Symmetric Assembly

• Universal High-Pressure Hose Sizing: Tailored for seamless multi-brand compatibility, these symmetric straight unions precisely match the industry's most common core hose layouts, accommodating diameters of 4.1 x 8.75 mm, 6.3 x 11.3 mm, and 1/8" x 5/16". Its compact, streamlined body profile allows it to fit easily inside tight machinery panels and chassis framing without adding unnecessary weight.

• Symmetric Dual-Ended Design: Engineered as a direct hose-to-hose joiner, both ends feature identical, precision-machined stud extensions. This complete symmetry allows maintenance crews to splice or extend flexible hose lines quickly using one standardized component, eliminating the need for complex mixed adapters or uneven connection setups.

Assembly Instructions & Compliance Standards

• Anti-Loosening Assembly Design: The high-pressure inline connection relies on a balanced mechanical layout. First, two independent screw sleeves are wound onto the outer jackets of the high-pressure hoses. The dual ends of the straight hose stud union are then inserted and threaded directly into each screw sleeve. The screw sleeves utilize a dedicated left-hand thread internally, which mechanically prevents them from backing off or loosening from the flexible hoses while the central straight union body is being tightened home.

• Global Interchangeability: Manufactured in strict accordance with international fluid-handling guidelines, our straight hose stud unions offer complete, drop-in compatibility with hardware lines from all major manufacturers of central lubrication units. They serve as the trusted default choice for commercial vehicle chassis, wind turbine bearings, progressive distribution blocks, heavy mining machinery, and automated industrial assembly systems.
