24 degree cone connector
Metric O-ring port, SAE O-ring port, JIS BSPP O-ring port, BSPP flat face port, Metric flat face port, Four bolt split flange, NPTF taper thread, BSPT taper thread
Straight, Elbow, 45 Degree Elbow, Tee, Run Tee, Branch Tee, Cross, Banjo, Plug and Cap, Nut and Sleeve
| Availability: | |
|---|---|
| PDF Export | |

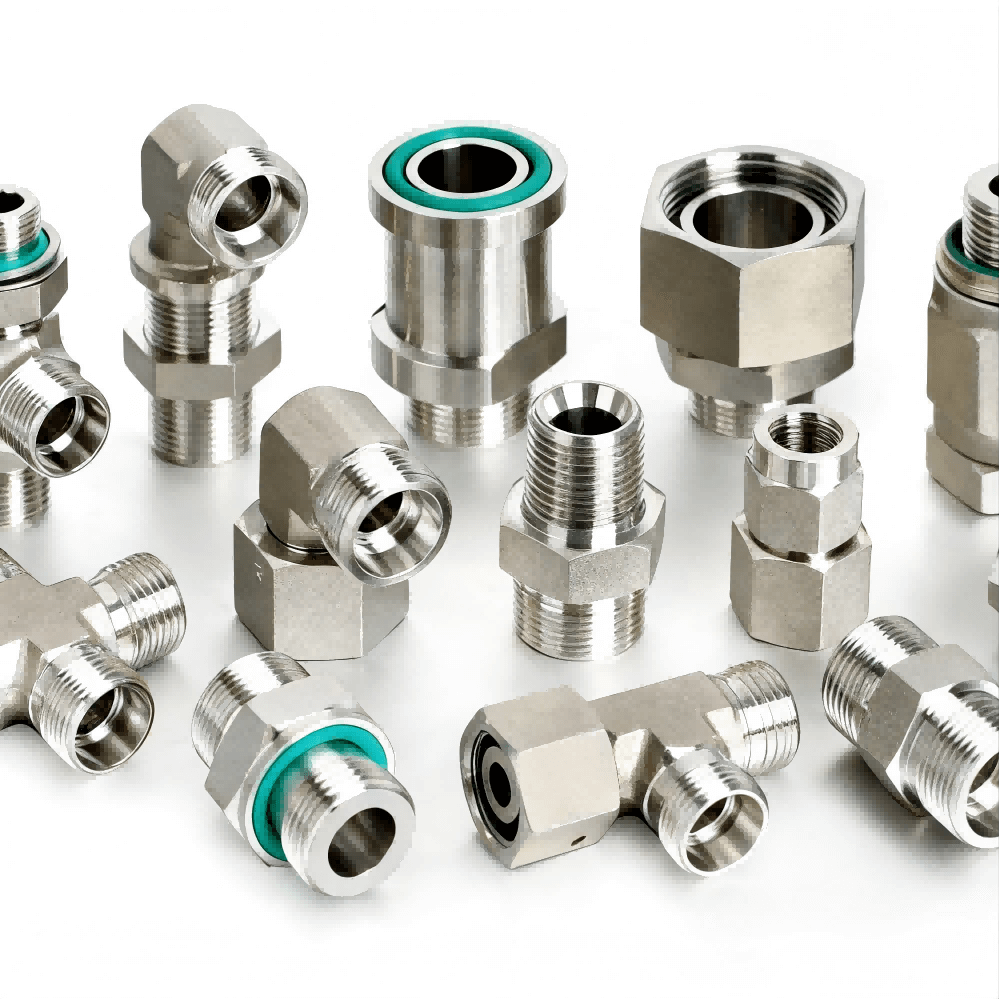

In high-pressure hydraulic and pneumatic systems where leak-free performance is critical, the integrity of every connection is paramount. Our Stainless Steel DIN 2353 Tube Fittings represent the pinnacle of reliable, maintenance-free coupling technology. Designed as complete non-soldering compression fittings with a cutting ring, they provide a robust, permanent seal for tubing systems across the most demanding industrial sectors.
Manufactured from high-grade AISI 304 or 316 stainless steel, these fittings offer exceptional corrosion resistance, high strength, and long-term durability, ensuring system safety and reducing total cost of ownership.
The superior performance of DIN 2353 fittings lies in their precise cutting ring design. When tightened, the single cutting ring bites securely into the tube, creating a permanent, three-point seal that is both pressure-tight and vibration-resistant. This metal-to-metal bite provides unparalleled reliability compared to conventional threaded connections.
Leak-Free, Permanent Seal: The cutting ring mechanism ensures a robust connection that withstands pressure pulsations, vibrations, and thermal cycling.
Superior Material Integrity: Made from corrosion-resistant stainless steel, ideal for harsh environments involving moisture, chemicals, or salt exposure.
High-Pressure Capability: Engineered to perform reliably in sustained high-pressure applications common in industrial hydraulics.
Easy and Verifiable Installation: Proper assembly is achieved with a defined torque, providing a visual and tactile confirmation of a secure fit.
To match the specific requirements of different applications, our DIN 2353 fittings are available in three distinct series. The following table outlines their primary characteristics to guide your selection:
Our fittings are meticulously manufactured to comply with international standards, ensuring global interoperability and performance assurance.
Primary Standard: DIN 2353 (Non-soldering compression fittings with cutting ring).
International Equivalents: Conforms to EN ISO 8434-1, which is the direct ISO adoption of the DIN standard. We also ensure compatibility with related standards such as ISO 8434-6 for specific port ends.
Material Standards: Tubes are recommended to be precision stainless steel according to DIN EN ISO 1127.
Thread Compatibility: Designed to work seamlessly with metric threads as per ISO 6149 and other international port standards.
The robustness and corrosion resistance of stainless steel make DIN 2353 fittings indispensable in sectors where failure is not an option:
Chemical & Petrochemical: Handling aggressive acids, solvents, and process fluids.
Oil & Gas: Onshore and offshore applications requiring reliable seals under extreme pressure and environmental exposure.
Marine & Shipbuilding: Resisting saltwater corrosion in hydraulic deck machinery, steering systems, and engine room utilities.
Heavy Engineering & Mobile Machinery: Withstanding constant vibration and shock in construction, mining, and agricultural equipment.
Food, Beverage & Pharmaceutical: Meeting strict hygiene standards for sanitary processing and clean-in-place (CIP) systems.
Choosing the right fitting is critical for system safety, efficiency, and longevity. Our Stainless Steel DIN 2353 Tube Fittings provide a trusted, standardized solution that engineers and maintenance professionals rely on worldwide. By selecting the appropriate series (LL, L, or S) for your pressure and environmental needs, you invest in a connection that ensures peak performance and minimizes downtime.
Explore our full range of metric sizes and configurations. Contact our technical team today for detailed CAD drawings, specification sheets, and expert support in selecting the optimal fittings for your application.
