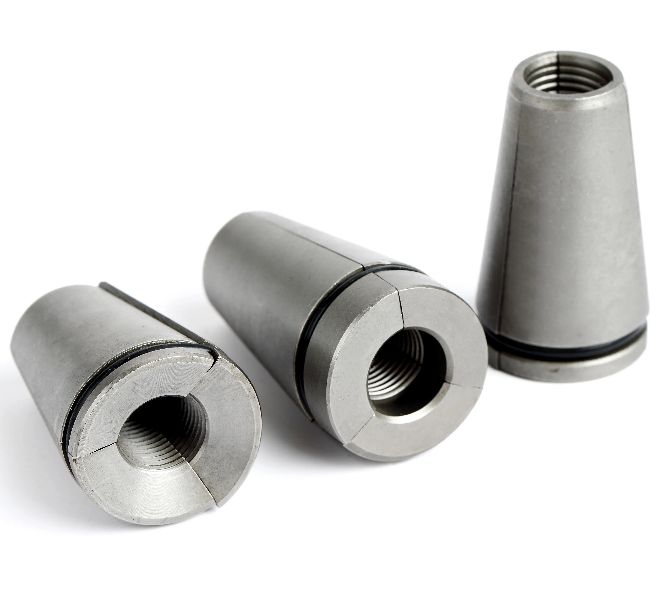

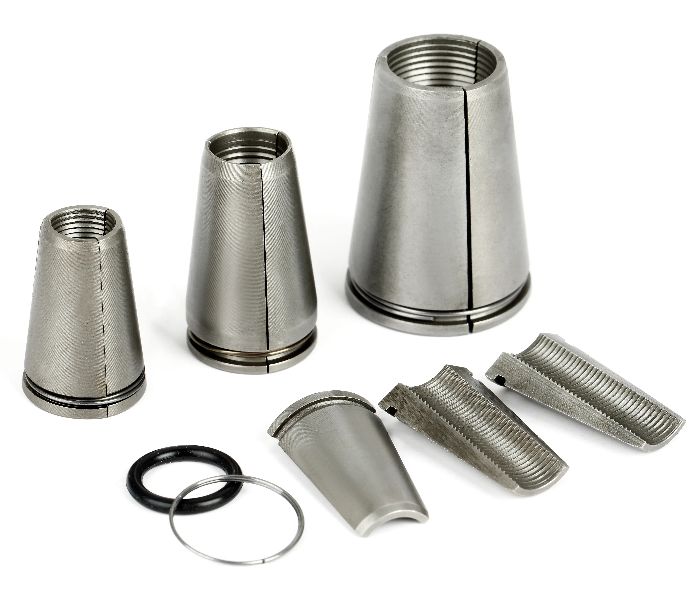

3 Part Wedges
Introducing 3 Part Wedges, the ultimate solution for secure fastening, alignment, and load distribution in heavy-duty industrial settings. Engineered with high-grade materials and a tri-segment design, these wedges deliver unmatched precision and durability, ensuring stability in construction, machinery, and structural applications.
Product Specifications
A (mm) | ∅B (mm) | Part No | |
9.5 mm | 33 | 22 | JP9.5-3 |
12.7 mm | 35 | 25.4 | JP12.7-3 |
12.9 mm | 38 | 26 | JP12.9-3 |
15.2 mm | 42 | 27 | JP15.2-3 |
15.7 mm | 45 | 29 | JP15.7-3 |
17.8 mm | 49 | 32 | JP17.8-3 |
21.8 mm | 60 | 39 | JP21.8-3 |
28.6 mm | 88 | 54 | JP28.6-3 |
（ The data are for reference only.Available in multiple sizes and customizable upon request.）
Key Features:
Triple-Segment Design – Enhances grip and weight distribution for superior performance.
High-Strength Material – Resists wear, corrosion, and extreme pressure for long-lasting use.
Easy Installation & Adjustment – Simplifies assembly and maintenance in tight spaces.
