2 Part Wedges

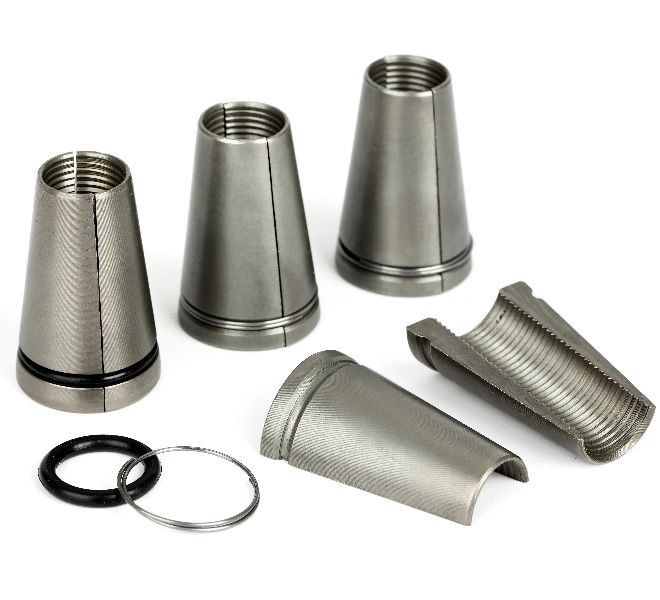

Our Two-Part Wedges feature a precision-engineered two-piece design specifically developed for anchoring prestressed strands and wires. The wedges are manufactured from high-quality alloy steel 20CrMnTi and undergo rigorous heat treatment to achieve a hardness of HRC 58-62, with a carburized layer depth of 0.5-0.7mm. This design ensures exceptional wear resistance and fatigue strength, delivering consistent and reliable anchoring performance in diverse engineering environments.
Product Specifications
A (mm) | ∅B (mm) | Part No | |
9.5 mm | 33 | 22 | JP9.5-2 |
12.7 mm | 35 | 25.4 | JP12.7-2 |
12.9 mm | 38 | 26 | JP12.9-2 |
15.2 mm | 42 | 27 | JP15.2-2 |
15.7 mm | 45 | 29 | JP15.7-2 |
17.8 mm | 49 | 32 | JP17.8-2 |
21.8 mm | 60 | 39 | JP21.8-2 |
28.6 mm | 88 | 54 | JP28.6-2 |
（ The data are for reference only.Available in multiple sizes and customizable upon request.）
Key Advantages
Split design:Facilitates installation and maintenance
Optimized wedge angle:Ensures even stress distribution
Long-lasting durability:Corrosion and wear resistant design
