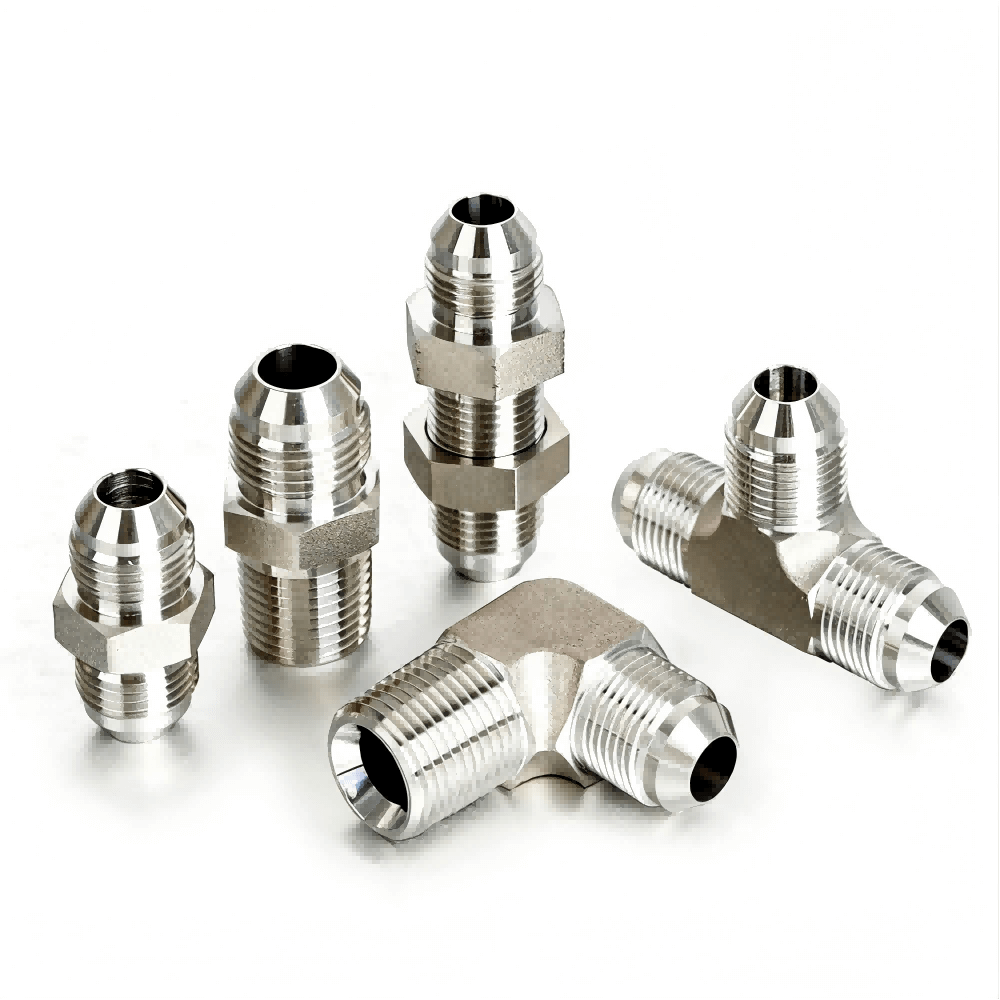

Premium Stainless Steel JIC Fittings: High-Pressure Leak-Free Connections
Fitsch is a leading China hydraulic fitting manufacturer and factory, specialized in engineering premium Stainless Steel JIC (Joint Industry Council) 37° Flare Fittings. Built strictly to SAE J514 and ISO 8434-2 international standards, our JIC adapters ensure maximum dependability, high-pressure tolerance, and exceptional corrosion resistance across severe industrial environments.
By utilizing high-grade 304 and 316 stainless steel, our JIC flare adapters eliminate the risk of systemic fluid oxidation and premature thread galling. The metal-to-metal sealing principle provides a simple yet highly reliable connection, making it the preferred choice for marine, oil and gas, chemical processing, and mobile heavy equipment.
Comprehensive 5 Core Product Types & Configurations
We manufacture and supply a comprehensive catalog of stainless JIC adapters across Straight, 90-Degree Elbow, 45-Degree Elbow, and Tee configurations to suit any hydraulic plumbing layout:
1. JIC Union & Bulkhead Fittings

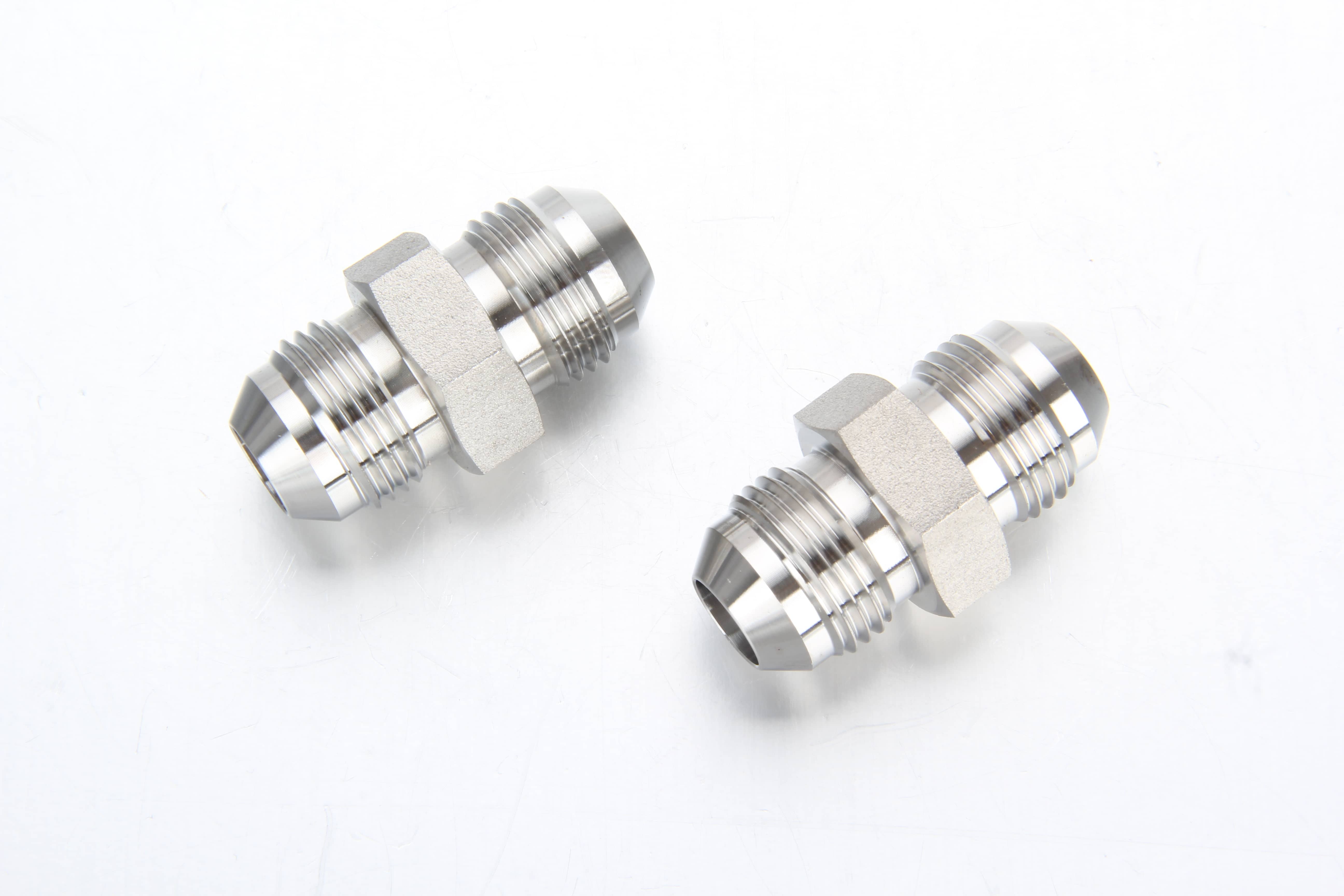

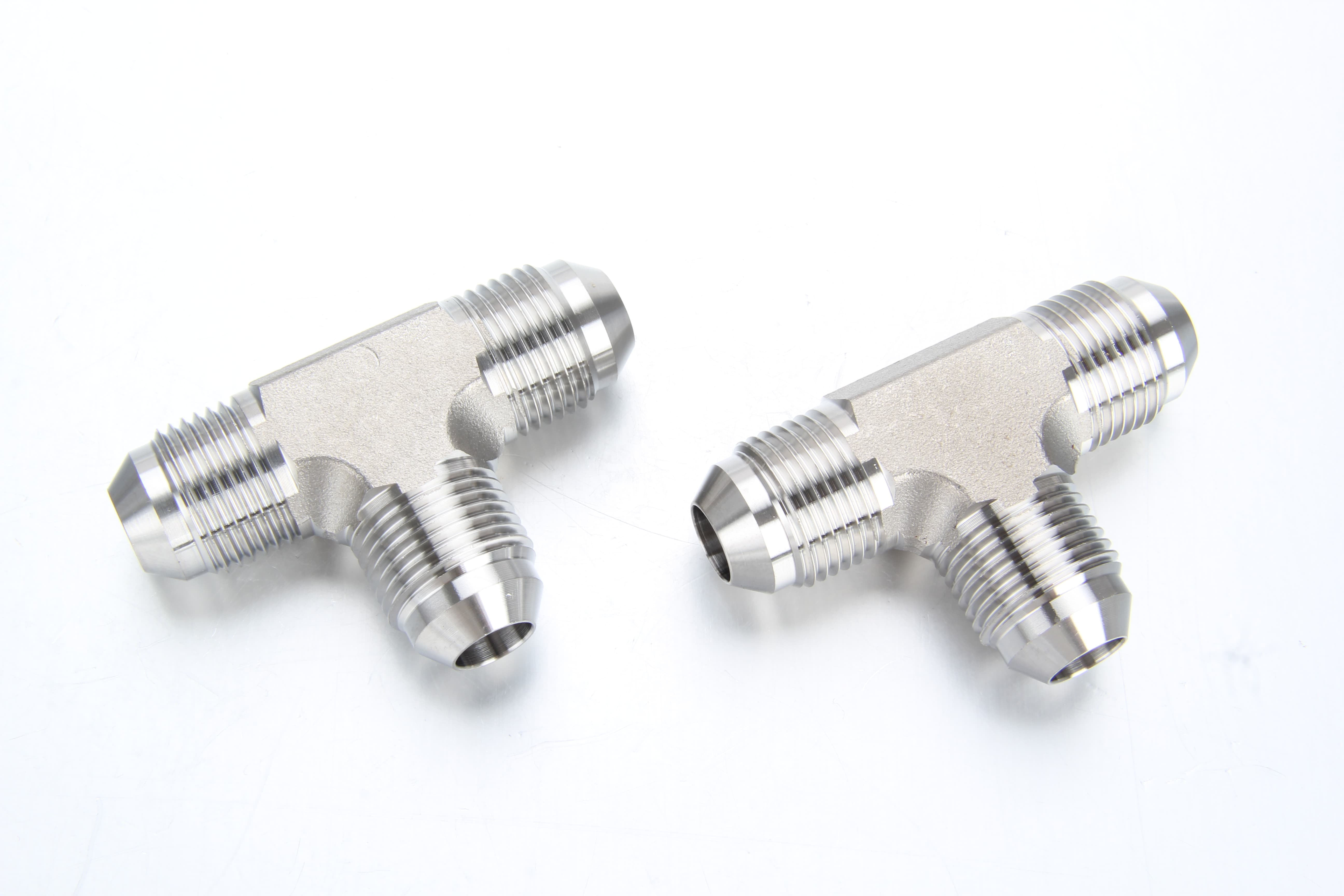

JIC Union (Straight, Elbow, Tee): Designed to seamlessly join two or more JIC tube lines or hose assemblies together.

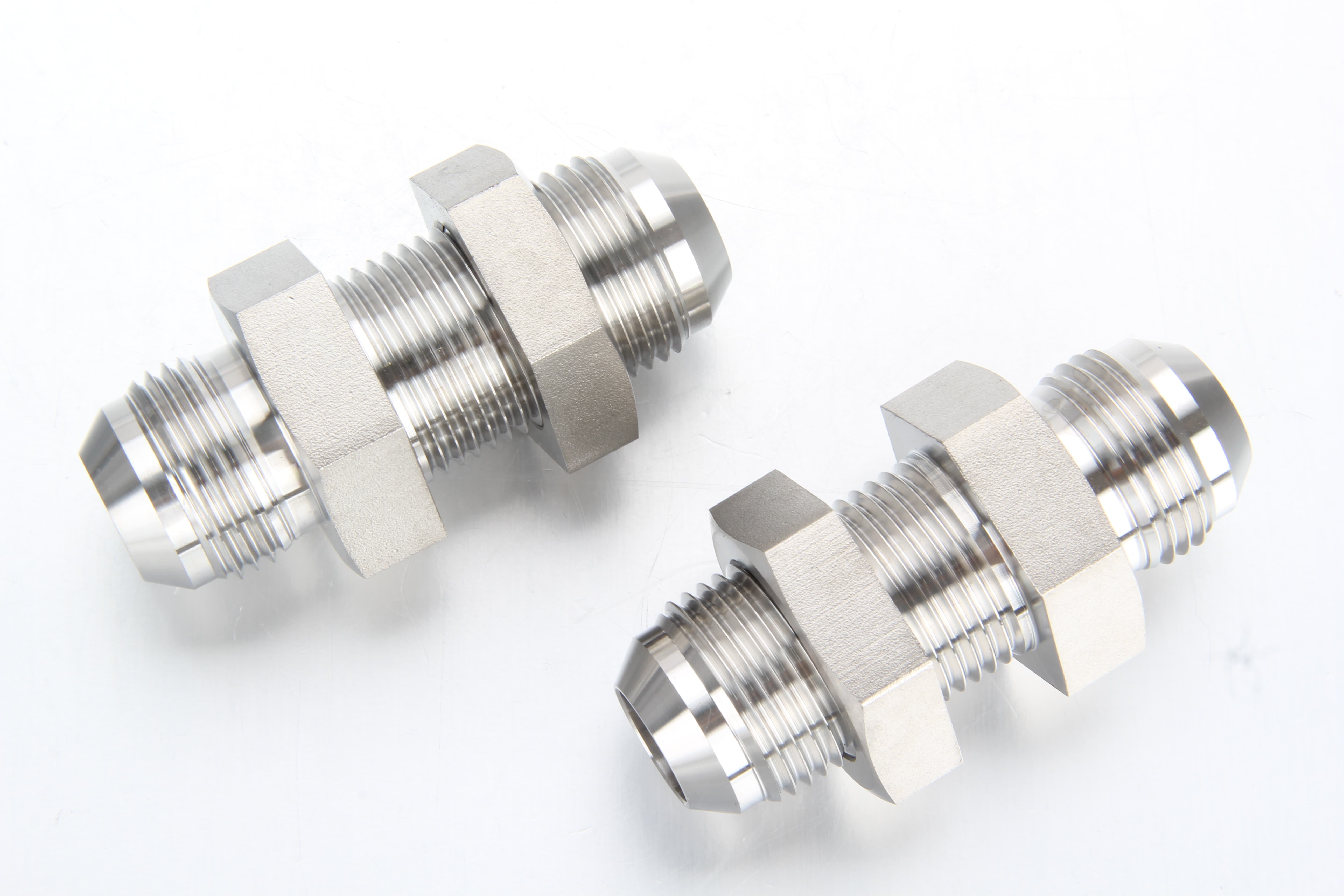

JIC Bulkhead Union: Features an extended body and structural locknut to safely route hydraulic fluid lines straight through panels, enclosures, or structural bulkheads without stress or vibration damage.

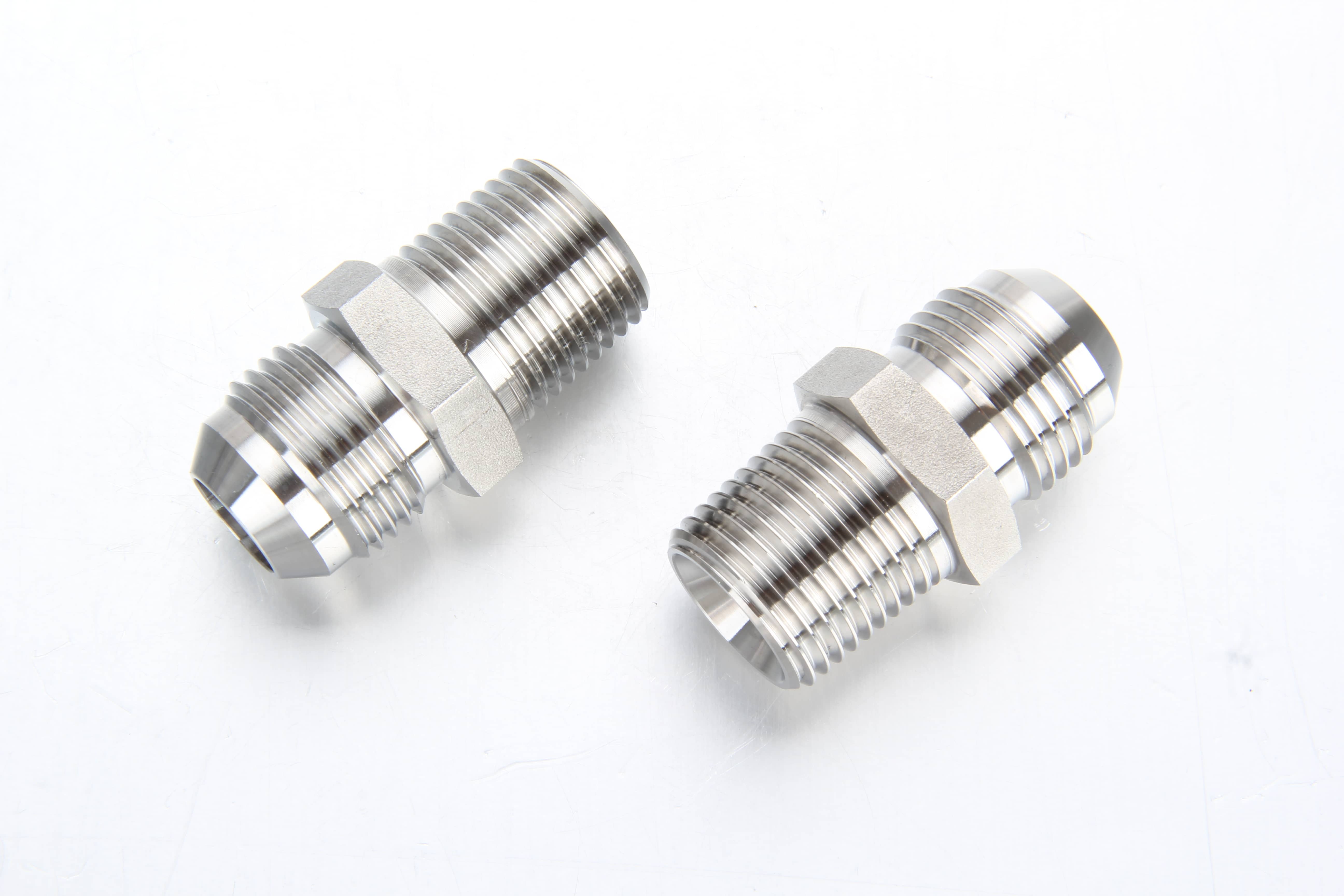

2. JIC to NPT Thread Adapters
Connects American standard tapered pipe threads to standard 37° flare systems. Available in male/female combinations across straight, 90° forged elbows, and branching tee designs.
3. JIC to BSPT Thread Adapters
Bridges British Standard Pipe Taper (BSPT) ports to standard JIC tube setups, common in European and Asian machinery setups.

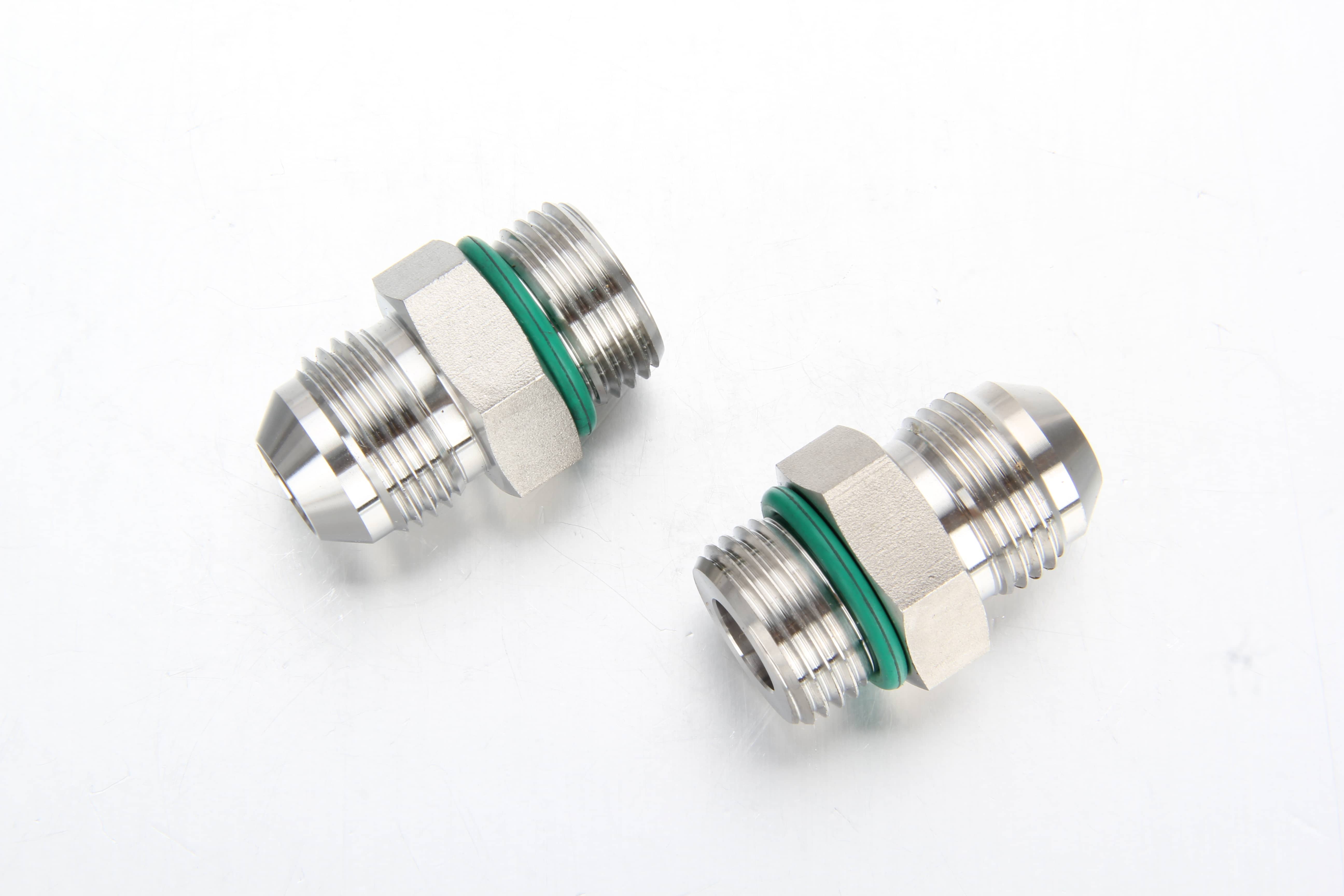

4. JIC to SAE ORB (O-Ring Boss) Adapters
Ideal for heavy-duty hydraulic manifolds and cylinders. The JIC 37-degree flare side secures your line, while the male SAE ORB side utilizes an elastomeric O-ring seal to prevent leaks under intense pressure spikes.
5. JIC to BSPP Thread with ED Seal (BSPP ED)
Combines parallel British threads (BSPP) with highly reliable, heavy-duty Elastic Seals (ED-seals). This configuration guarantees tight sealing in control valves and pump ports without needing thread tape or paste.
Technical Data & Engineering Specifications
Our state-of-the-art CNC manufacturing facility ensures strict compliance with tolerance margins. Below are the baseline specifications for our standard stainless steel JIC adapters.
JIC Dash Size | Tube O.D. (inch) | JIC Thread Size (UN/UNF) | Nominal Operating Pressure (316 Stainless Steel)* |
-4 | 1/4" | 7/16-20 | Up to 350 Bar (5,000 PSI) |
-6 | 3/8" | 9/16-18 | Up to 350 Bar (5,000 PSI) |
-8 | 1/2" | 3/4-16 | Up to 310 Bar (4,500 PSI) |
-10 | 5/8" | 7/8-14 | Up to 240 Bar (3,500 PSI) |
-12 | 3/4" | 1-1/16-12 | Up to 240 Bar (3,500 PSI) |
-16 | 1" | 1-5/16-12 | Up to 210 Bar (3,000 PSI) |
-20 | 1-1/4" | 1-5/8-12 | Up to 170 Bar (2,500 PSI) |
-24 | 1-1/2" | 1-7/8-12 | Up to 140 Bar (2,000 PSI) |
*Note: Working pressures vary slightly depending on shape configuration (e.g., straight bodies vs. forged elbows/tees).
Material Composition: SS304, SS316, SS316L, SS316Ti
Manufacturing Standards: SAE J514, ISO 8434-2, BS 5200
Sealing Type: 37° Metal-to-Metal Seat / Profile ED-Seal / NBR or FKM O-Rings
The Fitsch Advantage: Why Source from Our China Factory?
Purchasing your hydraulic components directly from Fitsch (Ningbo International Trade Co., Ltd.) provides distinct strategic benefits over standard distribution channels:
Over 20 Years of Rich Production Expertise: We deeply understand global precision requirements and standard certifications (ISO, DIN, SAE, JIS).
Massive Industrial Capacity: Armed with 200 advanced CNC machines, we comfortably handle scale orders with a maximum capacity of 1,500,000 fluid connectors per month.
Failproof Supply Chain Integration: We operate within our local industrial manufacturers union to lower overhead costs, passing those factory-direct savings straight to your procurement budget without compromising component tolerances.
Rigorous Quality Control Tracking: From raw material material-spectral testing to finalized thread go/no-go gauge validation, every batch is fully trackable.
Request a Quick Quote
Need a customized size or a bulk catalog quote? Contact our engineering and export team directly:
Email: info@fitsch.cn
Address: No.133-3 Anjiexi Road, Sanqishi Town, Yuyao 315412, China
