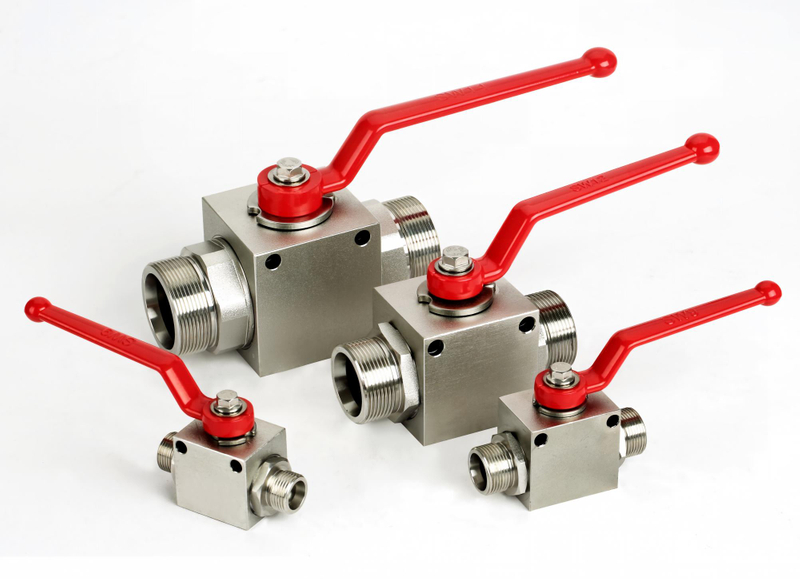

DIN 2353 Metric Tube Compression Stainless Steel Hydraulic Ball Valve

Overview

Fitsch’s DIN 2353 Compression Stainless Steel Hydraulic Ball Valves are engineered to deliver reliable, leak-free fluid control in high-pressure and highly corrosive environments. Manufactured strictly to global standards DIN 2353 and ISO 8434-1, these cutting-edge bite-type compression valves bypass proprietary corporate standards to offer exact global interoperability. Crafted from premium-grade 316/304 stainless steel, they provide unrivaled resistance against chemical degradation, saltwater, and mechanical stress, making them the premier choice for offshore oil & gas, marine engineering, and chemical processing networks.

Key Features & Engineering Integrity

• Standard Compliance: Designed in full alignment with DIN 2353 / ISO 8434-1 metrics to guarantee a seamless fit with your existing metric tube and hose line systems.

• Dual-Series Availability: Available in both the Light Series (L) for medium-pressure applications and the Heavy Series (S) to handle intense, high-impulse industrial pressures.

• Leak-Proof Bite Type Connections: Features integrated cutting ring and nut assemblies that grip tubes firmly, absorbing high-vibration stresses without backing off.

• Premium Sealing Architecture: Outfitted with robust Delrin (POM) ball seats and Viton (FKM) O-rings to deliver tight, zero-leak shut-off capabilities under extreme temperatures.

Technical Specifications

• Material Body: Stainless Steel 316 (1.4404) / Stainless Steel 304 (1.4301)

• Tube OD Range: Metric sizes from 6 mm to 42 mm outer diameters.

• Working Pressure Rating: Built to withstand up to 500 bar (7,250 PSI) depending on series and size configuration.

• Handle Type: Heavy-duty zinc-plated or stainless steel lever offset options.

Why Source From Fitsch?

As a dependable industrial union partner with over 20 years of manufacturing experience, Fitsch eliminates supply chain vulnerabilities for worldwide fluid power projects. Driven by a facility matrix of 200 advanced CNC machines, we secure a maximum monthly capacity of 1,500,000 fluid connectors and accessories to scale smoothly alongside your requirements. Every stainless steel valve passes rigorous quality control workflows to align completely with international market expectations.

DIN 2353 Stainless Steel Hydraulic Ball Valve Dimensions

Light Series (L Series) – Medium to High Pressure

Designed for metric tube connections in standard pressure industrial hydraulic and pneumatic applications.

Heavy Series (S Series) – Extreme High Pressure

Designed for extreme-pressure environments with tight wall clearances and high system vibrations.
