As a premier China hydraulic fittings manufacturer, we deliver top-tier DIN 2353 cutting ring fittings and ISO 8434-1 24 degree cone connectors. Engineered for leak-free performance in severe, high-pressure industrial environments, our non-soldering compression fittings eliminate the need for flaring or welding. Every fitting is precision-machined from solid hex bars and premium forging blanks to guarantee 100% interchangeability with major global brands like Parker (Ermeto/EO), Voss, and Stauff.
Product Working Principle & Design

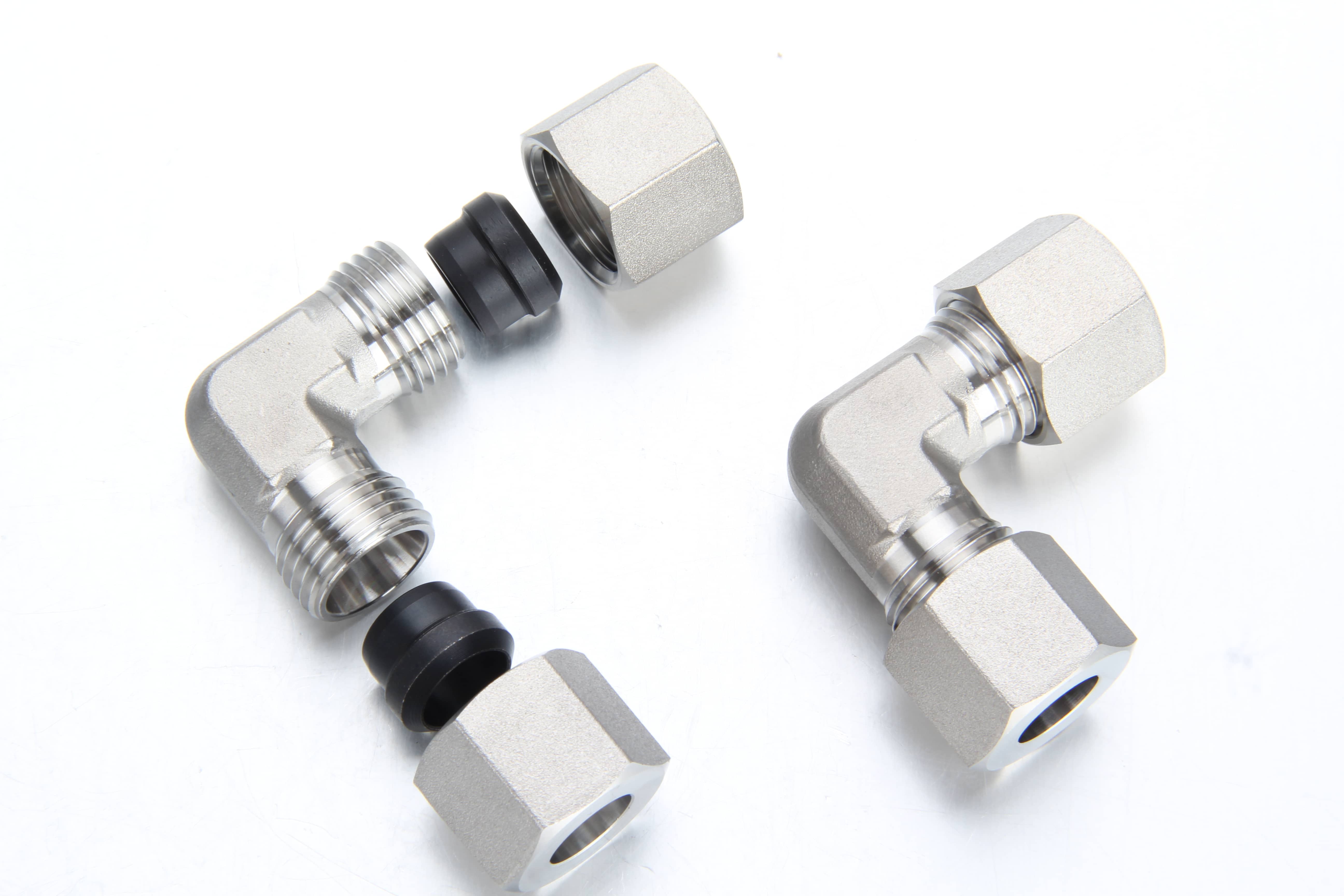

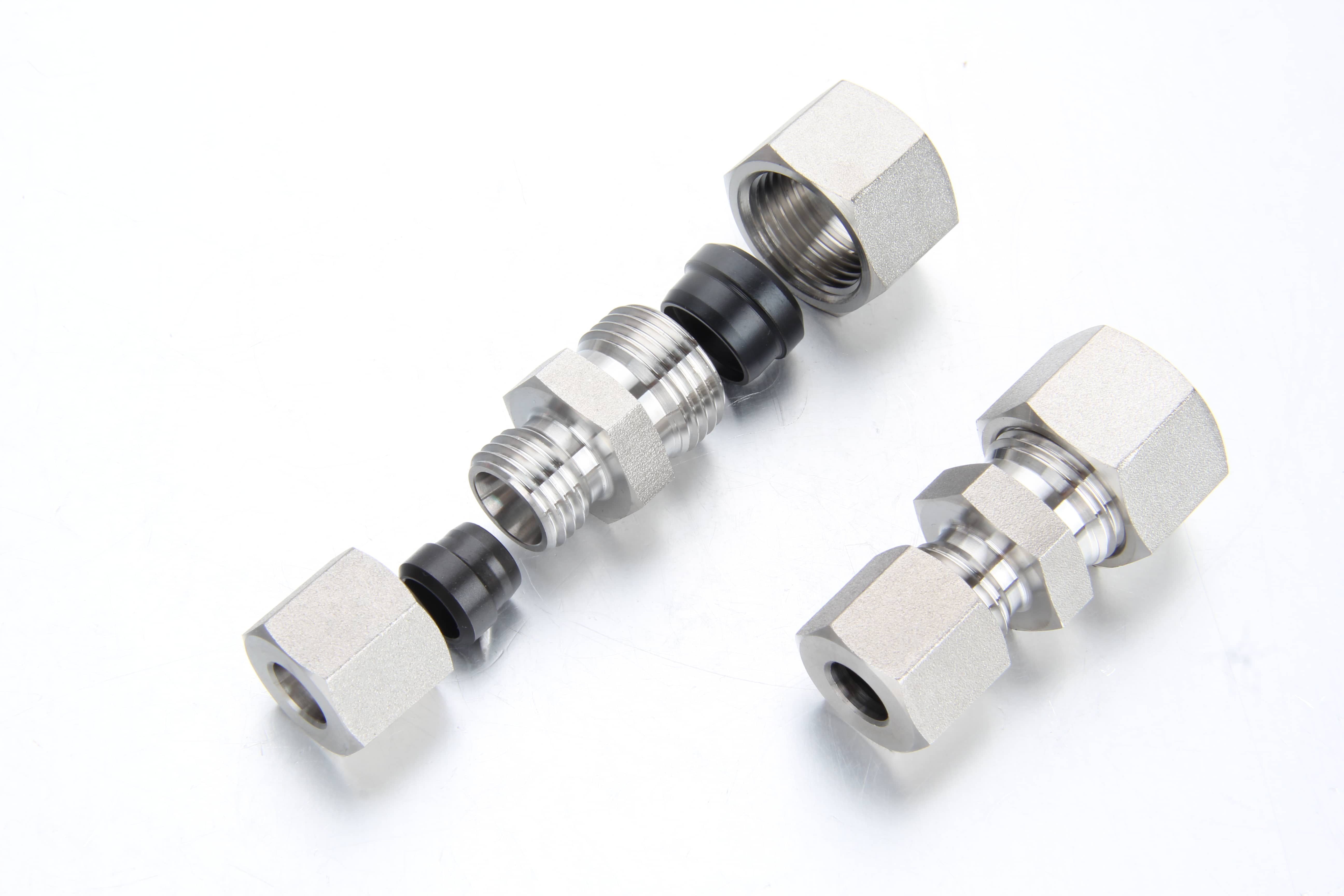

The DIN 2353 flareless compression fitting operates on a precision metal-to-metal bite mechanical principle. It is comprised of three perfectly synchronized parts: a body with a 24° internal cone, a DIN 3870 union nut, and a DIN 3861 cutting ring (ferrule).

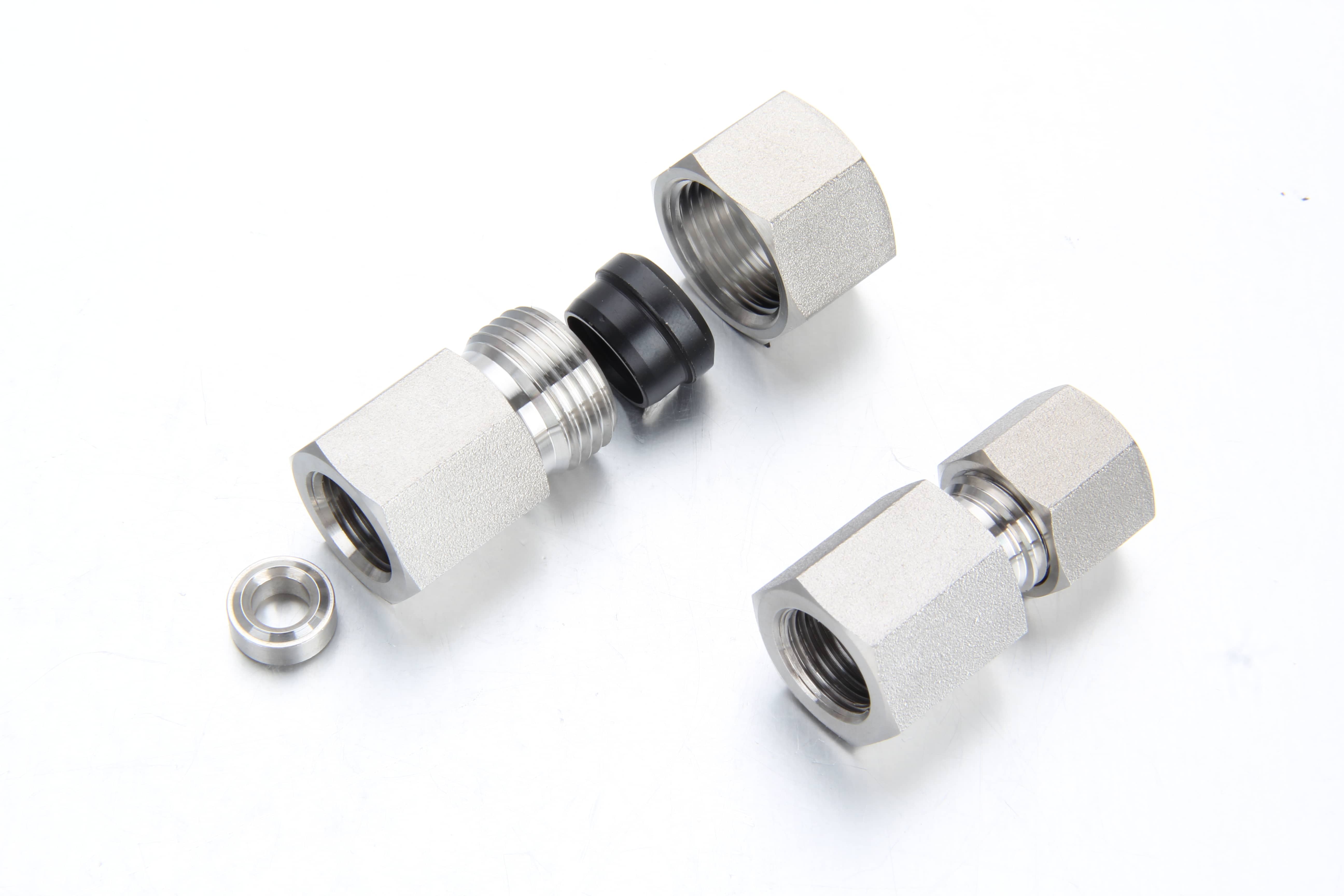

The Double-Bite Advantage (Form B): Our factory standardizes on the Form B double-edge design. As the union nut is tightened, the cutting ring is driven down the 24° cone. The front and second cutting edges bite precisely into the exterior surface of the seamless pipe. This raises a controlled collar of material that locks the tube permanently against intense system pressure and extreme pull-out force.
Positive Stop Safety: The advanced geometry features an integrated "positive stop" collar that prevents over-tightening during field installation.
Rigorous Technical Specifications
Material Composition: Premium grade AISI 316L (1.4404) and AISI 304 (1.4301) stainless steel. For specialized high-temperature applications, we also supply SS316Ti (1.4571).
Material Hardness: All cutting rings undergo a proprietary heat-treatment process to reach a required hardness rating of HRC 38-45, ensuring a clean bite into heavy-walled seamless steel tubes.
Size & Metric Tube OD Range: Complete coverage for metric tube outside diameters spanning from 4 mm to 42 mm.
Thread Port Formats: Metric parallel threads, BSPP (G thread), BSPT, NPT, and SAE O-Ring Boss (ORB) stud ends meeting ISO 6149-1, ISO 1179-1, and ISO 9974-1 standards.

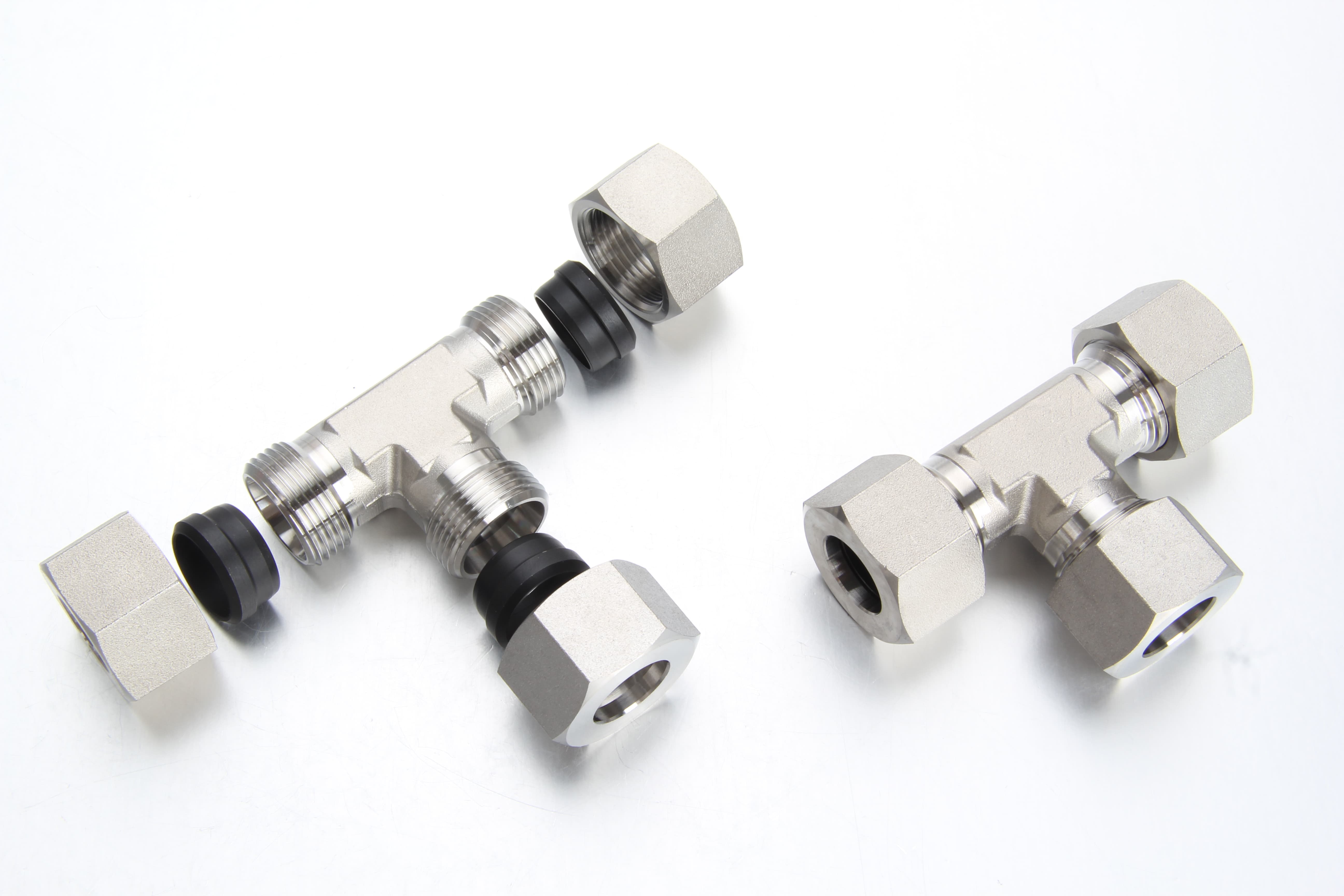

Body Configurations Available: Straight (S), Union Elbow (E), Union Tee (T), Union Cross (K), Bulkhead Connectors, and Swivel Stud Adapters.
Pressure Series Breakdown (PN Ratings)
Our DIN tube fittings are systematically cataloged into three pressure-handling series to fulfill precise design criteria:
Extra Light Series (LL): Optimized for low-pressure instrumentation and compressed air braking systems up to 100 bar (10 MPa).

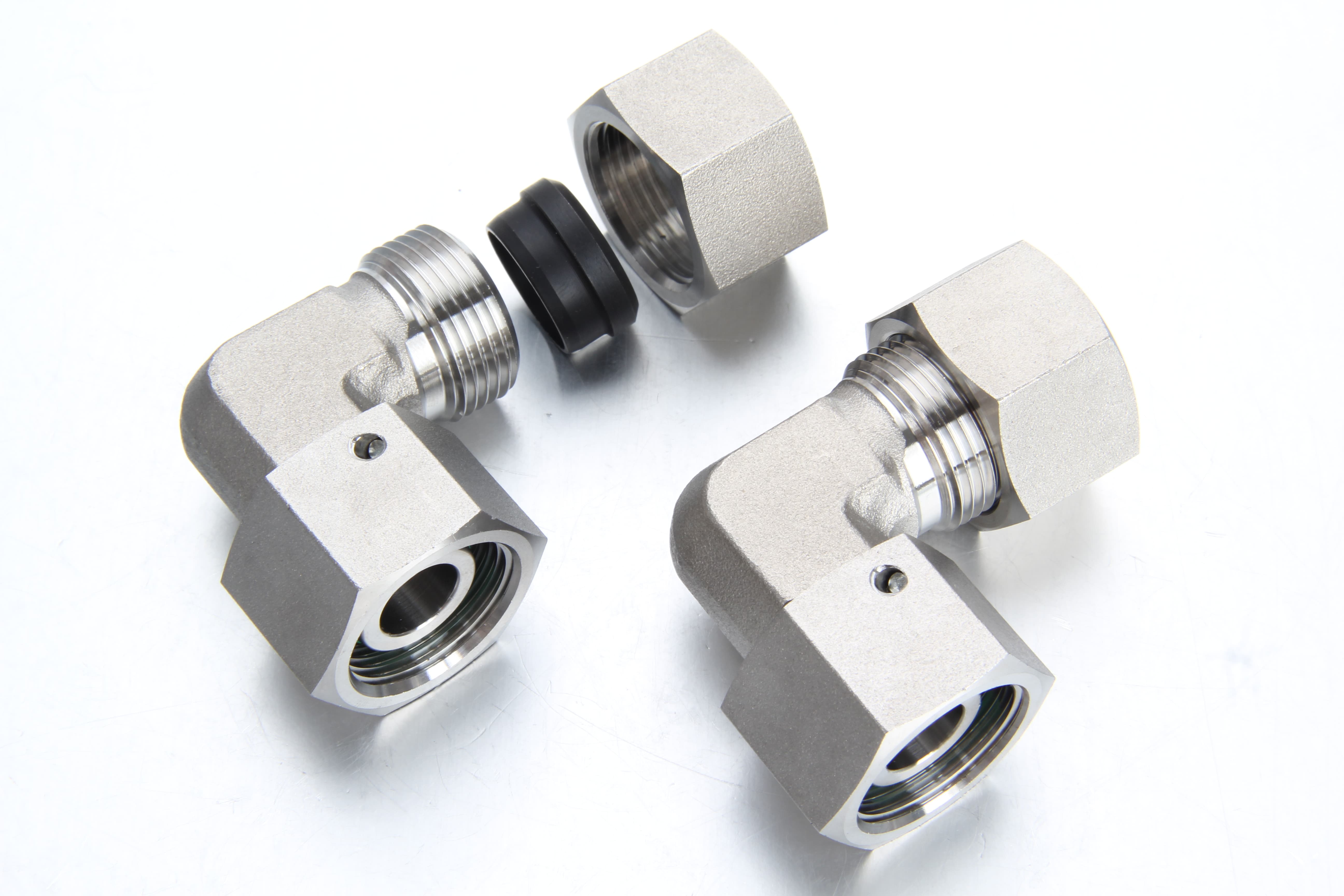

Light Series (L): Engineered for industrial hydraulic infrastructure with fluid pressures ranging from 100 to 315 bar (10 to 31.5 MPa).

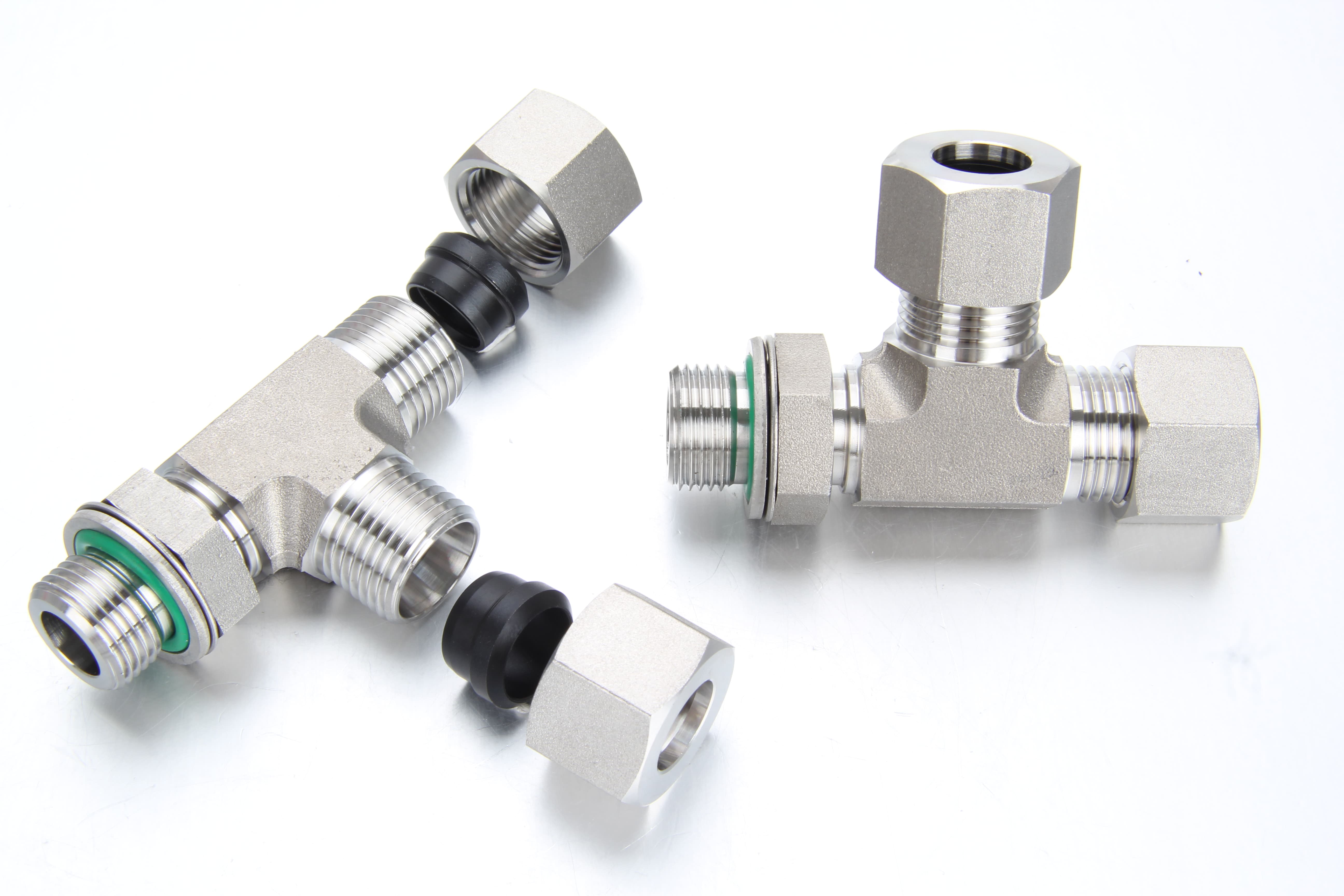

Heavy Series (S): Built for severe environments prone to extreme water hammering, vibration, and thermal shocks, supporting operational thresholds from 250 to 630 bar (25 to 63 MPa).
Target Applications
Our stainless steel DIN 2353 connectors offer unmatched corrosion resistance and structural integrity across demanding industries:
Marine and offshore exploration rigs
High-pressure oil and gas fluid infrastructure
LNG system transport networks
Industrial centralized lubrication systems
Chemical Processing and Pharmaceutical plants
Why Partner with Our China Factory?
20+ Years Sourcing Expertise: Deep industrial manufacturing union supporting global distribution pipelines.
Full Certification Compliance: Material Test Reports (MTRs) and complete traceability metrics are supplied on demand.
OEM/Custom Manufacturing Capabilities: Specialized CNC fabrication tailored directly to your engineering blueprints.
