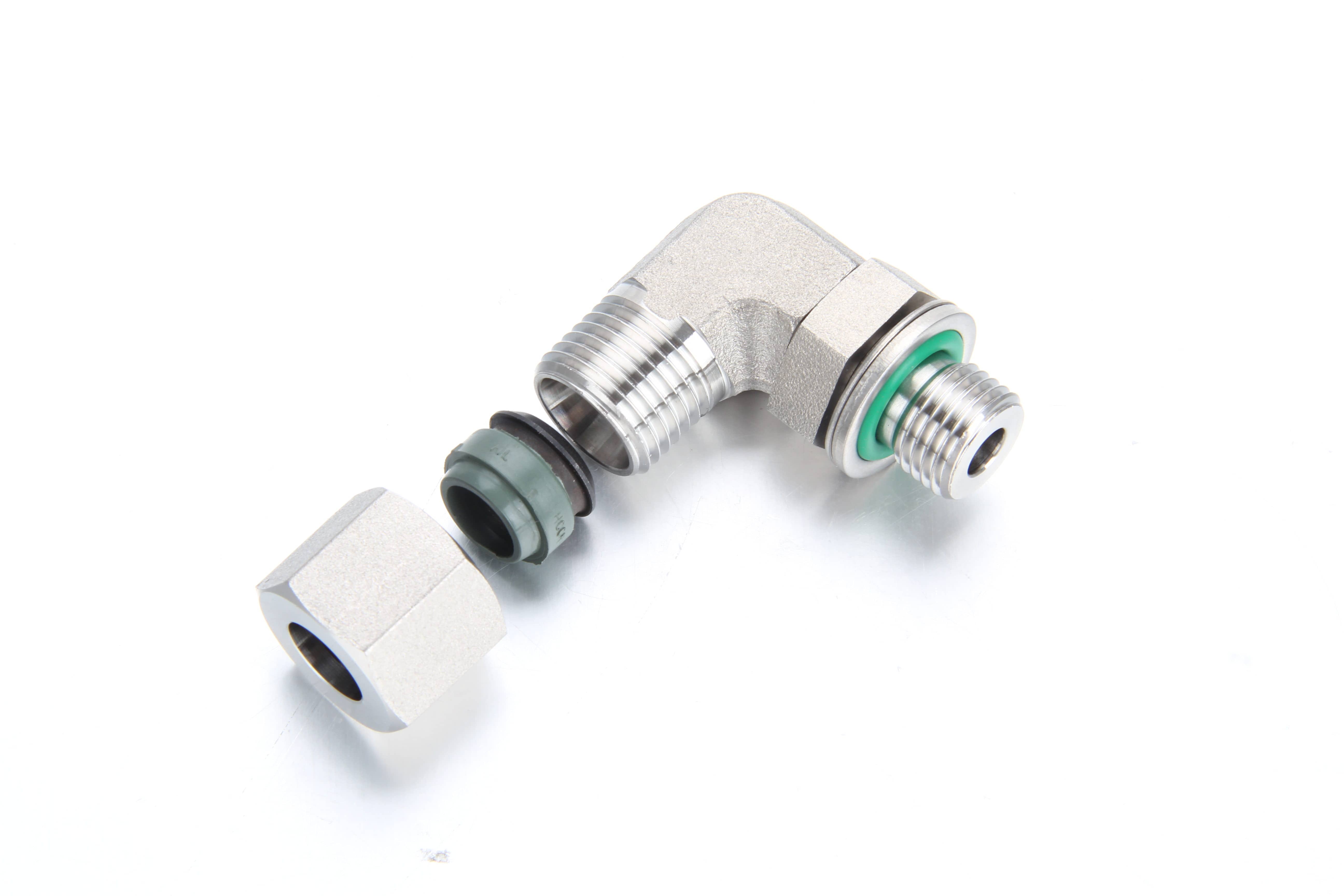

316L Stainless Steel EO2 Soft-Seal Compression Fittings (DIN 2353 24° Cone Soft-Seal Connectors)
As a highly specialized China hydraulic fittings manufacturer, we produce a precision-engineered lineup of EO2 stainless steel hydraulic fittings and DIN 2353 soft seal fittings. Built as the ultimate evolution of standard single-ferrule systems, our EO2-style fluid connectors incorporate advanced soft-seal elastomeric technology to achieve a permanent, gas-tight "dry seal." These premium components are meticulously machined to be 100% interchangeable in fit, form, and function with original Parker Ermeto EO-2, Voss, and Stauff functional nut assemblies.
The EO2 Soft-Seal System Architecture
Our ISO 8434-1 24 degree cone soft seal design fundamentally alters how high-pressure connections behave under intense system fatigue. Instead of relying solely on a metal-to-metal bite, the system divides tasks into mechanical holding power and static sealing:

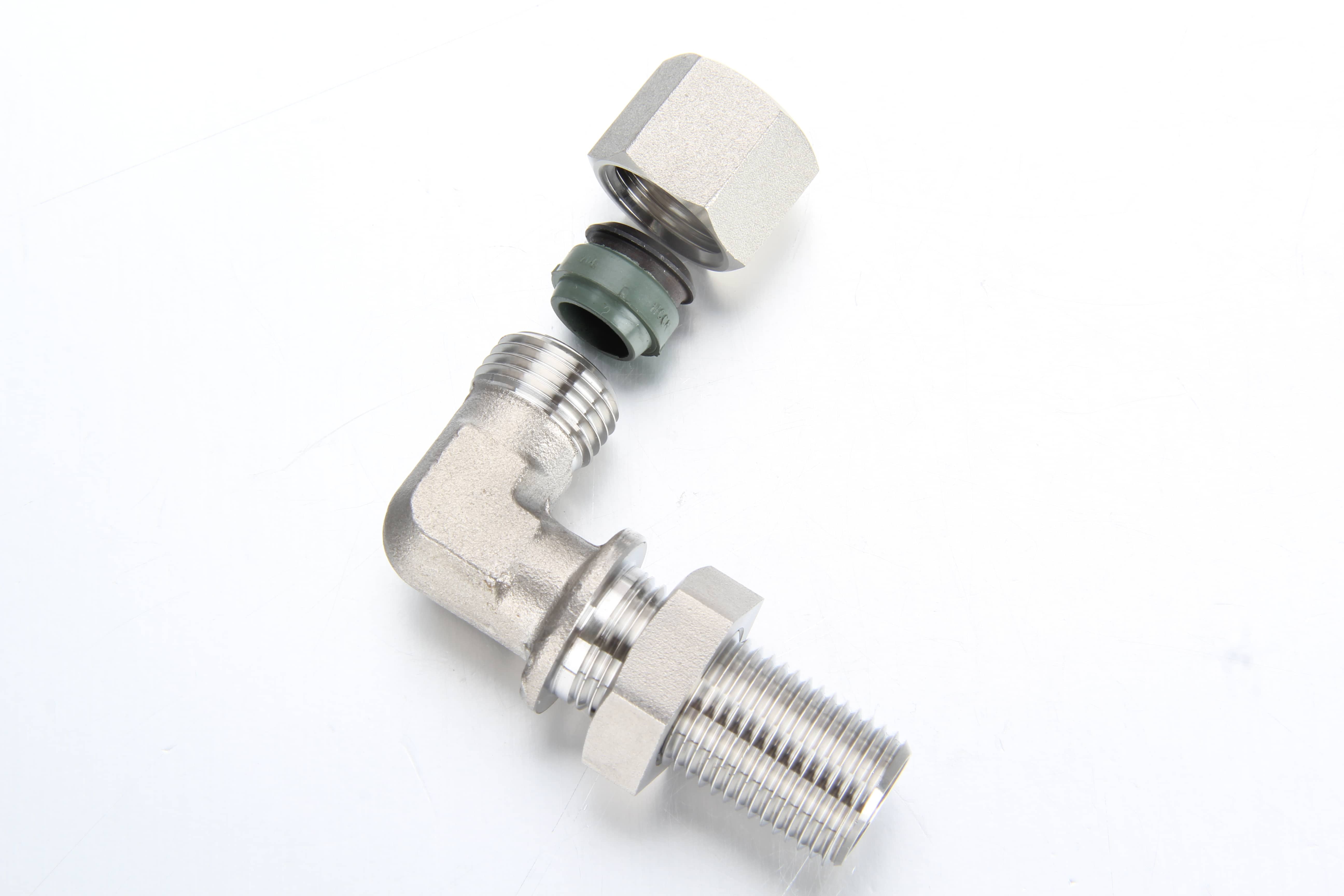

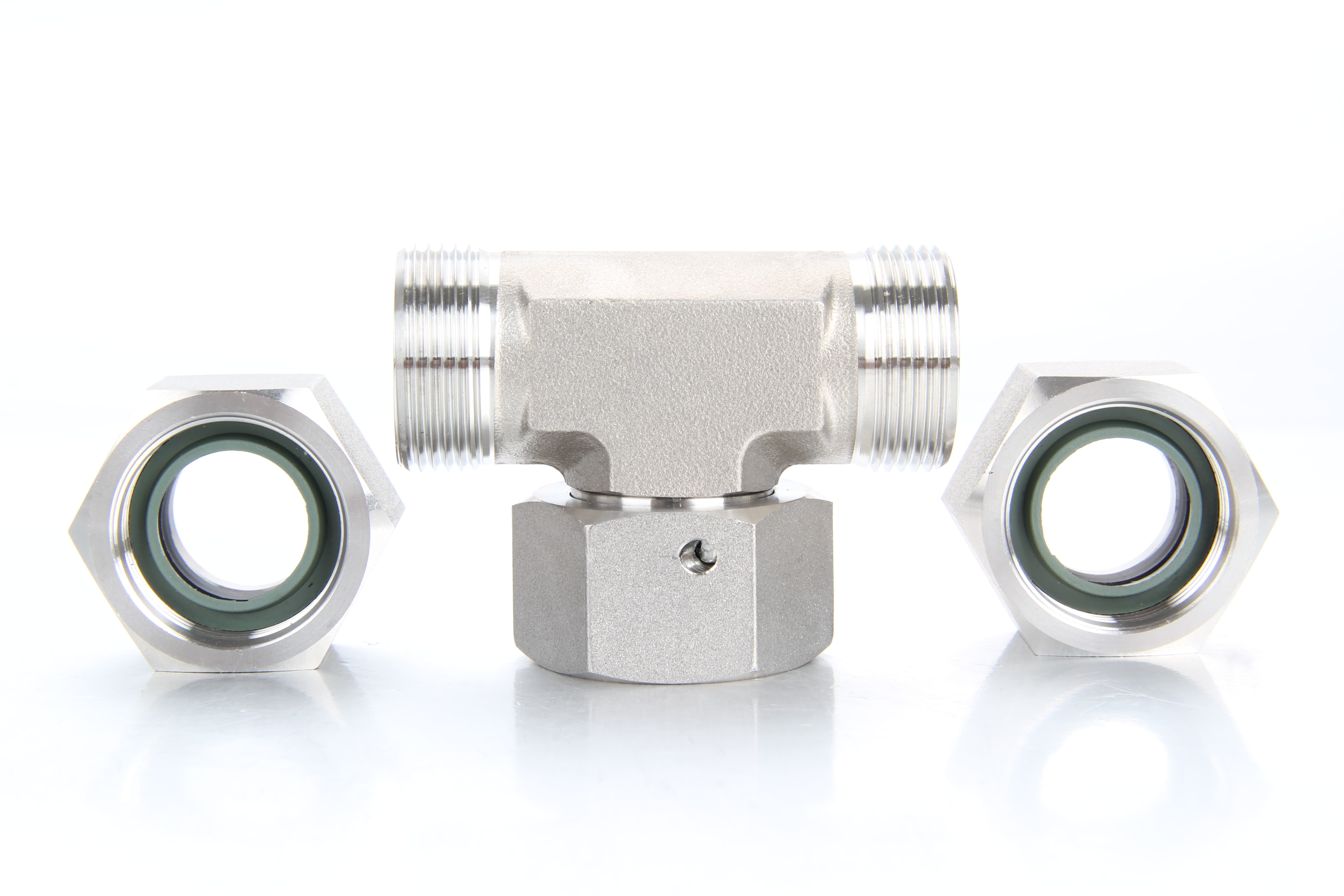

The Functional Nut Component: The cutting ring, retention collar, and elastomeric profile seal are preassembled into a single, cohesive unit inside the nut. This eliminates loose individual ferrules and minimizes field assembly errors.
Zero-Leakage Elastomeric Seal: The primary seal is achieved via a large-profile elastomeric ring positioned directly between the tube outer diameter and the internal 24° fitting cone body. This compensates for any microscopic tube surface defects or out-of-roundness.
Built-In Over-Tightening Control: When the functional nut is tightened down, the metallic components meet at a physical "positive stop." This structural design prevents over-tightening, making assembly highly repeatable without damaging the tube or fitting.
Rigid Technical Specifications & Sourcing Grid
Material Performance: Machined from premium barstock and forge-aligned blanks in AISI 316L (1.4404) and AISI 316Ti (1.4571) for extreme chemical and maritime protection.
Elastomeric Compound Profiles: Standard configurations ship with premium Viton (FKM/FMC) soft seals for superior chemical compatibility and a temperature range of -20°C to +200°C. High-nitrile (NBR) alternatives are available upon request.
Size & Metric Series Range: Complete size matrices covering metric tube outside diameters (OD) from 6 mm to 42 mm.
Pressure Class Separations (PN Ratings):

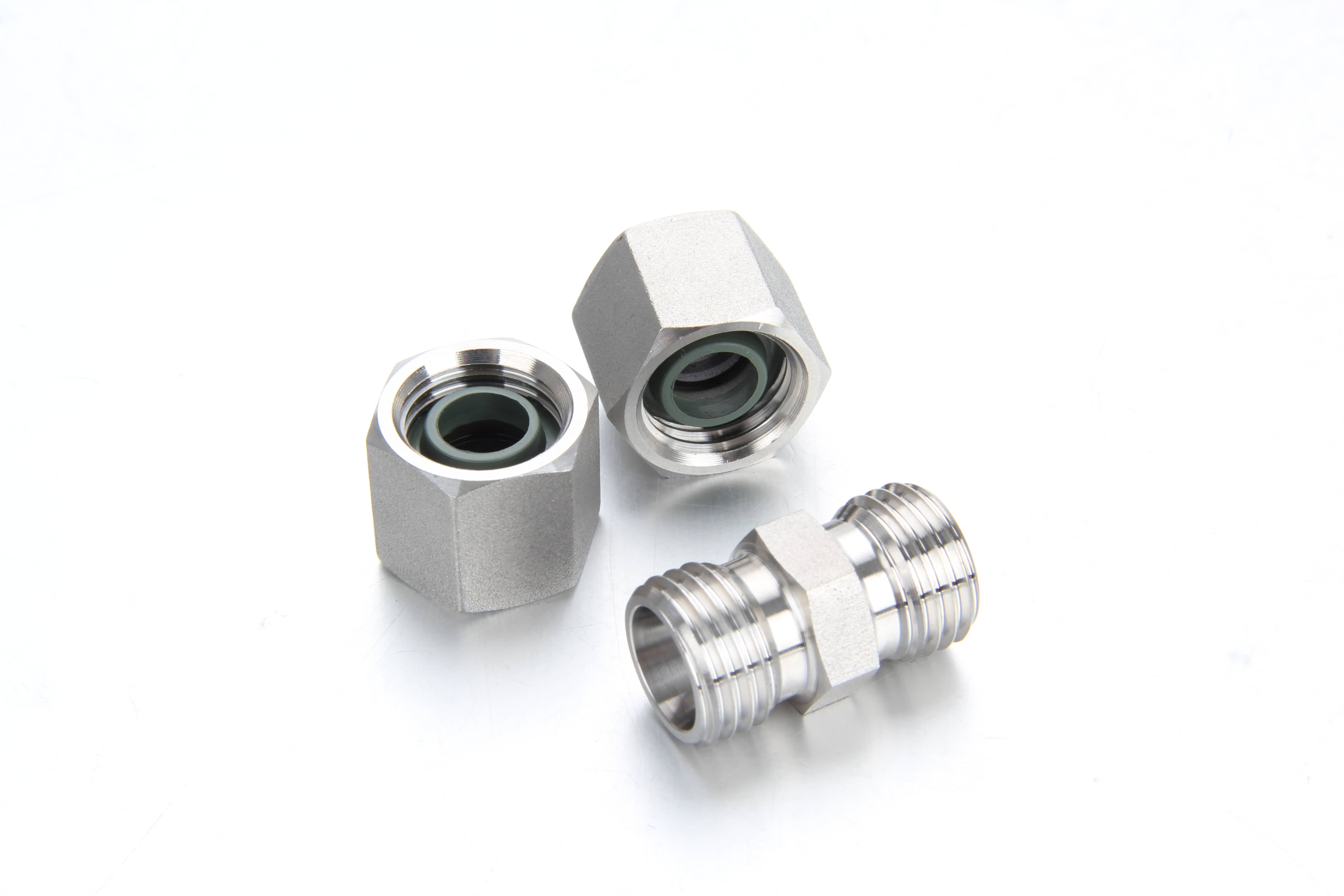

Light Series (L Series): Optimized for medium pressures from 160 bar up to 315 bar.

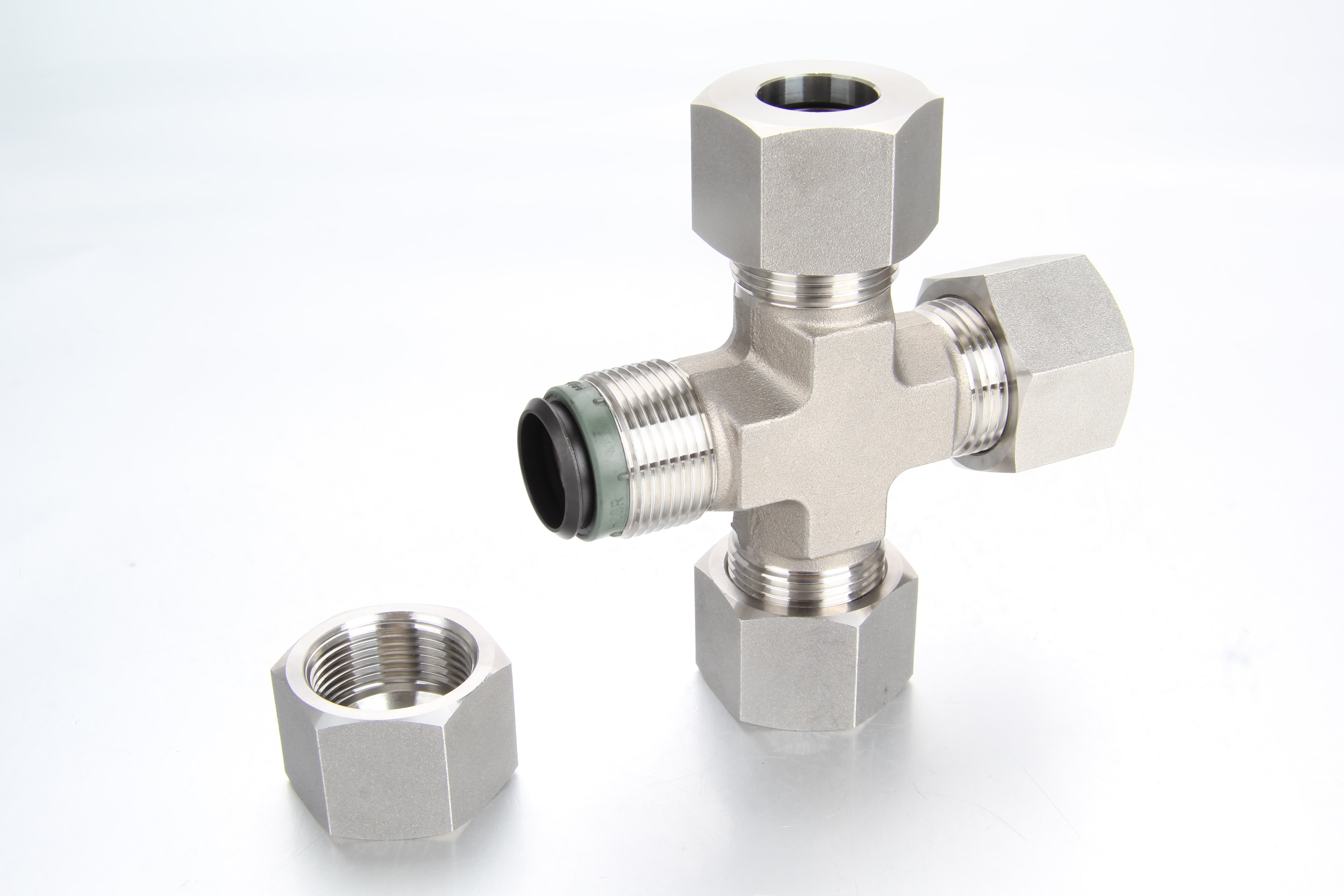

Heavy Series (S Series): Extra thick-walled connectors built to counter heavy vibration and fluid spikes, supporting 315 bar up to 630 bar.
Body Configurations: Straight Unions, Union Elbows, Equal Tees, Bulkhead Unions, Swivel Standpipe Adapters, and Male/Female Stud Connectors featuring NPT, BSPP, and Metric threads.
Target Applications
Our stainless steel EO2 compression connectors provide leak-proof, maintenance-free operation across high-vibration and aggressive environments:
Marine hydraulic control loops and offshore drilling platforms
High-vibration mobile hydraulic equipment and industrial cranes
LNG cryogenic transport piping and refueling skids
Centralized automated lubrication infrastructure
Pulp, paper, and heavy steel mill fluid networks
Why Partner with Our China Factory?
Elimination of "Sweating" Leaks: The dual metal-and-rubber configuration completely seals gas and hydraulic fluid, ending the weeping leaks common to worn metal-to-metal fittings.
Full Batch Traceability: Every shipment is backed by authentic Material Test Reports (MTRs) tracing the steel back to the primary mill melt.
OEM Private Labeling Available: Laser-marking capabilities allow for custom part numbering, branding, and sizing text printed directly onto the nut hex flats.
Direct Comparison Table: Standard DIN 2353 vs. EO2 Soft-Seal
This scannable comparison table highlights the high-value benefits of the EO2 system for engineering and procurement buyers:
Technical Feature | Standard DIN 2353 Cutting Ring | EO2 Soft-Seal System |
Sealing Interface | Metal-to-metal (cutting ring bites into the tube) | Elastomeric soft seal (Viton/NBR profile ring) + Metal bite |
Leak Prevention | Prone to microscopic "sweating" or weeping under heavy gas | 100% gas-tight "dry technology" seal; fills tube surface defects |
Vibration Resistance | Fair; structural stress concentrates at the bite mark | Excellent; elastomeric seal acts as a dampener against harmonics |
Assembly Safety | Easy to over-tighten, which shears or damages the tube | Integrated "positive stop" provides an exact mechanical limit |
Reusability | Limited; sealing quality degrades upon re-assembly | Highly reusable; simply replace the low-cost profile seal if worn |
Component Handling | 3 separate loose pieces (Body, Nut, Ring) | 2 pieces (Body + Pre-assembled Functional Nut assembly) |

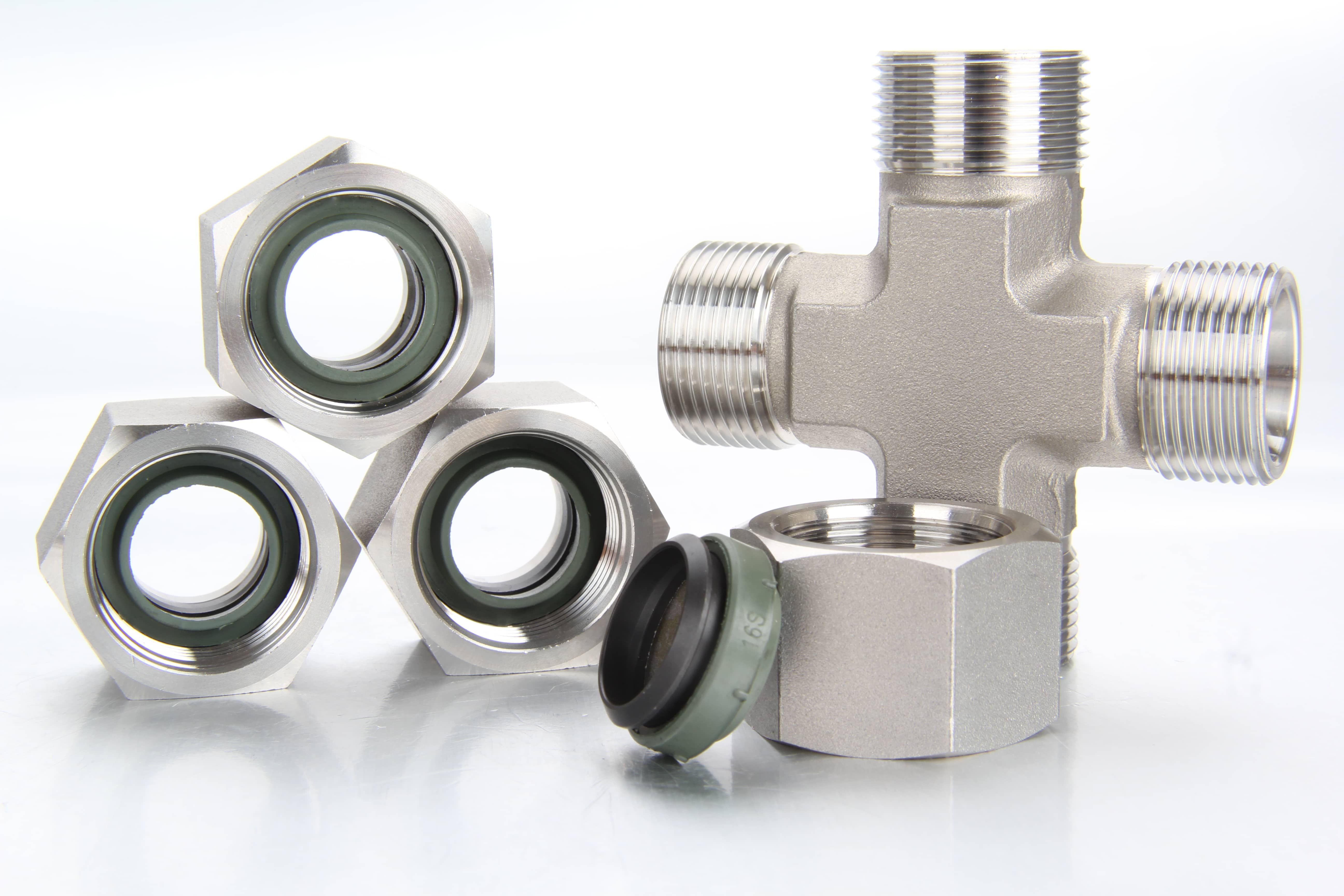

EO2 Functional Nuts & Replacement Seals
Replace worn hydraulic connections instantly with our stainless steel EO2 functional nut assemblies. This complete, pre-assembled spare part integrates the metric hex nut, a high-strength mechanical retention ring, and a premium Viton soft-seal profile into a single component. Engineered to fit standard DIN 2353 24-degree cone bodies, it prevents component misplacement during maintenance and guarantees a perfect leak-free seal upon every installation. Available in Light (L) and Heavy (S) series from 6mm to 42mm.
