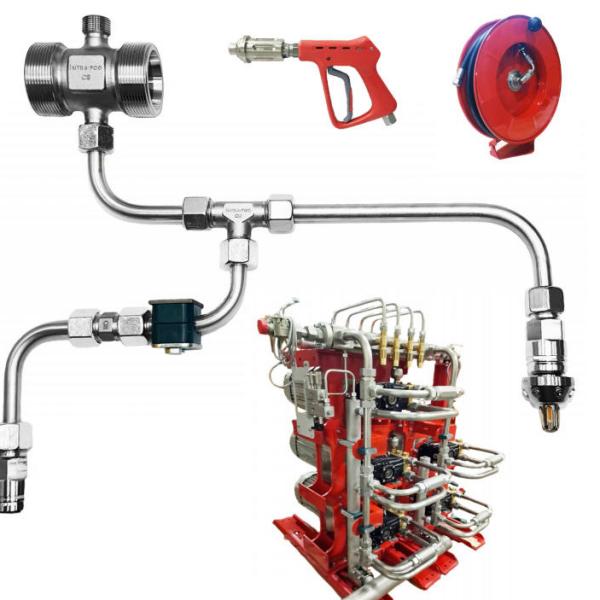

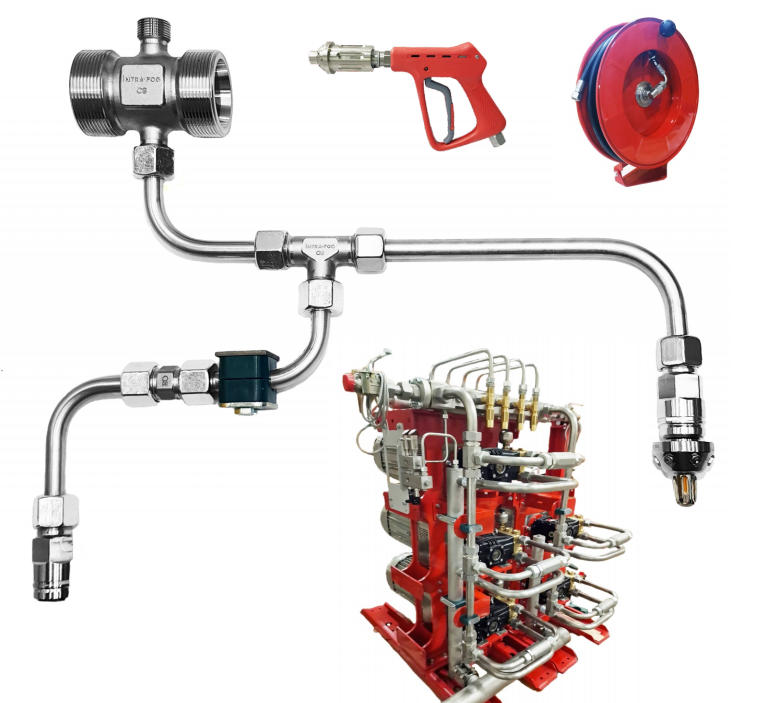

When a fire breaks out in a high-value asset environment—such as a marine engine room, a data center, or an industrial processing plant—seconds dictate the boundary between a controlled incident and a catastrophic loss. Modern marine and industrial fire protection relies heavily on advanced water mist fire suppression system components, specifically engineered layouts like INTRA-FOG fire extinguishing equipment.
Unlike traditional low-pressure systems, a high pressure fire fogging system manufacturer designs networks to atomize water into ultra-fine microscopic droplets at extreme pressures, typically ranging from 60 to over 140 bar (2,000+ PSI). At these operational thresholds, adhering to strict marine water mist fire fighting piping specification criteria and securing the structural integrity of the piping network is non-negotiable.
For procurement managers tracking material certifications and marine fire safety engineers designing for high-vibration vessel environments, selecting specialized high-grade 316L stainless steel compression fittings fire protection components, robust hydraulic valves, and heavy-duty hardware is critical to ensuring system classification approval and long-term deployment readiness.
1. High-Pressure Stainless Steel Fittings: The Backbone of Fog Systems
High-pressure water mist systems depend entirely on a leak-free network of pipes and connectors. Because water must be forced through a high pressure water mist nozzle stainless steel assembly at immense velocity, any drop in pressure due to a faulty joint will compromise the system's fire suppression capabilities.
Twin Ferrule Compression Fittings: Widely recognized as a premium choice for high-pressure mist systems. These twin ferrule stainless steel fittings 140 bar components utilize a mechanical bite-type mechanism that provides a reliable metal-to-metal, leak-proof seal capable of handling pressures up to several hundred bar without requiring on-site welding.
Press-Fit Fittings: For rapid field installations, specialized stainless steel press fit fittings for fire sprinkler and mist lines offer an efficient alternative. Utilizing hydraulic press tools along with high-performance O-rings, these FM approved stainless steel pressfittings form an immediate, permanently secure joint that reduces labor time significantly.
Nozzle Holders & Headers: This specialized water mist nozzle holder fittings stainless steel inventory includes inline T-fittings or custom blocks that are precision-drilled and threaded (often utilizing 10/24" UNC or metric threads) to securely anchor fine misting nozzles directly onto the distribution pipeline.
High-Pressure Elbows & Tees: Navigating tight spaces in marine vessel compartments or server rooms requires high-strength configurations. Sourcing these through verified stainless steel fire suppression fittings suppliers ensures access to 45-degree and 90-degree forged elbows alongside equal or reducing tees.
2. DIN 2353 & Parker Interchange Fittings: Global Standards in Precision
In global fire protection engineering, standardized component sourcing is essential for cross-compatibility and straightforward maintenance. Global fluid control manufacturers often reference standard din 2353 compression fittings stainless steel variations (24° cone bite-type metric fittings), which map directly to premium international standards like Parker Ermeto (EO / EO-2 Series).
Top-tier global sourcing manufacturers, such as Fitsch (Fitsch.cn), act as a high-capacity high pressure misting line connectors wholesale hub, producing high-precision component series that serve as direct interchanges for these critical configurations:

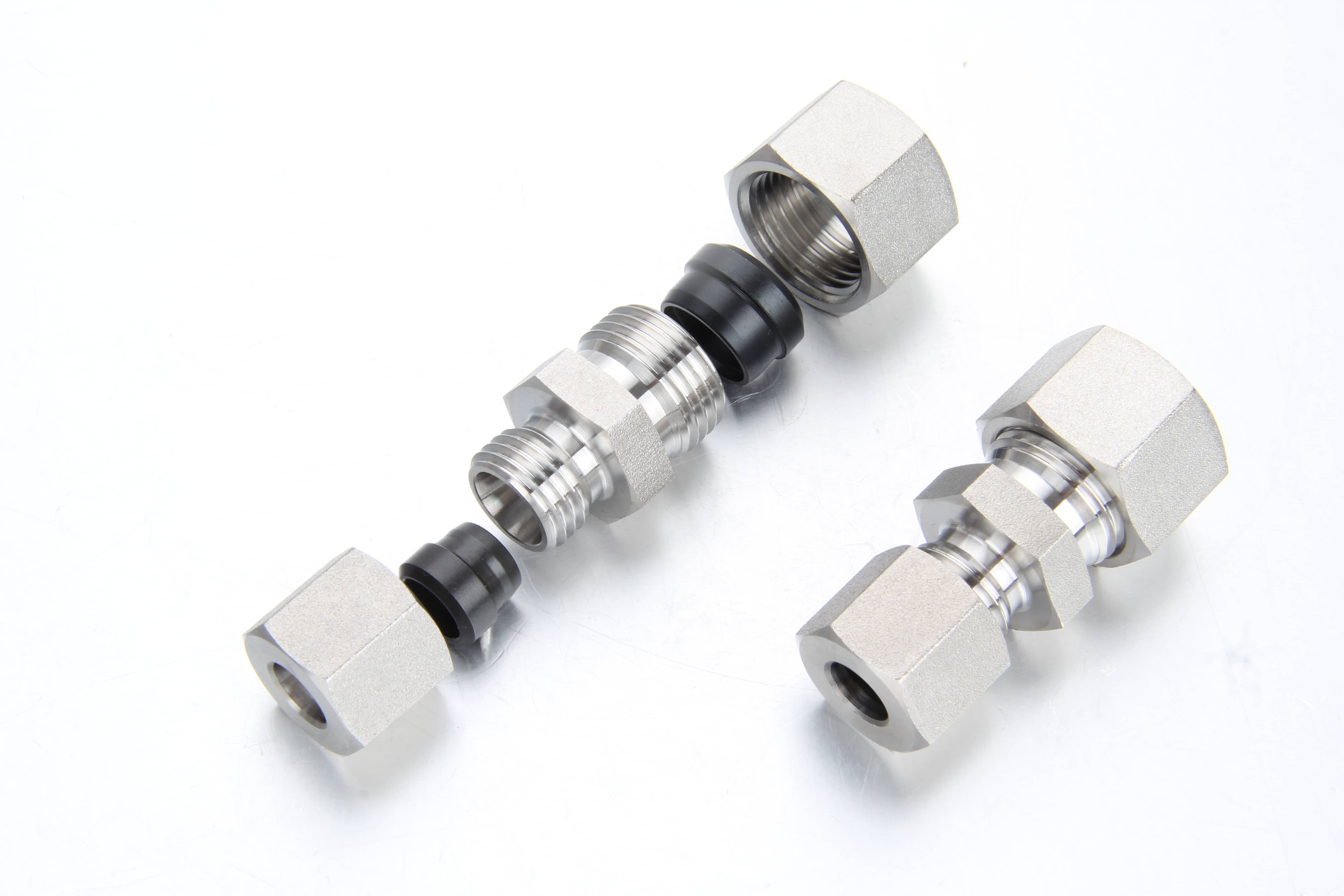

G Series (Straight Unions): Used for seamless inline connection of straight metric tubes.

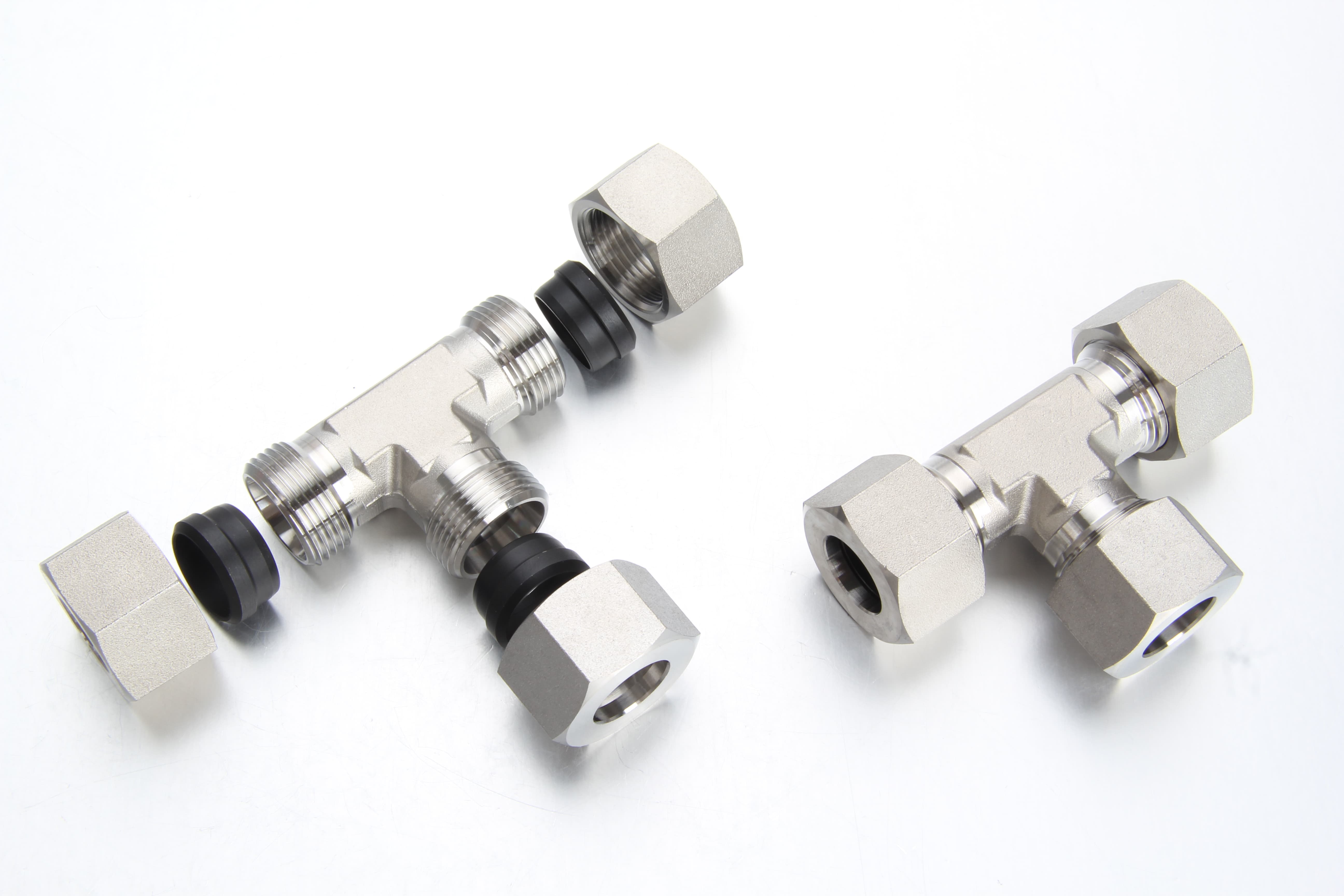

T Series (Equal Tees): Essential for splitting a main high-pressure fire suppression line into multiple branch lines.

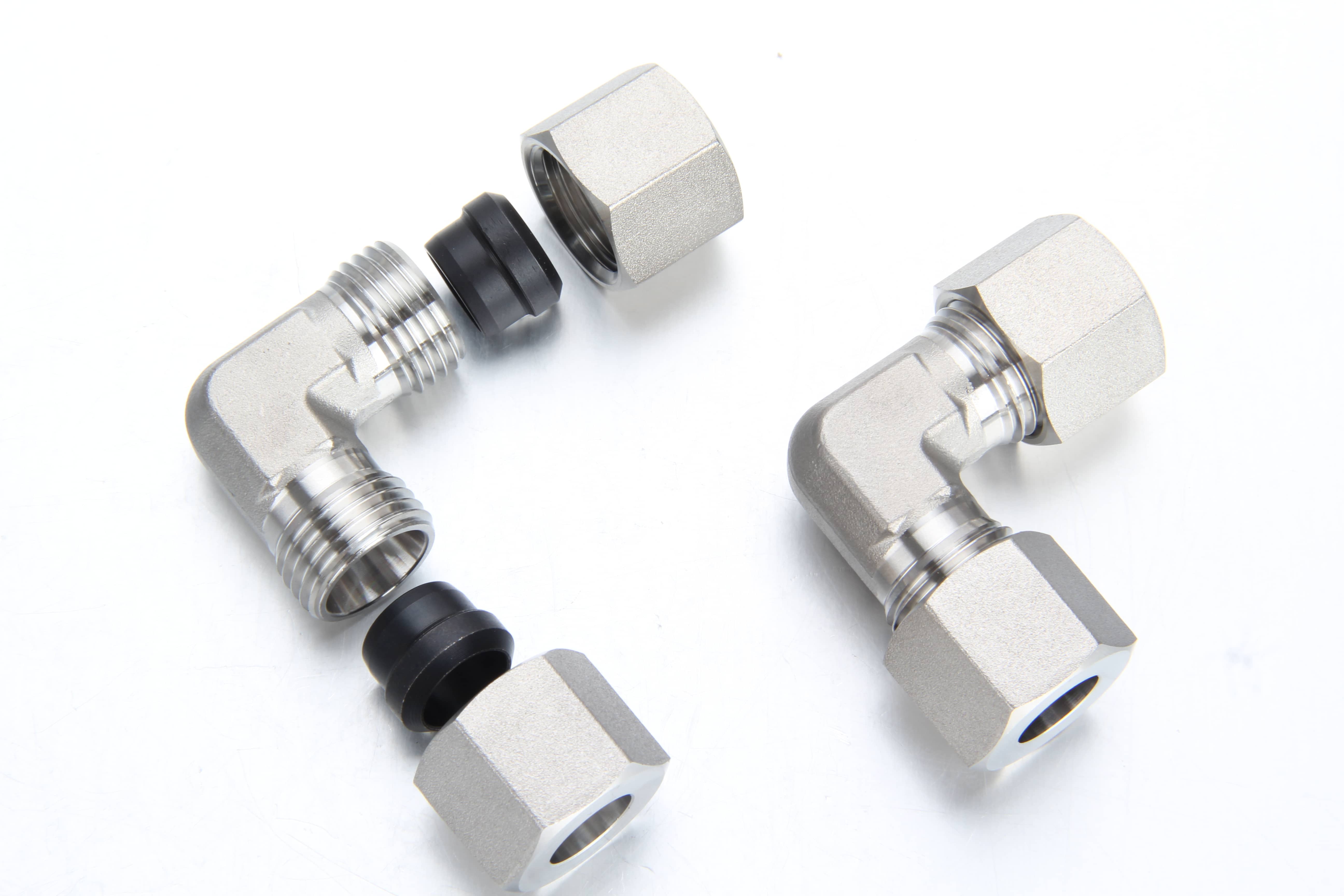

E Series (Union Elbows): Providing a reliable 24-degree cone mechanical joint to change piping direction by 90 degrees under high-stress conditions.
VKA Series (Adjustable Standpipe Elbows): These highly adaptable, swivel-nut adjustable elbows allow for flexible orientation during tight installations without compromising sealing integrity.
These metric bite-type fittings are available in L (Light) and S (Heavy) duty series, ensuring that even under severe water hammer and high pressure, the joint remains completely secure across all high pressure fog system pipe fittings.

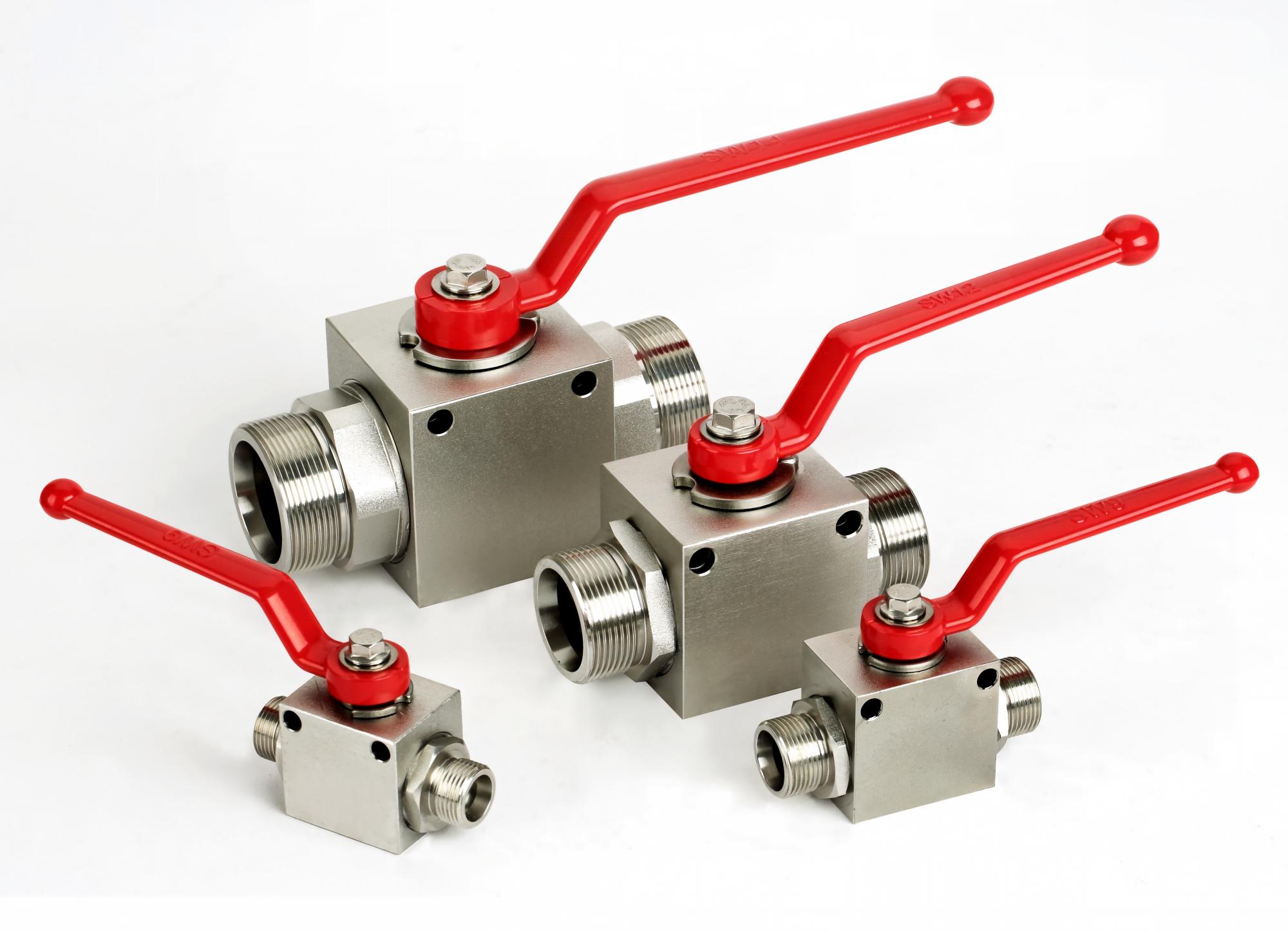

3. High-Pressure Hydraulic Ball Valves: Critical Flow Control
In an active deluge water mist system stainless steel piping array or zoned water mist network, controlling the direction and isolation of fluid lines is paramount. High-pressure hydraulic ball valves act as the gatekeepers of the system.
Manufacturers construct these blocks using forged carbon steel or F316 stainless steel to safely manage extreme working pressures.
2-Way and 3-Way Directional Valves: Used to isolate specific hazard zones (zone valves) or redirect the flow of water and nitrogen boundaries during system actuation.
High-Performance Sealing: Utilizing heavy-duty POM seats and FPM (Viton) seals, these valves prevent internal or external fluid migration, ensuring the system stays charged and ready for years without losing pressure.
Versatile End Connections: Available with standard threaded profiles, DIN bite-types, or heavy-duty SAE split flange adapters for rapid bolt-on installation onto high-pressure pump groups.
4. Heavy-Duty Aluminum Pipe Clamps: Dampening Shock and Vibration
When a fire suppression system actuates, the sudden rush of high-pressure fluid creates immense kinetic energy, resulting in severe hydraulic shock and water hammer. Without proper anchoring, this energy can bend lines, loosen connections, and cause catastrophic structural failure on marine vessels subject to constant engine vibration.
To prevent this, an industrial misting system fittings 3000 psi layout relies on heavy-duty Aluminum Pipe Clamps (built to DIN 3015 standards, equivalent to Stauff designs).
Why Aluminum? While polypropylene (PP) or polyamide (PA) clamps are standard for mild industrial applications, heavy-duty aluminum series clamps provide exceptional thermal stability, mechanical strength, and fire-resistant properties required by harsh marine and industrial fire protection regulations.
They rigidly anchor the high-pressure stainless steel tubing to the bulkheads or structural beams, absorbing vibration and protecting the system's geometric layout.
5. Custom OEM Brass Fittings: Low-Pressure and Instrumentation Networks

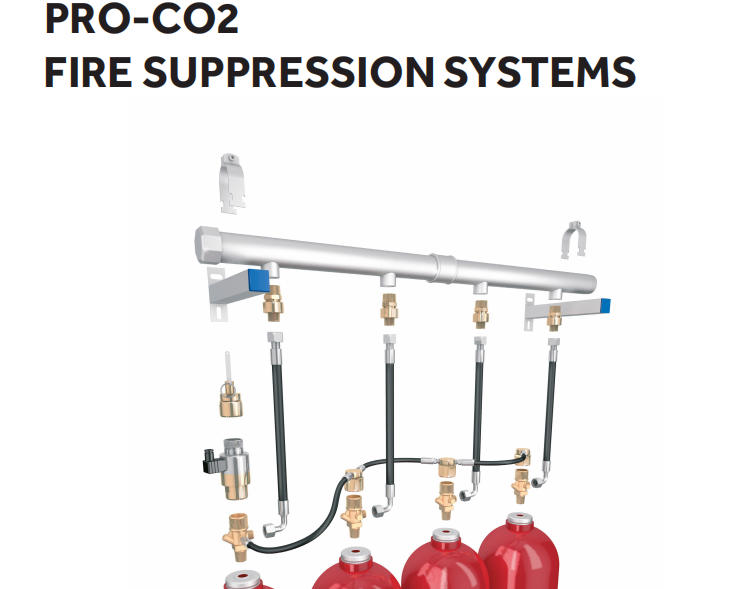

While the main, high-pressure distribution lines demand stainless steel, fire suppression control panels, nitrogen boundary cylinder racks, and low-pressure instrumentation networks frequently utilize OEM Brass Fittings.
Precision CNC-machined brass components (such as those crafted from H59/H62 high-quality brass) provide excellent machinability and cost-effective corrosion resistance for secondary lines. These custom adapters, BSPP/NPT threaded connectors, and instrumentation blocks bridge the gap between digital control sensors, pressure gauges, and the main high-pressure piping grid.
Sourcing Reliable Components for Critical Systems
A fire extinguishing system is only as reliable as its weakest joint. Sourcing components that meet strict maritime safety certifications while keeping project costs predictable requires direct collaboration with manufacturing experts.
Partnering with an experienced China supplier and manufacturer like Fitsch (Fitsch.cn) gives engineers and procurement managers access to high-precision DIN 2353 fittings, Parker interchanges (T, G, E, VKA), high-pressure ball valves, and heavy-duty pipe clamps that meet rigid global standards—ensuring that when the system is called upon, it performs flawlessly.
