High-density AI chips and next-generation GPUs are pushing server rack power densities past 100kW per rack. At this scale, traditional air cooling is thermodynamically impossible. As a result, global infrastructure is rapidly pivoting toward liquid-to-air and liquid-to-liquid Direct-to-Chip (D2C) and immersion cooling loops.
However, transitioning to liquid cooling brings a severe infrastructure challenge: fluid plumbing reliability. Traditional brass connectors and adapters, long preferred in standard industrial fluid systems, are failing under the strict chemical demands of modern data center loops. To prevent catastrophic leaks over high-density hardware, global Tier-1 OEMs are establishing 316L stainless steel fittings as the mandatory material standard for long-term deployments.
1. Market Insights: Top 10 Related types for Liquid Cooling Fittings
When design engineers, procurement managers, and thermal architects source components for high-performance loops, their search behaviors reflect exact system requirements. Driven by enterprise data center deployment and AI infrastructure demands, the top 10 related keywords ranked by search volume and commercial intent include:
Data center liquid cooling fittings: High search volume driven by macro-infrastructure builds for Coolant Distribution Units (CDUs) and system skids.
Stainless steel quick disconnect liquid cooling: High commercial intent for non-spill, high-flow quick-release couplers (LQCs) used in modular server hot-swapping.
Stainless steel compression fittings for tubing: Targeted by engineers designing rigid, leak-free facility piping layouts without active welding.
316L stainless steel fittings: The definitive material-specific keyword used to find low-carbon components resistant to aggressive coolants.
BSPP stainless steel adapter: The leading thread specification keyword, as parallel British Standard threads are the dominant interface in modern CDUs.
Liquid cooling manifold fittings: Focused heavily on transition adapters and splitters that distribute facility fluid headers into individual rack chassis.
Stainless steel barb hose fittings: Highly searched by systems integration teams transitioning from rigid headers to flexible internal rack hoses.
ORB stainless steel fittings: Steady search volume for O-Ring Boss fittings used to secure zero-clearance, heavy-duty elastomeric seals.
Tri-clamp sanitary fittings data center: A rapidly rising keyword for large-diameter facility connections and main pump skids requiring toolless maintenance.
Stainless steel vs brass liquid cooling fittings: High-intent comparison search used to evaluate chemical lifespan and risk factors regarding galvanic corrosion.
2. The Science Behind the Switch: 316L Stainless Steel Fittings vs. Brass
To understand why brass fails in enterprise computing environments, we must look at the electrochemical and chemical interactions occurring inside a closed-loop fluid network.
Dezincification of Brass
Many data centers utilize deionized (DI) water or specialized low-conductivity glycol-based coolants (such as PG25) to maintain maximum thermal efficiency. Deionized water is highly hungry for ions. When it flows through a standard yellow brass fitting—which is an interstitial alloy of roughly 60-70% copper and 30-40% zinc—the water aggressively strips the zinc out of the metal matrix via a process called dezincification.
This leaves behind a porous, structurally weak copper shell. Over time, the brass fitting becomes spongy, losing its mechanical integrity until fluid begins to weep under pressure, threatening nearby electronics.
Galvanic Compatibility & Pitting Resistance
In a closed-loop liquid cooling system, fluid passes through copper cold plates, nickel-plated manifolds, and aluminum heat exchangers. Mixing brass into this loop creates a significant electrical potential difference, creating a localized galvanic cell.
Conversely, choosing 316L stainless steel fittings solves this issue. Austenitic stainless steels occupy a highly stable, noble position on the galvanic chart. They form a self-healing, nano-scale passive chromium-oxide (Cr₂O₃) surface layer. This layer resists localized pitting and crevice corrosion, ensuring the coolant stays pure and free of metallic debris.
3. Deep Dive: Why 316L Stainless Steel Fittings Win Over 304, 316, and 316Ti
When specifying liquid cooling components, selecting the exact alloy grade is critical. Each variation exhibits drastically different behaviors when exposed to chemical coolants, thermal cycling, and machining stresses.
+-------------------+---------------------+-------------------------+---------------------------------+
| Fitting Grade | Key Composition | PREN (Pitting Index)* | Best Use Case in Liquid Cooling |
+-------------------+---------------------+-------------------------+---------------------------------+
| SS 304 | 18% Cr, 8% Ni | ~18 | Controlled, non-corrosive water |
| SS 316 | 16% Cr, 10% Ni, 2%Mo| ~23 | Standard glycol loops |
| SS 316L | Low Carbon (<0.03%) | ~23 | DI Water / High-weld networks |
| SS 316Ti | Titanium Stabilized | ~24 | High-vibration / Pulsing pressure|
+-------------------+---------------------+-------------------------+---------------------------------+
*PREN (Pitting Resistance Equivalent Number) = %Cr + 3.3(%Mo) + 16(%N). Higher means superior localized corrosion resistance.
304 Stainless Steel: The Baseline
Composition: ~18% Chromium, 8% Nickel.
Characteristics: Offers good overall corrosion resistance and is highly cost-effective.
Liquid Cooling Limitation: It lacks Molybdenum (Mo). Without Molybdenum, SS304 is susceptible to pitting corrosion in loops where chlorides are present or where coolant chemistry drifts over a 10-year operational lifecycle. It is generally reserved for facility-side infrastructure rather than rack-level hardware.
316 Stainless Steel: The Standard Grade
Composition: ~16% Chromium, 10% Nickel, 2-3% Molybdenum.
Characteristics: The addition of Molybdenum drastically increases resistance to chloride pitting and general crevice corrosion.
Liquid Cooling Limitation: Standard 316 has a carbon content of up to 0.08%. When subjected to high temperatures during welding or intensive CNC machining, it can undergo carbide precipitation (chromium carbides form at the grain boundaries), depleting the surrounding areas of chromium and introducing localized corrosion risks.
316L Stainless Steel Fittings: The Enterprise Standard
Composition: Same as 316, but with a strictly controlled low-carbon limit of ≤ 0.03%.
Characteristics: The "L" stands for Low Carbon. By keeping carbon to a minimum, 316L eliminates the risk of carbide precipitation.
Why it wins in Liquid Cooling: 316L stainless steel fittings retain perfect corrosion resistance post-welding and post-machining. They are highly compatible with ultra-pure deionized water systems, ensuring zero leaching, zero ion-contamination, and a reliable 10–15+ year operational lifecycle without weeping.
316Ti Stainless Steel: The Extreme Industrial Grade
Composition: 316 alloy stabilized with Titanium (Ti) (typically 5 × %C up to 0.70%).
Characteristics: Titanium carves out an affinity for carbon, forming titanium carbides instead of chromium carbides. This structural stability provides exceptional mechanical strength at elevated temperatures.
Why it is used: In massive, high-pressure industrial cooling skids or Coolant Distribution Units (CDUs) where heavy thermal cycling and pressure pulsing are constant, 316Ti offers superior mechanical fatigue resistance compared to 316L, though it is more difficult and costly to precision-machine.
4. Mechanical Reliability Under Thermal Pressure
Data center fluid loops do not operate under static conditions. Workloads spike rapidly during AI model training, causing fluid temperatures and system pressures to cycle up and down continuously.
Tensile and Yield Strengths: Forged or bar-stock 316L stainless steel fittings exhibit a yield strength of roughly 290 MPa and a tensile strength of 580 MPa, far outclassing commercial brass (~150 MPa yield). This protects the fluid lines from physical deformation during rapid pressure transients.

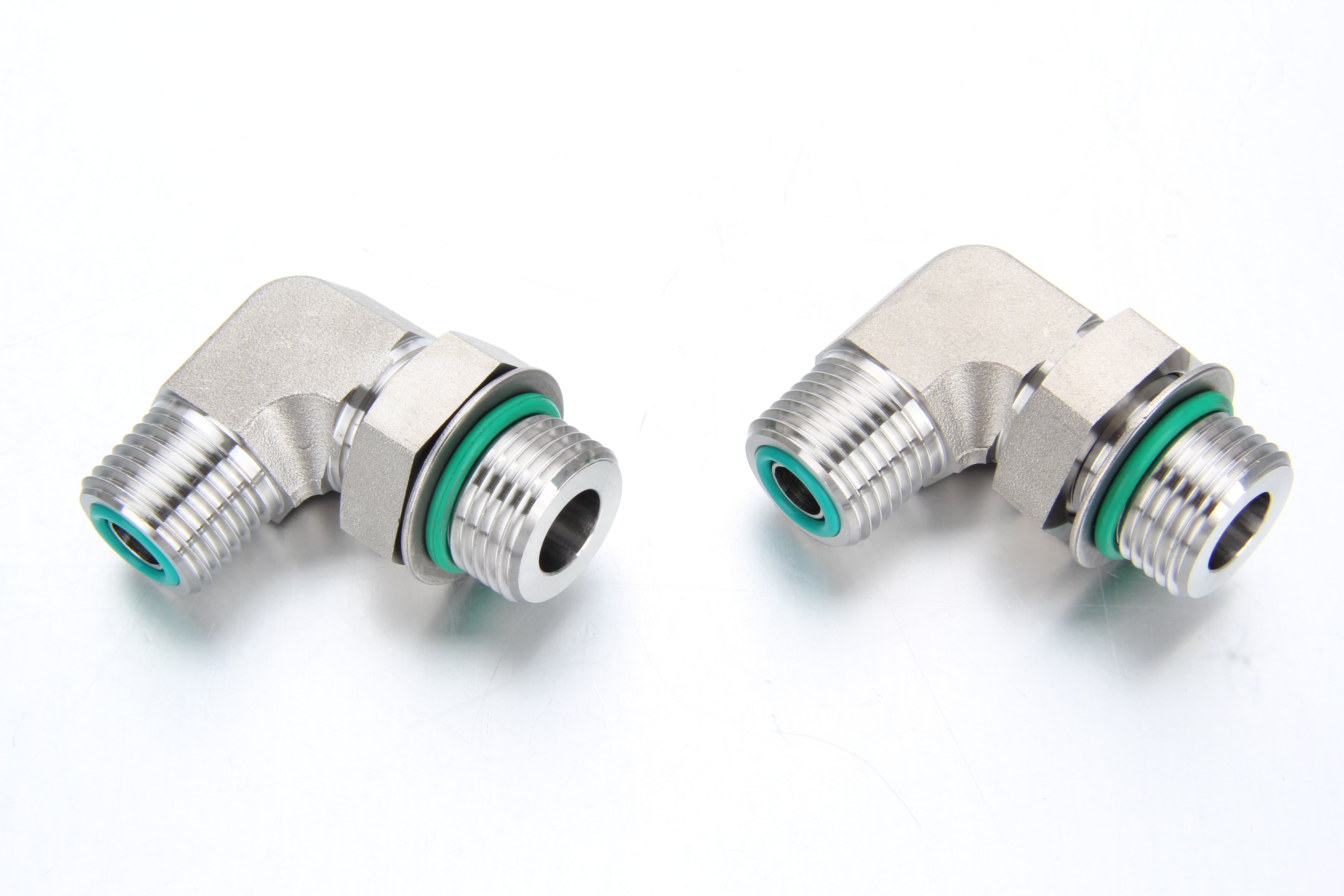

Zero-Clearance Sealing Engineering: High-vibration server environments demand absolute sealing integrity. While soft brass threads can easily deform, strip, or gall under high-torque installations, machined 316L stainless steel fittings using O-Ring Face Seal (ORFS) or BSPP parallel threads maintain precise tolerances. When paired with compatible elastomeric seals (like peroxide-cured EPDM or FKM), they form an unyielding lock that prevents fluid bypass across thousands of thermal cycles.
5. The Fitsch OEM Sourcing Advantage
Upgrading your fluid network to 316L stainless steel fittings is an essential layer of financial insurance for multimillion-dollar hardware infrastructure. However, performance is entirely dependent on the quality of the machining. Minor burrs, uneven thread pitches, or poor passivation will compromise the entire loop.
At Fitsch, we specialize in bridging the gap between complex custom thermal-loop engineering prints and high-volume B2B factory production:

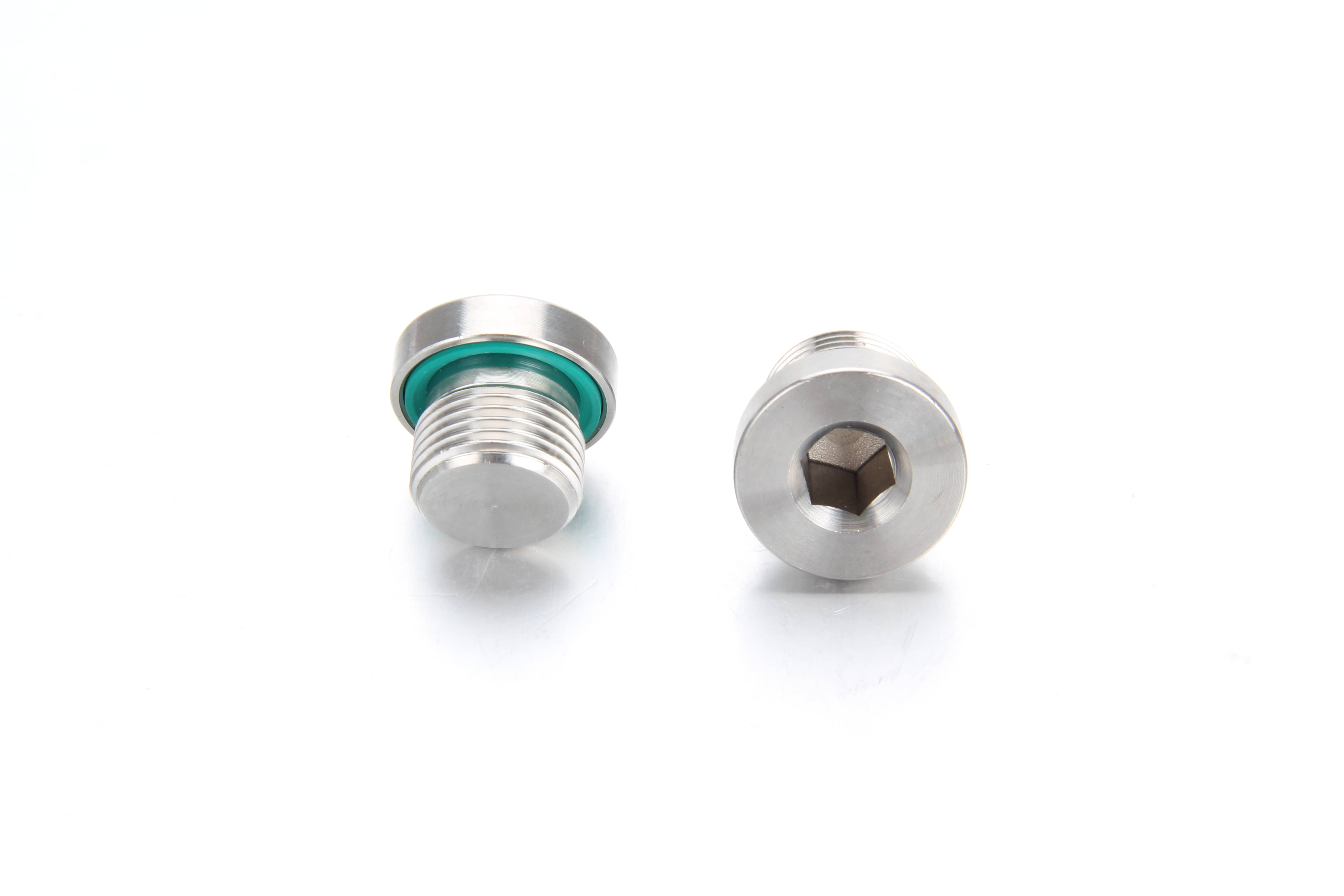

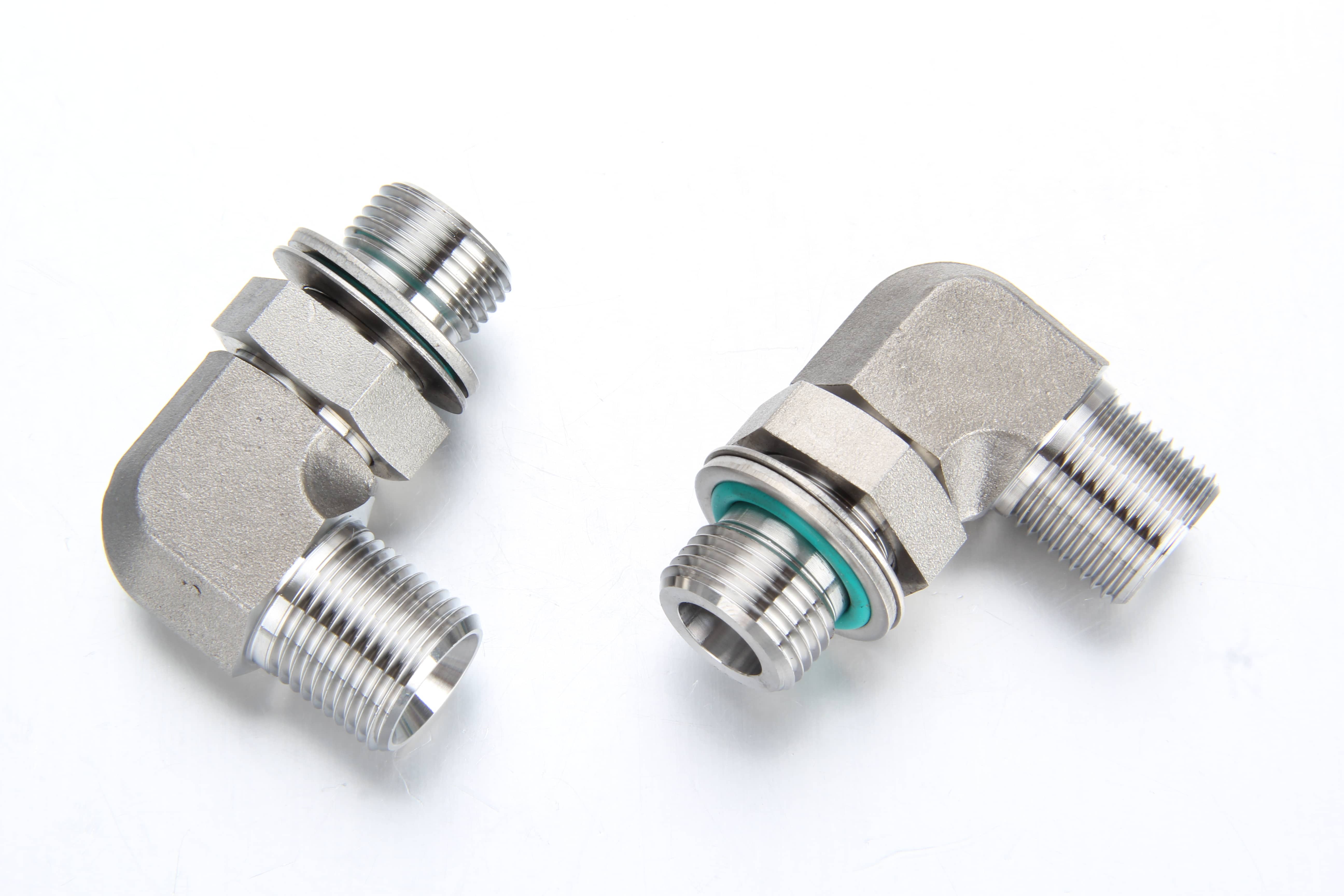

Precision Custom CNC Machining: We manufacture custom 316L stainless steel fittings, adapters, multi-port distribution fluid blocks, and bulkhead connectors built exactly to your unique OEM blueprints.
Advanced Surface Passivation: All components undergo strict chemical passivation treatments to maximize the thickness of the anti-corrosive chromium-oxide layer.
Strict Traceability: Every batch of our liquid cooling components comes with complete Material Test Reports (MTRs), RoHS compliance verification, and rigorous dimensional testing to eliminate supply-chain risk.
