The global demand for stainless steel hydraulic fittings is experiencing a significant upward trajectory, driven not only by traditional heavy industries but also by emerging high-tech sectors. The rapid expansion of global data center infrastructure, which relies heavily on sophisticated liquid cooling systems for thermal management, has created a substantial new source of demand for reliable, corrosion-resistant fluid power connections. Simultaneously, the renewable energy sector, semiconductor manufacturing, and advanced industrial automation continue to push the need for high-integrity stainless steel components that can withstand harsh operating conditions.
As industries increasingly shift from carbon steel to stainless steel to ensure longer service life and lower maintenance costs, China has solidified its position as the world's primary manufacturing hub for hydraulic fittings. Within China, the Zhejiang province—particularly the Ningbo and Hangzhou metropolitan areas—stands out as the epicenter of precision hydraulic component manufacturing, offering an unmatched combination of quality, standards compliance, and supply chain efficiency.
China's dominance in hydraulic components manufacturing is built on several structural advantages:
Concentrated Industrial Clusters: Key manufacturing hubs are concentrated in Zhejiang (Ningbo, Hangzhou, Taizhou), Hebei (Cangzhou, Langfang), Shandong, and Tianjin. These regions benefit from integrated supply chains that include raw material providers, heat treatment facilities, plating services, and third-party testing labs—all within close geographic proximity. This integration reduces cycle times, enhances responsiveness, and lowers production costs.
Advanced Manufacturing Capabilities: Most mid-tier manufacturers operate CNC machining lines capable of producing NPT, JIC, SAE, BSP, and metric thread standards, supporting monthly outputs ranging from 500,000 to over 2 million units depending on complexity.
Export Infrastructure: Ports in Ningbo, Shanghai, and Guangzhou offer seamless export logistics for fluid power components. With access to mature material networks for carbon steel, stainless steel (304/316), brass, and aluminum alloys, lead times for raw materials are typically shorter than offshore alternatives.
While China offers broad manufacturing capabilities, Zhejiang province—and particularly the Ningbo region—has emerged as the preferred choice for discerning international buyers sourcing stainless steel hydraulic fittings. This regional advantage is built on four key pillars:
1. Uncompromising Quality Standards
Zhejiang manufacturers have made significant investments in precision machining equipment, including high-end CNC lathes, multi-axis machining centers, and automated inspection systems. Many facilities operate under strict quality management systems, with in-house metrology labs equipped with coordinate measuring machines (CMMs), optical comparators, and thread gauges to ensure dimensional accuracy down to micron-level tolerances. The regional focus on quality is not merely a marketing claim but is backed by long-term partnerships with global OEMs who demand defect rates below 100 PPM.
2. Comprehensive Compliance with International Standards
Manufacturers in Zhejiang are well-versed in producing components that meet the full spectrum of global standards, including SAE, DIN, ISO, and BS specifications. The ability to seamlessly switch between JIC, ORFS, NPT, BSP, and metric thread forms—while maintaining strict adherence to pressure ratings and material certifications—makes Zhejiang suppliers highly versatile partners for buyers from North America, Europe, the Middle East, and Southeast Asia.
3. Exceptional Service Efficiency Driven by a Complete Industrial Chain
The true strength of Zhejiang lies in its vertically integrated ecosystem. Raw material suppliers, forging houses, heat treatment specialists, surface finishing plants (electropolishing, passivation), and packaging suppliers are all located within a 50-100 kilometer radius. This clustering enables rapid prototyping (often within 7-10 days), flexible production scheduling, and exceptionally short lead times for both samples and mass production. Additionally, the highly competitive logistics network around the Ningbo-Zhoushan Port ensures that shipping arrangements are both cost-effective and reliable.
4. Clear Specialization in Niche Segments
Rather than being generalists, many Zhejiang manufacturers have carved out deep expertise in specific product categories. Some excel in high-pressure DIN 2353 bite-type fittings, others dominate the ORFS (O-Ring Face Seal) segment, while others are leaders in hydraulic quick-disconnect couplings or instrument-grade double ferrule compression fittings. This specialized focus translates into better technical support, superior application knowledge, and a more refined production process for specific component families.
When sourcing hydraulic fittings, the material decision is foundational. Here is a comparison:
Factor | Carbon Steel | Stainless Steel (304/316) |
|---|---|---|
Corrosion Resistance | Poor; requires plating | Excellent; self-healing oxide layer |
Cost | Lower initial cost | Higher initial cost |
Service Life | Shorter in corrosive environments | Longer; lower lifecycle cost |
Temperature Range | Limited | Wide range (-269°C to 800°C) |
Applications | General industrial | Marine, chemical, food, pharmaceutical |
304 Stainless Steel offers good corrosion resistance and is suitable for most general-purpose hydraulic applications. 316 and 316L Stainless Steel contain molybdenum, providing superior resistance to chlorides (such as seawater) and a broader range of chemicals. For marine, offshore, chemical processing, and food-grade applications, 316/316L is the recommended choice.
Sourcing Tip: Request Mill Test Reports (MTRs) that verify chemical composition. For SS316, ensure molybdenum (Mo) content exceeds 2%. Material grade substitution (e.g., using 304 instead of 316L) is a common risk when importing from China.
When evaluating potential suppliers, it is essential to verify that their product ranges strictly adhere to the internationally recognized standards applicable to your specific application. Below is a comprehensive breakdown of the core standards categorized by product type:

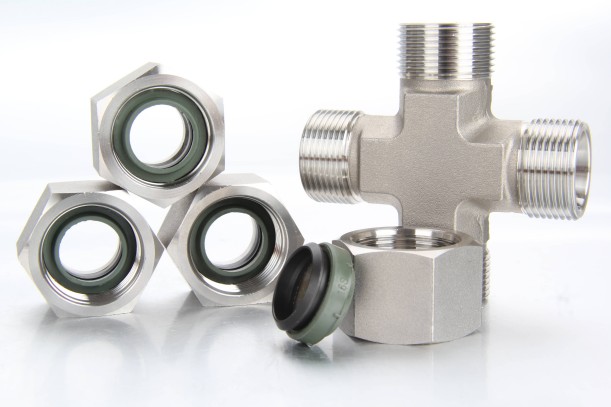

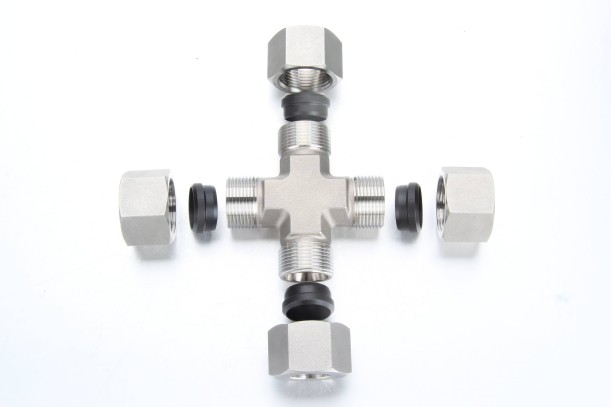

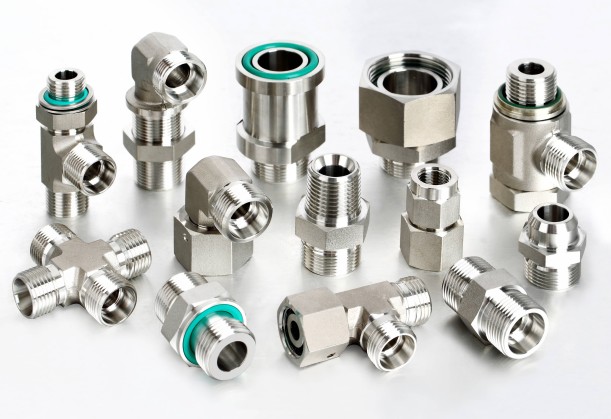

DIN 2353 / ISO 8434-1 – Specifies 24° cone connectors with O-ring or metal-to-metal sealing (bite-type / cutting ring design). Widely used across European and Asian hydraulic systems.

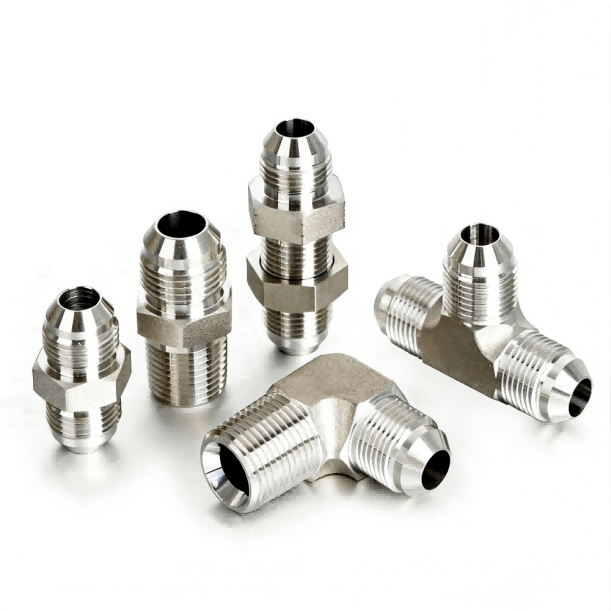

SAE J514 / ISO 8434-2 – Covers 37° flare JIC (Joint Industry Council) tube fittings and adapters. This is the dominant standard for hydraulic systems in North America.

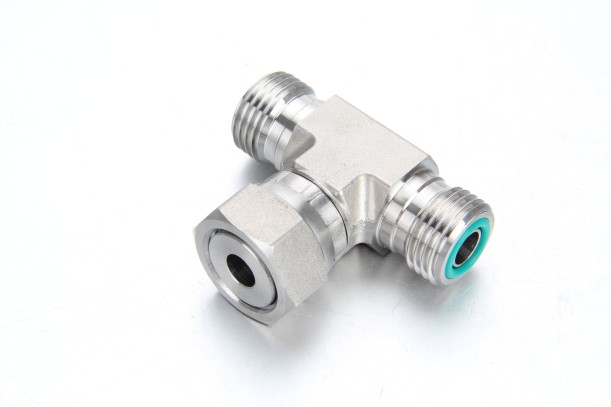

SAE J1453 / ISO 8434-3 – Defines O-ring face seal (ORFS) fittings, which provide superior leak-proof performance and are extensively used in high-vibration and high-pressure applications.

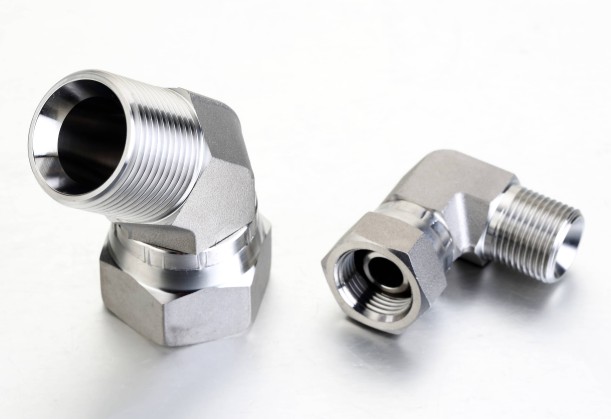

BS 5200 / ISO 8434-6 – Specifies requirements for hydraulic adapters used in fluid power systems, ensuring interchangeability and performance consistency.

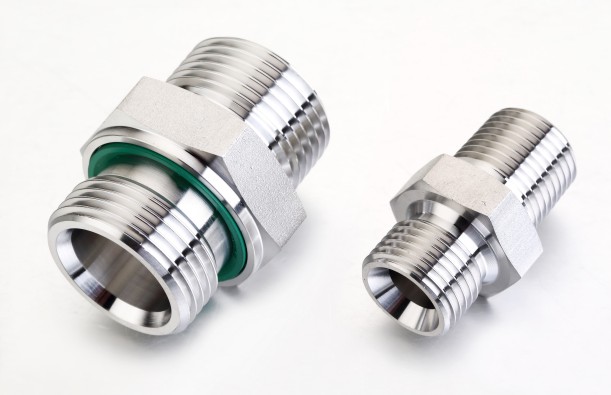

SAE J476 / ANSI ASME B1.20.1 – Covers dryseal pipe threads (NPT) and general purpose pipe threads, forming the basis for taper-threaded adapter connections.

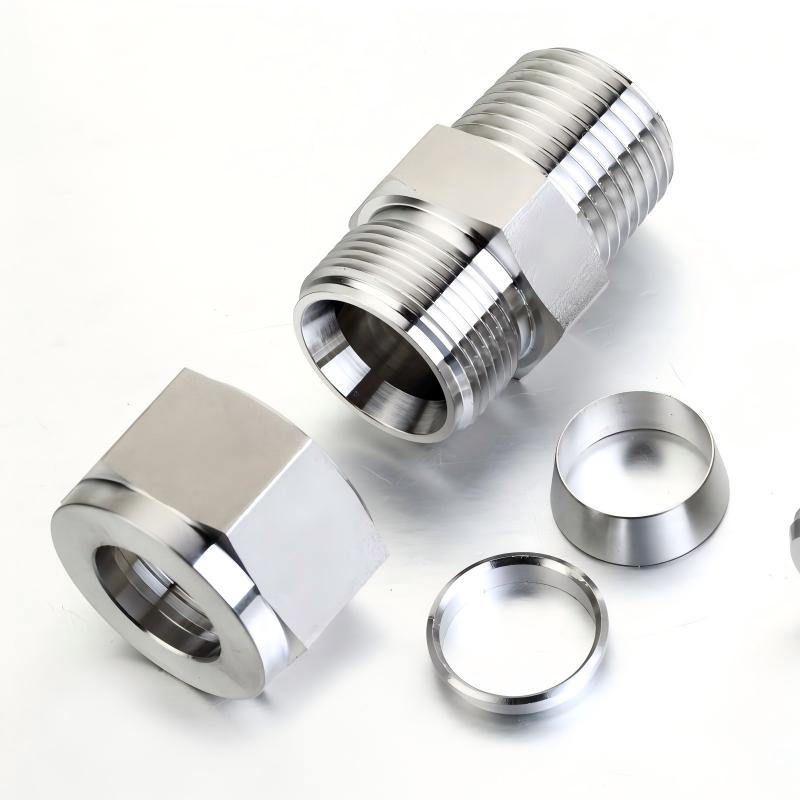

Industry Standards (Interchangeable with Swagelok, Parker, etc.) – While primarily governed by the geometry defined in DIN 2353 / ISO 8434-1, double ferrule compression fittings often follow proprietary performance benchmarks established by industry leaders like Swagelok and Parker. Reputable Chinese manufacturers produce dimensionally interchangeable and functionally equivalent components that meet these stringent performance requirements.

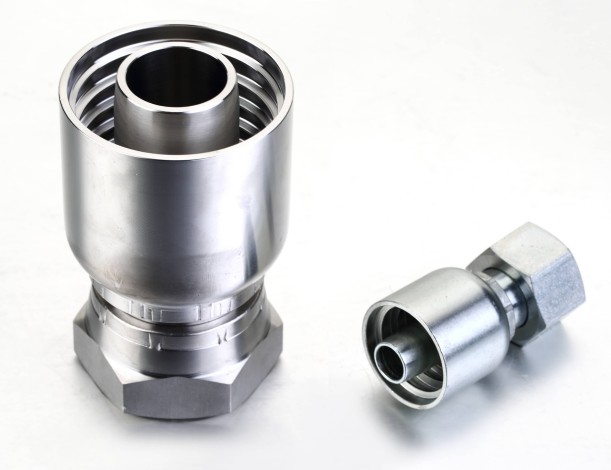

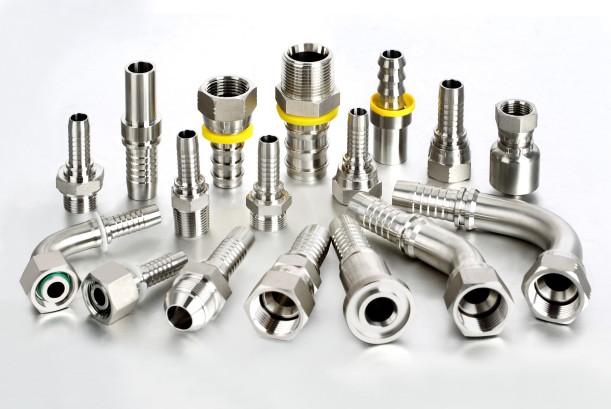

SAE J516 – Standardizes hydraulic hose fittings and provides testing and performance requirements for crimped and reusable fittings.
ISO 12151 Series (Parts 1, 2, 3, 5, 6) – A comprehensive multi-part standard covering various hose fitting connection types, including O-ring seal, 24° cone, and 37° flare designs, ensuring global compatibility.

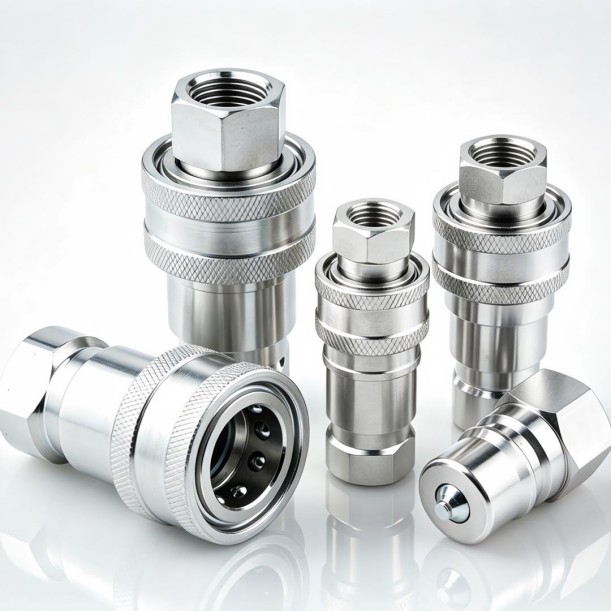

ISO 7241 – Specifies the dimensional and performance requirements for general-purpose hydraulic quick-action couplings (push-pull and threaded types).
ISO 16028 – Defines flat-face, non-spill quick-disconnect couplings that minimize fluid loss during connection and disconnection, ideal for environmentally sensitive applications.

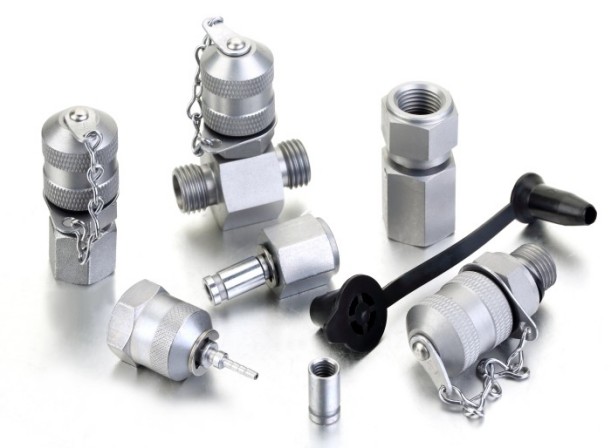

ISO 15171-1 & ISO 15171-2 – Specify hydraulic test points with O-ring seals for pressure measurement and diagnostic purposes.
SAE J1502 – Covers test point fittings used in conjunction with diagnostic pressure gauges, ensuring reliable and safe system monitoring.
A supplier FITSCH who can clearly identify these standards for your specific product category.

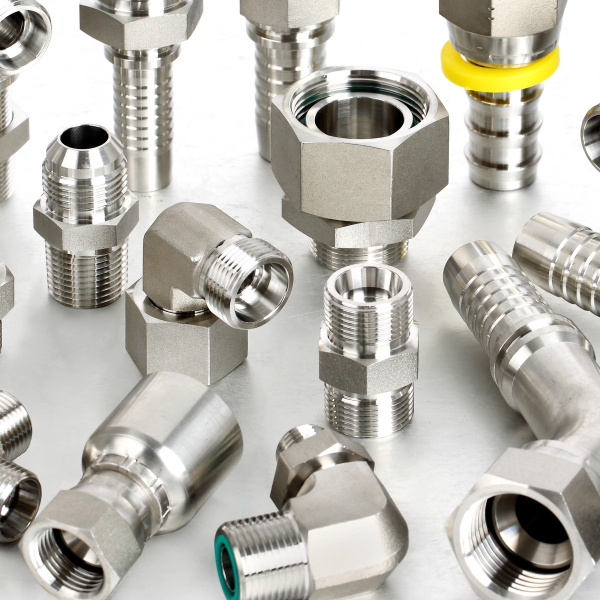

2026 Stainless Steel Hydraulic Fittings - Fitsch Ningbo International Trade Co. Ltd - page 1.
Selecting a reliable supplier requires more than checking certifications or comparing prices. Here is a systematic evaluation framework across four critical dimensions:
While ISO 9001 certification is common, it is not always indicative of real-world consistency. Instead, focus on verifiable performance metrics:
Material Traceability: Request Mill Test Reports (MTRs) with heat numbers that tie raw materials to specific production batches.
Pressure Testing: Demand documented evidence of 100% leakage testing under rated pressure.
Third-Party Validation: Ask for test reports covering burst pressure, vibration resistance, and salt spray corrosion (ASTM B117).
Dimensional Inspection: Verify that the supplier uses calibrated Go/No-Go thread gauges to maintain 6G/6H thread tolerances.
Red Flags to Watch For:
Generic certificates without heat numbers.
"Standard" dimensions without tolerance limits.
Outdated or copy-pasted test reports.
Facility Size: A robust facility should have adequate production space with modern equipment like CNC lathes, forging presses, and automated assembly lines.
In-House Testing: Does the supplier operate in-house testing facilities for salt spray and impulse testing?
Customization Depth: Can they accommodate non-standard angles, proprietary connector designs, custom thread configurations, and pressure ratings?
Quantifiable KPIs offer insight into a supplier's reliability:
Metric | Benchmark | What It Indicates |
|---|---|---|
On-Time Delivery | ≥95% | Logistical reliability |
Response Time | ≤3 hours | Dedicated sales teams and digital readiness |
Reorder Rate | >25% | Customer satisfaction and product consistency |
MOQ Flexibility | Sub-10-piece MOQs | Inventory readiness; openness to trial orders |
While multiple regions in China manufacture hydraulic fittings, Zhejiang offers distinct advantages in precision and service, while Hebei is stronger in high-volume, cost-effective forging, and Shandong excels in sanitary and industrial pipe fittings due to its proximity to steel mills.
Stainless steel hydraulic fitting prices vary significantly based on complexity, material grade, and order volume. Based on 2026 market data:
Product Type | Price Range (USD) | Typical MOQ |
|---|---|---|
Basic stainless steel fittings | $0.30–$2.00 per piece | 10–50 pieces |
High-pressure stainless steel assemblies | $3.22–$15.00+ per piece | 10–50 pieces |
Precision DIN 2353 fittings (SS316L) | $2.36+ per piece | 20+ pieces |
Most Chinese suppliers offer MOQs as low as 10 pieces, making them accessible for prototyping and maintenance spares. For larger volume orders (1,000+ pieces), per-unit pricing can drop significantly.
Note: While prices may appear lower than Western equivalents, factor in shipping costs, import duties, and potential quality verification expenses when calculating total landed cost.
Risk: Supplier uses 304 stainless steel instead of specified 316L.
Mitigation: Use a handheld XRF spectrometer to verify material grades upon receipt of samples. Request MTRs with heat numbers for every batch.
Risk: Confusing BSPP with BSPT, or NPT with metric threads.
Mitigation: Clearly specify thread standards in your purchase order. Use Go/No-Go thread gauges to verify compliance upon arrival.
Risk: First samples are perfect; mass production varies.
Mitigation: Conduct pre-shipment inspections using a structured QC checklist. Compare the quotation, drawing, packing list, inspection report, and delivered product for consistency.
Risk: Paying middleman markups without manufacturer accountability.
Mitigation: Verify if the supplier is a genuine manufacturer or a trading company. Focus your audit on production capabilities—do they operate modern CNC machines? Do they have in-house testing facilities?
The Better Approach: A trading company with deep, exclusive partnerships with specialized factories often provides superior value compared to dealing with a factory directly—especially in the stainless steel hydraulic fittings sector. Here's why:
A well-established trading company brings over 20 years of specialized industry experience, acting as a bridge that combines the manufacturing depth of niche factories with the service excellence expected by global buyers. Unlike generic traders that simply flip products, a premium trading partner:
Maintains long-term, exclusive relationships with factories that specialize specifically in stainless steel hydraulic fittings—not generalist workshops that produce everything from carbon steel to brass
Provides complete documentation including Mill Test Reports with heat numbers, material certifications, dimensional inspection records, and third-party test reports—all verified and organized for international compliance
Conducts rigorous pre-shipment quality inspections using calibrated Go/No-Go thread gauges and pressure testing equipment, ensuring every batch meets SAE, DIN, and ISO standards before leaving the factory
Offers responsive technical support in multiple languages, with typical response times under 3 hours—something many factories cannot match due to language barriers and lack of dedicated export teams
Manages complex logistics including export documentation, customs clearance, and shipping arrangements, reducing the administrative burden on buyers
Fitsch exemplifies this model. As a trading company deeply bundled with specialized stainless steel hydraulic fittings factories in the Ningbo region, Fitsch brings over two decades of professional experience to every client relationship. Rather than operating as a middleman that adds cost without value, Fitsch leverages its factory partnerships to offer:
Factory-direct pricing with no unnecessary markups, while providing the service infrastructure of an international trading partner
Complete quality documentation including MTRs with heat numbers, 100% leakage test records, and salt spray corrosion reports
Expert guidance on thread compatibility (NPT vs. BSP vs. JIC vs. metric), material selection (304 vs. 316 vs. 316L), and standard compliance (DIN 2353, SAE J514, ISO 8434)
Flexible MOQs starting as low as 10 pieces for prototyping and maintenance spares
Proven track record serving diverse industries from marine and offshore to chemical processing and industrial automation
Use this checklist when evaluating potential suppliers:
ISO 9001:2015 certification verified
Compliance with DIN 2353 / SAE J514 / ISO 8434 standards based on product type
Mill Test Reports (MTRs) provided with heat numbers
On-time delivery rate ≥ 95%
MOQ ≤ 50 pieces (indicates flexibility)
In-house CNC machining capabilities
Sourcing stainless steel hydraulic fittings from China offers significant cost and scale advantages, but success depends on rigorous supplier evaluation. By following the framework outlined in this guide—verifying quality documentation, assessing production capabilities, tracking operational metrics, and understanding regional strengths—procurement professionals can identify reliable partners that deliver consistent quality.
The demand for stainless steel hydraulic fittings continues to grow, driven by infrastructure investments, the proliferation of liquid-cooled data centers, and the global transition to sustainable energy systems. FITSCH stands out for its commitment to high precision, strict adherence to international standards, service efficiency derived from a complete local industrial chain, and deep specialization in niche product segments. Buyers looking for long-term, reliable partnerships should prioritize suppliers from this region who demonstrate both technical competence and operational transparency.
