High-Pressure, Zero-Leakage Connectors for Industrial & Agricultural Machinery
Instant Sealing Technology
Dual poppet valves automatically close upon disconnection, achieving leakage <0.1 ml/min even under 350 bar working pressure .
FKM seals ensure chemical resistance in petroleum and agrochemical applications.
Global Interchangeability
Parker 6600 Series
FASTER ANV Series
AEROQUIP 5600 Series
Hansen HA15000 Series .
Fully compatible with:
Thread options: M22×1.5, 1/2" NPT, BSPP to fit 90%+ hydraulic equipment interfaces.
Robust Material Engineering
Carbon Steel (Standard): Induction-hardened core components (HRC 58-62) for 3x wear resistance.
Stainless Steel 316L (Optional): Passes 1,000-hour salt spray test for marine/offshore use.

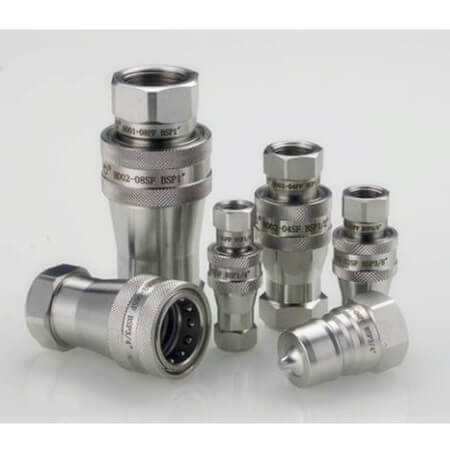

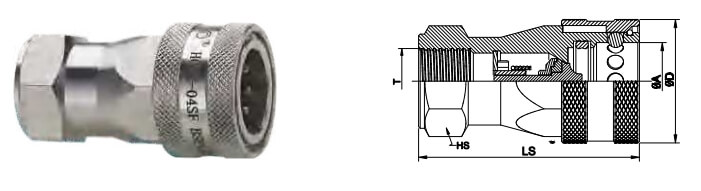

H002 Female Type ISO7241-A Quick Disconnect Hydraulic Couplings Carbon Steel
| Part No. | Part No NPT | Part No G | LS | φD | HEX | φA | THREAD |
| H002-02SF | H002-02SF NPT1/4 | H002-02SF G1/4 | 49.5 | 26 | 19 | 13.1 | G1/4 NPT1/4 |
| H002-03SF | H002-03SF NPT3/8 | H002-03SF G3/8 | 56 | 31.5 | 22 | 18.5 | G3/8 NPT3/8 |
| H002-04SF | H002-04SF NPT1/2 | H002-04SF G1/2 | 66 | 38 | 27 | 23.8 | G1/2 NPT1/2 |
| HO02-06SF | H002-06SF NPT3/4 | H002-06SF G3/4 | 80 | 46 | 34 | 30.6 | G3/4 NPT3/4 |
| H002-08SF | H002-08SF NPT1 | H002-08SF G1 | 95.5 | 54 | 41 | 36.7 | G1 NPT1 |

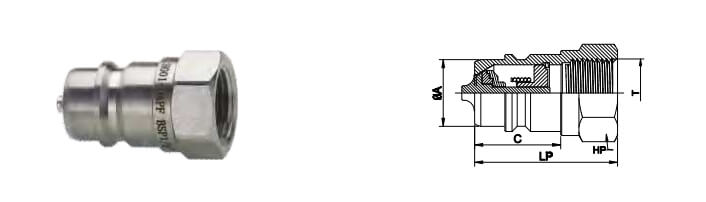

H002 Male Type ISO7241-A Quick Disconnect Hydraulic Couplings Carbon Steel
| Part No | Part No NPT | Part No G | LP | C | HEX | φA | THREAD |
| H002-02PF | H002-02PF NPT1/4 | H002-02PF G1/4 | 35.5 | 15 | 19 | 11.85 | G1/4 NPT1/4 |
| H002-03PF | H002-03PF NPT3/8 | H002-03PF G3/8 | 36.5 | 21.55 | 22 | 17.3 | G3/8 NPT3/8 |
| H002-04PF | H002-04PF NPT1/2 | H002-04PF G1/2 | 43.5 | 26.5 | 27 | 20.55 | G1/2 NPT1/2 |
| HO02-06PF | H002-06PF NPT3/4 | H002-06PF G3/4 | 57 | 28 | 34 | 29.1 | G3/4 NPT3/4 |
| H002-08PF | H002-08PF NPT1 | H002-08PF G1 | 59.5 | 35 | 41 | 34.3 | G1 NPT1 |

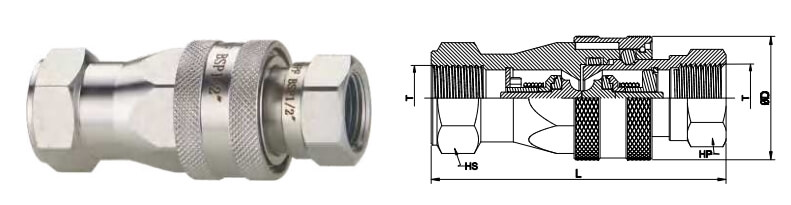

H002 Female-Male Assembly Type ISO7241-A Quick Disconnect Hydraulic Couplings Carbon Steel
| Part No | Part No NPT | Part No G | L | φD | HEX | THREAD |
| H002-02 | H002-02 NPT1/4 | H002-02 G1/4 | 71.5 | 26 | 19 | G1/4 NPT1/4 |
| H002-03 | H002-03 NPT3/8 | H002-03 G3/8 | 76.5 | 31.5 | 22 | G3/8 NPT3/8 |
| H002-04 | H002-04 NPT1/2 | H002-04 G1/2 | 90.5 | 38 | 27 | G1/2 NPT1/2 |
| H002-06 | H002-06 NPT3/4 | H002-06 G3/4 | 109 | 46 | 34 | G3/4 NPT3/4 |
| H002-08 | H002-08 NPT1 | H002-08 G1 | 125 | 54 | 41 | G1 NPT1 |

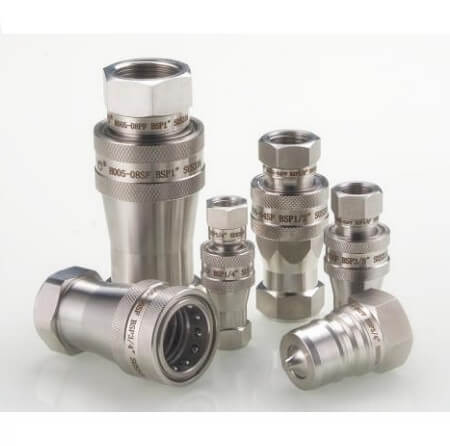

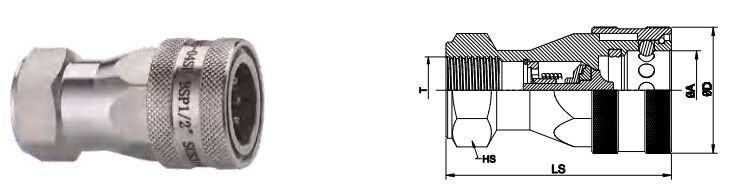

H005 Female Type ISO7241-A Quick Disconnect Hydraulic Couplings Stainless Steel 304 or 316L
| Part No | Part No NPT | Part No G | LS | φD | HEX | φA | THREAD |
| H005-02SF | H005-02SF NPT1/4 | H005-02SF G1/4 | 50 | 26 | 19 | 13.1 | G1/4 NPT1/4 |
| H005-03SF | H005-03SF NPT3/8 | H005-03SF G3/8 | 60 | 31.5 | 22 | 18.5 | G3/8 NPT3/8 |
| H005-04SF | H005-04SF NPT1/2 | H005-04SF G1/2 | 68 | 38 | 27 | 23.8 | G1/2 NPT1/2 |
| H005-06SF | H005-06SF NPT3/4 | H005-06SF G3/4 | 80 | 46 | 34 | 30.6 | G3/4 NPT3/4 |
| H005-08SF | H005-08SF NPT1 | H005-08SF G1 | 99.5 | 54 | 41 | 36.7 | G1 NPT1 |
| H005-10SF | H005-10SF NPT1-1/4 | H005-10SF G1-1/4 | 112 | 69 | 50 | 48 | G1-1/4 NPT1-1/4 |
| H005-12SF | H005-12SF NPT1-1/2 | H005-12SF G1-1/2 | 127.5 | 82 | 60 | 57.9 | G1-1/2 NPT1-1/2 |
| H005-16SF | H005-16SF NPT2 | H005-16SF G2 | 158 | 99 | 75 | 70.3 | G2 NPT2 |

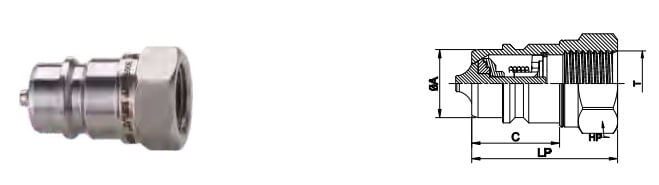

H005 Male Type ISO7241-A Quick Disconnect Hydraulic Couplings Stainless Steel 304 or 316L
| PartNo. | Part No NPT | Part No G | LP | C | HEX | φA | THREAD |
| H005-02PF | H005-02PF NPT1/4 | H005-02PF G1/4 | 35.5 | 15 | 19 | 11.85 | G1/4 NPT1/4 |
| H005-03PF | H005-03PF NPT3/8 | H005-03PF G3/8 | 42 | 21.5 | 22 | 17.3 | G3/8 NPT3/8 |
| H005-04PF | H005-04PF NPT1/2 | H005-04PF G1/2 | 46 | 26.5 | 27 | 20.55 | G1/2 NPT1/2 |
| H005-06PF | H005-06PF NPT3/4 | H005-06PF G3/4 | 54 | 28 | 34 | 29.1 | G3/4 NPT3/4 |
| H005-08PF | H005-08PF NPT1 | H005-08PF G1 | 65.5 | 35 | 41 | 34.3 | G1 NPT1 |
| H005-10PF | H005-10PF NPT1-1/4 | H005-10PF G1-1/4 | 70 | 45 | 50 | 45 | G1-1/4 NPT1-1/4 |
| H005-12PF | H005-12PF NPT1-1/2 | H005-12PF G1-1/2 | 78 | 57.5 | 60 | 55 | G1-1/2 NPT1-1/2 |
| H005-16PF | H005-16PF NPT2 | H005-16PF G2 | 98 | 70 | 75 | 65.1 | G2 NPT2 |

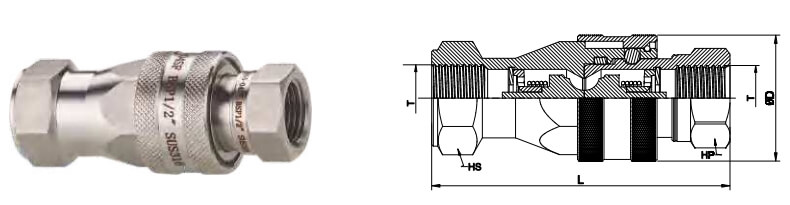

H005 Female-Male Assembly Type ISO7241-A Quick Disconnect Hydraulic Couplings Stainless Steel 304 or 316L
| Part No | Part No NPT | Part No G | L | φD | HEX | THREAD |
| H005-02 | H005-02 NPT1/4 | H005-02 G1/4 | 72 | 26 | 19 | G1/4 NPT1/4 |
| H005-03 | H005-03 NPT3/8 | H005-03 G3/8 | 77 | 31.5 | 22 | G3/8 NPT3/8 |
| H005-04 | H005-04 NPT1/2 | H005-04 G1/2 | 91 | 38 | 27 | G1/2 NPT1/2 |
| H005-06 | H005-06 NPT3/4 | H005-06 G3/4 | 109 | 46 | 34 | G3/4 NPT3/4 |
| H005-08 | H005-08 NPT1 | H005-08 G1 | 125 | 54 | 41 | G1 NPT1 |
| H005-10 | H005-10 NPT1-1/4 | H005-10 G1-1/4 | 140.5 | 69 | 50 | G1-1/4 NPT1-1/4 |
| H005-12 | H005-12 NPT1-1/2 | H005-12 G1-1/2 | 155 | 82 | 60 | G1-1/2 NPT1-1/2 |
| H005-16 | H005-16 NPT2 | H005-16 G2 | 184.5 | 99 | 75 | G2 NPT2 |
✅ Construction Equipment:
Excavator boom/arm hydraulic lines
Crane load-sensing systems
✅ Agricultural Systems:
Tractor PTO-driven implements
Irrigation pump quick-change setups
✅ Industrial Hydraulics:
Steel mill rolling machinery
Oil/gas wellhead control units
Certified Safety: Third-party tested to ISO 7241:2014 Annex B for 500,000 pressure cycles .
Custom Configurations:
High-flow variants (300 GPM) with enlarged bore
Anti-vibration sleeves for pulsating systems
Bulk Order Benefits:
15% discount on 50+ sets
Free compatibility audit for CAT, John Deere, or Liebherr fleets
