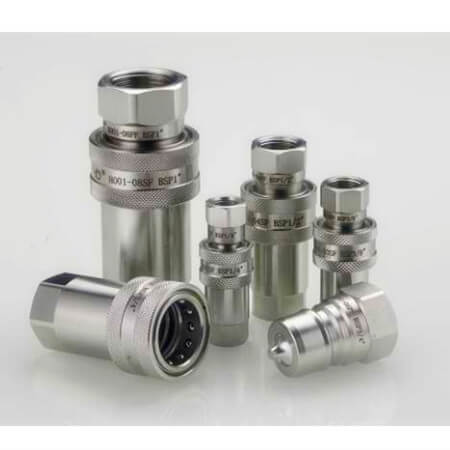

Carbon Steel Anti-Leakage Connectors for Industrial & Agricultural Systems
Zero-Leakage Design
Auto-sealing ball-lock mechanism automatically closes valves upon disconnection, preventing fluid loss even in high-pressure systems up to 350 bar.
Global Standard Compliance
Manufactured to ISO7241-A specifications, ensuring compatibility with Parker 6600, FASTER ANV, AEROQUIP 5600, and Hansen HA15000 series.
Durable Construction
Carbon steel material with induction-hardened core components for extended service life.
Corrosion-resistant finish for harsh environments (construction sites, agricultural machinery, oil/gas equipment).
Effortless Operation
Single-hand quick-connect design reduces downtime during hose assembly in excavators, tractors, and hydraulic tools
Specifications:
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Rated Pressure (PSI) | 5000 | 4000 | 4000 | 3000 | 3000 | 3000 | 2000 | 2000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 220 | 240 |
| Temperature Range (std seals) | -20℃ to +120℃ | |||||||
| Standard seal material | NBR | |||||||

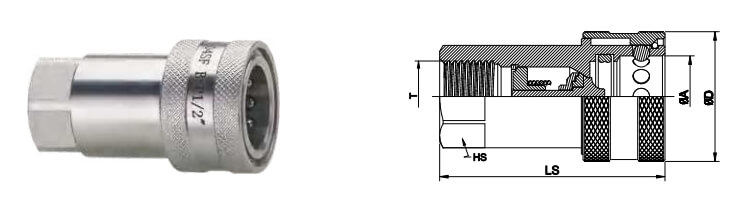

Female type of H001-SF quick coupling
| Part No | Part No NPT | Part No G | LS | φD | HEX | φA | THREAD |
| H001-02SF | H001-02SF NPT1/4 | H001-02SF G1/4 | 50 | 26 | 19 | 13.1 | G1/4 NPT1/4 |
| H001-03SF | H001-03SF NPT3/8 | H001-03SF G3/8 | 56 | 31.5 | 22 | 18.5 | G3/8 NPT3/8 |
| H001-04SF | H001-04SF NPT1/2 | H001-04SF G1/2 | 66 | 38 | 27 | 23.8 | G1/2 NPT1/2 |
| H001-06SF | H001-06SF NPT3/4 | H001-06SF G3/4 | 80 | 46 | 34 | 30.6 | G3/4 NPT3/4 |
| H001-08SF | H001-08SF NPT1 | H001-08SF G1 | 93.5 | 54 | 41 | 36.7 | G1 NPT1 |
| H001-10SF | H001-10SF NPT1-1/4 | H001-10SF G1-1/4 | 112 | 69 | 50 | 48 G1 | G1-1/4 NPT1-1/4 |
| H001-12SF | H001-12SF NPT1-1/2 | H001-12SF G1-1/2 | 125 | 82 | 60 | 57.9 | G1-1/2 NPT1-1/2 |
| H001-16SF | H001-16SF NPT2 | H001-16SF G2 | 145 | 99 | 75 | 70.3 | G2 NPT2 |

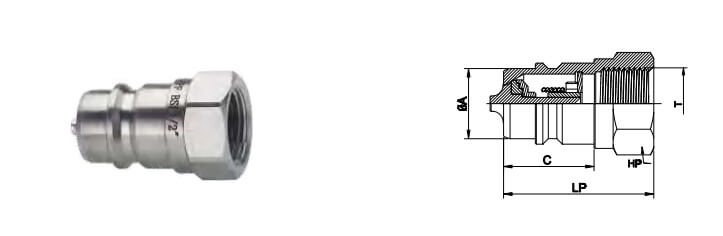

Male type of H001-PF quick coupling
| PartNo. | Part No NPT | Part No G | LP | C | HEX | φA | THREAD |
| H001-02PF | H001-02PF NPT1/4 | H001-02PF G1/4 | 35.5 | 15 | 19 | 11.85 | G1/4 NPT1/4 |
| H001-03PF | H001-03PF NPT3/8 | H001-03PF G3/8 | 38 | 21.5 | 22 | 17.3 | G3/8 NPT3/8 |
| H001-04PF | H001-04PF NPT1/2 | H001-04PF G1/2 | 44 | 26.5 | 27 | 20.55 | G1/2 NPT1/2 |
| H001-06PF | H001-06PF NPT3/4 | H001-06PF G3/4 | 54 | 28 | 34 | 29.1 | G3/4 NPT3/4 |
| H001-08PF | H001-08PF NPT1 | H001-08PF G1 | 62 | 35 | 41 | 34.3 | G1 NPT1 |
| H001-10PF | H001-10PF NPT1-1/4 | H001-10PF G1-1/4 | 70 | 45 | 50 | 45 | G1-1/4 NPT1-1/4 |
| H001-12PF | H001-12PF NPT1-1/2 | H001-12PF G1-1/2 | 78 | 57.5 | 60 | 55 | G1-1/2 NPT1-1/2 |
| H001-16PF | H001-16PF NPT2 | H001-16PF G2 | 98 | 70 | 75 | 65.1 | G2 NPT2 |

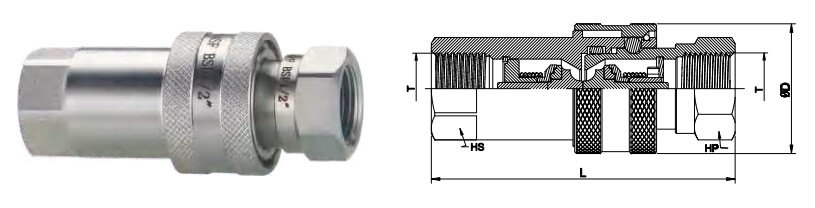

Female-Male Assembly type of H001 quick coupling
| Part No | Part No NPT | Part No G | L | φD | HEX | THREAD |
| H001-02 | H001-02 NPT1/4 | H001-02 G1/4 | 71 | 26 | 19 | G1/4 NPT1/4 |
| H001-03 | H001-03 NPT3/8 | H001-03 G3/8 | 76.7 | 31.5 | 22 | G3/8 NPT3/8 |
| H001-04 | H001-04 NPT1/2 | H001-04 G1/2 | 88.7 | 38 | 27 | G1/2 NPT1/2 |
| H001-06 | H001-06 NPT3/4 | H001-06 G3/4 | 107.5 | 46 | 34 | G3/4 NPT3/4 |
| H001-08 | H001-08 NPT1 | H001-08 G1 | 122.5 | 54 | 41 | G1 NPT1 |
| H001-10 | H001-10 NPT1-1/4 | H001-10 G1-1/4 | 141 | 69 | 50 | G1-1/4 NPT1-1/4 |
| H001-12 | H001-12 NPT1-1/2 | H001-12 G1-1/2 | 155 | 82 | 60 | G1-1/2 NPT1-1/2 |
| H001-16 | H001-16 NPT2 | H001-16 G2 | 183.5 | 99 | 75 | G2 NPT2 |
✔ Construction Machinery: Excavators, loaders, cranes
✔ Agriculture: Tractor hydraulic systems, irrigation equipment
✔ Industrial Hydraulics: Presses, oilfield machinery, steel mills
Interchangeable with major international brands (Parker, FASTER, Hansen)
Certified Safety: Tested for 2.5 million cycles under extreme pressures
Custom Options: Stainless steel variants available for marine/chemical applications

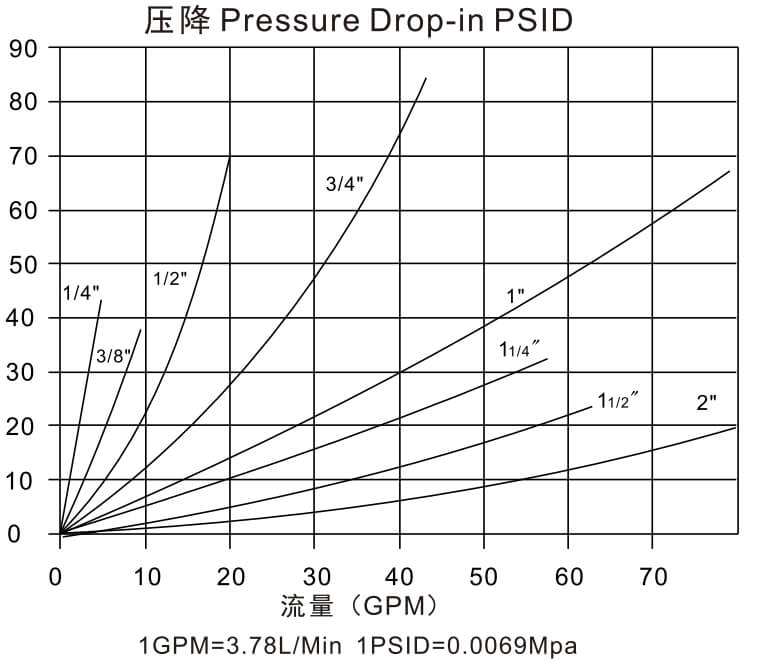

Performance:Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.
