Stainless Steel Fluid Connectors for Data Center Liquid Cooling

As thermal densities in data centers skyrocket due to artificial intelligence (AI) clusters and high-performance computing (HPC), traditional fluid management materials are being displaced by stainless steel. In this highly critical infrastructure, Fitsch utilizes its high-precision CNC machining capacity to manufacture the foundational connection components required to ensure zero-leak reliability, extreme uptime, and corrosion control over ten-year service lifecycles.

For infrastructure engineers and procurement managers sourcing stainless steel fluid connectors for liquid cooling, Fitsch’s primary product lines are engineered specifically for Technology Cooling Systems (TCS) and secondary loop stainless steel connectors. These products solve the industry's most critical bottleneck by delivering high-precision liquid cooling fluid connectors across three core categories:

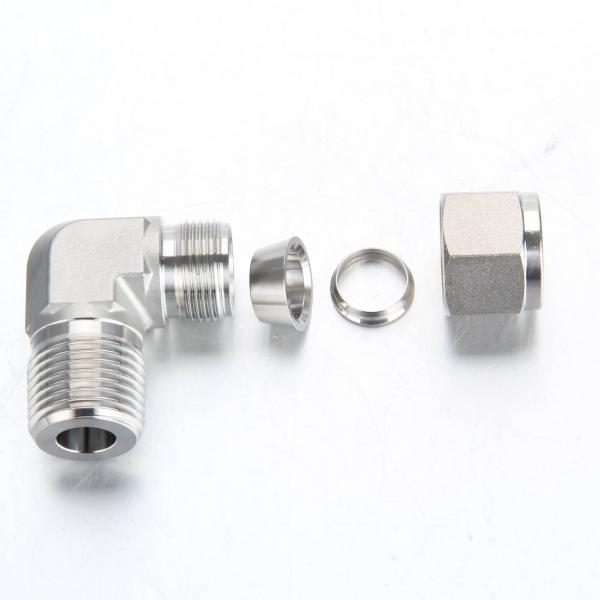

1. Dual-Ferrule Compression Tube Fittings

When building out data center stainless steel fluid connectors, compression tube fittings remain the gold standard for high-vibration, high-pressure environments within Coolant Distribution Units (CDUs) and instrumentation lines.

• Mechanism: These fittings utilize a mechanical, dual-ferrule swaging action. When tightened, the front ferrule creates a leak-tight pressure seal on the tube surface and body, while the back ferrule mechanically grips the hard stainless steel tubing without inducing structural stress.

• Data Center Value: They provide a 100% metal-to-metal seal that does not suffer from elastomer degradation or thermal expansion fatigue, making them the premier leak-free stainless steel fluid connectors required for the internal rigid routing of secondary cooling loops.

2. High-Precision Transition Adapters

Data center cooling systems are rarely built by a single manufacturer. Integrating a facility's cooling infrastructure requires marrying components from different global OEMs, each utilizing unique thread specifications. Fitsch transition adapters act as the universal bridge across these systems, making them highly sought-after stainless steel fittings for data center cooling.

• Capabilities: These adapters permit seamless conversions between global thread standards, including NPT, BSPP/BSPT, JIC, and Metric profiles.

• Application-Specific Design: A crucial application is deploying these as liquid cooling manifold fittings to connect horizontal distribution lines directly to flexible rack hoses. By combining a flat machining surface with a captive elastomeric seal (like EPDM or Viton), O-ring face seal designs eliminate leakage risks directly over million-dollar server motherboards.

3. Precision Threaded Fittings

For static manifold headers and direct rack attachments, standard threaded fittings provide reliable, space-saving plumbing connections.

• Configurations: This product range encompasses essential system architecture shapes, including hex nipples, elbows, tees, crosses, couplings, and plugs.

• Modern Infrastructure Fit: These components serve as essential server rack liquid cooling fluid connectors, routing fluid precisely into tight enclosures. Fitsch produces these with highly controlled thread tolerances to prevent thread galling—a common failure point during stainless steel assembly—and guarantee airtight seal permanence.

Material Standard: Grade 316L Stainless Steel

For advanced cooling applications, Fitsch predominantly fabricates these components as SS316L liquid cooling connectors.

While Grade 304 is acceptable for general facilities, 316L contains molybdenum. This inclusion provides superior resistance to localized pitting and crevice corrosion. This is mandatory for systems using deionized (DI) water or specialized water-glycol mixtures, which are chemically aggressive and rapidly degrade lesser alloys.

Future-Ready Infrastructure for Next-Gen Hardware

As data centers transition away from traditional air cooling, the demand for robust fluid plumbing has shifted toward specialized industrial fluid connectors for data centers. With the rapid deployment of dense hardware, integrating specialized stainless steel fluid connectors for AI clusters is no longer optional—it is the foundation of modern uptime. Fitsch’s mass-production capability ensures that hyper-scalers and OEM integrators receive high-tolerance, cleanroom-ready components right when their build schedules demand them.

The Fitsch Advantage: High-Precision Chinese OEM Scalability

1. Unbeatable Cost-to-Quality Ratio: By leveraging China’s mature industrial ecosystem and raw material networks, we deliver premium, mill-certified fittings at a highly competitive total cost of ownership (TCO) compared to domestic European or North American suppliers.

2. Rapid Prototyping & Customization: Data center rack architectures are evolving rapidly. Our localized engineering team can transform your custom proprietary blueprints into physical, test-ready samples in a fraction of the time it takes traditional manufacturers.

3. Material Purity (Genuine SS316L): We fabricate primarily from premium Grade 316L stainless steel, ensuring the molybdenum-rich chemistry required to resist the aggressive pitting corrosion caused by deionized (DI) water and glycol mixtures. Full Material Test Reports (MTRs) and international certifications are provided with every batch.

4. Resilient Global Logistics: With a monthly capacity of 1.5 million pieces, we are built to absorb massive hyper-scaler rollouts smoothly, ensuring your project timelines remain perfectly on schedule.
