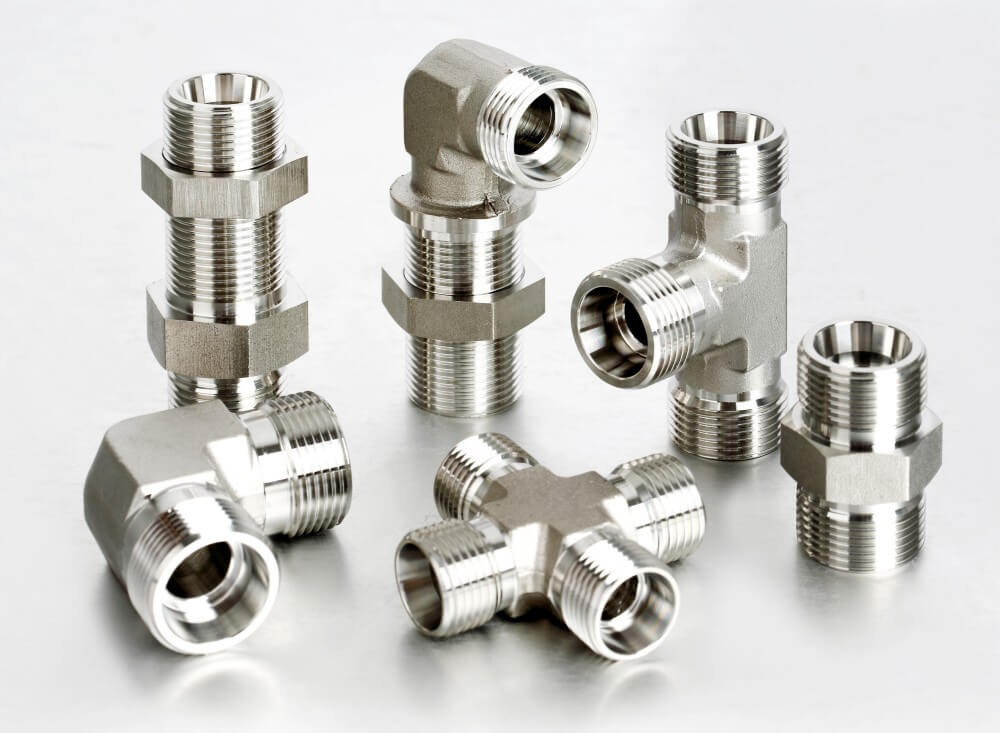

Ensure superior, leak-proof connections for your metric hydraulic systems with our precision-engineered Stainless Steel Flareless Tube Fittings. Designed for direct tube-to-tube connection, these high-performance fittings adhere to the rigorous DIN 2353 and ISO 8434-1 standards, guaranteeing global interchangeability and reliability. The innovative flareless (bite-type) design eliminates the need for tube flaring, providing a robust, permanent grip that withstands high pressure and vibration. Machined from corrosion-resistant AISI 316/316L stainless steel, they are the ideal choice for demanding applications in chemical processing, marine, offshore, and industrial machinery where safety and durability are paramount.
Zero-Leak, High-Pressure Seal: The precision 24° cone sealing system creates a metal-to-metal seal between the fitting body and the nut, ensuring a leak-free connection resistant to pressure surges and vibration.
Secure Flareless Grip: The hardened cutting ring (bite ring) uniformly bites into the tube as the nut is tightened, forming a permanent mechanical hold without compromising the tube's integrity. This flareless compression method provides exceptional pull-out resistance.
Full Standard Compliance: Manufactured to exact DIN 2353 / ISO 8434-1 specifications, ensuring perfect compatibility with all metric tubing and ports designed to this global standard.
Superior Material & Finish: Made from AISI 316/316L stainless steel, offering excellent corrosion resistance in harsh environments. A passivated finish provides added protection against oxidation and contamination.
Easy, Tool-Free Assembly: No special flaring tools are required. Assembly is simple, clean, and fast, reducing installation time and labor costs while ensuring a consistent, reliable connection every time.
| Parameter | Specification / Description | |
|---|---|---|
| Design Standard | DIN 2353 | ISO 8434-1 |
| Connection Type | Flareless Bite-Type (Compression Fitting) for Tube-to-Tube and Tube-to-Port connections. | |
| Sealing Method | 24° Cone Seal (Metal-to-Metal contact at the cone seat). | |
| Gripping Method | Hardened steel Cutting Ring (Bite Ring) that grips the tube. | |
| Thread Type | Metric parallel threads according to standard. | |
| Primary Material | AISI 316 / 316L Stainless Steel (304 available on request). | |
| Pressure Rating | Light Series (L): Up to 250 bar (3,600 psi). Heavy Series (S): Up to 630 bar (9,100 psi). | |
| Temperature Range | -20°C to +100°C (standard). Up to +150°C with high-temperature seal materials. | |
| Tube Compatibility | Metric Seamless Steel Tubes and Stainless Steel Tubes (e.g., 6mm, 8mm, 10mm, 12mm, etc.). | |
| Seal Material (Cone) | Standard: Steel on Steel. Optional seals available for specific media. | |
| Configuration | Straight Connectors, Elbows (90°, 45°), Tees, Crosses, Bulkhead Unions, etc. |
These fittings are essential for creating reliable, high-pressure lines in systems requiring pure metric connections:
Industrial Hydraulics: Power units, machine tools, presses, and plastic injection molding machines.
Mobile Equipment: Hydraulic systems in European-engineered construction, agricultural, and forestry machinery.
Process Engineering: Chemical, petrochemical, pharmaceutical, and oil & gas instrumentation lines.
Marine & Offshore: Hydraulic systems on decks and engines where corrosion resistance is critical.
General Industry: Any application requiring a robust, maintenance-free connection for metric tubing.
To ensure a correct and leak-proof system, please specify the following when ordering:
Fitting Type & Configuration: (e.g., Straight Connector, 90° Elbow, Tee).
Tube Outer Diameter (OD): The exact metric diameter of your tubing (e.g., 10 mm).
Series: Light Series (L) for standard duty or Heavy Series (S) for high-pressure applications.
Material: 316 Stainless Steel (standard) or alternative.
⚠️ Critical Installation Note: Ensure the tube is cut squarely and deburred. Hand-tighten the nut until the tube cannot rotate, then tighten with a wrench for the specified number of turns (usually 1.25 to 1.5 turns) until a visible "bite" is achieved. Do not overtighten.
Upgrade to the reliability of standardized, flareless connections. Browse our complete catalog of DIN 2353 stainless steel fittings or contact our technical support for assistance in selecting and designing your metric tube system for optimal performance.
