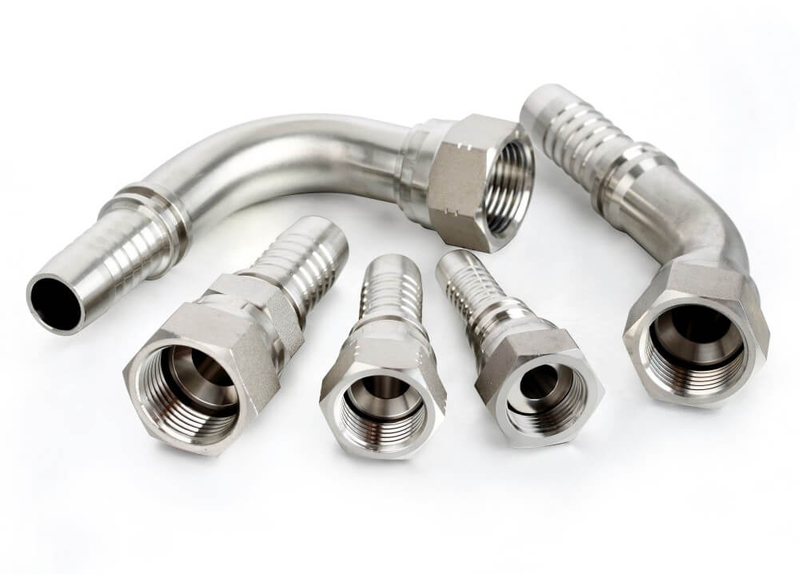

Achieve flawless fluid power transmission in any global application with our engineered Stainless Steel Swivel Female Hydraulic Hose Fittings. Designed to absorb torsion and prevent hose stress, these precision fittings provide a reliable 360° swivel action, ensuring easy installation and extending hose assembly life. Available in DIN, JIC, BSP, and ORFS standards, each fitting is machined from corrosion-resistant AISI 304/316 stainless steel for maximum durability in harsh environments, from marine decks to high-vibration industrial machinery. Selecting the correct standard is critical for a safe, leak-proof connection, as these fittings are not interchangeable.
Eliminate Hose Twist and Stress: The integrated swivel joint rotates freely, compensating for machine movement and installation misalignment. This prevents kinking, reduces bend stress, and is a leading solution to prevent premature hose failure caused by torsion.
Guaranteed Standard Compliance & Safety: We ensure precise machining to exact international thread and sealing specifications. Using the correct fitting—whether for a metric DIN port, a JIC 37° flare seat, a BSPP/BSPT thread, or an ORFS flat face—is essential to prevent leaks and thread damage. Our fittings provide that guaranteed compatibility.
Superior, Application-Specific Sealing: From the metal-to-metal seal of a JIC fitting to the highly reliable O-ring seal of an ORFS (O-Ring Face Seal) fitting, our range offers the optimal sealing mechanism for your system's pressure and vibration demands.
Maximum Corrosion Resistance: Constructed from 304 or 316 stainless steel, these fittings outperform carbon steel in corrosive environments such as chemical processing, washdown areas, and marine hydraulic systems, ensuring long-term reliability and reduced maintenance.
Our swivel female fittings are manufactured to meet the precise requirements of global hydraulic systems. The table below details the key distinctions between the available standards.
| Parameter | DIN Standard | JIC Standard | BSP Standard | ORFS Standard |
|---|---|---|---|---|
| Sealing Method | 24° Cone Seat or Bite-Type Compression | Metal-to-Metal 37° Flare | Bonded Seal Washer or O-Ring (on BSPP) | O-Ring on Flat Face |
| Thread Type | Metric Thread (e.g., M14x1.5) | UNF (Unified National Fine) | Parallel (BSPP) or Tapered (BSPT) | UNF (Straight Thread) |
| Key Feature / Region | Europe, Global Industrial Use | North America, Widely Adopted | UK, Europe, Asia, Australia | Zero-Leak, High-Pressure, High-Vibration |
| Primary Advantage | Robust metric system connection | Proven, reliable flare seal | Versatile thread options (Parallel/Tapered) | Excellent leak resistance in dynamic systems |
Complete General Specifications:
Material: AISI 304 / 316 Stainless Steel (316L available for superior weldability and corrosion resistance)
Pressure Rating: Designed for medium to high-pressure applications. Specific ratings vary by standard, size, and configuration.
Temperature Range: Compatible with standard hydraulic fluids within a typical range of -20°F to +400°F (-29°C to +204°C), subject to seal material.
Swivel Movement: 360° continuous rotation to relieve torsional stress.
Seal Options: Standard Buna-N (NBR). Viton (FKM) and other elastomers available for high-temperature or specialized fluid compatibility.
Hose Compatibility: For use with 1-wire braid, 2-wire braid, and 4-spiral hydraulic hoses.
Finish: Machine finished, passivated for optimal corrosion resistance.
Our stainless steel swivel fittings are critical components in dynamic systems across numerous sectors:
Mobile Equipment: Hydraulic lines on excavators, loaders, agricultural machinery, and forestry equipment.
Industrial Machinery: Robotics, machine tools, press lines, and automated assembly systems requiring stress-free hose routing.
Marine & Offshore: Deck machinery, winches, steering systems, and other applications exposed to saltwater corrosion.
Processing Industries: Chemical transfer, pharmaceutical, and food & beverage processing plants where hygiene and corrosion resistance are paramount.
Energy & Construction: Hydraulic systems in mining, drilling, and heavy construction equipment.
Step 1: Identify Your Port Standard
Carefully identify the mating male thread on your equipment. Key identifiers are:
DIN: Metric thread with a 24° cone seat.
JIC: Straight UNF thread with a 37° internal flare seat.
BSP: 55° thread angle; determine if it is Parallel (BSPP) requiring a washer or Tapered (BSPT).
ORFS: Straight UNF thread with a flat face and O-ring groove.
Step 2: Determine Hose Size and Thread Size
Specify the hose inner diameter (ID) for one end and the required thread size (e.g., 1/2", M12x1.5, etc.) for the female swivel end.
Step 3: Consider Environmental Factors
For highly corrosive or high-temperature environments, specify AISI 316 stainless steel and Viton seals.
Example Part Numbering: SS-SW-FJIC-12-1/2NPT could indicate: Stainless Steel, Swivel, Female JIC end, #12 size JIC, mating with 1/2" NPT male thread.
⚠️ Critical Installation Note: While swivels absorb rotation, the hose assembly should be properly supported to minimize side load on the fitting. Always follow torque specifications for the specific thread standard to avoid damaging the seals or threads. Never force a fitting if it does not thread smoothly by hand—this indicates a probable standard mismatch.
Optimize your hydraulic system's reliability and service life. Browse our comprehensive catalog of Stainless Steel Swivel Female Fittings to find your DIN, JIC, BSP, or ORFS solution. Contact our technical support team for expert assistance in selecting the correct pressure rating, thread type, and configuration for your specific application. Request a quote online today.
