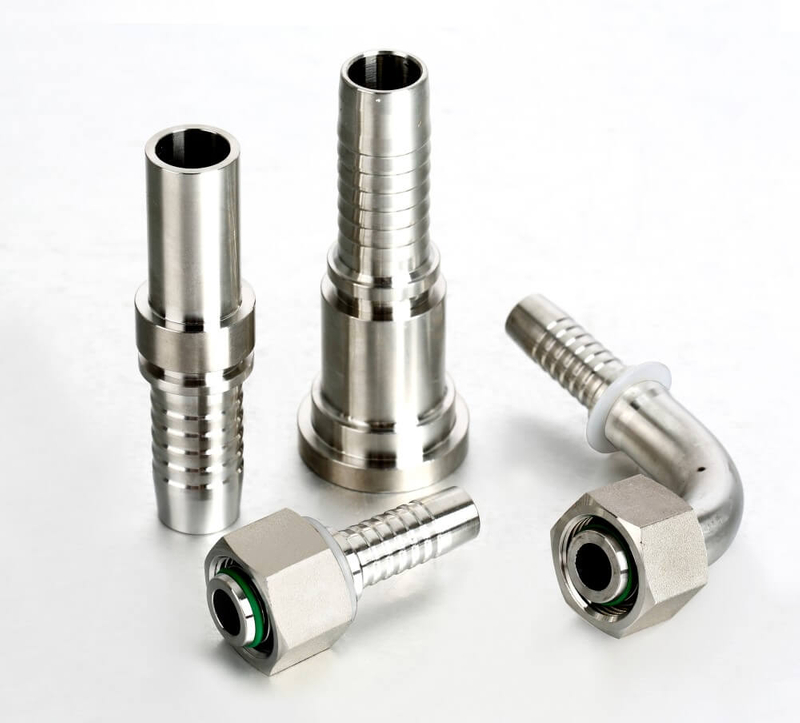

Stainless Steel SAE Flange DIN Hose Fittings
Bridge the gap between hydraulic systems with our premium Stainless Steel SAE Flange DIN Hose Fittings. These precision-engineered hybrid fittings provide a robust, corrosion-resistant interface by combining the SAE J518/ISO 6162 flange standard with metric DIN tube fitting standards (like ISO 8434-1). Designed for demanding environments where performance is non-negotiable, they are the ideal solution for creating leak-free hydraulic connections in systems that mix global standards.
Crafted from AISI 316L/316Ti stainless steel, our fittings offer superior corrosion resistance, making them perfect for harsh applications exposed to saltwater, chemicals, and extreme pressures. Engineered for high-pressure hydraulic systems, they ensure reliability and durability in marine, chemical processing, and heavy equipment applications.
Key Features & Benefits:
Dual Standard Compliance: Adheres to both SAE J518/ISO 6162 (Code 61: 3000 PSI / Code 62: 6000 PSI) and DIN standards (e.g., DIN 20066). This allows for seamless integration between American flange and European metric tube systems.
Unmatched Durability: Manufactured from 316 stainless steel, these industrial fittings resist rust, pitting, and chemical attack, ensuring a long service life and reduced maintenance costs.
High-Pressure Performance: Rated for demanding applications. Code 61 fittings handle up to 3000-5000 PSI, while Code 62 fittings are built for pressures up to 6000 PSI (420 Bar).
Reliable, Leak-Free Design: The SAE flange side features a secure 4-bolt connection with an O-ring seal. The tube side utilizes a robust metric DIN cutting ring connection (flareless bite type) for a permanent, vibration-resistant grip on metric tubing.
Versatile Sealing Options: Typically equipped with NBR or Viton O-rings to suit a wide range of fluid compatibility and temperature requirements.
Technical Specifications & Product Parameters
| Parameter | Specification / Description |
|---|---|
| Product Type | SAE Flange DIN Hose Fitting (Hybrid) |
| Design Standards | SAE J518 / ISO 6162 (Code 61 & 62) & Metric DIN (e.g., DIN 2353) |
| Primary Material | AISI 316L / 316Ti / 1.4571 Stainless Steel |
| Pressure Rating | Code 61: Up to 3000-5000 PSI (210 Bar) |
| Code 62: Up to 6000 PSI (420 Bar) | |
| Flange Connection | 4-Bolt Pattern, O-Ring Face Seal |
| Tube/Hose Connection | Metric DIN Cutting Ring (Bite Type), DIN Threads (e.g., M45x2) |
| Seal Material | Standard NBR O-Ring (Viton available for specific chemical/temp resistance) |
| Common Sizes | Flanges: 1/2" to 2" (and larger); Metric ends: Various Light (L) and Heavy (S) series |
| Finish | Natural Stainless Steel, Passivated |
| Key Applications | Marine Hydraulics, Chemical Processing Plants, Heavy Machinery, Offshore Equipment, High-Pressure Test Rigs |
Ideal For Applications Requiring:
Connecting SAE flange pumps/valves to DIN metric tubing systems.
Corrosion-resistant hydraulic connections in marine applications.
High-integrity fluid transfer in chemical processing.
Robust, leak-free connections on mobile heavy equipment.
Upgrading systems from carbon steel to stainless steel for enhanced durability.
Optimize Your Hydraulic System Today
Stop compromising on connection integrity between different standards. Our stainless steel SAE flange to DIN fittings provide a reliable, high-performance solution engineered for the most challenging conditions. They are the smart choice for engineers seeking durable, high-pressure fittings that ensure system safety and longevity.
Browse our catalog of SAE J518 fittings, DIN metric fittings, and other stainless steel hydraulic hose fittings. Request a quote or contact our technical support for assistance in selecting the correct Code 61 or Code 62 fitting for your pressure and application needs.
