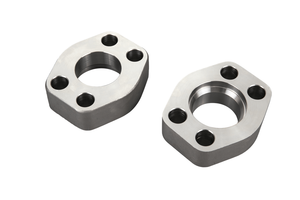

​SAE split flange halves Code 61 dimensions chart
Meet SAE J518-1 / ISO 6162-1 FCS M Standard
Working Pressure is 3000 psi, from 3,5 MPa (35 bar) to 35 MPa (350 bar)
Nominal flange size is from DN 13 to DN 127
Stainless steel SAE split flange halves Code 61
Surface of Zinc plated pass a minimum 72-h salt spray test in accordance with ISO 9227.

  • Four bolt split flange

Availability:
Inquire

PDF Export

SAE Split Flange Clamp Code 61 Dimensions of FL Series White Zinc plated CrVI free

SAE FLANGE CLAMP SIZE CHART Code 61

ISO 6162-1  L SERIES SAE SPLIT FLANGE CODE 61
PART NO. FLANGE SIZE DIMENSIONS BOLT
A B d h M N
FL-08Z 1/2" 54 45.6 9 6.2 38.1 17.5 M8X25
FL-12Z 3/4" 65.6 51.8 11 6.2 47.6 22.2 M10X30
FL-16Z 1" 70.5 58.4 11 7.5 52.4 26.2 M10X30
FL-20Z 1.1/4" 79 72.6 11 7.5 58.7 30.2 M10X30
FL-24Z 1.1/2" 94 82.2 13.5 7.5 69.9 35.7 M12X35
FL-32Z 2" 102 96.4 13.5 9 77.8 42.9 M12X35
FL-40Z 2.1/2" 115 108.2 13.5 9 88.9 50.8 M12X40
FL-48Z 3" 134.4 130.6 17 9 106.4 61.9 M16X50

Assembly of SAE Split Flange Code 61 by 4 blots clamps clamp th hose adapter by o-ring face seal

Assembled flange connector with split flange clamp (FCS) Code 61

Dimensions, torques and maximum working pressures for SAE split flange halve code 61 assemblies for use with ISO 898-1 8.8 class screws

Dimensions, screw torques and pressures of flanged port assemblies 8.8 Code 61

Dimensions, torques and maximum working pressures for SAE split flange halve code 61 assemblies for use with ISO 898-1 10.9 class screws

Dimensions, screw torques and pressures of flanged port assemblies 10.9 code 61

download FL-FS SAE Code 61 split flange dimensions.pdf
