In hydraulic fluid power systems, managing fluid line connections smoothly requires dependable components. ISO 7241-A hydraulic quick couplings and ISO 7241-B quick-action couplings stand out as the two most widely specified designs globally. Both series fall under the international standard ISO 7241 (specifically the updated second edition, ISO 7241:2023), but they feature distinct geometry, regional preferences, and application environments.
Choosing between ISO 7241 Series A vs Series B requires a clear understanding of their technical differences. This comprehensive guide outlines their design variations, technical parameters, thread styles, and application scopes to help you source the perfect fit for your operation.
Table of Contents
While both configurations rely on a classic poppet-valve style to block fluid loss when separated, they cater to entirely different industrial sectors:
ISO 7241-A Hydraulic Quick Couplings: This series is preferred worldwide for agricultural hydraulic couplers and forestry equipment. It is heavily integrated into European machinery blueprints and complies with ISO 5675 guidelines for tractor attachments. Browse our master range on the Fitsch H001 ISO 7241-A Carbon Steel Catalog.
ISO 7241-B Quick-Action Couplings: This design is predominantly utilized in North America. Due to its robust build, it is favored across heavy industrial manufacturing, chemical processing lines, aerospace applications, and general utility piping. Explore options such as the Fitsch ISO 7241-B Quick Disconnect Coupler Set.
To ensure clean system integration, engineers must evaluate three foundational distinctions between the two variations:
Interoperability: Series A and Series B are completely non-interchangeable. Trying to couple a Series A male plug into a Series B female socket will fail due to incompatible locking ball positions and unique dimensional requirements.
Body Profiles: Series B plugs exhibit a wider, shorter nose section compared to the longer, streamlined probe profile mandatory on Series A components.
Sizing Variety: The standard explicitly leaves the ultra-compact Size 5 fluid line variant out of Series A specifications, making it completely exclusive to the Series B industrial spectrum.
While the quick-disconnect interface is strictly governed by the ISO standard body dimensions, the rear port (the side connecting directly to your hose or manifold) can feature several different end connection thread styles. Specifying the wrong thread configuration will cause a failure during final machine hookup. The three most common configurations include:
NPT / NPTF (National Pipe Taper)
Design & Sealing Mechanism: A traditional American tapered thread that seals via a metal-to-metal wedging effect between the male and female threads. NPTF (Dryseal) threads are heavily preferred in hydraulic contexts to minimize leak paths without requiring thread tape.
Usage: Commonly machined onto the back of ISO 7241-B quick-action couplings installed on machinery or industrial plumbing setups across North America.
BSPP (British Standard Pipe Parallel / G Thread)
Design & Sealing Mechanism: A straight, parallel thread design originating in the UK and used extensively across Europe. It requires a sealing component—such as an O-ring, a bonded washer (Dowty seal), or an engineered cutting edge—to achieve a leak-free joint.
Usage: Standard on ISO 7241-A hydraulic quick couplings paired with European farm equipment, specialized forestry rigs, or industrial systems shipped worldwide.
ORB (O-Ring Boss / SAE J1926)
Design & Sealing Mechanism: A straight thread specification utilizing standard UN/UNF threads paired with a dedicated elastomeric O-ring that seats inside a matching chamfered port cavity. It provides excellent sealing capability under high pressures without subjecting the steel to overtightening stress.
Usage: Widely found on modern mobile machinery, construction attachments, and industrial installations requiring highly reliable, repeatable service lifespans.
4. ISO 7241 Dimensional Requirements & Interoperability

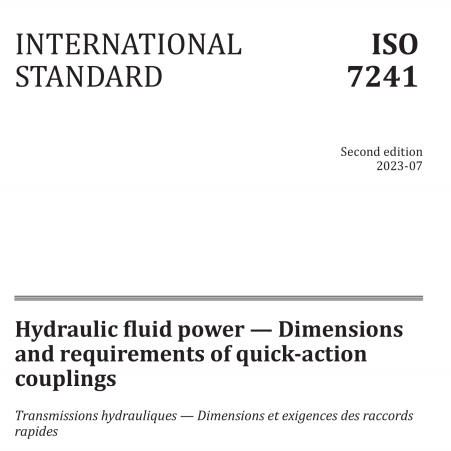

The ISO 7241 dimensional requirements define the exact specifications for the male half (probe) and female half (receptacle). According to the latest standard update, nominal size designations line up with standardized hose diameters (ISO 4397), meaning legacy sizes 20, 40, and 50 have transitioned to modern 19, 38, and 51 mm markers.
ISO 7241-A Size Chart & Geometry
The exact metrics for the standard Series A male plug are strictly controlled under the standard's core documentation:
Nominal Size (mm) | Gauge Diameter D₁ (mm) | Valve Travel Max L₁ (mm) | Probe Length Min L₅ (mm) |
6.3 | 18.7 | 2.8 | 14.5 |
10 | 24.1 | 3.8 | 18 |
12.5 (Most Common) | 30.3 | 4 | 24 |
19 | 37.1 | 7.2 | 27.5 |
25 | 43 | 8.5 | 34 |
38 | 68.5 | 13 | 51 |
51 | 83.7 | 16.6 | 61 |
ISO 7241-B Dimensions & Geometry
Comparatively, ISO 7241-B dimensions yield a shorter, stouter profile for the male plug tip.
For instance, a standard Size 12.5 Series B male plug utilizes a gauge diameter (D₇) of 33.45 mm—noticeably larger than the 30.3 mm layout (D₁) seen on a Series A coupling of the exact same fluid size. When replacing component hardware independently, ensure you match your exact plumbing side with the correct socket format like the Fitsch ISO 7241-B Female Socket or the corresponding Fitsch ISO 7241-B Male Nipple Plug.
When judging pressure thresholds and fluid velocity capacity, both styles display unique strengths depending on body sizing:
SERIES A PERFORMANCE PROFILE (Carbon Steel)
Size 6.3 [====== 31.5 MPa Rated ======] -> 31 L/min Flow
Size 12.5 [==== 25.0 MPa Rated ====] ----> 45 L/min Flow
Size 19 [==== 25.0 MPa Rated ====] ----> 100 L/min Flow
Size 51 [== 10.0 MPa ==] --------------> 757 L/min Flow
SERIES B PERFORMANCE PROFILE (Carbon Steel)
Size 5 [==== 25.0 MPa Rated ====] ----> 3 L/min Flow
Size 12.5 [==== 25.0 MPa Rated ====] ----> 45 L/min Flow
Size 19 [== 16.0 MPa ==] --------------> 100 L/min Flow
Size 51 [= 5.0 MPa =] -----------------> 560 L/min Flow
(Note: These figures reflect carbon steel baselines. Sourcing options in Brass or Stainless Steel will adjust these pressure ceilings lower. Data verified from ISO 7241 Performance Tables 5 & 6).
Key Performance Indicators:
Impulse Lifespans: To satisfy industrial compliance, parts undergo grueling surge tests up to 100,000 impulse cycles under ISO 6803 and ISO 18869 validation rules.
Agricultural Flow Additions: Series A sizes 12.5 and 19 offer an augmented "AG" designation layout. This design accommodates strict mechanical limits—ensuring maximum connecting forces stay under 200 Newtons even when partially pressurized.
6. Comparison Summary Matrix
For a fast engineering reference, this technical overview highlights the contrasting design properties of both families:
Comparison Feature | ISO 7241 Series A | ISO 7241 Series B |
Primary Region | Europe & Worldwide | North America |
Dominant Industry | Agriculture & Forestry | Chemical, Aerospace, Heavy Plant |
Available Size Range | Size 6.3 up to Size 51 | Size 5 up to Size 51 |
Interchangeability | Interchanges with ISO 5675 / AG styles | Unique profile, non-interchangeable |
Max Pressure (Size 19) | 25.0 MPa (Higher fluid ceiling) | 16.0 MPa (Lower fluid ceiling) |
Flow Rate (Size 51) | 757 L/min | 560 L/min |
Standard Rear Thread End | Commonly BSPP / Metric Threads | Commonly NPT / ORB Threads |
Standard Seal Option | Nitrile (NBR) with backup rings | Nitrile (NBR) / Fluorocarbon (Viton) |
7. Frequently Asked Questions (FAQ)
Q: Can I connect a Series A plug to a Series B coupler if they have the same thread size?
A: No. Thread size only determines how the fitting connects to your hose or pipe. The quick-connect mating profile itself is determined strictly by the ISO series geometry, and the profiles for Series A and Series B are completely different.
Q: Why did the sizing names change from 20, 40, and 50 to 19, 38, and 51?
A: Under the modern ISO 7241:2023 framework, nominal designations were revised to accurately match the standardized nominal outside diameters of matched hoses defined by ISO 4397.
Q: What materials are available for harsh or corrosive environments?
A: Standard profiles are built using high-strength carbon steel. However, systems handling corrosive chemicals, sea spray, or high-purity fluids require stainless steel or brass builds to resist oxidization and chemical attacks.
To make your ordering phase as straightforward as possible, use this quick checklist:
Choose ISO 7241-A if you are repairing European farm tractors, skid steers, heavy logging apparatus, or implementing trailing implements that hook up to agricultural machinery.
Choose ISO 7241-B if your plumbing environment is situated within chemical processing plants, North American plant automation systems, or high-vibration manufacturing equipment.
At Fitsch, we fabricate and supply premium, deburred hydraulic quick disconnect couplings built with precise surface finishes (
Racap R sub a 3.2 max) to ensure zero leakages and optimal field life. For aggressive, high-purity, or highly corrosive applications, check out our specialized Fitsch Stainless Steel Quick Release Couplings Catalog or view our full inventory list via the main Fitsch Quick Release Coupling Hub.
