In industrial fluid transfer, mechanical stress and unexpected hose twists are the leading causes of premature assembly failures. To solve this alignment challenge in high-volume fluid applications, the industrial sector relies heavily on king turned back hose nipples paired with specialized floating flanges.

For engineering and sourcing departments handling heavy-duty industrial hoses, understanding how a turned back nipple optimizes connection safety is essential. Below is a comprehensive technical look at these robust hose shank flange adapter components and how to cross-reference them for your operations. [1, 2]

1. What is a King Turned Back Hose Nipple?

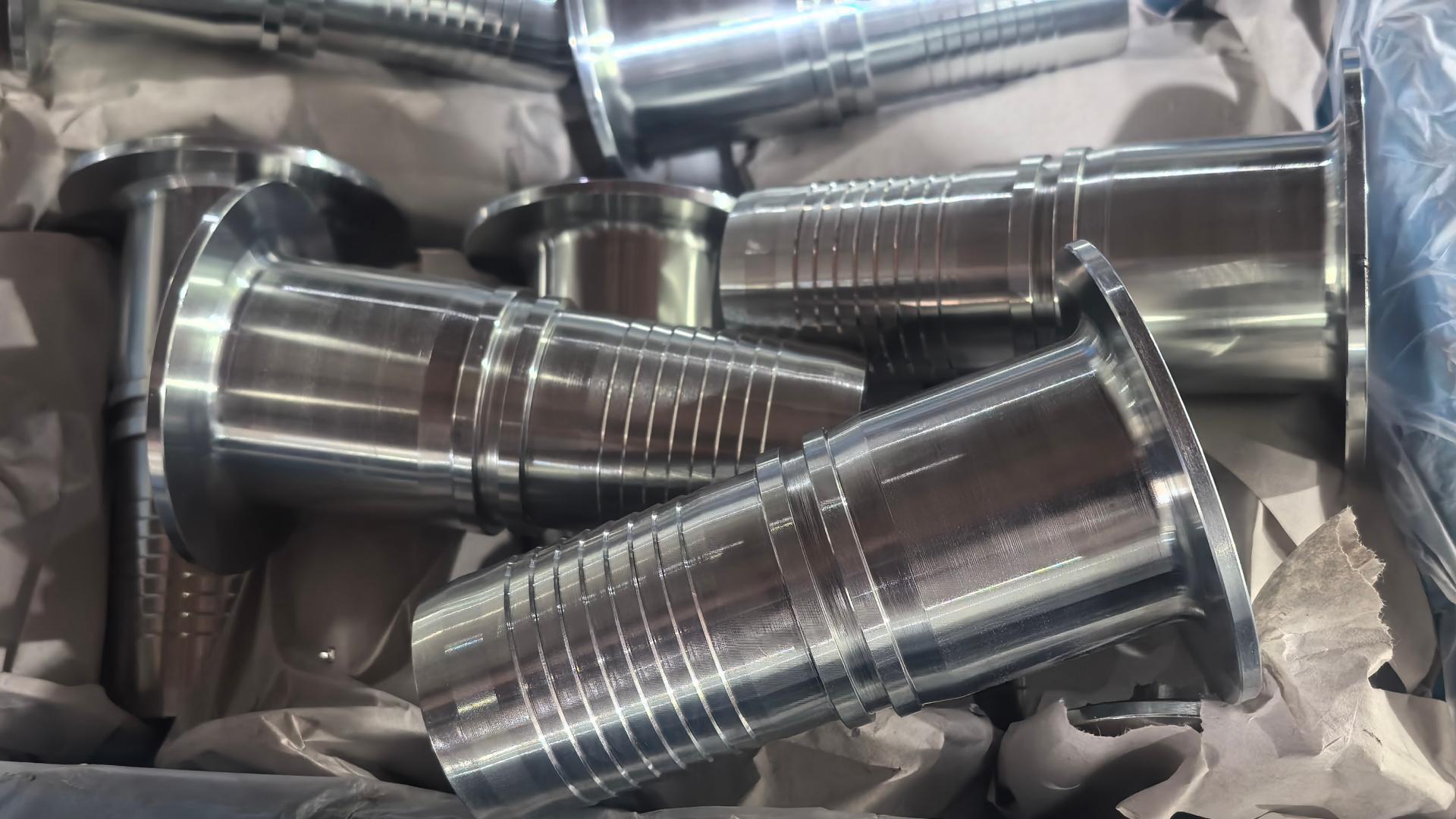

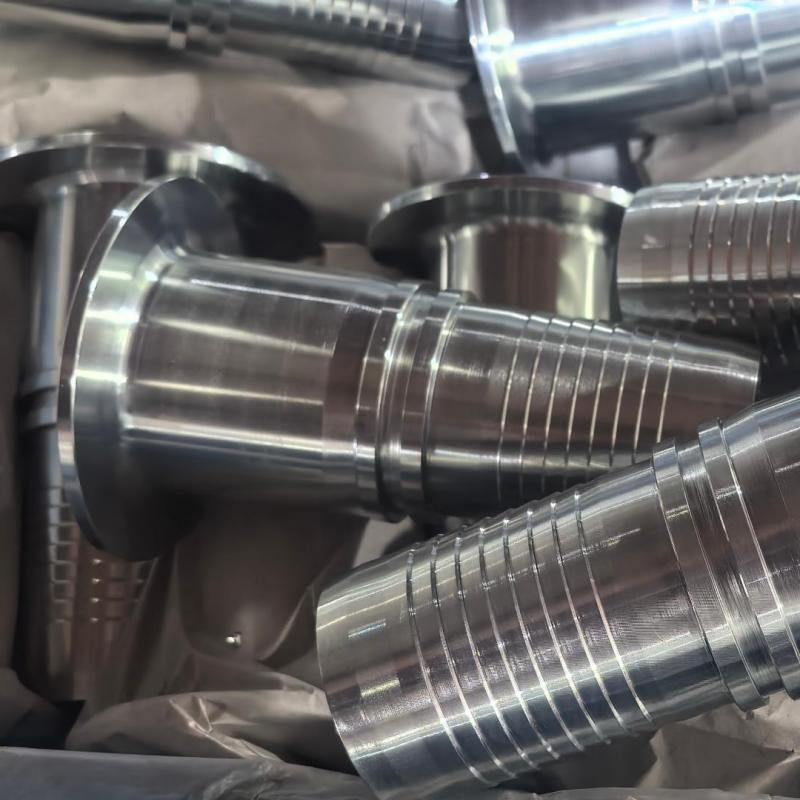

A king turned back hose nipple is a heavy-duty, barbed industrial fitting explicitly built for use with Lap Joint flanges (also known as loose or floating flanges). Unlike standard fixed flanged hose ends where the sealing face and the bolt holes are welded into a single rigid block, a turned back style features a distinct "turned-back" metallic lip at the front of the shank. [1, 2]

This unique engineering design allows a separate lap joint flange ring to slide freely over the hose shank and rotate a full 360 degrees. To explore similar configurations for flexible hoses, review the broad catalog of Fitsch Hydraulic Flange Hose Fittings. [1]

2. Core Functional Benefits

Using a lap joint hose nipple system provides structural advantages over fixed-flange configurations: [1]

• Zero Torsional Hose Stress: When completing a field installation, matching fixed bolt holes often forces technicians to twist the hose body. A king combination nipple with a loose flange lets you spin the outer bolting ring independently, aligning perfectly without transferring any rotational stress to the hose. [1, 2]

• Extended Assembly Service Life: Eliminating hose twist actively reduces micro-fatigue along the internal fabric or steel reinforcement layers. This simple feature drastically eliminates premature hose failure on heavy-duty equipment. [1]

• Simplified Maintenance: Perfect for space-constrained manifold connections, tank trucks, and chemical transfer pumps where quick mating and frequent disassembling are mandatory. Compare these to alternative permanent installations found in the Fitsch Flange One Piece Fittings Catalog.

3. Technical Specifications & Material Build

Industrial systems handling aggressive fluids or intense weather exposures require highly precise metallurgy:

• Plated Carbon Steel (C35 / C45): Ideal for universal water, agricultural oil, petroleum, and non-corrosive environmental waste operations. Advanced zinc platings protect the structural steel from oxidation. Discover premium options via the Fitsch SAE J518 Split Flange Halves Hub, featuring precision-machined carbon steel. [1, 2]

• 316 Stainless Steel: The absolute standard for chemical processing, marine environments, offshore fuel delivery, and sanitation systems. Specifying a stainless steel kc nipple ensures maximum pitting resistance against acidic or alkaline media. [1, 2]

4. Size Metrics & Dimensional Mapping

These floating flange hose fittings are produced to match common global industrial hose inner diameters (ID) and coordinate with standard ANSI or TTMA lap joint flange dimensions. [1, 2]

Refer to the master dimensions guide below to identify your required part profiles:

Note: Suffix modifications or specific brand part numbers (like the dixon king nipple series) can be directly cross-referenced to customized manufacturing dimensions. [1, 2]

High-Precision Industrial Sourcing with Fitsch

While commercial suppliers populate standard distribution pipelines, modern global buyers turn to custom production unions to ensure dimensional exactness, certified material traces, and reliable lead times.

At Fitsch, we manufacture a comprehensive selection of premium barbed flange adapter assemblies. Engineered to seamless dimensional tolerances, our product line encompasses everything from compact metric components to large-bore hose shank flange adapter variations. Whether your application requires high-tensile C35/C45 carbon steel execution or corrosion-proof 316 stainless steel durability, Fitsch ensures seamless physical interchangeability with industry benchmarks. [1, 2, 3]

For projects requiring multi-angled fluid runs, navigate our full selection of Fitsch Hydraulic Flange Fittings or view dedicated rigid adaptors through the Fitsch SAE Flange Adapters Catalog. Connect directly with our engineering department to cross-map your specific procurement checklists and part numbers today.
