Views: 6 Author: Site Editor Publish Time: 2025-02-08 Origin: Site

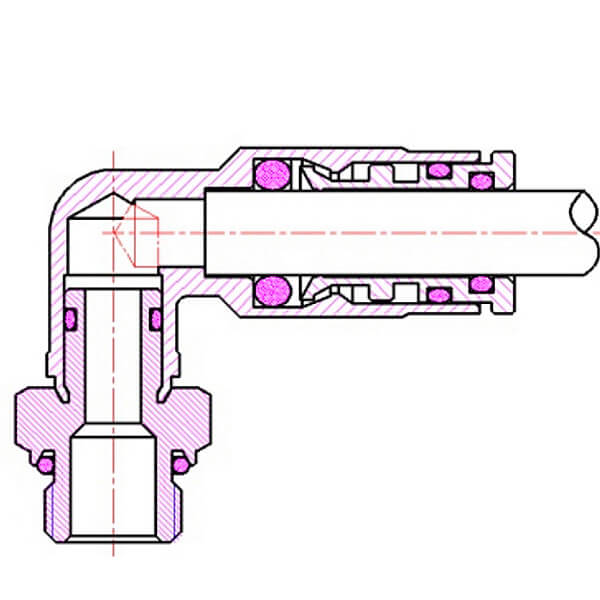

SKF Triple-seal Push in Quick Connector for Centralized Lubrication System is designed to provide efficient and reliable lubrication for machinery and equipment. This innovative connector features a triple seal design that ensures maximum protection against leakage and contamination, while also providing easy installation and maintenance.
The connector is made from high-quality materials and is engineered to withstand harsh operating conditions, making it an ideal choice for a wide range of industrial applications. It is particularly well-suited for use in centralized lubrication systems, where it can help to reduce downtime and improve overall equipment performance.
Key Features:
Triple Seal Design: The connector features a triple seal design that provides maximum protection against leakage and contamination, ensuring optimal lubrication performance.
Easy Installation and Maintenance: The push-in quick connector is designed for easy installation and removal, allowing for quick and convenient maintenance when required.
High-Quality Materials: Made from durable and corrosion-resistant materials, the connector is engineered to withstand harsh operating conditions and provide long-lasting performance.
Versatile Application: Suitable for use in a wide range of industrial applications, including machinery, equipment, and centralized lubrication systems.
Improved Equipment Performance: By providing efficient and reliable lubrication, the connector can help to reduce downtime and improve overall equipment performance.
Whether you're looking to upgrade your existing lubrication system or are in the market for a new connector, the SKF Triple-seal Push in Quick Connector for Centralized Lubrication System is an excellent choice. With its advanced design and high-quality construction, this connector is sure to provide reliable performance and help keep your machinery and equipment running smoothly for years to come.
Fitsch can provide the good quality of these products as follow:
Catalog of SKF Triple-seal Push in Quick Connector for Centralized Lubrication System
Triple-seal quick connectors | |
Straight screw-in connectors with cylindrical thread | |
451-004-260-VS | PUSH-IN FITTINGS GEZ 4-M6 NBR |
404-073-VS | PUSH-IN FITTINGS GEZ 4-M6x0,75 NBR |
404-063-VS | PUSH-IN FITTINGS GEZ 4-M8 NBR |
404-003-VS | PUSH-IN FITTINGS GEZ 4-M8x1 NBR |
404-003-S8-VS | PUSH-IN FITTINGS GEZ 4-M8x1 FPM |
404-006-VS | PUSH-IN FITTINGS GEZ 4-M10x1 NBR |
404-006-S8-VS | PUSH-IN FITTINGS GEZ 4-M10x1 FPM |
404-040-VS | PUSH-IN FITTINGS GEZ 4-G1/8 NBR |
406-158-VS | PUSH-IN FITTINGS GEZ 6-M8x1 NBR |
406-004-VS | PUSH-IN FITTINGS GEZ 6-M10x1 NBR |
406-004-S8-VS | PUSH-IN FITTINGS GEZ 6-M10x1 FPM |
456-004-VS | PUSH-IN FITTINGS GEZ 6-G1/8 NBR |
456-004-S8-VS | PUSH-IN FITTINGS GEZ 6-G1/8 FPM |
406-054-VS | PUSH-IN FITTINGS GEZ 6-G1/4 NBR |
406-162-VS | PUSH-IN FITTINGS GEZ 6-M12x1 NBR |
406-162-S8-VS | PUSH-IN FITTINGS GEZ 6-M12x1 FPM |
408-004-VS | PUSH-IN FITTINGS GEZ 8-M10x1 NBR |
408-004-S8-VS | PUSH-IN FITTINGS GEZ 8-M10x1 FPM |
408-162-VS | PUSH-IN FITTINGS GEZ 8-M12x1 NBR |
408-162-S8-VS | PUSH-IN FITTINGS GEZ 8-M12x1 FPM |
408-054-VS | PUSH-IN FITTINGS GEZ 8-G1/4 NBR |
Straight screw-in connectors with tapered thread | |
451-004-260-VS | PUSH-IN FITTINGS GEZ 4-M6 NBR |
404-073-VS | PUSH-IN FITTINGS GEZ 4-M6x0,75 NBR |
404-063-VS | PUSH-IN FITTINGS GEZ 4-M8 NBR |
404-003-VS | PUSH-IN FITTINGS GEZ 4-M8x1 NBR |
404-003-S8-VS | PUSH-IN FITTINGS GEZ 4-M8x1 FPM |
404-006-VS | PUSH-IN FITTINGS GEZ 4-M10x1 NBR |
404-006-S8-VS | PUSH-IN FITTINGS GEZ 4-M10x1 FPM |
404-040-VS | PUSH-IN FITTINGS GEZ 4-G1/8 NBR |
406-158-VS | PUSH-IN FITTINGS GEZ 6-M8x1 NBR |
406-004-VS | PUSH-IN FITTINGS GEZ 6-M10x1 NBR |
406-004-S8-VS | PUSH-IN FITTINGS GEZ 6-M10x1 FPM |
456-004-VS | PUSH-IN FITTINGS GEZ 6-G1/8 NBR |
456-004-S8-VS | PUSH-IN FITTINGS GEZ 6-G1/8 FPM |
406-054-VS | PUSH-IN FITTINGS GEZ 6-G1/4 NBR |
406-162-VS | PUSH-IN FITTINGS GEZ 6-M12x1 NBR |
406-162-S8-VS | PUSH-IN FITTINGS GEZ 6-M12x1 FPM |
408-004-VS | PUSH-IN FITTINGS GEZ 8-M10x1 NBR |
408-004-S8-VS | PUSH-IN FITTINGS GEZ 8-M10x1 FPM |
408-162-VS | PUSH-IN FITTINGS GEZ 8-M12x1 NBR |
408-162-S8-VS | PUSH-IN FITTINGS GEZ 8-M12x1 FPM |
408-054-VS | PUSH-IN FITTINGS GEZ 8-G1/4 NBR |
Straight screw-in connectors with tapered thread | |
451-004-462-VS | PUSH-IN FITTINGS GEK 4-M6K NBR |
451-004-471-VS | PUSH-IN FITTINGS GEK 4-M6x0,75K NBR |
451-004-498-VS | PUSH-IN FITTINGS GEK 4-M8x1K NBR |
451-004-518-VS | PUSH-IN FITTINGS GEK 4-M10x1K NBR |
404-673K-V1-VS | PUSH-IN FITTINGS GEK 4-1/4-28 SAE LT NBR |
404-040K-V1-VS | PUSH-IN FITTINGS GEK 4-1/8 NPTF NBR |
451-006-468-VS | PUSH-IN FITTINGS GEK 6-M6K NBR |
451-006-498-VS | PUSH-IN FITTINGS GEK 6-M8x1K NBR |
451-006-518-VS | PUSH-IN FITTINGS GEK 6-M10x1K NBR |
406-423W-VS | PUSH-IN FITTINGS GEK 6-R1/8K NBR |
406-423N-VS | PUSH-IN FITTINGS GEK 6-1/8 NPT NBR |
Tube-to-tube connectors | |
454-504-041-VS | CONNECTOR GS 4 NBR |
406-426-VS | CONNECTOR GS 6 NBR |
Banjo fittings with banjo bolt and cylindrical thread | |
504-161-VS | BANJO FITTING SWVZ-4-M6 NBR |
504-401-S1-VS | BANJO FITTING SWVZ-4-M5 NBR |
504-411-VS | BANJO FITTING SWVZ-4-M8 NBR |
504-401-VS | BANJO FITTING SWVZ-4-M8x1 NBR |
504-103-VS | BANJO FITTING SWVZ-4-M10x1 NBR |
445-519-041-VS | BANJO FITTINGSWVZ-4-G1/8A NBR |
Elbows with tapered thread | |
453-004-471-VS | PUSH-IN FITTINGS WEK 4-M6K NBR |
453-004-471-S8-VS | PUSH-IN FITTINGS WEK 4-M6K FPM |
504-201-VS | PUSH-IN FITTINGS WEK 4-M8x1K NBR |
504-201-S8-VS | PUSH-IN FITTINGS WEK 4-M8x1K FPM |
504-202-VS | PUSH-IN FITTINGS WEK 4-M10x1K NBR |
504-202-S8-VS | PUSH-IN FITTINGS WEK 4-M10x1K FPM |
514-018-VS | PUSH-IN FITTINGS WEK 4-R1/8K NBR |
514-018-S8-VS | PUSH-IN FITTINGS WEK 4-R1/8K FPM |
504-200K-V1-VS | PUSH-IN FITTINGS WEK 4-1/4-28SAE LT |
514-018K-V1-VS | PUSH-IN FITTINGS WEK 4-1/8NPT NBR |
453-006-468-VS | PUSH-IN FITTINGS WEK 6-M6K NBR |
453-006-468-S8-VS | PUSH-IN FITTINGS WEK 6-M6K FPM |
506-508-VS | PUSH-IN FITTINGS WEK 6-M8x1K NBR |
506-508-S8-VS | PUSH-IN FITTINGS WEK 6-M8x1K FPM |
506-510-VS | PUSH-IN FITTINGS WEK 6-M10x1K NBR |
506-510-S8-VS | PUSH-IN FITTINGS WEK 6-M10x1K FPM |
506-511-VS | PUSH-IN FITTINGS WEK 6-R1/8K NBR |
506-511-S8-VS | PUSH-IN FITTINGS WEK 6-R1/8K FPM |
506-511K-V1-VS | PUSH-IN FITTINGS WEK 6-1/8NPT NBR |
455-565-068-VS | PUSH-IN FITTINGS WEK 6-R1/4K NBR |
Banjo fittings with cylindrical thread | |
504-100-VS | PUSH-IN FITTINGS WEDZ 4-M6x1 NBR |
504-101-VS | PUSH-IN FITTINGS WEDZ 4-M8x1 NBR |
504-101-S8-VS | PUSH-IN FITTINGS WEDZ 4-M8x1 FPM |
504-102-VS | PUSH-IN FITTINGS WEDZ 4-M10x1 NBR |
504-102-S8-VS | PUSH-IN FITTINGS WEDZ 4-M10x1 FPM |
504-108-VS | PUSH-IN FITTINGS WEDZ 4-G1/8A NBR |
504-108-S8-VS | PUSH-IN FITTINGS WEDZ 4-G1/8A FPM |
506-139-VS | PUSH-IN FITTINGS WEDZ 6-M8x1 NBR |
506-139-S8-VS | PUSH-IN FITTINGS WEDZ 6-M8x1 FPM |
506-140-VS | PUSH-IN FITTINGS WEDZ 6-M10x1 NBR |
506-140-S8-VS | PUSH-IN FITTINGS WEDZ 6-M10x1 FPM |
506-108-VS | PUSH-IN FITTINGS WEDZ 6-G1/8A NBR |
506-108-S8-VS | PUSH-IN FITTINGS WEDZ 6-G1/8A FPM |
506-142-VS | PUSH-IN FITTINGS WEDZ 6-M12x1 NBR |
506-142-S8-VS | PUSH-IN FITTINGS WEDZ 6-M12x1 FPM |
506-143-VS | PUSH-IN FITTINGS WEDZ 6-G1/4A NBR |
508-142-VS | PUSH-IN FITTINGS WEDZ 8-M12x1 NBR |
508-142-S8-VS | PUSH-IN FITTINGS WEDZ 8-M12x1 FPM |
Banjo fittings with tapered thread | |
455-546-048-VS | PUSH-IN FITTINGS WEDK 4-M6K NBR |
455-546-048-S8-VS | PUSH-IN FITTINGS WEDK 4-M6K FPM |
455-529-048-VS | PUSH-IN FITTINGS WEDK 4-M8x1K NBR |
455-529-048-S8-VS | PUSH-IN FITTINGS WEDK 4-M8x1K FPM |
455-531-048-VS | PUSH-IN FITTINGS WEDK 4-M10x1K NBR |
455-531-048-S8-VS | PUSH-IN FITTINGS WEDK 4-M10x1K FPM |
455-569-048-VS | PUSH-IN FITTINGS WEDK 4-R1/8K NBR |
455-529-068-VS | PUSH-IN FITTINGS WEDK 6-M8x1K NBR |
455-529-068-S8-VS | PUSH-IN FITTINGS WEDK 6-M8x1K FPM |
455-531-068-VS | PUSH-IN FITTINGS WEDK 6-M10x1K NBR |
455-531-068-S8-VS | PUSH-IN FITTINGS WEDK 6-M10x1K FPM |
455-546-068-VS | PUSH-IN FITTINGS WEDK 6-M6x1K NBR |
455-565-068-VS | PUSH-IN FITTINGS WEDK 6-R1/4K FPM |
Locking pin | |
450-204-002 | CLOSURE PLUG D4 MS FOR PUSH-IN FITT. |
450-206-002 | CLOSURE PLUG D6 MS FOR PUSH-IN FITT. |
