MKH-SAE210 High-Pressure Ball Valve Sizing & Material Database

Welcome to the definitive Fitsch hydraulic ball valve database, your primary technical reference for the MKH-SAE210 series ball valve product line. This comprehensive engineering catalog provides exact dimensional scaling and raw physical configurations for heavy-duty 2-way block-type fluid components. [1, 2]

When searching for a high pressure 2 way block ball valve catalog, system designers must balance line velocity against metallurgy. Use the data metrics below to quickly calculate your installation footprint and submit a high pressure flange ball valve manufacturer RFQ directly via the Fitsch Main Hub Platform. [1]

SAE 3000 PSI Flange Ball Valve Dimensions

The MKH series conforms strictly to standard SAE code 61 flange ball valve sizes across all physical builds. The following index outlines the complete structural matrix for DN13 to DN50 hydraulic ball valve specifications, mapping the core nominal size to its standard industrial pipeline footprint. [1, 2]

MKH-SAE210 Physical Sizing Index

• MKH-SAE210-13-xxxx

  • Nominal Size: DN13 (1/2" Equivalent Pipe Size)

  • Internal Fluid Bore: 13 mm

  • Connection Layout: Standard SAE 1/2" Flange (Code 61 / 210 Bar Max) [1]

• MKH-SAE210-20-xxxx

  • Nominal Size: DN20 (3/4" Equivalent Pipe Size)

  • Internal Fluid Bore: 20 mm

  • Connection Layout: Standard SAE 3/4" Flange (Code 61 / 210 Bar Max)

• MKH-SAE210-25-xxxx

  • Nominal Size: DN25 (1" Equivalent Pipe Size)

  • Internal Fluid Bore: 25 mm

  • Connection Layout: Standard SAE 1" Flange (Code 61 / 210 Bar Max) [1]

• MKH-SAE210-32-xxxx

  • Nominal Size: DN32 (1-1/4" Equivalent Pipe Size)

  • Internal Fluid Bore: 32 mm

  • Connection Layout: Standard SAE 1-1/4" Flange (Code 61 / 210 Bar Max)

• MKH-SAE210-40-xxxx

  • Nominal Size: DN40 (1-1/2" Equivalent Pipe Size)

  • Internal Fluid Bore: 40 mm

  • Connection Layout: Standard SAE 1-1/2" Flange (Code 61 / 210 Bar Max)

• MKH-SAE210-50-xxxx (Original Base Unit Model: MKH-SAE210-50-4414)

  • Nominal Size: DN50 (2" Equivalent Pipe Size)

  • Internal Fluid Bore: 48 mm

  • Connection Layout: Standard SAE 2" Flange (Code 61 / 210 Bar Max)

Hydraulic Ball Valve Material Configuration Code

The trailing four digits of any MKH part number represent the exact internal metallurgy, seat compounds, and elastomeric seals. Decoding this hydraulic ball valve material configuration code ensures your selected assembly handles local pressures, working ambient heat, and media chemistry without experiencing rapid seal degradation.

When evaluating a stainless steel vs carbon steel hydraulic ball valve deployment, use this direct material comparison block to select the ideal suffix for your environment:

1. Suffix 4414 / 4428 (Premium Stainless Steel)

• Composition: Stainless Steel Body & Trim, POM Ball Seats, FKM (Viton) O-Rings.

• Typical Industrial Applications: High-volume chemical refining processors, offshore marine piping, corrosive chemical injection lines, and high-temperature synthetic fluid transport.

2. Suffix 4413 / 442A (Marine-Grade Stainless Steel)

• Composition: Stainless Steel Body & Trim, POM Ball Seats, NBR (Nitrile) O-Rings.

• Typical Industrial Applications: High-pressure reverse osmosis water systems, industrial municipal wastewater pumping, and coastal pneumatic control manifolds.

3. Suffix 1128 (Premium Carbon Steel)

• Composition: High-Tensile Carbon Steel Body, POM Ball Seats, FKM (Viton) O-Rings.

• Typical Industrial Applications: Heavy-duty forge presses, plastics injection molding high-pressure main lines, and factory automation systems running premium phosphate-ester fluids.

4. Suffix 112A (Standard Carbon Steel)

• Composition: High-Tensile Carbon Steel Body, POM Ball Seats, NBR (Nitrile) O-Rings.

• Typical Industrial Applications: Cost-effective pilot lines, construction machinery circuits, agricultural equipment, and standard mineral oil-based hydraulic loops.

Interchangeability & Compliance Reference

For facilities managing existing European or domestic plant hardware, this catalog offers a seamless MHA Zentgraf MKHP SAE cross reference path. The external physical bolt profiles, block lengths, and connection configurations are fully interchangeable with existing commercial metric or imperial UNC infrastructure. [1]

To download primary technical compliance layout diagrams, source companion flange mates, or look up comprehensive dimensional tables, browse the official digital knowledge hubs:

• Core Series Data: Fitsch 2-Way SAE Flange Connections Index

• Diverter Variants: Fitsch 3-Way Hydraulic Ball Valve Catalog

• Full Catalog Range: Fitsch Complete Ball Valve Portfolio

• Flange Assemblies: Fitsch SAE Flange Fittings Collection

• Block Adapters: Fitsch SAE Flange Adapters Database

• System Hardware: Fitsch Hydraulic Accessories Hub

• Printable Specs: Fitsch Document Download Center

MKH-SAE210 High-Pressure Ball Valve Sizing & Material Database

This reference data breakdown details the complete MKH-SAE210 Series (SAE 3000 PSI / 210 Bar) nomenclature, mapping every nominal pipe size to its corresponding Fitsch Hydraulic Ball Valve Catalog material matrices. This structure aligns directly with technical configurations featured across Fitsch 2-Way SAE Flange Connections. [1, 2]

DN13 — 1/2" Nominal Pipe Size

• MKH-SAE210-13-4414 / 4428

  • Material Combination: Stainless Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: High-temp oil circuits, chemical processing, offshore marine piping, corrosive chemical injection lines.

• MKH-SAE210-13-4413 / 442A

  • Material Combination: Stainless Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Water-glycol cooling loops, coastal pneumatic control systems, general water lines.

• MKH-SAE210-13-1128

  • Material Combination: Carbon Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Standard high-pressure industrial hydraulics running synthetic fluids or phosphate-ester oils.

• MKH-SAE210-13-112A

  • Material Combination: Carbon Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Cost-effective pilot lines, construction machinery, and mineral oil-based hydraulic test benches.

DN20 — 3/4" Nominal Pipe Size

• MKH-SAE210-20-4414 / 4428

  • Material Combination: Stainless Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Auxiliary maritime hydraulic steering, chemical refining, high-temp fluid transport.

• MKH-SAE210-20-4413 / 442A

  • Material Combination: Stainless Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: High-pressure washdown systems, industrial manufacturing cooling blocks.

• MKH-SAE210-20-1128

  • Material Combination: Carbon Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Auxiliary factory automation pressure lines, specialized vehicle hydraulic machinery.

• MKH-SAE210-20-112A

  • Material Combination: Carbon Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Medium-flow agricultural equipment, material handling machinery, mineral oil circuits.

DN25 — 1" Nominal Pipe Size

• MKH-SAE210-25-4414 / 4428

  • Material Combination: Stainless Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Marine hydraulic thrusters, severe-service chemical transfer, offshore oil platforms.

• MKH-SAE210-25-4413 / 442A

  • Material Combination: Stainless Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: High-pressure reverse osmosis water systems, marine bilge and ballast fluid lines.

• MKH-SAE210-25-1128

  • Material Combination: Carbon Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Primary hydraulic power unit (HPU) control, steel mill automation, heavy-duty industrial machinery.

• MKH-SAE210-25-112A

  • Material Combination: Carbon Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Standard manufacturing assembly lines, earth-moving plant machinery primary return lines.

DN32 — 1-1/4" Nominal Pipe Size

• MKH-SAE210-32-4414 / 4428

  • Material Combination: Stainless Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Petrochemical main bypass lines, specialized marine winch hydraulic feeds.

• MKH-SAE210-32-4413 / 442A

  • Material Combination: Stainless Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Industrial municipal wastewater pumping, large-scale plant process water control.

• MKH-SAE210-32-1128

  • Material Combination: Carbon Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Heavy-duty forge presses, plastics injection molding high-pressure main lines.

• MKH-SAE210-32-112A

  • Material Combination: Carbon Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Large mining hydraulic systems, primary infrastructure fluid supply links.

DN40 — 1-1/2" Nominal Pipe Size

• MKH-SAE210-40-4414 / 4428

  • Material Combination: Stainless Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: High-volume chemical refining processors, offshore subsea manifolds.

• MKH-SAE210-40-4413 / 442A

  • Material Combination: Stainless Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Pulp and paper mill bulk liquid loops, marine cooling mainlines.

• MKH-SAE210-40-1128

  • Material Combination: Carbon Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Large industrial die-casting machines, central hydraulic power sub-stations.

• MKH-SAE210-40-112A

  • Material Combination: Carbon Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Massive infrastructure pumping operations, bulk mineral oil transfer networks.

DN50 — 2" Nominal Pipe Size

• MKH-SAE210-50-4414 / 4428

  • Material Combination: Stainless Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Bulk offshore chemical supply pipes, high-volume corrosive fluid processing, heavy shipyard power grids.

• MKH-SAE210-50-4413 / 442A

  • Material Combination: Stainless Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Ship-to-shore fresh water transfer, central chilling infrastructure flow blocks.

• MKH-SAE210-50-1128

  • Material Combination: Carbon Steel Body & Ball, POM Seats, FKM (Viton) Seals.

  • Typical Applications: Primary high-volume hydraulic return lines for massive steel production lines, large industrial presses.

• MKH-SAE210-50-112A

  • Material Combination: Carbon Steel Body & Ball, POM Seats, NBR (Nitrile) Seals.

  • Typical Applications: Heavy mining loaders main flow controls, central mineral oil hydraulic power distribution loops.

Reference and Sourcing Links

For engineering dimensions, manufacturing compliance drawings, and RFQ placement:

• Primary Catalog Matrix: Fitsch 2-Way SAE Flange Connections Index

• Manufacturing Sourcing & RFQ: Fitsch Main Hub Platform

• Multi-Size Technical Literature: Fitsch Complete Ball Valve Range Overview

Would you like me to generate a ready-to-send Request for Quote (RFQ) email template directed to the Fitsch Sourcing and Supply Team for any specific part number and quantity from this database?

Introduction to the MKH-SAE210-50-4414 High-Pressure Ball Valve

The part number MKH-SAE210-50-4414 designates a commercial-grade, high-pressure 2-way block ball valve engineered primarily for severe-duty industrial and hydraulic systems. Designed to handle demanding operational environments, this specific model alphanumeric code acts as a comprehensive blueprint. Each distinct segment of the part number serves as an indication of its mechanical footprint, pressure rating, physical size, and chemical compatibility.

Understanding how this series is indexed allows engineers and procurement specialists to quickly decipher the valve’s exact structural characteristics:

[ MKH ] — [ SAE210 ] — [ 50 ] — [ 4414 ]

   |          |          |         |
 Valve     Pressure     Size    Material
 Type       Rating     (DN50)     Code

• Valve Series Type (MKH): Indicates the core design framework, identifying it as a 2-way high-pressure block-style ball valve built for bi-directional flow control.

• Pressure Class (SAE210): Defines the connection style and maximum workload. It conforms to SAE J518 (Code 61) standards, rated for a working pressure of 210 bar (3,000 PSI).

• Nominal Diameter (50): Specifies the internal bore sizing of DN50, which translates to a standard 2-inch fluid pathway.

• Material Matrix (4414): The final four digits dictate the metallurgy and internal sealing elements. The 44 prefix denotes a robust Stainless Steel body and internal trim (typically 1.4571 / 316Ti), paired with a 1 for heavy-duty POM (Polyacetal) friction-reducing ball seats, and a final 4 for premium FKM (Viton) sealing O-rings.

By adjusting any individual segment of this standard indication, the series transforms to accommodate different industrial media, bolt thread pitches (Metric vs. UNC), or lower-cost carbon steel alternatives while maintaining the same physical geometry.

The alternative material part numbers for this specific DN50 (2") SAE 3000 (210 bar) configuration are organized below by body material:

Stainless Steel Body Series

These versions retain the high corrosion resistance of a stainless steel block body (typically 1.4571 / 316Ti) but change internal seals or seats:

• MKH-SAE210-50-4414: Your original configuration. Built with Stainless Steel body/trim, POM seats, and FKM (Viton) seals. Perfect for universal chemical, fluid, and high-temp oil lines.

• MKH-SAE210-50-4413: Swaps the internal O-rings to NBR (Nitrile). Best for water-glycol, air, and standard hydraulic mineral oils where Viton isn't required. [1]

• MKH-SAE210-50-4428: Built with Stainless Steel body/trim, POM seats, and FKM (Viton) seals. [1]

• MKH-SAE210-50-442A: Uses Stainless Steel body/trim, POM seats, and NBR (Nitrile) seals. [1]

• MKH-SAE210-50-4464 (PEEK / ATEX): Features high-temperature PEEK ball seats paired with FKM seals. Engineered for severe extreme-temperature environments or chemical processing. [1]

Carbon Steel Body Series

If the environment does not require stainless steel, shifting to a high-tensile Carbon Steel block drastically lowers unit costs for standard hydraulic systems: [1]

• MKH-SAE210-50-1128: Constructed with a Carbon Steel body, POM seats, and FKM (Viton) seals. A standard default line item for premium high-pressure hydraulic circuits.

• MKH-SAE210-50-112A: Constructed with a Carbon Steel body, POM seats, and NBR (Nitrile) seals. The most common cost-effective choice for industrial mineral-oil hydraulic systems. [1, 2]

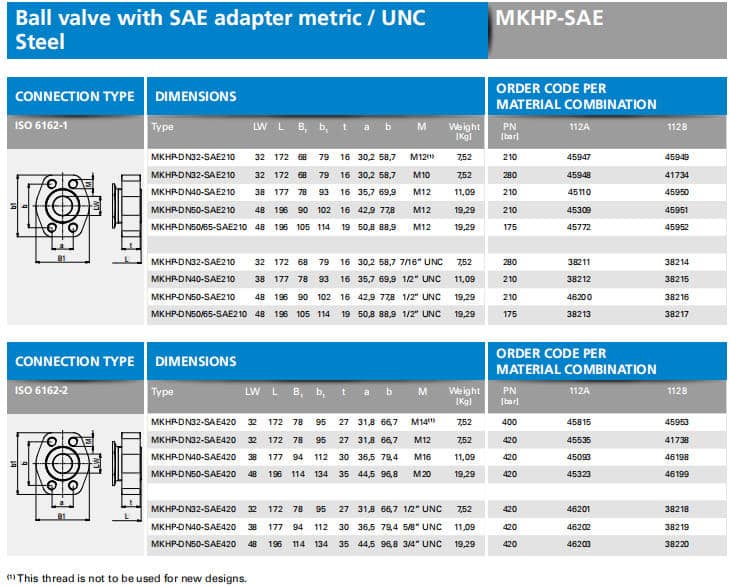

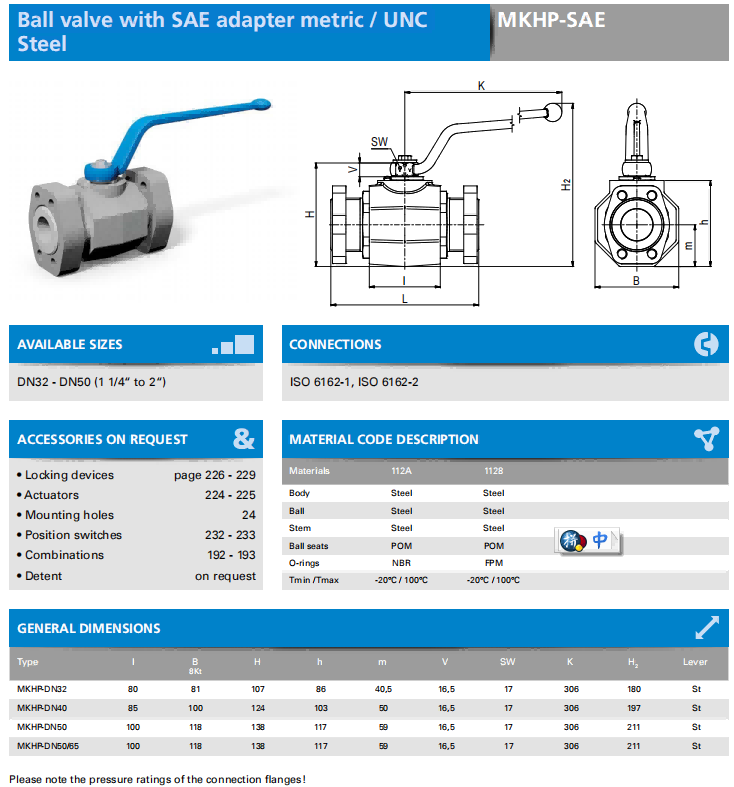

MKHP-SAE Ball Valve with SAE Adapter — Product Model List

Steel Body

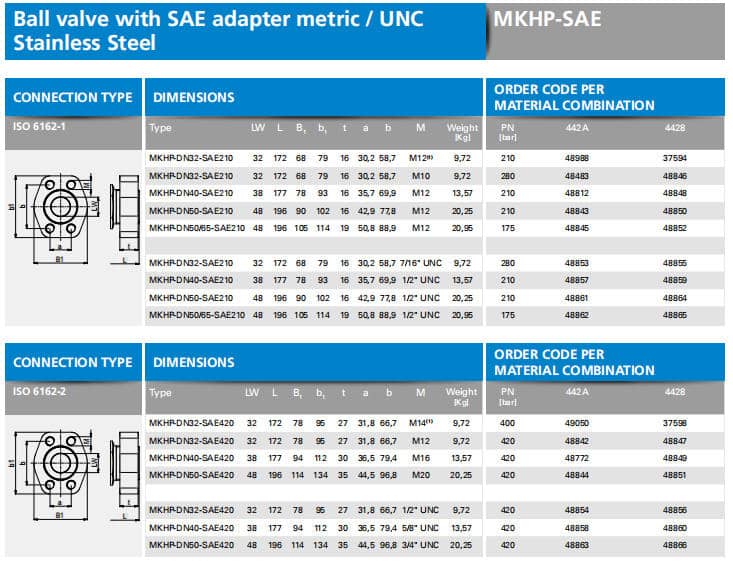

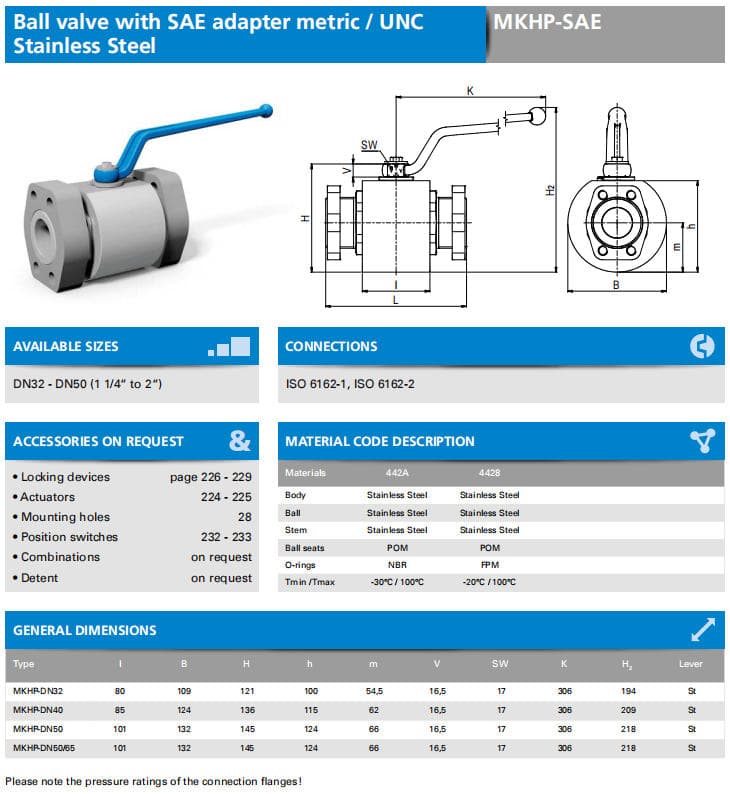

Stainless Steel Body

Notes:

• Material codes: 112A = Steel body / Ball / Stem, POM seats, NBR seal (−20°C/100°C); 1128 = Steel, POM seats, FPM seal (−20°C/100°C). 442A = Stainless Steel body/ball/stem, POM seats, NBR seal (−30°C/100°C); 4428 = Stainless Steel, POM seats, FPM seal (−20°C/100°C).

• Available sizes: DN32 – DN50 (1¼" to 2").

• Lever type: St (standard) for all models.

• Footnote (¹): UNC threads marked on the original catalog are not to be used for new designs.
