Wind Turbine Hydraulic Fittings: Ensuring Reliability in Renewable Energy Systems

Wind turbines are engineering marvels that convert kinetic energy into clean electricity. At the heart of their operation lie hydraulic systems, responsible for critical functions like blade pitch control, braking, and yaw rotation. Hydraulic fittings—small but vital components—ensure leak-free connections, pressure integrity, and system reliability in harsh environments. This guide explores their importance, types, and best practices for maximizing wind turbine efficiency.


Why Hydraulic Fittings Matter in Wind Turbines

Wind turbines operate under extreme conditions:

  • High Pressure: Hydraulic systems in pitch control often exceed 3,000 psi.

  • Temperature Swings: From freezing winters to scorching summers.

  • Vibration & Dynamic Loads: Constant motion strains connections.

  • Corrosion Risks: Offshore turbines face saltwater exposure.

Hydraulic fittings prevent leaks, maintain pressure, and ensure seamless power transmission. A single faulty fitting can lead to system failure, costly downtime, or environmental hazards.


Types of Hydraulic Fittings for Wind Turbines

1. Threaded Fittings

  • JIC (Joint Industry Council): 37-degree flare fittings for high-pressure applications (e.g., blade pitch systems).

  • SAE Straight Thread: O-ring seals for vibration resistance.

  • NPT (National Pipe Tapered): Common in low-pressure hydraulic lines.

2. Flange Fittings

  • Ideal for large-diameter hoses in main hydraulic lines.

  • Withstand pressures up to 6,000 psi.

3. Quick-Connect Couplings

  • Enable fast assembly/disassembly for maintenance.

  • Often used in yaw and braking systems.

4. Banjo Fittings

  • Compact design for tight spaces in gearbox lubrication systems.

5. DIN Compression Fittings

  • Design: DIN-standardized fittings (e.g., DIN 2353) feature a two-ferrule design that compresses onto the tube for a secure, leak-proof connection.

  • Applications: Widely used in European wind turbines and high-pressure hydraulic lines due to their vibration resistance and durability.

  • Advantages: Ideal for systems requiring precise alignment and resistance to thermal cycling.


Key Features of High-Performance Wind Turbine Fittings

  • Material: Stainless steel, carbon steel, or brass with anti-corrosion coatings (e.g., zinc-nickel).

  • Pressure Rating: Match to system requirements (3,000–6,000 psi).

  • Sealing Technology: Double ferrule, O-rings, or bonded seals to prevent leaks.

  • Vibration Resistance: Swivel nuts, locking collars, or DIN 2353 compression designs to combat turbine motion.

  • Certifications: Compliance with DIN 2353, ISO 6162, or SAE J514 ensures adherence to rigorous performance and safety standards.


Applications in Wind Turbine Hydraulics

  1. Blade Pitch Control: Adjusts blade angles to optimize energy capture.

  2. Yaw Systems: Rotates the nacelle to face wind direction.

  3. Hydraulic Braking: Safely stops turbine rotation during storms or maintenance.

  4. Cooling & Lubrication: Manages gearbox and generator temperatures.


Choosing the Right Hydraulic Fittings

Critical Selection Factors

  • Compatibility: Match fitting type to hose/port specifications (e.g., JIC, SAE, DIN).

  • Environmental Conditions: Offshore turbines require corrosion-resistant materials like stainless steel with DIN 2353 compliance.

  • Certifications: For turbines in Europe or systems prioritizing precision, specify DIN-compliant fittings (e.g., DIN 2353 for compression fittings).

  • Supplier Expertise: Partner with manufacturers experienced in renewable energy systems.

Common Pitfalls to Avoid

  • Using mismatched thread types (e.g., NPT with JIC).

  • Overlooking torque specifications during installation.

  • Ignoring vibration-proofing features like DIN 2353’s compression grip.


Maintenance Best Practices

  • Regular Inspections: Check for leaks, corrosion, or loose fittings during routine maintenance.

  • Torque Checks: Use calibrated tools to ensure proper tightness, especially for DIN fittings requiring precise compression.

  • Replace Worn Seals: Prevent leaks by upgrading O-rings and gaskets.

  • Pressure Testing: Validate system integrity after component replacements.

Pro Tip: Keep a spare fittings kit on-site to minimize downtime during repairs.


FAQs

Q: Can standard hydraulic fittings be used in wind turbines?
A: No. Wind turbines require specialized fittings rated for extreme pressure, vibration, and environmental resistance.

Q: What are DIN hydraulic fittings?
A: DIN fittings follow German industrial standards, such as DIN 2353, known for robust compression connections in high-pressure, high-vibration environments like wind turbines.

Q: How often should hydraulic fittings be replaced?
A: Inspect every 6–12 months; lifespan depends on conditions but typically 5–10 years.

Q: Are reusable fittings suitable for wind turbines?
A: Yes, but ensure they meet pressure and vibration standards (e.g., DIN 2353) to avoid failure.


Conclusion

Hydraulic fittings are the unsung heroes of wind turbine reliability, ensuring precision and safety in demanding environments. By selecting high-quality, corrosion-resistant fittings—including DIN-standardized options—and adhering to strict maintenance protocols, operators can enhance turbine uptime, reduce repair costs, and support sustainable energy production.

Prioritize quality—partner with trusted suppliers and invest in fittings engineered for renewable energy challenges, such as DIN 2353-certified compression designs.

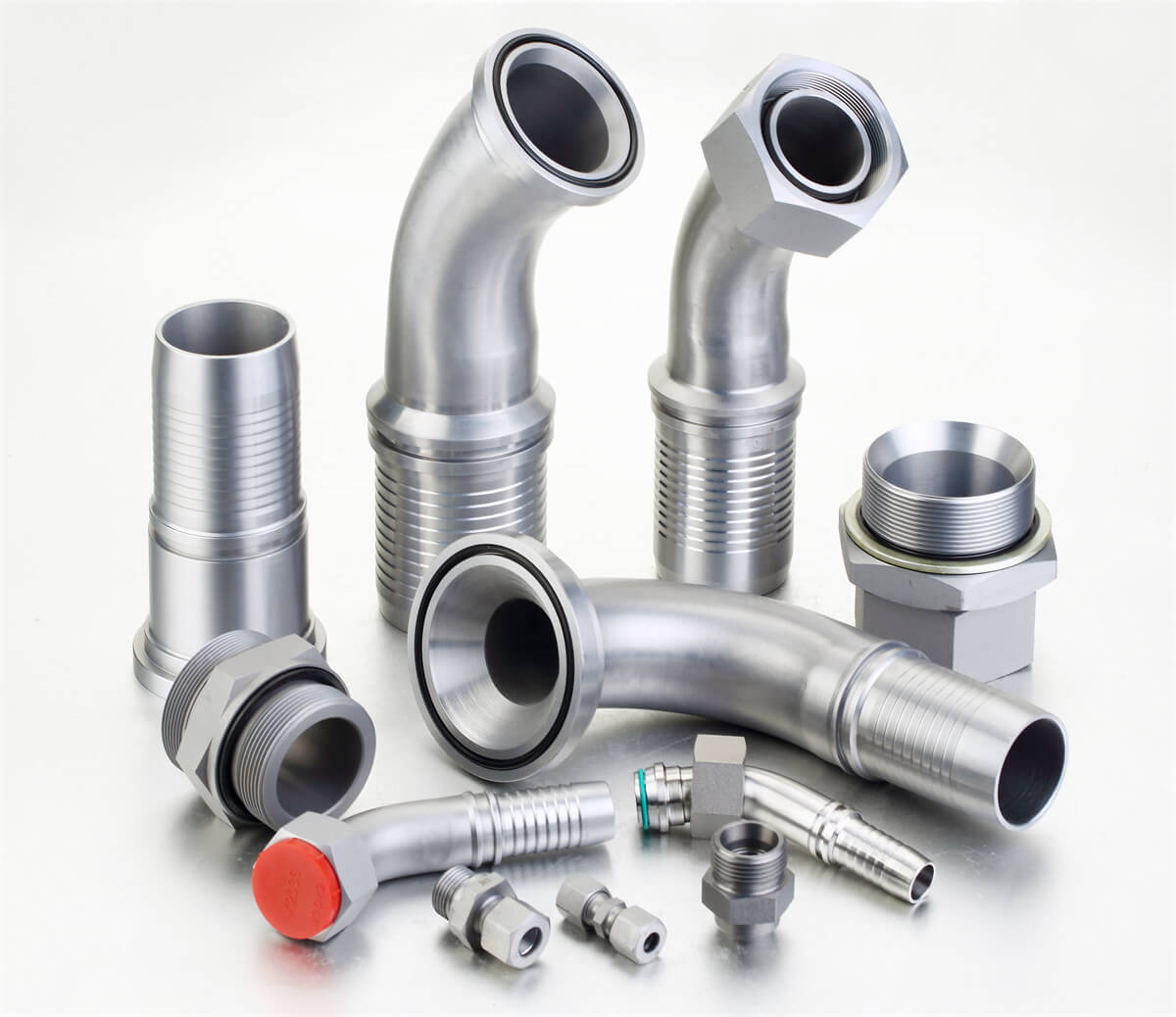

Wind turbine hydraulic fittings
