Introduction
In industries where reliability and precision are non-negotiable, DIN standard cutting ring fittings have become the gold standard for leak-free, high-pressure fluid and gas connections. Designed to meet rigorous German Institute for Standardization (DIN) specifications, these fittings ensure uniformity, durability, and compatibility across global markets. This guide explores everything you need to know about DIN cutting ring fittings, including their design, applications, and advantages over conventional compression fittings.

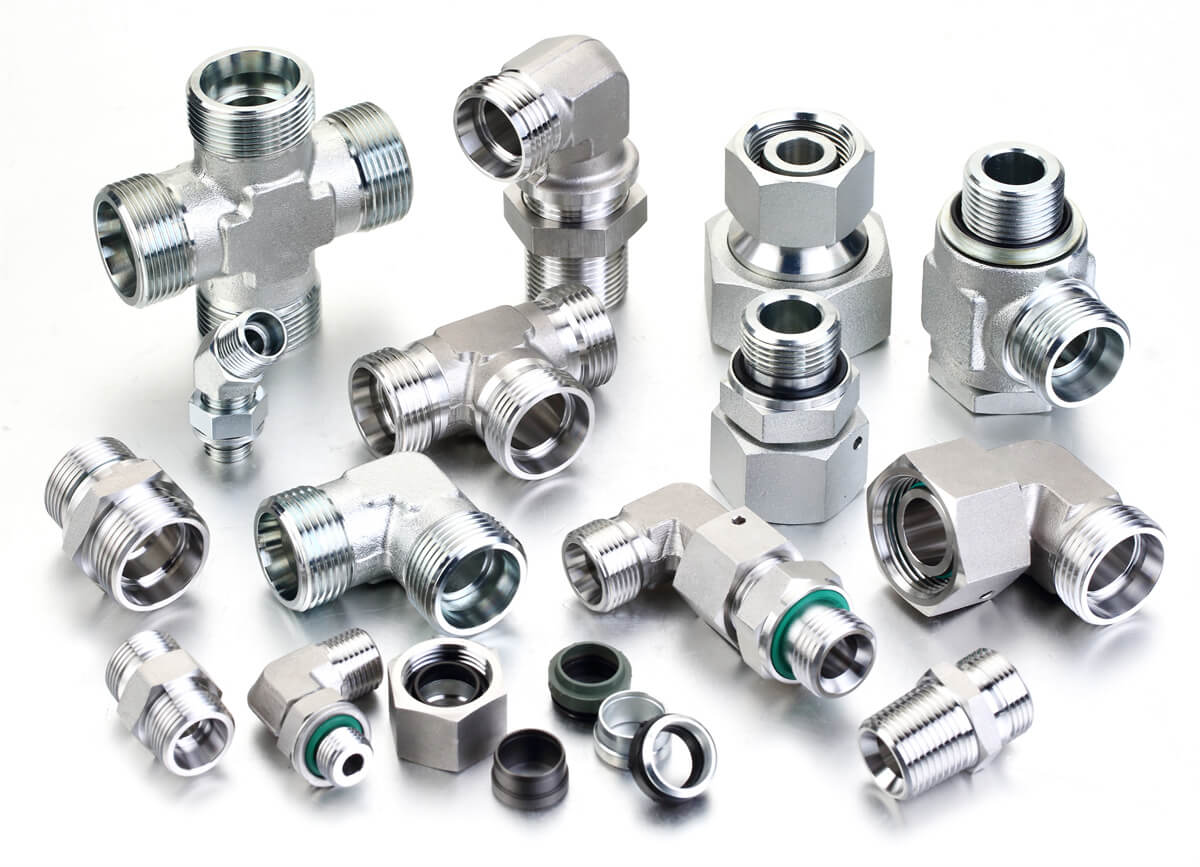

What Are DIN Standard Cutting Ring Fittings?
DIN standard cutting ring fittings are compression connectors used to join tubing in hydraulic, pneumatic, and process systems. They adhere to strict DIN norms, most notably DIN 2353, which defines their dimensions, materials, and performance criteria. These fittings consist of three components:
Body: Connects to the system via metric or BSPP threads.
Cutting Ring: A sharp-edged ring that bites into the tubing to form a metal-to-metal seal.
Hex Nut: Compresses the cutting ring onto the tube during installation.
Common materials include stainless steel (for corrosion resistance) and brass (for lower-pressure applications).
Key Features and Components
DIN 2353 Series: Divided into Light (L), Medium (S), and Heavy (H) series to match pressure requirements (up to 400 bar for stainless steel).
Metric Sizing: Designed for metric tubing (e.g., 6x1 mm, 12x1.5 mm).
Pressure Ratings: Vary by material and series, with stainless steel handling the highest pressures.
Reusability: Cutting rings can often be reused if undamaged, reducing maintenance costs.
Applications of DIN Cutting Ring Fittings
These fittings are trusted in demanding environments, including:
Hydraulic Systems: Excavators, presses, and manufacturing machinery.
Pneumatic Systems: Factory automation and compressed air lines.
Industrial Process Lines: Coolant, fuel, lubrication, and chemical transfer.
Gas Distribution: Safe connections for natural gas and propane.
Benefits of Using DIN-Compliant Fittings
Leak-Free Performance: The cutting ring’s bite ensures a secure, permanent seal.
High Pressure Capability: Ideal for hydraulic systems requiring 400+ bar.
Interchangeability: DIN standards guarantee compatibility across brands like Parker and Stauff.
Quick Installation: No flaring, soldering, or welding required.
Durability: Resistant to vibration, temperature fluctuations, and corrosion.
Installation Best Practices
Tube Preparation: Cut tubing squarely and deburr edges to ensure a clean fit.
Assembly: Slide the nut and cutting ring onto the tube before inserting it into the fitting body.
Tightening: Tighten the nut 1.25–1.5 turns past hand-tight using a torque wrench (refer to manufacturer specs).
Inspection: Check for proper tube insertion and avoid over-tightening to prevent deformation.
DIN vs. Other International Standards
While DIN 2353 is dominant in Europe, other standards include:
ISO 8434-1: Similar to DIN but with broader international recognition.
SAE J514: Common in North America, using NPT/SAE threads and imperial sizing.
BSPP: British standard parallel threads often paired with DIN fittings.
Key Differences:
Thread Types: DIN uses metric/BSPP; SAE uses NPT.
Tubing Compatibility: DIN requires metric sizing, unlike SAE’s imperial tubes.
Pressure Ratings: DIN’s heavy series outperforms many SAE equivalents.
Troubleshooting Common Issues
Leaks: Ensure the tube is fully inserted and the cutting ring isn’t damaged.
Over-Tightening: Can crack softer tubing like copper—follow torque guidelines.
Material Incompatibility: Use stainless steel for corrosive fluids; brass for non-aggressive media.
FAQ
Q: What is DIN 2353?
A: The primary standard for metric compression fittings, specifying dimensions and pressure ratings for cutting ring designs.
Q: Can DIN fittings be reused?
A: Yes, if the cutting ring and tubing are undamaged. Replace components in critical systems.
Q: How do I choose between Series L, S, and H?
A: Match the series to your pressure needs: Light (low), Medium (moderate), Heavy (high-pressure hydraulics).
Q: Are DIN fittings compatible with non-metric tubing?
A: No—they require metric-sized tubes. Use adapters for imperial systems.
Q: How to prevent leaks in DIN fittings?
A: Follow installation steps precisely, use DIN-compliant tubing, and avoid reusing damaged rings.
Fitsch Conclusion
DIN standard cutting ring fittings offer unmatched reliability for high-pressure industrial systems. Their standardized design, ease of installation, and robust performance make them indispensable in sectors like manufacturing, construction, and energy. By adhering to DIN 2353 guidelines and selecting the right series for your application, you can ensure leak-free operation and long-term system integrity.
Fitsch is professional supplier of DIN cutting ring fittings, can provide standard parts interchangeable into these brands:
Top Global Manufacturers of DIN Standard Cutting Ring Fittings
DIN-standard cutting ring fittings are widely used in high-pressure hydraulic, pneumatic, and industrial systems. Leading manufacturers combine precision engineering, material expertise, and strict adherence to DIN norms (e.g., DIN 2353) to deliver reliable, leak-free solutions. Below are the top global manufacturers renowned for quality and innovation:
Key Strengths: Global leader in motion and control technologies.
Product Range: DIN 2353 series (light, medium, heavy) in stainless steel, brass, and carbon steel.
Specialization: High-pressure hydraulic systems and corrosion-resistant solutions.
Why Choose Parker: Extensive distribution network, ISO-certified manufacturing, and custom engineering support.
Website: parker.com
Key Strengths: Power management and hydraulic solutions giant.
Product Range: DIN-compliant cutting ring fittings for hydraulics, pneumatics, and process industries.
Specialization: Heavy-duty hydraulic systems (Series H) with pressure ratings up to 400 bar.
Why Choose Eaton: Robust R&D, sustainability-focused designs, and global technical support.
Website: eaton.com
Key Strengths: German precision engineering with a focus on DIN standards.
Product Range: Full range of DIN 2353 fittings, including specialty alloys for extreme environments.
Specialization: Compact, space-saving designs for machinery and mobile equipment.
Why Choose Stauff: Made in Germany quality, compliance with ISO 8434-1, and corrosion-resistant coatings.
Website: stauff.com
Key Strengths: Premium fluid system components with a reputation for durability.
Product Range: DIN 2353-compatible fittings, adapters, and manifolds.
Specialization: High-purity and ultra-high-pressure (UHP) applications in oil/gas and semiconductors.
Why Choose Swagelok: Rigorous testing, leak-free guarantees, and custom configuration services.
Website: swagelok.com
