Introduction
In the world of hydraulic systems, ensuring leak-free connections under extreme pressure is paramount. ORFS hydraulic fittings have emerged as a top choice for industries demanding reliability and durability. This guide dives deep into ORFS (O-Ring Face Seal) hydraulic fittings, exploring their design, benefits, applications, and best practices for installation.

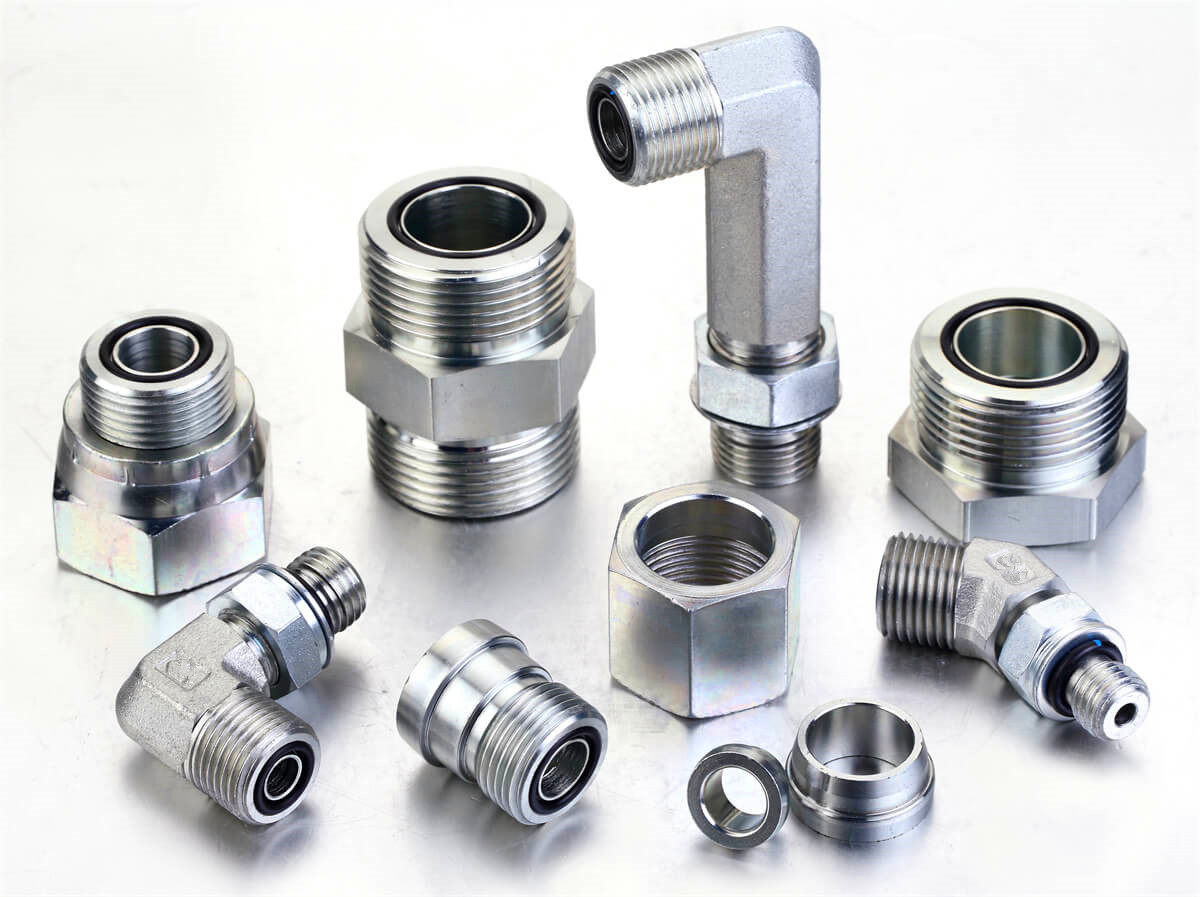

What Are ORFS Hydraulic Fittings?
ORFS stands for O-Ring Face Seal, a fitting designed to eliminate leaks through a unique sealing mechanism. Unlike traditional threaded fittings, ORFS fittings feature a flat face with an embedded O-ring that compresses against a mating surface, creating a robust seal ideal for high-pressure environments.

Key Features of ORFS Fittings

1. O-Ring Seal: A synthetic rubber or elastomer O-ring positioned in a groove on the fitting’s face ensures a leak-proof connection.

2. Flat Face Design: The smooth, flat surface maximizes contact with the mating component, enhancing seal integrity.

3. Material Variety: Commonly made from stainless steel, carbon steel, or brass, offering corrosion resistance and adaptability to diverse environments.

4. SAE J1453 Compliance: Adheres to strict industry standards for dimensions and performance, ensuring compatibility and reliability.

Advantages of ORFS Hydraulic Fittings

• Superior Leak Prevention: The compressed O-ring outperforms metal-to-metal seals, especially in dynamic applications.

• High-Pressure Tolerance: Rated up to 6,000 PSI, suitable for demanding hydraulic systems.

• Vibration Resistance: Maintains seal integrity in high-vibration environments like construction machinery.

• Reusability: Fittings can be disassembled and reused with O-ring replacement, reducing long-term costs.

• Chemical Compatibility: Choose O-ring materials (e.g., Nitrile, Viton) to match fluid type and temperature.

Common Applications
ORFS fittings are indispensable in industries where failure is not an option:

• Construction: Excavators, loaders, and cranes reliant on hydraulic power.

• Agriculture: Tractors and harvesters operating under harsh conditions.

• Manufacturing: High-pressure machinery requiring precise fluid control.

• Oil & Gas: Drilling equipment and hydraulic fracturing systems.

• Automotive: Braking and suspension systems in heavy-duty vehicles.

Installation Best Practices

1. Inspect Components: Check for damaged O-rings or scratches on the sealing surface.

2. Clean Surfaces: Remove debris to ensure a proper seal.

3. Align Carefully: Misalignment can cause uneven O-ring compression and leaks.

4. Torque Correctly: Use a torque wrench to avoid under- or over-tightening (refer to manufacturer specs).

5. Regular Maintenance: Periodically inspect O-rings for wear and replace as needed.

ORFS vs. Other Fitting Types

• JIC Fittings: Use a metal-to-metal seal but lack the vibration resistance of ORFS.

• NPT Fittings: Tapered threads can gall and leak under vibration; ORFS offers a more reliable seal.

• SAE Flare: Similar to JIC but less effective in high-pressure scenarios compared to ORFS.

FITSCH Conclusion
ORFS hydraulic fittings are a game-changer for industries prioritizing efficiency and safety. Their innovative O-ring face seal design, combined with high-pressure capability and reusability, makes them a cost-effective solution for modern hydraulic systems. By following proper installation and maintenance protocols, ORFS fittings can significantly enhance system performance and longevity.
