In hydraulic systems, where pressures soar and failures can lead to costly downtime, hydraulic test point fittings are critical for efficient diagnostics and maintenance. These specialized components allow technicians to safely monitor pressure, detect leaks, and troubleshoot without dismantling complex machinery. This guide explores their design, benefits, and best practices for optimizing hydraulic system performance.


What Are Hydraulic Test Point Fittings?

Hydraulic test point fittings are compact, threaded ports integrated into hydraulic systems to provide temporary access for pressure gauges, sensors, or diagnostic tools. Unlike general-purpose test points, they are engineered to withstand extreme pressures (often exceeding 5,000 PSI) and harsh hydraulic fluids, ensuring reliability in demanding environments.

Key Features

  • High-Pressure Design: Rated for 3,000–10,000 PSI, tailored for hydraulic applications.

  • Robust Materials: Stainless steel or carbon steel for corrosion resistance against hydraulic oils and additives.

  • Sealing Mechanisms: O-rings, ball valves, or self-sealing poppets to prevent leaks under high pressure.

  • Standardized Threads: Compatible with SAE, NPT, BSPP, or metric threads for seamless integration.

  • Compact Build: Space-saving design for installation in confined hydraulic manifolds or lines.


Why Hydraulic Test Point Fittings Matter

  1. Enhanced Safety

    • Safely bleed pressure before maintenance, reducing the risk of fluid injection injuries.

    • Minimize exposure to high-pressure hydraulic oil during testing.

  2. Reduced Downtime

    • Quickly diagnose issues like pressure drops, pump failures, or valve malfunctions.

    • Avoid system disassembly, saving hours of labor in complex hydraulic setups.

  3. Contamination Control

    • Sealed ports block dirt, moisture, and airborne particles from entering the system.

    • Critical for hydraulic systems, where contamination accelerates wear on pumps and valves.

  4. Data-Driven Maintenance

    • Enable routine pressure checks for predictive maintenance, extending component lifespan.

    • Integrate with digital sensors for real-time monitoring in smart hydraulic systems.


Common Applications

Hydraulic test point fittings are vital in industries reliant on high-pressure fluid power:

  • Construction Equipment: Excavators, bulldozers, and cranes.

  • Agricultural Machinery: Tractors, harvesters, and irrigation systems.

  • Industrial Presses: Metal-forming and injection molding machines.

  • Mining & Forestry: Hydraulic drills, log splitters, and heavy-duty loaders.

  • Mobile Hydraulics: Garbage trucks, fire engines, and aerial lifts.


Types of Hydraulic Test Point Fittings

  1. Ball Valve Style

    • Allows continuous pressure monitoring with a built-in shutoff valve.

    • Ideal for long-term diagnostics.

  2. Poppet Style

    • Self-sealing design closes automatically when tools are disconnected.

    • Prevents fluid loss in high-pressure systems.

  3. Quick-Disconnect (QD) Style

    • Enables tool attachment without depressurizing the system.

    • Popular in mobile hydraulics for fast field testing.


Installation Best Practices

  1. Strategic Placement

    • Install near pumps, valves, cylinders, or actuators for targeted diagnostics.

    • Ensure accessibility in high-vibration environments.

  2. Thread Preparation

    • Use hydraulic-grade thread sealant (e.g., Loctite 545) to prevent leaks.

    • Avoid over-tightening to protect O-rings and threads.

  3. Pressure Ratings

    • Select fittings rated for at least 1.5x the system’s maximum operating pressure.

  4. Routine Checks

    • Inspect seals and threads during maintenance cycles.

    • Replace worn O-rings with compatible materials (e.g., Nitrile for petroleum-based fluids).


Hydraulic Test Points vs. Traditional Methods

  • Bleed Screws: Require manual operation and lack standardized ports for gauges.

  • Tee Fittings: Add unnecessary complexity and potential leak points.

  • Inline Sensors: Costly and permanent compared to reusable test points.
    Hydraulic test point fittings offer a safer, simpler, and more adaptable solution.


Choosing the Right Fitting

  • Material: Stainless steel for corrosive environments; carbon steel for high strength.

  • Fluid Compatibility: Ensure seals resist hydraulic oil, synthetics, or biodegradable fluids.

  • Temperature Range: Verify O-ring materials (e.g., Viton for high heat, EPDM for low temps).

  • Thread Standards: Match existing hydraulic system specs (e.g., SAE J1926).


FITSCH Conclusion

Hydraulic test point fittings are indispensable tools for maintaining the efficiency and safety of high-pressure systems. By enabling rapid diagnostics, reducing contamination risks, and supporting proactive maintenance, they help industries avoid costly breakdowns and extend equipment life. Whether in construction, agriculture, or manufacturing, integrating these fittings ensures your hydraulic systems operate at peak performance. Click here for more products: https://www.fitsch.cn/TEST-POINT-FITTING-ADAPTERS-pl3386519.html

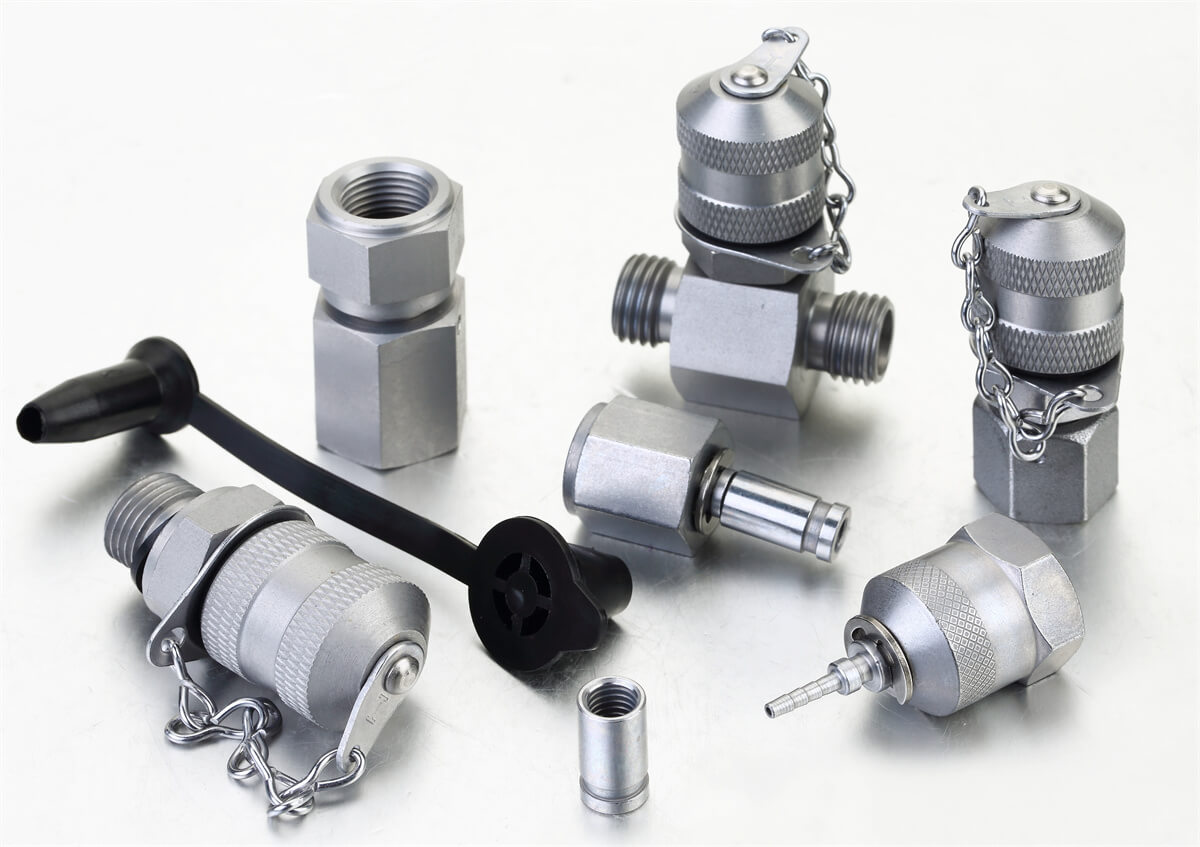

Hydraulic test point fittings connector types



FAQ Section
Q: Can hydraulic test points handle synthetic hydraulic fluids?
A: Yes, but verify O-ring compatibility (e.g., Viton for synthetic oils).

Q: How often should test points be inspected?
A: Check during routine hydraulic maintenance or every 500 operating hours.

Q: Are test points reusable after pressure testing?
A: High-quality fittings can be reused if seals are intact and threads are undamaged.

Upgrade your hydraulic diagnostics with test point fittings – the smart choice for precision and reliability!
