Hydraulic Non-Return Valves: Essential Components for Efficient Fluid Control

Views: 0     Author: Site Editor     Publish Time: 2025-02-02      Origin: Site

Hydraulic Non-Return Valves: Essential Components for Efficient Fluid Control

Hydraulic systems power industries from manufacturing to aerospace, relying on precision components like hydraulic non-return valves (NRVs) to ensure efficiency and safety. These valves, also known as check valves, are critical for controlling fluid direction, preventing costly downtime and damage. This guide explores their function, types, benefits, and best practices for selection and maintenance.

What Are Hydraulic Non-Return Valves?

Hydraulic non-return valves allow fluid to flow in one direction while blocking reverse flow. They come in three primary types:

  1. Spring-Loaded Check Valves: Use a spring mechanism to close against reverse flow; ideal for high-pressure systems.

  2. Swing Check Valves: Feature a hinged disc that swings open with flow; suited for low-pressure, high-volume applications.

  3. Ball Check Valves: Utilize a ball to seal the flow path, common in viscous fluid systems.

How Do Hydraulic Non-Return Valves Work?

NRVs operate passively:

  • Forward Flow: Fluid pressure opens the valve (e.g., compressing a spring or swinging a disc).

  • Reverse Flow: The valve closes automatically, preventing backflow. This mechanism ensures uninterrupted unidirectional flow, crucial for system integrity.

Benefits of Hydraulic Non-Return Valves

  1. Prevent Backflow: Protect pumps and actuators from damage caused by reverse fluid movement.

  2. Maintain Pressure: Ensure consistent hydraulic pressure, optimizing performance.

  3. Enhance Safety: Prevent machinery from unexpected movements due to pressure loss.

  4. Reduce Downtime: Minimize system failures through reliable operation.

  5. Component Longevity: Shield sensitive parts from wear caused by fluid reversals.

Key Applications Across Industries

  • Construction: Keeps hydraulic arms elevated in excavators.

  • Agriculture: Manages directional flow in irrigation and sprayers.

  • Automotive: Ensures brake system reliability.

  • Oil & Gas: Prevents pipeline backflow, safeguarding against spills.

  • Manufacturing: Maintains precision in automated machinery.

Choosing the Right Hydraulic Non-Return Valve

Consider these factors:

  • Flow Rate & Pressure: Match valve specs to system demands.

  • Material Compatibility: Select materials (stainless steel, brass) resistant to fluid corrosion.

  • Valve Type: Spring-loaded for high-pressure; swing for low-pressure.

  • Installation Orientation: Ensure correct alignment (vertical/horizontal).

  • Standards Compliance: Look for ISO or ANSI certifications for regulated industries.

Maintenance Tips for Optimal Performance

  • Regular Inspections: Check for leaks, corrosion, or damage.

  • Cleanliness: Remove debris that could hinder valve closure.

  • Pressure Testing: Verify opening/closing thresholds periodically.

  • Replace Worn Parts: Upgrade springs or seals to prevent failures.

Pro Tip: Monitor symptoms like noise or erratic system behavior—early detection avoids major repairs.

FAQs

Q: Are check valves and non-return valves the same?
A: Yes—the terms are interchangeable.

Q: How often should NRVs be replaced?
A: Depends on usage; inspect annually and replace every 3–5 years or as needed.

Conclusion

Hydraulic non-return valves are indispensable for fluid control, offering reliability across diverse applications. By selecting the appropriate type and adhering to maintenance protocols, industries can enhance efficiency and safety. Stay proactive—consult experts and prioritize quality to maximize your system’s lifespan.

https://www.fitsch.cn/NON-RETURN-VALVE-pl3286519.html click here for more product details from Fitsch.

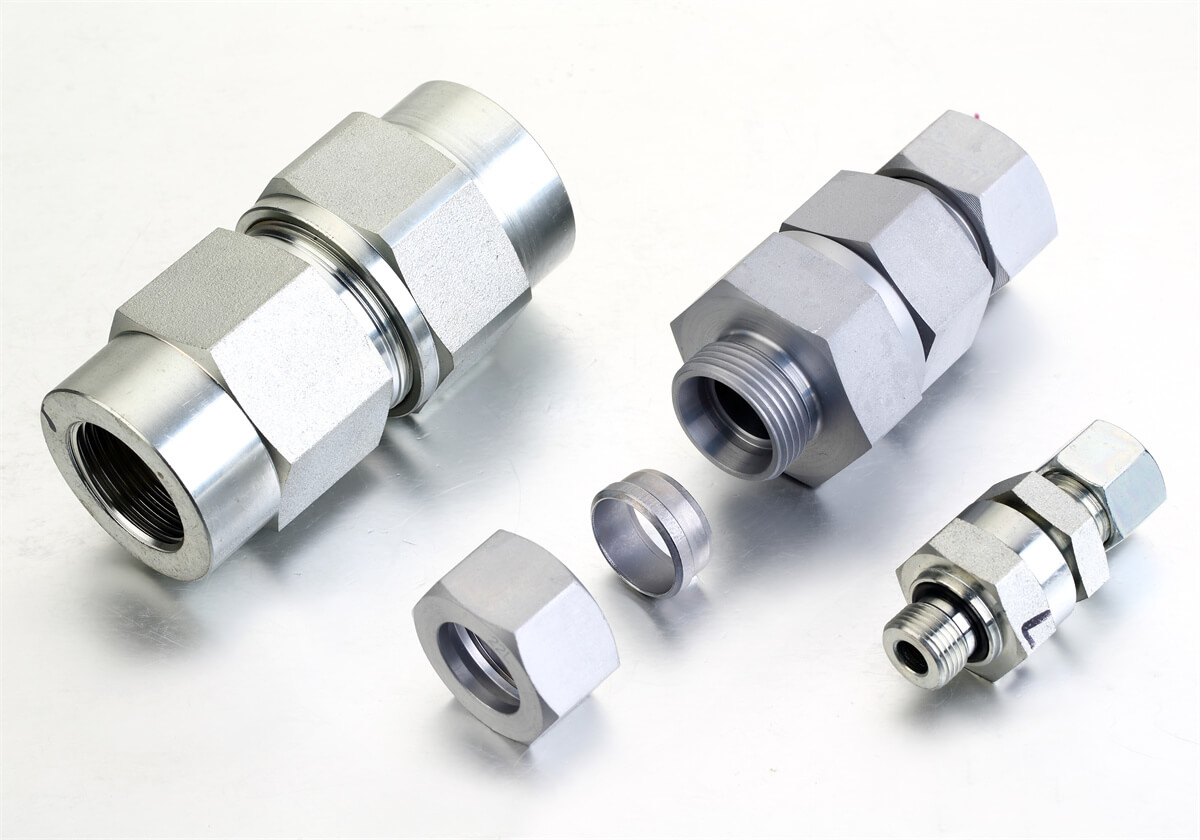

hydraulic non return valve check type
